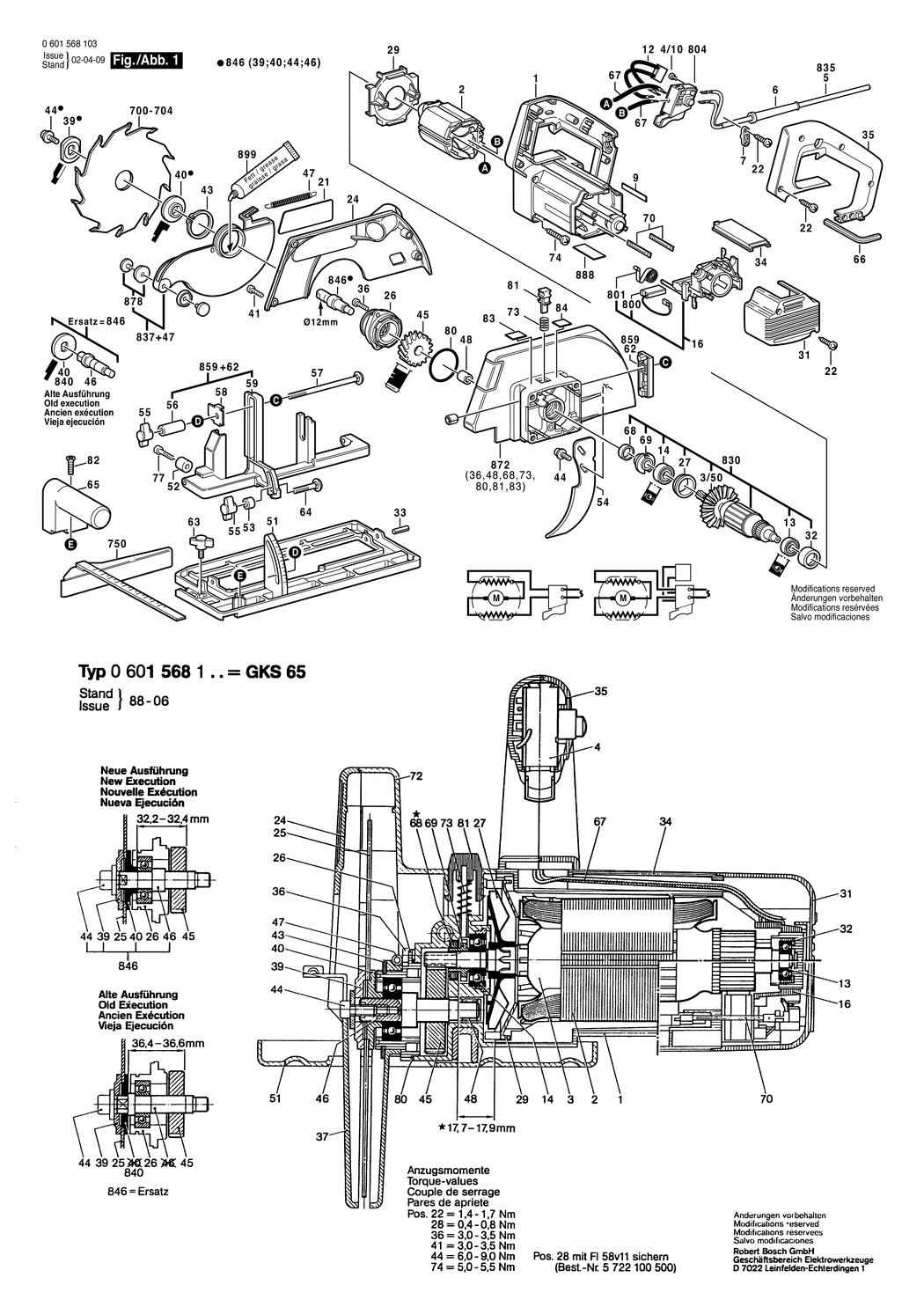

1 - HANDLE COVER
BSD-1607000925.A28
1607000925
|
-
|
|
|
|
1 - MOTOR HOUSING
BSD-1605108152.A3
1605108152
|
-
|
|
|
|
2 - FIELD 240V
BSD-1604220356.A1
1604220356
|
£27.23
|
£32.68
|
|
|
3/50 - FAN
BSD-1606610122.A44
1606610122
|
£2.80
|
£3.36
|
|
|
4/10 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A810
2603410001
|
£1.75
|
£2.10
|
|
|
5 - POWER SUPPLY CORD GB 240V 4.15m 2 x 1.0mm H05 VV-F
BSD-1604460123.A4
1604460123
|
£14.75
|
£17.70
|
|
|
6 - GROMMET dia8.8-dia9.0x70 MM
BSD-1600703024.A14
1600703024
|
-
|
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A346
1600703023
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A953
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110483.A113
1601110483
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A452
1607328028
|
£5.30
|
£6.36
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1024
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x26x8
BSD-1610905009.A90
1610905009
|
£14.72
|
£17.67
|
|
|
16 - BRUSH HOLDER
BSD-1604336042.A20
1604336042
|
-
|
|
|
|
21 - MANUFACTURER'S NAMEPLATE
BSD-1601110605.A4
1601110605
|
£2.80
|
£3.36
|
|
|
22 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A133
2912401019
|
£1.75
|
£2.10
|
|
|
24 - PROTECTIVE COVER
BSD-1605510157.A33
1605510157
|
£14.72
|
£17.67
|
|
|
26 - BEARING FLANGE
BSD-1605808065.A5
1605808065
|
£11.78
|
£14.13
|
|
|
27 - INTERMEDIATE RING
BSD-1600221003.A84
1600221003
|
£2.61
|
£3.13
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591007.A12
1600591007
|
£2.61
|
£3.13
|
|
|
31 - SEALING CAP
BSD-1605500158.A19
1605500158
|
-
|
|
|
|
32 - INTERMEDIATE RING
BSD-1600502011.A197
1600502011
|
£2.61
|
£3.13
|
|
|
33 - SLOTTED SPRING PIN 6x22 DIN7346
BSD-2917780150.A11
2917780150
|
£1.75
|
£2.10
|
|
|
34 - COVER STRIP
BSD-1601099021.A19
1601099021
|
-
|
|
|
|
35 - HANDLE COVER
BSD-1605500159.A7
1605500159
|
-
|
|
|
|
36 - THREAD-FORMING TAP. SCREW
BSD-2603435042.A134
2603435042
|
£1.75
|
£2.10
|
|
|
39 - CONICAL SPRING WASHER
BSD-1605703107.A14
1605703107
|
£3.72
|
£4.47
|
|
|
40 - CLAMPING-FLANGE dia 12x30 MM
BSD-1605703091.A21
1605703091
|
-
|
|
|
|
41 - THREAD-FORMING TAP. SCREW DIN 7500-M 4x12
BSD-2914491409.A26
2914491409
|
£1.66
|
£1.99
|
|
|
43 - SPRING RETAINING RING DIN 471-40x1.75-FST
BSD-2916650020.A70
2916650020
|
-
|
|
|
|
44 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A212
1603414007
|
£2.29
|
£2.75
|
|
|
45 - CYLINDRICAL GEAR Z=41
BSD-1606320081.A16
1606320081
|
-
|
|
|
|
46 - DRIVE SHAFT M6. dia12 MM
BSD-1603124119.A8
1603124119
|
-
|
|
|
|
47 - EXTENSION SPRING
BSD-1604649001.A11
1604649001
|
-
|
|
|
|
48 - NOZZLE SOCKET
BSD-1600910019.A37
1600910019
|
£3.34
|
£4.01
|
|
|
51 - BASE PLATE 358x151 MM
BSD-1608000107.A5
1608000107
|
-
|
|
|
|
52 - RUBBER BUFFER
BSD-1600305001.A14
1600305001
|
£1.75
|
£2.10
|
|
|
53 - SPACER BUSHING
BSD-1600309012.A36
1600309012
|
£1.75
|
£2.10
|
|
|
54 - RIVING KNIFE
BSD-1600025013.A23
1600025013
|
£3.34
|
£4.01
|
|
|
55 - WING NUT M6
BSD-1603339006.A196
1603339006
|
£2.52
|
£3.02
|
|
|
56 - SPACER BUSHING dia33xdia6.2xdia14.7 MM
BSD-1600309013.A4
1600309013
|
-
|
|
|
|
57 - PAN HEAD SCREW M6x170 MM
BSD-1603434005.A11
1603434005
|
-
|
|
|
|
58 - ADJUSTING PLATE
BSD-1601329015.A9
1601329015
|
£1.95
|
£2.34
|
|
|
59 - SWIVELLING LEVER
BSD-1608190013.A5
1608190013
|
-
|
|
|
|
62 - THRUST MEMBER
BSD-1608040112.A13
1608040112
|
-
|
|
|
|
63 - WING SCREW
BSD-1603480022.A6
1603480022
|
-
|
|
|
|
64 - ROUND-HEAD BOLT DIN 603-M6x35
BSD-2910281207.A8
2910281207
|
£1.75
|
£2.10
|
|
|
65 - AUXILIARY HANDLE
BSD-1605133039.A12
1605133039
|
£8.49
|
£10.19
|
|
|
66 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A131
1907950006
|
£4.26
|
£5.11
|
|
|
67 - SUPPRESSOR BOX
BSD-1604503014.A17
1604503014
|
-
|
|
|
|
68 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A199
1600290016
|
£2.61
|
£3.13
|
|
|
69 - LOCKING RING
BSD-1600390013.A14
1600390013
|
£5.01
|
£6.01
|
|
|
70 - BLADE TERMINAL
BSD-1604477005.A185
1604477005
|
£2.61
|
£3.13
|
|
|
73 - COMPRESSION SPRING
BSD-1604611029.A16
1604611029
|
£1.32
|
£1.58
|
|
|
74 - THREAD-FORMING TAP. SCREW TT M5x30 MM
BSD-1603435022.A42
1603435022
|
£1.75
|
£2.10
|
|
|
77 - PAN HEAD SCREW DIN 923-M4x10-5.8
BSD-2910271120.A33
2910271120
|
£1.32
|
£1.58
|
|
|
80 - O-RING 46.0x1.1 MM
BSD-3600210124.A346
3600210124
|
£2.80
|
£3.36
|
|
|
81 - STOPPING DEVICE
BSD-1603231011.A21
1603231011
|
-
|
|
|
|
82 - OVAL-HEAD SCREW DIN 7985-M6x16-4.8
BSD-2910641197.A15
2910641197
|
-
|
|
|
|
83 - REFERENCE PLATE
BSD-1601110470.A85
1601110470
|
£1.75
|
£2.10
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014129.A23
1607014129
|
£16.41
|
£19.69
|
|
|
801 - SPIRAL SPRING
BSD-2604652008.A80
2604652008
|
-
|
|
|
|
804 - ON-OFF SWITCH
BSD-1607000231.A4
1607000231
|
£18.96
|
£22.75
|
|
|
830 - ARMATURE WITH FAN 240V
BSD-1604010331.A3
1604010331
|
-
|
|
|
|
837 - PIVOTING BLADE GUARD
BSD-1605510172.A3
1605510172
|
-
|
|
|
|
840 - CLAMPING-FLANGE
BSD-1605703093.A3
1605703093
|
-
|
|
|
|
846 - PARTS SET dia 12 MM. M6
BSD-1607000225.A6
1607000225
|
-
|
|
|
|
859 - PARTS SET
BSD-1607000197.A12
1607000197
|
-
|
|
|
|
872 - PARTS SET
BSD-1607000223.A26
1607000223
|
-
|
|
|
|
878 - PARTS SET
BSD-1607000205.A20
1607000205
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1714
160111A3H3
|
£2.61
|
£3.13
|
|
|
899 - GREASE TUBE 225 ML
BSD-1605430003.A238
1605430003
|
£33.74
|
£40.49
|
|
