Bosch GKS 65 GCE / 3601F68970 / GB 230 Volt Spare Parts

Home Details Reviews Delivery

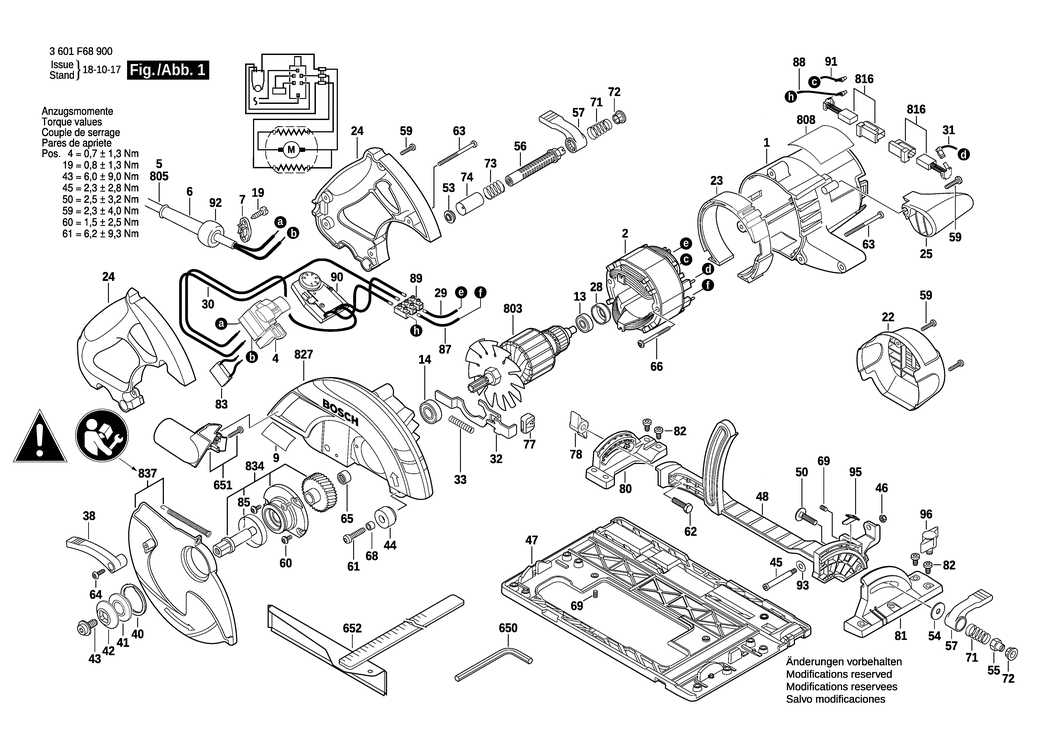

An exploded drawing and listing for the Bosch GKS 65 GCE / 3601F68970 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610934305.A10 2610934305	£18.96	£22.75
2 - FIELD 230V BSD-1619P01571.A16 1619P01571	£30.28	£36.33
4 - SWITCH BSD-2610925421.A11 2610925421	£11.30	£13.56
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460185.A15 1604460185	£21.52	£25.83
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A860 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-2610993191.A9 2610993191	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1619P31123.A1 1619P31123	£2.61	£3.13
13 - GROOVE BALL BEARING BSD-2610017348.A38 2610017348	£11.30	£13.56
14 - GROOVE BALL BEARING BSD-2610350311.A17 2610350311	£12.04	£14.45
19 - SCREW BSD-1619X00504.A12 1619X00504	£1.75	£2.10
22 - SEALING CAP BSD-2610917052.A11 2610917052	£5.30	£6.36
23 - BAFFLE BSD-2610924448.A17 2610924448	£5.58	£6.70
24 - HANDLE BSD-2610933955.A8 2610933955	£14.91	£17.89
25 - AUXILIARY HANDLE BSD-2610924143.A18 2610924143	£5.30	£6.36
28 - RUBBER RING BSD-1619P01127.A15 1619P01127	£1.75	£2.10
29 - CABLE BSD-2610921019.A1 2610921019	£1.75	£2.10
30 - CABLE BSD-2610921020.A8 2610921020	£1.75	£2.10
31 - CABLE BSD-2610918148.A9 2610918148	£2.16	£2.59
32 - LOCKING BOLT BSD-2610937399.A2 2610937399	£3.72	£4.47
33 - COMPRESSION SPRING BSD-1619P01642.A22 1619P01642	£1.75	£2.10
38 - LEVER BSD-2610919868.A17 2610919868	£2.16	£2.59
40 - RETAINING SNAP RING BSD-2610921144.A9 2610921144	£1.75	£2.10
41 - WASHER BSD-2610924449.A0 2610924449	£5.87	£7.04
42 - CONICAL SPRING WASHER BSD-1605703107.A48 1605703107	£3.72	£4.47
43 - FLANGE BOLT BSD-1619X01613.A8 1619X01613	£2.49	£2.99
44 - BUMPER BSD-2610918151.A17 2610918151	£1.75	£2.10
45 - SHOULDER SCREW BSD-1619P09219.A3 1619P09219	£1.75	£2.10
46 - HEX NUT DIN 985-M 5-8-A BSD-2915061003.A57 2915061003	£2.16	£2.59
47 - BASE PLATE BSD-1600A00XR0.A3 1600A00XR0	£37.27	£44.72
48 - BRIDGE BSD-1600A00XX1.A0 1600A00XX1	£33.74	£40.49
50 - ROUND-HEAD BOLT BSD-1619P09421.A1 1619P09421	£1.75	£2.10
53 - WASHER BSD-1619P01535.A2 1619P01535	£1.75	£2.10
54 - WASHER BSD-1619X00942.A70 1619X00942	£1.75	£2.10
55 - NUT BSD-1619X01791.A4 1619X01791	£1.75	£2.10
56 - ROD BSD-2610917191.A7 2610917191	£2.61	£3.13
57 - LEVER BSD-2610924368.A0 2610924368	£2.89	£3.47
59 - SCREW BSD-1619P01505.A24 1619P01505	£1.75	£2.10
60 - CONTACT SCREW BSD-1619X07057.A3 1619X07057	£1.75	£2.10
61 - SCREW BSD-2610920385.A1 2610920385	£1.75	£2.10
62 - STUD BOLT M6x25 MM BSD-F016L11371.A20 F016L11371	£2.61	£3.13
63 - SCREW BSD-2610925864.A7 2610925864	£1.75	£2.10
64 - SCREW BSD-1619X06749.A0 1619X06749	£1.75	£2.10
65 - NEEDLE-ROLLER BEARING BSD-2610020639.A14 2610020639	£3.72	£4.47
66 - SCREW BSD-2610931997.A16 2610931997	£2.61	£3.13
68 - SPACER TUBE BSD-2610918985.A1 2610918985	£1.75	£2.10
69 - ADJUSTING SCREW BSD-2610924685.A12 2610924685	£1.75	£2.10
71 - SPRING BSD-1619X01792.A11 1619X01792	£1.75	£2.10
72 - COVER BSD-1619P17212.A17 1619P17212	£2.61	£3.13
73 - SPRING BSD-2610919467.A1 2610919467	£1.75	£2.10
74 - COVER SLEEVE BSD-2610919327.A17 2610919327	£1.75	£2.10
77 - COVER BSD-2610921530.A9 2610921530	£1.75	£2.10
78 - WING NUT BSD-1619P06244.A5 1619P06244	£1.75	£2.10
80 - HINGE BRACKET BSD-1619P09216.A3 1619P09216	£5.58	£6.70
81 - HINGE BRACKET BSD-1619P09215.A5 1619P09215	£6.52	£7.83
82 - TORX OVAL-HEAD SCREW M5x12-TORX.T25 BSD-1613435015.A23 1613435015	£2.61	£3.13
83 - SUPPRESSION FILTER BSD-2610916645.A7 2610916645	£3.72	£4.47
85 - COVER SLEEVE BSD-2610920799.A17 2610920799	£1.75	£2.10
87 - CABLE BSD-2610921021.A1 2610921021	£1.75	£2.10
88 - CABLE BSD-2610921023.A2 2610921023	£1.75	£2.10
89 - TERMINAL BLOCK BSD-2610925211.A6 2610925211	£2.61	£3.13
90 - SPEED GOVERNOR BSD-2610921905.A7 2610921905	£45.67	£54.80
91 - CABLE BSD-2610921017.A8 2610921017	£2.16	£2.59
92 - LOCKING ELEMENT BSD-1603231014.A28 1603231014	£2.16	£2.59
93 - WASHER BSD-2610929166.A3 2610929166	£1.75	£2.10
95 - INDICATOR BSD-1619P09217.A5 1619P09217	£27.31	£32.77
96 - ADJUSTMENT KNOB BSD-2610990806.A12 2610990806	£2.41	£2.89
650 - OFFSET SCREWDRIVER BSD-1619P14506.A5 1619P14506	£1.75	£2.10
651 - VACUUM ADAPTER BSD-2610925244.A12 2610925244	£4.27	£5.12
652 - MITRE FENCE BSD-1619X01612.A7 1619X01612	£11.30	£13.56
803 - ARMATURE 230V BSD-1619X01696.A11 1619X01696	£59.53	£71.44
808 - NAMEPLATE BSD-1619X06507.A0 1619X06507	£2.33	£2.80
816 - CARBON-BRUSH SET BSD-2610925372.A4 2610925372	£21.52	£25.83
827 - UPPER GUARD BSD-2610925374.A5 2610925374	£54.42	£65.30
834 - GEAR SHAFT BSD-2610925373.A13 2610925373	£31.64	£37.97
837 - LOWER GUARD BSD-1619P14440.A1 1619P14440	£21.68	£26.01

Attribute Name	Value
Brand	Bosch
