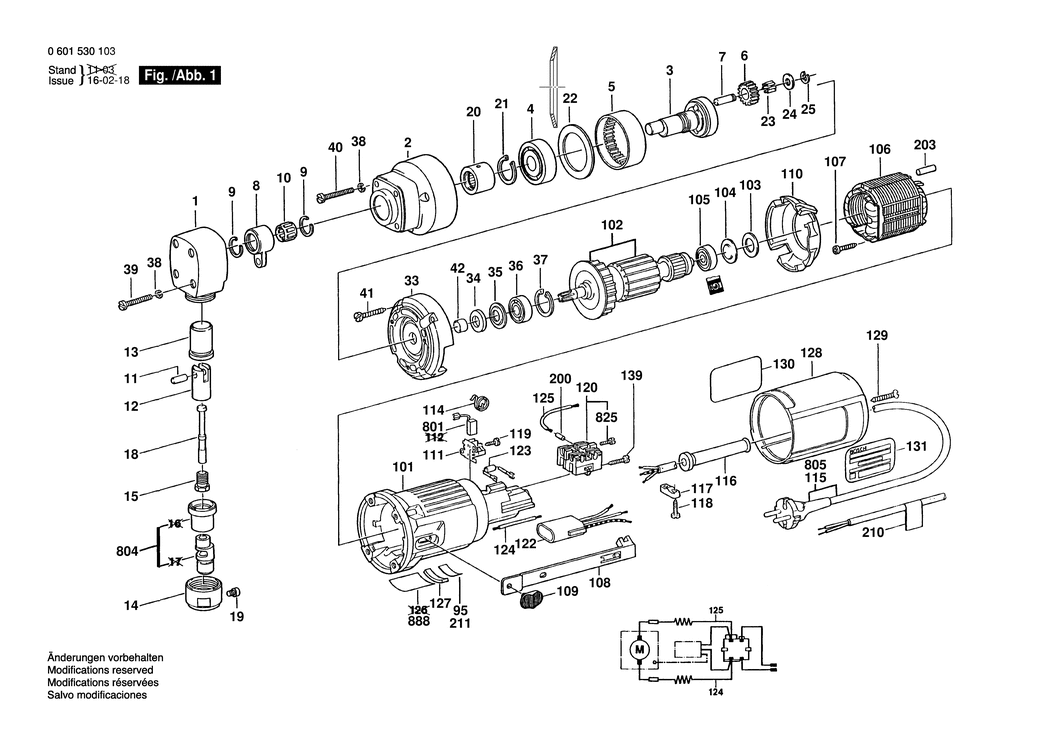

1 - GEAR COVER
BSD-2605500042.A21
2605500042
|
£48.38
|
£58.06
|
|
|
2 - GEAR HOUSING
BSD-2605806312.A5
2605806312
|
£48.38
|
£58.06
|
|
|
3 - ECCENTRIC SHAFT
BSD-2606122001.A6
2606122001
|
£102.57
|
£123.08
|
|
|
4 - GROOVE BALL BEARING 20x42x12
BSD-1900900274.A37
1900900274
|
£27.23
|
£32.68
|
|
|
5 - RING GEAR Z=66
BSD-2606334040.A24
2606334040
|
£27.23
|
£32.68
|
|
|
6 - CYLINDRICAL GEAR Z=30
BSD-3606316057.A19
3606316057
|
£7.36
|
£8.83
|
|
|
7 - BEARING BOLT
BSD-2603105021.A5
2603105021
|
£2.61
|
£3.13
|
|
|
8 - CONNECTING ROD
BSD-2602001001.A28
2602001001
|
£54.42
|
£65.30
|
|
|
9 - RETAINING RING
BSD-2600224009.A19
2600224009
|
£1.75
|
£2.10
|
|
|
10 - NEEDLE-ROLLER CAGE
BSD-2600913035.A29
2600913035
|
£11.30
|
£13.56
|
|
|
11 - BEARING BOLT
BSD-2603100003.A61
2603100003
|
£2.61
|
£3.13
|
|
|
12 - POWER PISTON
BSD-2603104001.A26
2603104001
|
£54.42
|
£65.30
|
|
|
13 - BUSHING
BSD-2600422005.A23
2600422005
|
£18.96
|
£22.75
|
|
|
14 - UNION NUT
BSD-3603340017.A20
3603340017
|
£33.74
|
£40.49
|
|
|
15 - HOLLOW BOLT
BSD-2603455006.A8
2603455006
|
£2.80
|
£3.36
|
|
|
17 - LOWER DIE
BSD-3608639029.A4
3608639029
|
-
|
|
|
|
18 - NIBBLING PUNCH
BSD-3608639026.A3
3608639026
|
£31.64
|
£37.97
|
|
|
19 - HEX SOCKET HEAD CAP SCREW
BSD-2603414003.A17
2603414003
|
£6.52
|
£7.83
|
|
|
20 - NEEDLE BEARING
BSD-2600914011.A18
2600914011
|
£21.52
|
£25.83
|
|
|
21 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A8
2916650011
|
£2.16
|
£2.59
|
|
|
22 - DISC SPRING
BSD-2600550017.A18
2600550017
|
£5.58
|
£6.70
|
|
|
23 - NEEDLE ROLLER
BSD-1903201520.A13
1903201520
|
£1.75
|
£2.10
|
|
|
24 - SHIM 1.2 MM
BSD-1600100611.A29
1600100611
|
£1.75
|
£2.10
|
|
|
25 - LOCKING WASHER 5 DIN 6799
BSD-2916080908.A245
2916080908
|
£1.75
|
£2.10
|
|
|
33 - INTERMEDIATE FLANGE
BSD-3605700042.A3
3605700042
|
£72.18
|
£86.62
|
|
|
34 - FELT WASHER
BSD-2600108002.A43
2600108002
|
£2.16
|
£2.59
|
|
|
35 - CUPPED WASHER
BSD-2600500002.A279
2600500002
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A433
2600905021
|
£8.67
|
£10.41
|
|
|
37 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A563
2916660008
|
£2.16
|
£2.59
|
|
|
38 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A56
2916690003
|
£1.75
|
£2.10
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8
BSD-2910021138.A18
2910021138
|
£2.61
|
£3.13
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A153
2910021134
|
£1.75
|
£2.10
|
|
|
41 - TORX OVAL-HEAD SCREW
BSD-2914201508.A67
2914201508
|
£1.75
|
£2.10
|
|
|
42 - RECEPTACLE
BSD-2600400008.A80
2600400008
|
£1.75
|
£2.10
|
|
|
101 - MOTOR HOUSING
BSD-2605108051.A1
2605108051
|
£21.52
|
£25.83
|
|
|
102 - ARMATURE 115V
BSD-2604010607.A1
2604010607
|
£72.18
|
£86.62
|
|
|
103 - SHIM 0.3 MM
BSD-2600101023.A133
2600101023
|
£1.75
|
£2.10
|
|
|
103 - SHIM 0.2 MM
BSD-2600101022.A517
2600101022
|
£1.75
|
£2.10
|
|
|
103 - SHIM 0.5 MM
BSD-2600101020.A133
2600101020
|
£1.75
|
£2.10
|
|
|
104 - SHIM
BSD-2600150004.A97
2600150004
|
£2.16
|
£2.59
|
|
|
105 - BALL BEARING 7x22x7
BSD-1900905018.A832
1900905018
|
£18.96
|
£22.75
|
|
|
106 - FIELD 110-120V
BSD-2604220428.A12
2604220428
|
£27.23
|
£32.68
|
|
|
107 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A28
2603435015
|
£2.16
|
£2.59
|
|
|
108 - ADJUSTING SLIDE
BSD-2602319005.A27
2602319005
|
£1.75
|
£2.10
|
|
|
109 - SWITCH HANDLE
BSD-2602026015.A131
2602026015
|
£1.75
|
£2.10
|
|
|
110 - COVER DISC
BSD-2601328045.A50
2601328045
|
£2.16
|
£2.59
|
|
|
111 - BRUSH HOLDER
BSD-1600A003G4.A257
1600A003G4
|
£3.72
|
£4.47
|
|
|
114 - SPIRAL SPRING
BSD-1604652013.A543
1604652013
|
£1.75
|
£2.10
|
|
|
115 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460205.A54
2604460205
|
£27.23
|
£32.68
|
|
|
116 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1310
2600703012
|
£2.80
|
£3.36
|
|
|
117 - CABLE CLIP
BSD-2601035001.A341
2601035001
|
£1.75
|
£2.10
|
|
|
118 - SCREW 4x16
BSD-2603490022.A1538
2603490022
|
£1.75
|
£2.10
|
|
|
119 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A337
1613435034
|
£1.75
|
£2.10
|
|
|
120 - SWITCH
BSD-2607200674.A63
2607200674
|
£16.41
|
£19.69
|
|
|
122 - SUPPRESSION FILTER
BSD-2607329104.A93
2607329104
|
£10.10
|
£12.12
|
|
|
123 - SUPPRESSION FILTER
BSD-3604465000.A5
3604465000
|
£5.30
|
£6.36
|
|
|
124 - CONNECTING CABLE L=68MM
BSD-2604448039.A31
2604448039
|
£2.16
|
£2.59
|
|
|
125 - CONNECTING CABLE L=125MM
BSD-2604448040.A10
2604448040
|
£2.61
|
£3.13
|
|
|
128 - HOUSING COVER
BSD-2600508036.A22
2600508036
|
£10.10
|
£12.12
|
|
|
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H
BSD-2910601321.A108
2910601321
|
-
|
|
|
|
130 - STICKER
BSD-3601110385.A2
3601110385
|
-
|
|
|
|
131 - STICKER
BSD-3601110373.A2
3601110373
|
-
|
|
|
|
139 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A21
2910211007
|
£1.75
|
£2.10
|
|
|
200 - END SPLICE
BSD-3604477009.A301
3604477009
|
£2.61
|
£3.13
|
|
|
801 - CARBON-BRUSH SET
BSD-2604320910.A41
2604320910
|
£10.10
|
£12.12
|
|
|
804 - LOWER DIE
BSD-2608639900.A18
2608639900
|
£83.12
|
£99.74
|
|
|
804 - LOWER DIE
BSD-2608639902.A3
2608639902
|
£96.24
|
£115.49
|
|
|
804 - LOWER DIE
BSD-2608639021.A5
2608639021
|
£76.12
|
£91.34
|
|
|
804 - NIBBLING PUNCH
BSD-2608639022.A1
2608639022
|
£26.24
|
£31.49
|
|
|
825 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A222
2603410001
|
£1.75
|
£2.10
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1095
160111A3H3
|
£2.61
|
£3.13
|
|
