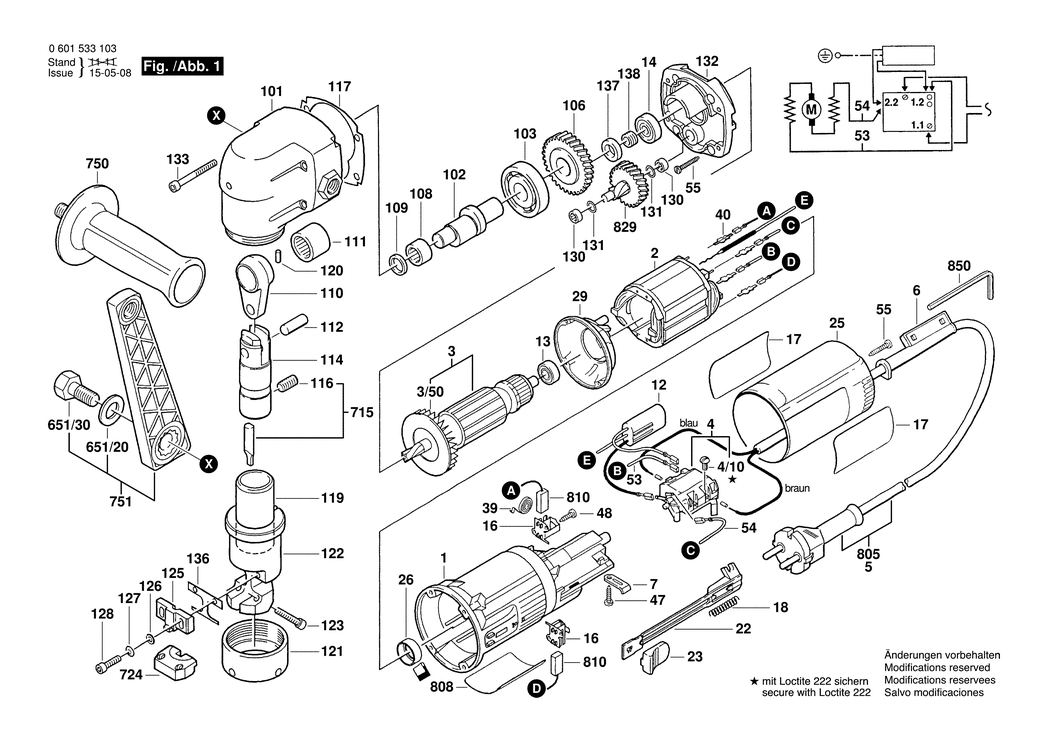

An exploded drawing and listing for the Bosch GNA 3.5 / 0601533132 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-16051082CC.A65 16051082CC £13.12 £15.75
2 - FIELD 240V BSD-1604220194.A26 1604220194 £23.86 £28.63
3 - ARMATURE 220V BSD-1604010183.A27 1604010183 £48.38 £58.06
3/50 - FAN BSD-2606610049.A284 2606610049 £2.16 £2.59
4 - ON-OFF SWITCH BSD-1607200086.A340 1607200086 £11.30 £13.56
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A576 2910110048 £1.75 £2.10
5 - POWER SUPPLY CORD BSD-1604460456.A0 1604460456 -
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A76 2600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A851 1601302017 £1.75 £2.10
12 - SUPPRESSION FILTER BSD-2607329124.A15 2607329124 £10.10 £12.12
13 - BALL BEARING 7x19x6 BSD-2600905032.A1044 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A667 2600905021 £8.67 £10.41
16 - BRUSH HOLDER BSD-1601323019.A17 1601323019 £1.75 £2.10
17 - COMPANY LOGO BSD-3601110345.A1 3601110345 £3.72 £4.47
18 - COMPRESSION SPRING BSD-1604611026.A540 1604611026 £1.75 £2.10
22 - ADJUSTING SLIDE BSD-1602319002.A21 1602319002 £2.61 £3.13
23 - SWITCH HANDLE BSD-1602026057.A479 1602026057 £1.97 £2.36
25 - HOUSING COVER BSD-1600508010.A75 1600508010 £7.36 £8.83
26 - RUBBER BUSHING BSD-1600502020.A132 1600502020 £2.61 £3.13
29 - AIR-DEFLECTOR RING BSD-1601328005.A175 1601328005 £2.61 £3.13
39 - SPIRAL SPRING BSD-1604652013.A795 1604652013 £1.75 £2.10
40 - BLADE TERMINAL BSD-1604477011.A0 1604477011 £2.16 £2.59
47 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A40 2910211018 £1.75 £2.10
48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A442 1613435034 £1.75 £2.10
53 - CONNECTING CABLE L=95 MM BSD-1604448005.A77 1604448005 £2.80 £3.36
54 - CONNECTING CABLE L=40 MM BSD-1604448006.A41 1604448006 £2.61 £3.13
55 - TORX OVAL-HEAD SCREW BSD-2914201508.A95 2914201508 £1.75 £2.10
101 - GEAR HOUSING BSD-3605806176.A1 3605806176 £195.26 £234.31
102 - ECCENTRIC SHAFT BSD-3606110007.A3 3606110007 £45.67 £54.80
103 - GROOVE BALL BEARING 6303-2 Z DIN 625 BSD-1900905326.A11 1900905326 £27.23 £32.68
104 - INSULATING PLATE BSD-1601008003.A10 1601008003 £1.95 £2.34
106 - CYLINDRICAL GEAR Z=37 BSD-3606316086.A3 3606316086 £45.67 £54.80
108 - NEEDLE BEARING BSD-3600917019.A54 3600917019 £11.30 £13.56
109 - FELT WASHER BSD-3600200041.A2 3600200041 £2.16 £2.59
110 - CONNECTING ROD BSD-3602001006.A1 3602001006 £102.57 £123.08
111 - NEEDLE BEARING BSD-3600917042.A0 3600917042 £8.67 £10.41
112 - STRAIGHT PIN DIN 6325-10m6x24 BSD-2917530199.A7 2917530199 £6.52 £7.83
114 - TAPPET BSD-3603070002.A1 3603070002 £37.27 £44.72
116 - SET SCREW DIN 913-M8x16-45H BSD-2912080238.A2 2912080238 £1.75 £2.10
117 - SEAL BSD-3601006010.A4 3601006010 £2.80 £3.36
119 - GUIDE SLEEVE BSD-3600400018.A2 3600400018 £27.23 £32.68
120 - STRAIGHT PIN DIN 7-4 M6x10-ST BSD-2917510094.A2 2917510094 £1.75 £2.10
121 - ROUND NUT BSD-3603301016.A3 3603301016 £37.27 £44.72
122 - LOWER DIE RING BSD-3607031358.A2 3607031358 £410.78 £492.94
123 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x22-8.8 BSD-2910141163.A17 2910141163 £1.75 £2.10
125 - GUIDE PIECE BSD-3602380009.A3 3602380009 £40.80 £48.96
126 - PLAIN WASHER DIN 433-5.3-ST BSD-2916011011.A187 2916011011 £1.75 £2.10
127 - SPRING WASHER BSD-2916069159.A2 2916069159 £3.72 £4.47
128 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8 BSD-2910141160.A38 2910141160 £2.16 £2.59
130 - NEEDLE BEARING dia7 MM BSD-2600910006.A24 2600910006 £3.72 £4.47
131 - SHIM 0.5 MM BSD-1600100631.A235 1600100631 £1.75 £2.10
132 - BEARING FLANGE BSD-3605805026.A3 3605805026 £72.18 £86.62
133 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8 BSD-2910141172.A1 2910141172 £1.75 £2.10
136 - STOP PLATE BSD-3601181039.A3 3601181039 £4.26 £5.11
137 - ROTARY SHAFT LIP SEAL BSD-1600290016.A185 1600290016 £2.61 £3.13
138 - INTERMEDIATE RING BSD-1600300090.A106 1600300090 £3.72 £4.47
651/20 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A165 2916011022 £1.75 £2.10
651/30 - HEX SCREW BSD-2603450009.A1 2603450009 -
715 - NIBBLING PUNCH BSD-2608639025.A4 2608639025 £51.48 £61.77
724 - LOWER DIE BSD-2608639026.A0 2608639026 £74.58 £89.50
750 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A79 2602025075 £10.30 £12.36
751 - PARTS SET BSD-2607001190.A1 2607001190 -
808 - NAMEPLATE BSD-160111A3H3.A1746 160111A3H3 £2.61 £3.13
810 - CARBON BRUSH BSD-3604321019.A1 3604321019 £14.91 £17.89
829 - SPINDLE WITH GEAR Z=8/26 BSD-3606328017.A1 3606328017 £68.42 £82.10
850 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A211 2607950004 £1.75 £2.10
