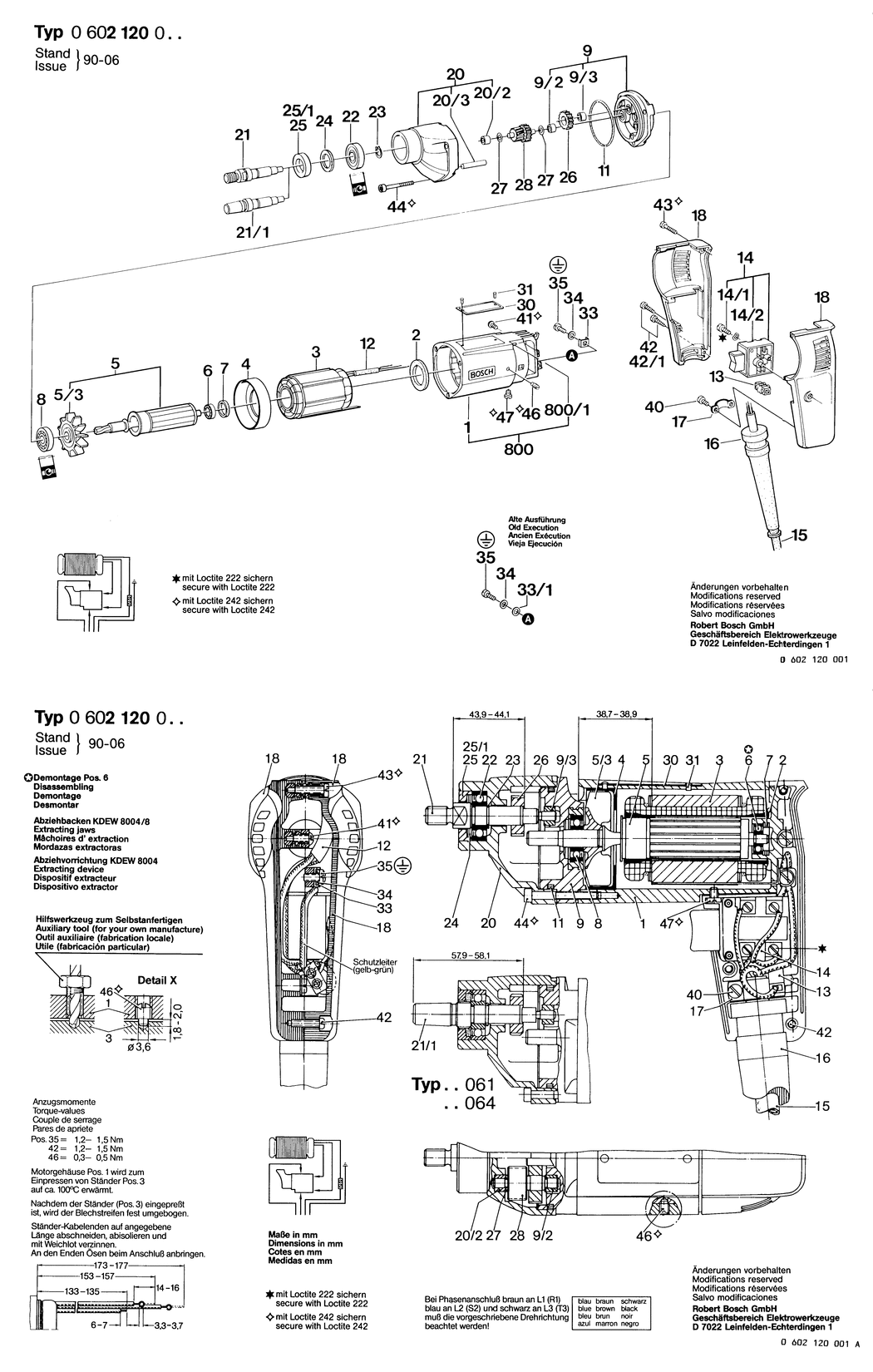

An exploded drawing and listing for the Bosch GR.55 / 0602120007 / --- 72 Volt
Ex VAT Inc VAT
2 - SEAL RING BSD-1600209011.A85 1600209011 £2.80 £3.36
3 - STATOR 72V/200HZ.110V/300HZ BSD-1604229202.A20 1604229202 £306.65 £367.98
4 - AIR-DEFLECTOR RING BSD-1600502005.A336 1600502005 £2.61 £3.13
5 - ROTOR BSD-3604080020.A12 3604080020 -
5/3 - FAN BSD-1606610105.A39 1606610105 £14.91 £17.89
6 - GROOVE BALL BEARING 5x16x5 BSD-1900900232.A158 1900900232 £16.74 £20.09
7 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A75 3600206002 -
8 - GROOVE BALL BEARING 609 RSY/C3 DIN 625 BSD-1900905036.A53 1900905036 -
9 - BEARING HOUSING BSD-3605820006.A57 3605820006 -
9/2 - BUSHING BSD-3600300008.A114 3600300008 -
9/3 - BUSHING BSD-3600300002.A60 3600300002 -
11 - O-RING 45x3MM BSD-1900210146.A47 1900210146 £4.26 £5.11
13 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A234 1901091012 £5.30 £6.36
14 - ON-OFF SWITCH BSD-1607200040.A27 1607200040 -
14/1 - PAN HEAD SCREW DIN 85-M3.5x6-4.8 BSD-2910091082.A46 2910091082 £1.75 £2.10
14/2 - SPRING WASHER A 3.5 DIN 137-ST BSD-2916060004.A6 2916060004 -
16 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1243 3600703011 £2.80 £3.36
17 - FASTENING CLAMP BSD-1601302014.A735 1601302014 £2.61 £3.13
18 - HANDLE BSD-3605132072.A12 3605132072 -
20 - SPINDLE BEARING BSD-3605806034.A5 3605806034 -
20/2 - BUSHING BSD-3600300008.A113 3600300008 -
20/3 - STRAIGHT PIN 4H 8x20 DIN 7 BSD-2917500122.A3 2917500122 £1.75 £2.10
21 - DRILLING SPINDLE 3/8-24 UNF-2 BSD-3603124002.A46 3603124002 -
22 - GROOVE BALL BEARING 6000 Z DIN 625 BSD-1900905100.A6 1900905100 -
23 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A543 2916650001 £2.61 £3.13
24 - SEALING DISK BSD-2600108031.A66 2600108031 -
25 - THREADED RING M 28x1 MM BSD-3603344013.A105 3603344013 £11.78 £14.13
26 - CYLINDRICAL GEAR Z=27 BSD-1606319017.A9 1606319017 -
27 - SHIM 0.50 MM BSD-2600100613.A273 2600100613 £1.75 £2.10
28 - SPINDLE WITH GEAR Z=21/27 BSD-1606328094.A11 1606328094 -
30 - NAMEPLATE BSD-3601106053.A122 3601106053 £5.30 £6.36
31 - GROOVED NAIL BSD-3603133000.A90 3603133000 £2.61 £3.13
33 - CLAMPING SADDLE BSD-3601321001.A641 3601321001 £3.72 £4.47
33/1 - PLAIN WASHER DIN 46 255-DPG 9 BSD-2916010409.A233 2916010409 -
34 - SPRING WASHER dia4.2 MM BSD-3600150006.A571 3600150006 £2.61 £3.13
35 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A184 2910110120 £1.75 £2.10
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A79 2910021116 £2.16 £2.59
41 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A261 2910091118 £1.75 £2.10
42 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2125 2910211019 £1.75 £2.10
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A259 2910011128 £1.75 £2.10
44 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8 BSD-2910141136.A82 2910141136 £2.80 £3.36
46 - SET SCREW BSD-3603402000.A175 3603402000 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x5-5.8 BSD-2910011115.A21 2910011115 £1.75 £2.10
650 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571020.A193 1608571020 -
650/7 - CHUCK WRENCH SG2 BSD-2607950007.A1123 2607950007 £6.52 £7.83
800 - MOTOR HOUSING BSD-3605102022.A63 3605102022 -
