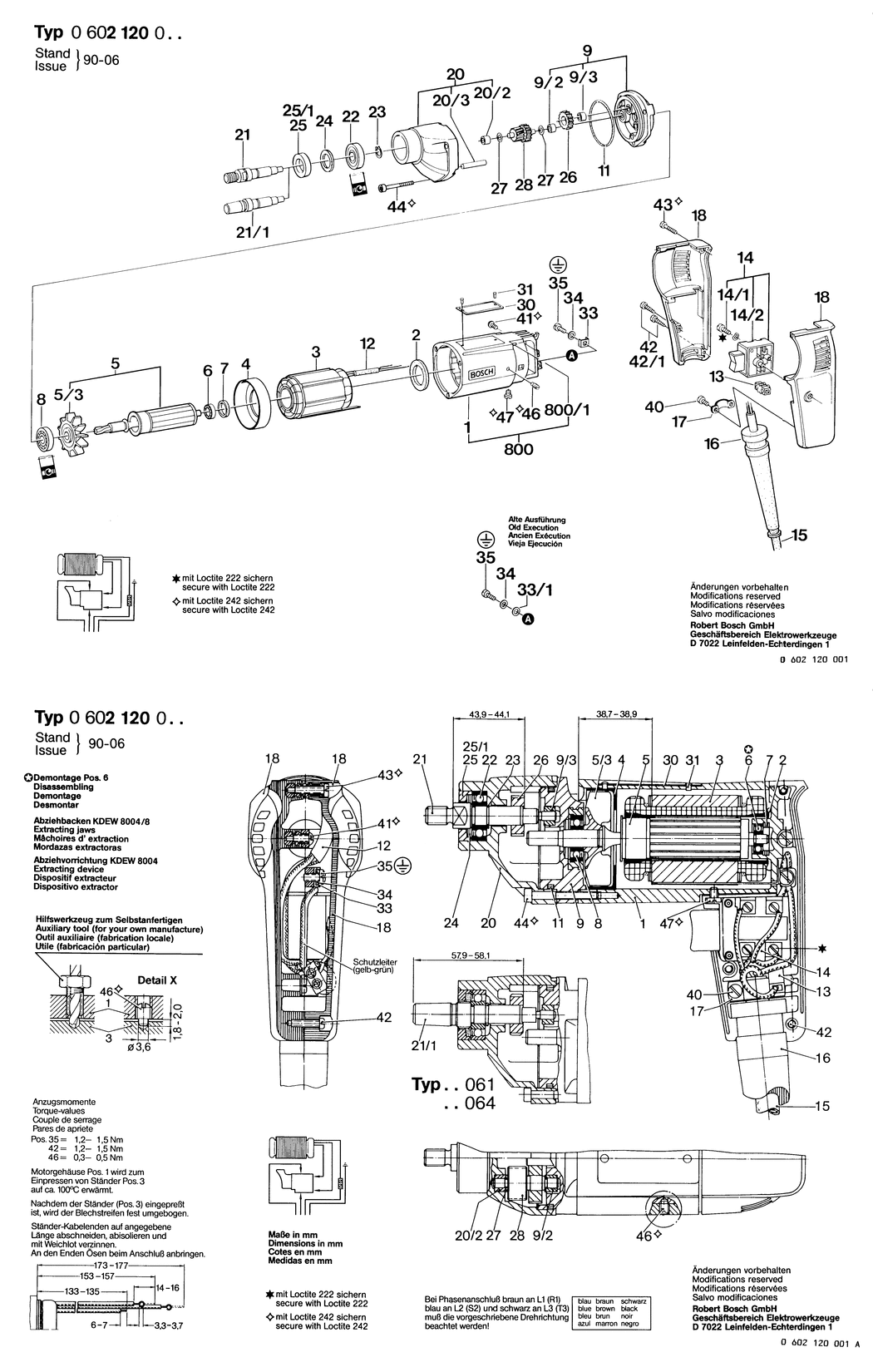

2 - SEAL RING
BSD-1600209011.A77
1600209011
|
£2.80
|
£3.36
|
|
|
3 - STATOR 220V/360HZ
BSD-1604229204.A8
1604229204
|
-
|
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A335
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR
BSD-3604080020.A11
3604080020
|
-
|
|
|
|
5/3 - FAN
BSD-1606610105.A40
1606610105
|
£14.91
|
£17.89
|
|
|
6 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A159
1900900232
|
£16.74
|
£20.09
|
|
|
7 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A76
3600206002
|
-
|
|
|
|
8 - GROOVE BALL BEARING 609 RSY/C3 DIN 625
BSD-1900905036.A52
1900905036
|
-
|
|
|
|
9 - BEARING HOUSING
BSD-3605820006.A56
3605820006
|
-
|
|
|
|
9/2 - BUSHING
BSD-3600300008.A116
3600300008
|
-
|
|
|
|
9/3 - BUSHING
BSD-3600300002.A59
3600300002
|
-
|
|
|
|
11 - O-RING 45x3MM
BSD-1900210146.A46
1900210146
|
£4.26
|
£5.11
|
|
|
13 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A233
1901091012
|
£5.30
|
£6.36
|
|
|
14 - ON-OFF SWITCH
BSD-1607200040.A26
1607200040
|
-
|
|
|
|
14/1 - PAN HEAD SCREW DIN 85-M3.5x6-4.8
BSD-2910091082.A45
2910091082
|
£1.75
|
£2.10
|
|
|
14/2 - SPRING WASHER A 3.5 DIN 137-ST
BSD-2916060004.A7
2916060004
|
-
|
|
|
|
16 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1242
3600703011
|
£2.80
|
£3.36
|
|
|
17 - FASTENING CLAMP
BSD-1601302014.A736
1601302014
|
£2.61
|
£3.13
|
|
|
18 - HANDLE
BSD-3605132072.A11
3605132072
|
-
|
|
|
|
20 - SPINDLE BEARING
BSD-3605806034.A6
3605806034
|
-
|
|
|
|
20/2 - BUSHING
BSD-3600300008.A115
3600300008
|
-
|
|
|
|
20/3 - STRAIGHT PIN 4H 8x20 DIN 7
BSD-2917500122.A4
2917500122
|
£1.75
|
£2.10
|
|
|
21 - DRILLING SPINDLE 3/8-24 UNF-2
BSD-3603124002.A47
3603124002
|
-
|
|
|
|
22 - GROOVE BALL BEARING 6000 Z DIN 625
BSD-1900905100.A7
1900905100
|
-
|
|
|
|
23 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A542
2916650001
|
£2.61
|
£3.13
|
|
|
24 - SEALING DISK
BSD-2600108031.A67
2600108031
|
-
|
|
|
|
25 - THREADED RING M 28x1 MM
BSD-3603344013.A106
3603344013
|
£11.78
|
£14.13
|
|
|
26 - CYLINDRICAL GEAR Z=27
BSD-1606319017.A7
1606319017
|
-
|
|
|
|
27 - SHIM 0.50 MM
BSD-2600100613.A271
2600100613
|
£1.75
|
£2.10
|
|
|
28 - SPINDLE WITH GEAR Z=21/27
BSD-1606328094.A13
1606328094
|
-
|
|
|
|
30 - NAMEPLATE
BSD-3601106053.A120
3601106053
|
£5.30
|
£6.36
|
|
|
31 - GROOVED NAIL
BSD-3603133000.A92
3603133000
|
£2.61
|
£3.13
|
|
|
33 - CLAMPING SADDLE
BSD-3601321001.A643
3601321001
|
£3.72
|
£4.47
|
|
|
33/1 - PLAIN WASHER DIN 46 255-DPG 9
BSD-2916010409.A234
2916010409
|
-
|
|
|
|
34 - SPRING WASHER dia4.2 MM
BSD-3600150006.A573
3600150006
|
£2.61
|
£3.13
|
|
|
35 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A183
2910110120
|
£1.75
|
£2.10
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A80
2910021116
|
£2.16
|
£2.59
|
|
|
41 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A262
2910091118
|
£1.75
|
£2.10
|
|
|
42 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2124
2910211019
|
£1.75
|
£2.10
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A258
2910011128
|
£1.75
|
£2.10
|
|
|
44 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8
BSD-2910141136.A83
2910141136
|
£2.80
|
£3.36
|
|
|
46 - SET SCREW
BSD-3603402000.A177
3603402000
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x5-5.8
BSD-2910011115.A23
2910011115
|
£1.75
|
£2.10
|
|
|
650 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A191
1608571020
|
-
|
|
|
|
650/7 - CHUCK WRENCH SG2
BSD-2607950007.A1122
2607950007
|
£6.52
|
£7.83
|
|
|
800 - MOTOR HOUSING
BSD-3605102022.A65
3605102022
|
-
|
|
|
