Bosch GSH 11 VC / 3611C36070 / GB 220 Volt Spare Parts

Home Details Reviews Delivery

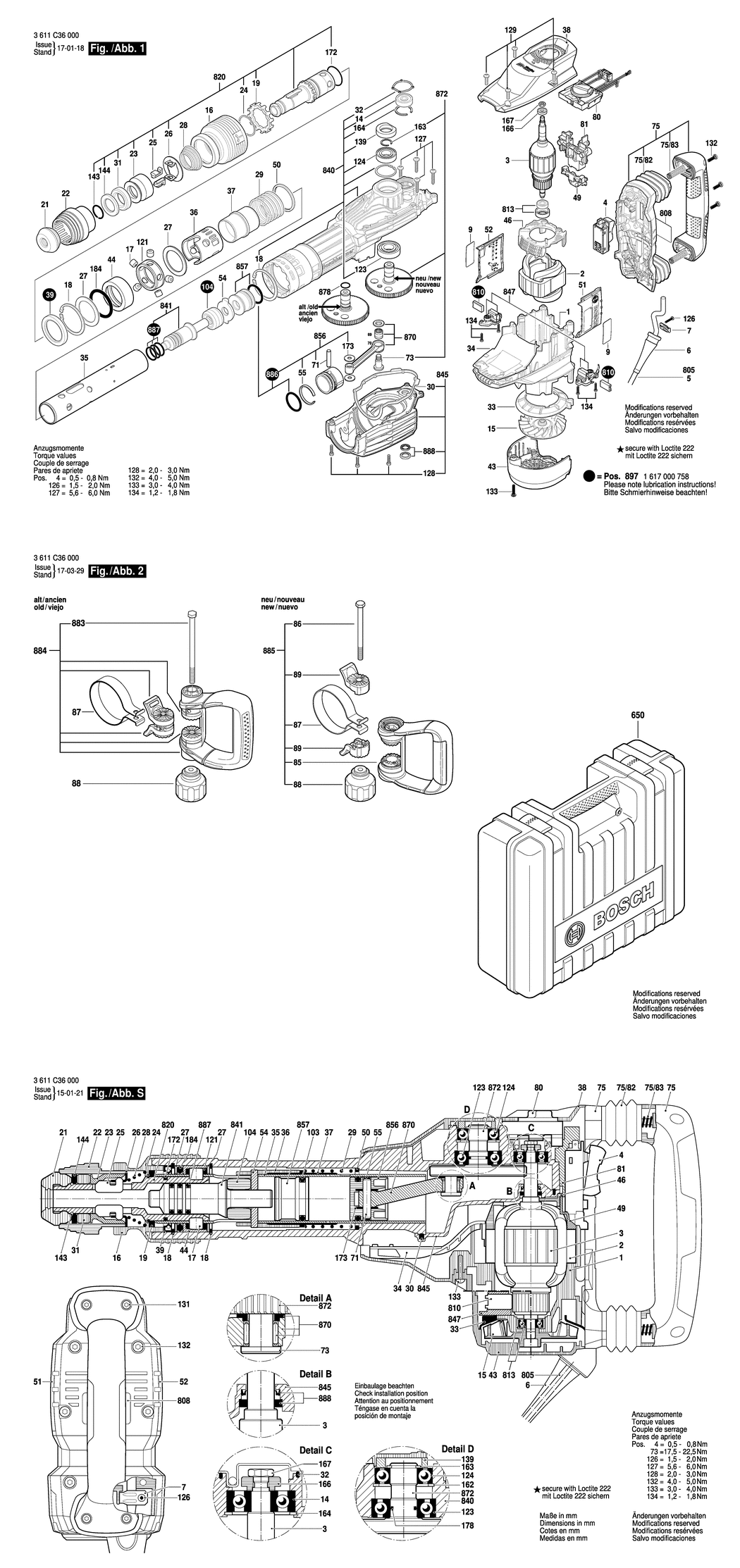

An exploded drawing and listing for the Bosch GSH 11 VC / 3611C36070 / GB 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108157.A3 1615108157	£23.86	£28.63
2 - FIELD 230V BSD-160422052F.A3 160422052F	£72.18	£86.62
3 - ARMATURE 230V BSD-1614011120.A4 1614011120	£167.68	£201.22
4 - SWITCH BSD-1607200244.A14 1607200244	£31.64	£37.97
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460348.A23 1604460348	£27.23	£32.68
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A10 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A94 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0U4.A2 160111C0U4	£2.61	£3.13
14 - GROOVE BALL BEARING BSD-1600905028.A301 1600905028	£12.04	£14.45
15 - FAN BSD-1616610106.A5 1616610106	£13.12	£15.75
16 - GUIDE SLEEVE BSD-1610499076.A2 1610499076	£11.30	£13.56
17 - LOCKING BOLT BSD-1613103012.A2 1613103012	£2.61	£3.13
18 - SPRING RETAINING RING BSD-1610224011.A3 1610224011	£2.61	£3.13
19 - CARRIER BSD-1616490071.A1 1616490071	£4.26	£5.11
21 - PROTECTIVE CAP BSD-1610508025.A25 1610508025	£4.26	£5.11
22 - PROTECTION SLEEVE BSD-1610499078.A3 1610499078	£5.30	£6.36
23 - STOP SLEEVE BSD-1610520005.A4 1610520005	£12.04	£14.45
24 - RETAINING RING BSD-1614601020.A7 1614601020	£1.75	£2.10
25 - STOPPING DEVICE BSD-1612300025.A21 1612300025	£8.67	£10.41
26 - INDEXING DISK BSD-1610290105.A2 1610290105	£3.72	£4.47
27 - STOP DISC BSD-1610101024.A3 1610101024	£2.16	£2.59
28 - CONICAL HELICAL SPRING BSD-1614621014.A2 1614621014	£2.61	£3.13
29 - COMPRESSION SPRING BSD-1614621015.A3 1614621015	£5.30	£6.36
30 - SEALING FRAME BSD-1611015063.A2 1611015063	£6.52	£7.83
31 - DAMPING RING BSD-1610290106.A2 1610290106	£3.72	£4.47
32 - SEALING FRAME BSD-1610210214.A1 1610210214	£1.75	£2.10
33 - AIR-DEFLECTOR RING BSD-1610591047.A1 1610591047	£3.72	£4.47
34 - AIR PATH BSD-1610591048.A4 1610591048	£2.80	£3.36
35 - HAMMER PIPE BSD-1615806243.A5 1615806243	£135.25	£162.30
36 - PERFORATED RING BSD-1610190066.A4 1610190066	£5.30	£6.36
37 - CONTROL BUSHING BSD-1610420006.A1 1610420006	£27.23	£32.68
38 - COVERING HOOD BSD-1615190173.A0 1615190173	£21.52	£25.83
39 - ROTARY SHAFT LIP SEAL BSD-1610283052.A2 1610283052	£5.58	£6.70
43 - BRUSH-COVER BSD-1615500426.A0 1615500426	£8.67	£10.41
44 - GUIDE SLEEVE BSD-1610322017.A2 1610322017	£31.64	£37.97
46 - HOLDING-DOWN-APPLIANCE BSD-1615500427.A3 1615500427	£4.26	£5.11
49 - PLUG HOLDER BSD-1604477020.A3 1604477020	£2.80	£3.36
50 - STOP RING BSD-1610206028.A1 1610206028	£5.30	£6.36
51 - HOUSING COVER BSD-1615500424.A0 1615500424	£5.30	£6.36
52 - HOUSING COVER BSD-1615500425.A3 1615500425	£5.30	£6.36
54 - CONTROL DISC BSD-1610190069.A1 1610190069	£23.86	£28.63
55 - RETAINING SNAP RING BSD-1610500024.A5 1610500024	£1.75	£2.10
71 - STRAIGHT PIN BSD-1613101014.A1 1613101014	£2.16	£2.59
73 - ECCENTRIC BOLT BSD-1610320015.A3 1610320015	£14.91	£17.89
75 - HANDLE BSD-1615132132.A0 1615132132	£48.38	£58.06
75/82 - BELLOWS BSD-1610415003.A3 1610415003	£14.91	£17.89
75/83 - COMPRESSION SPRING BSD-1614621009.A1 1614621009	£8.67	£10.41
80 - SPEED GOVERNOR BSD-1617233052.A0 1617233052	£59.53	£71.44
81 - INSERTED PART BSD-1611038018.A3 1611038018	£6.52	£7.83
85 - AUXILIARY HANDLE BSD-1602025081.A9 1602025081	£21.52	£25.83
86 - HEX SCREW BSD-2911021267.A51 2911021267	£3.72	£4.47
87 - CLAMPING BAND BSD-1611316029.A1 1611316029	£8.49	£10.19
88 - STAR KNOB M8 BSD-1619P16922.A57 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1600A008BL.A3 1600A008BL	£2.61	£3.13
104 - DAMPER BSD-1610210219.A3 1610210219	£45.67	£54.80
121 - RETAINING SNAP RING BSD-1610200032.A4 1610200032	£33.74	£40.49
123 - GROOVE BALL BEARING 20x47x14 BSD-1610900033.A2 1610900033	£10.10	£12.12
124 - GROOVE BALL BEARING 20x42x12 BSD-1610900034.A3 1610900034	£11.30	£13.56
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1454 2603490023	£1.75	£2.10
127 - TORX OVAL-HEAD SCREW 6x30 BSD-1613490022.A4 1613490022	£1.75	£2.10
128 - TORX SOCKET BUTTON SCREW BSD-1613414026.A4 1613414026	£2.61	£3.13
129 - TORX OVAL-HEAD SCREW M5x20 BSD-1613490024.A1 1613490024	£1.75	£2.10
132 - TORX OVAL-HEAD SCREW 6x20 BSD-1613490025.A4 1613490025	£2.16	£2.59
133 - TORX OVAL-HEAD SCREW 5x25 BSD-1613490026.A1 1613490026	£1.75	£2.10
134 - TORX OVAL-HEAD SCREW 3.5x16 BSD-1613490027.A4 1613490027	£1.75	£2.10
139 - FELT WASHER BSD-1610209017.A1 1610209017	£2.16	£2.59
143 - RETAINING RING BSD-1614601071.A14 1614601071	£2.16	£2.59
144 - SUPPORTING DISC BSD-1610101023.A3 1610101023	£3.72	£4.47
163 - SPRING RETAINING RING BSD-1610224012.A4 1610224012	£1.75	£2.10
164 - SPRING RETAINING RING BSD-1610224013.A1 1610224013	£1.75	£2.10
166 - SOLENOID RING BSD-1610209011.A4 1610209011	£5.58	£6.70
167 - HEX NUT DIN 439-BM8-04 BSD-2915050107.A10 2915050107	£1.75	£2.10
172 - O-RING BSD-1610210216.A3 1610210216	£2.16	£2.59
173 - DISC BSD-1610100021.A2 1610100021	£1.75	£2.10
184 - DAMPING RING BSD-1610210218.A2 1610210218	£7.36	£8.83
650 - CARRYING CASE BSD-1615438492.A3 1615438492	£59.53	£71.44
808 - NAMEPLATE BSD-160111A3H5.A287 160111A3H5	£2.61	£3.13
810 - CARBON BRUSH BSD-1617000750.A2 1617000750	£18.96	£22.75
813 - GROOVE BALL BEARING BSD-1617000744.A2 1617000744	£13.12	£15.75
820 - TOOLHOLDER BSD-1617000745.A3 1617000745	£120.11	£144.13
840 - IMPACT MECHANISM HOUSING BSD-1617000746.A0 1617000746	£271.18	£325.41
841 - STRIKER PIN BSD-1617000747.A3 1617000747	£59.53	£71.44
845 - GEAR COVER BSD-1617000748.A0 1617000748	£63.50	£76.20
847 - BRUSH HOLDER BSD-1617000749.A3 1617000749	£27.23	£32.68
856 - HAMMER PISTON BSD-1617000751.A3 1617000751	£16.41	£19.69
857 - STRIKER BSD-1617000752.A2 1617000752	£33.74	£40.49
870 - CONNECTING ROD BSD-1617000753.A3 1617000753	£33.74	£40.49
872 - ECCENTRIC COG WHEEL BSD-1600A005A4.A2 1600A005A4	£72.18	£86.62
878 - O-RING BSD-1610210215.A2 1610210215	£1.75	£2.10
883 - HEX SCREW BSD-1613490019.A8 1613490019	£2.61	£3.13
884 - AUXILIARY HANDLE BSD-160202508T.A3 160202508T	£37.27	£44.72
885 - AUXILIARY HANDLE BSD-160202508J.A1 160202508J	£54.42	£65.30
886 - O-RING BSD-1617000755.A2 1617000755	£16.43	£19.72
887 - O-RING BSD-1617000756.A3 1617000756	£10.10	£12.12
888 - PARTS SET BSD-1617000757.A2 1617000757	£8.13	£9.76
897 - WEAR AND TEAR PART SET BSD-1617000758.A3 1617000758	£59.53	£71.44
