Bosch GSH 27 / 0611304103 / EU 230 Volt Spare Parts

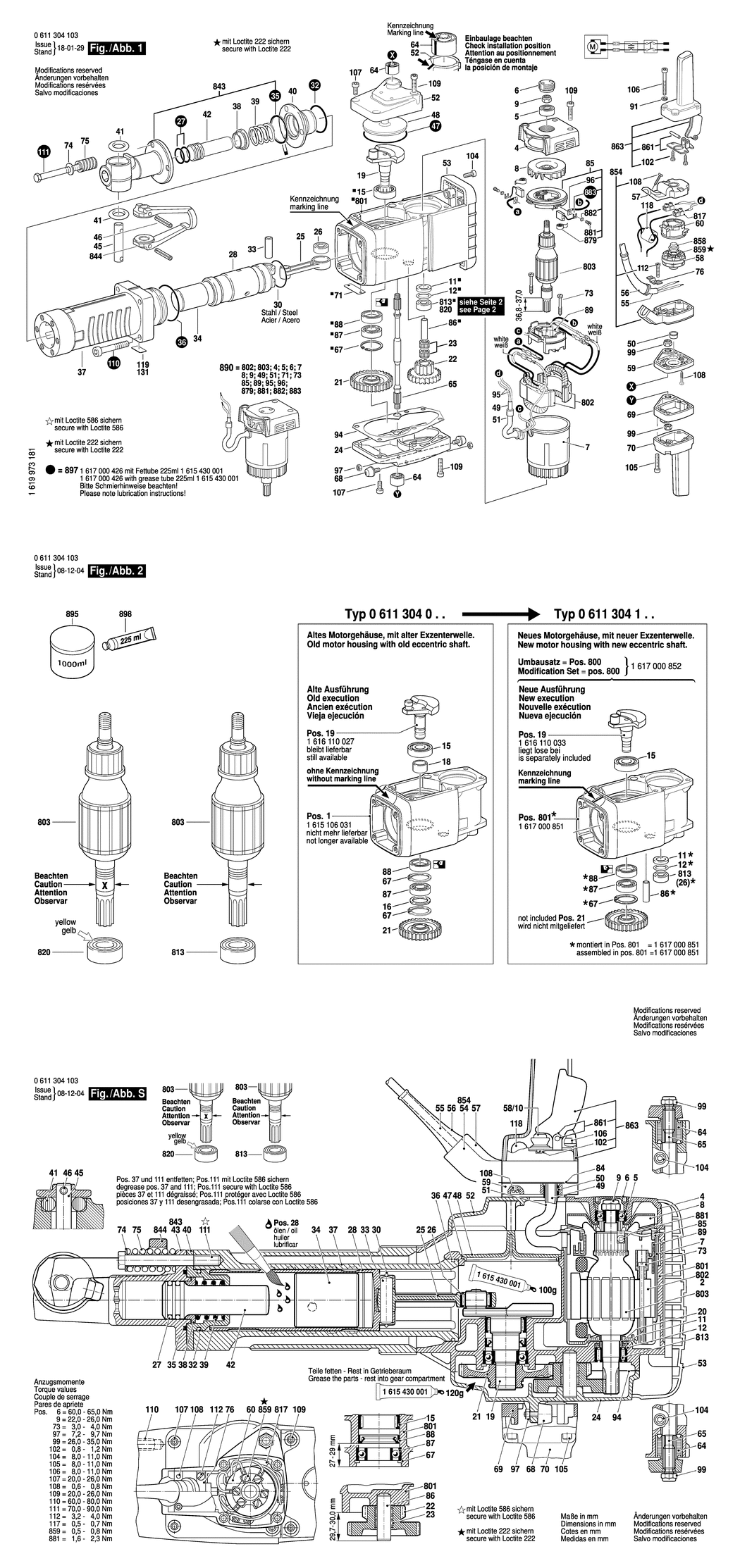

An exploded drawing and listing for the Bosch GSH 27 / 0611304103 / EU 230 Volt

	Ex VAT	Inc VAT
4 - BEARING COVER BSD-1615805068.A8 1615805068	£81.81	£98.17
5 - GROOVE BALL BEARING 12x37x12 BSD-1610900015.A7 1610900015	£23.86	£28.63
6 - SCREW PLUG BSD-1615500214.A1 1615500214	£21.68	£26.01
7 - INSULATING HOUSING BSD-1615108104.A1 1615108104	£31.64	£37.97
8 - FAN BSD-1616610089.A0 1616610089	£18.96	£22.75
9 - HEX NUT DIN 985-M12X1 BSD-1613313000.A33 1613313000	£2.80	£3.36
11 - FELT WASHER BSD-1610108013.A11 1610108013	£2.16	£2.59
12 - SUPPORTING DISC 1.0 MM BSD-1610102616.A13 1610102616	£2.80	£3.36
15 - NEEDLE-ROLLER BEARING D35xD47x17 BSD-1610910091.A2 1610910091	£33.74	£40.49
19 - ECCENTRIC SHAFT BSD-1616110033.A4 1616110033	£149.42	£179.31
21 - CYLINDRICAL GEAR Z=45 BSD-1616318009.A9 1616318009	£116.15	£139.38
22 - CYLINDRICAL GEAR Z=19/52 BSD-1616328036.A14 1616328036	£179.37	£215.24
23 - NEEDLE-ROLLER ASSEMBLY BSD-1610913005.A8 1610913005	£8.67	£10.41
24 - GEAR COVER BSD-1615500323.A9 1615500323	£135.25	£162.30
25 - CONNECTING ROD BSD-1612001040.A9 1612001040	£72.18	£86.62
26 - NEEDLE-ROLLER BEARING D25xD37x17 BSD-1610910092.A21 1610910092	£31.64	£37.97
27 - O-RING 36.0x5.0 MM BSD-1610210033.A10 1610210033	£2.61	£3.13
28 - HAMMER PISTON BSD-1618700043.A2 1618700043	£357.27	£428.72
30 - RETAINING RING dia54.2xdia2.8 BSD-1614601039.A4 1614601039	£2.16	£2.59
32 - O-RING 60x4 MM BSD-1900210156.A17 1900210156	£8.67	£10.41
33 - PISTON PIN BSD-3613101500.A12 3613101500	£7.36	£8.83
34 - STRIKER BSD-1618710039.A9 1618710039	£63.50	£76.20
35 - SEAL RING BSD-1610209007.A4 1610209007	£8.67	£10.41
36 - O-RING 80x3 MM BSD-1900210166.A35 1900210166	£5.30	£6.36
37 - GUIDE TUBE BSD-1615806029.A2 1615806029	£306.81	£368.17
38 - GUIDE BUSHING BSD-1610220009.A4 1610220009	£21.68	£26.01
39 - COMPRESSION SPRING BSD-1614619005.A6 1614619005	£6.52	£7.83
40 - INTERMEDIATE FLANGE BSD-1615700017.A2 1615700017	£135.25	£162.30
41 - O-RING 17.3x17.7 MM BSD-1610210008.A13 1610210008	£5.58	£6.70
42 - STRIKER PIN BSD-1613123003.A0 1613123003	£120.11	£144.13
45 - LOCKING BOLT BSD-1613103004.A17 1613103004	£54.42	£65.30
46 - SLOTTED SPRING PIN 8x55 DIN 1481 BSD-2917760187.A20 2917760187	£2.80	£3.36
47 - O-RING 100x3 MM BSD-1900210172.A3 1900210172	£10.10	£12.12
48 - SEALING CAP BSD-1610516007.A11 1610516007	£14.75	£17.70
49 - INSULATION TUBING BSD-1610707000.A2 1610707000	£1.66	£1.99
50 - PROTECTION SLEEVE BSD-3600421500.A22 3600421500	£2.61	£3.13
51 - CORD GUARD BSD-1610703019.A14 1610703019	£4.75	£5.70
52 - FAN COVER BSD-1615500324.A2 1615500324	£63.50	£76.20
53 - COVERING HOOD BSD-1600A00C0N.A22 1600A00C0N	£72.18	£86.62
55 - POWER SUPPLY CORD BSD-1617000723.A65 1617000723	£27.23	£32.68
56 - CORD GUARD BSD-1610703055.A2 1610703055	£10.10	£12.12
57 - SWITCH COVER BSD-1615500212.A9 1615500212	£11.30	£13.56
58 - SWITCH BSD-1617200108.A7 1617200108	£59.53	£71.44
59 - INTERMEDIATE PLATE BSD-1615700041.A8 1615700041	£93.88	£112.65
60 - INSULATING CAP BSD-1615500330.A9 1615500330	£4.26	£5.11
64 - RUBBER TORSION-BAR BSD-1616334000.A7 1616334000	£27.23	£32.68
65 - TOOTHED SHAFT BSD-1613060005.A25 1613060005	£54.42	£65.30
67 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A66 2916660023	£5.30	£6.36
68 - RUBBER BUFFER BSD-1613465001.A2 1613465001	£5.58	£6.70
69 - INTERMEDIATE PLATE BSD-1615700042.A14 1615700042	£103.14	£123.77
70 - HANDLE BSD-1615132011.A17 1615132011	£37.27	£44.72
71 - NAMEPLATE BSD-160111A3H3.A3039 160111A3H3	£2.61	£3.13
73 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A92 1603435036	£1.75	£2.10
74 - DISC SPRING DIN 2093-A25X12.2X1.5 BSD-2916160009.A9 2916160009	£3.72	£4.47
75 - COMPRESSION SPRING BSD-3614640501.A5 3614640501	£10.10	£12.12
76 - FASTENING CLAMP BSD-1611302011.A8 1611302011	£7.78	£9.33
85 - BRUSH HOLDER BSD-1614336045.A0 1614336045	£33.74	£40.49
86 - BEARING BOLT BSD-1610300033.A15 1610300033	£21.52	£25.83
87 - GROOVE BALL BEARING 25x52x15 BSD-1610900027.A9 1610900027	£27.23	£32.68
88 - ROTARY SHAFT LIP SEAL BSD-1610283016.A1 1610283016	£10.10	£12.12
89 - SPACER BSD-1610009008.A4 1610009008	£3.72	£4.47
94 - SEALING PLATE BSD-1611015021.A6 1611015021	£2.80	£3.36
95 - CONNECTING CABLE BSD-1614431030.A4 1614431030	£6.52	£7.83
96 - CONNECTING CABLE BSD-1614448037.A0 1614448037	£10.10	£12.12
97 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A354 2915011007	-
99 - HEX NUT DIN 985-10-M10x1 BSD-3613313500.A15 3613313500	£2.80	£3.36
102 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A65 2910211025	£1.75	£2.10
104 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A153 2910141201	£2.61	£3.13
105 - MICROENCAPSULATED SCREW DIN 912-M6X30-8.8 BSD-2914551188.A9 2914551188	£2.80	£3.36
106 - MICROENCAPSULATED SCREW DIN 912-M6X55-8.8 BSD-2914551189.A2 2914551189	£1.75	£2.10
107 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A116 2910141242	£1.75	£2.10
108 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A176 2603490023	£1.75	£2.10
109 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8 BSD-2910141248.A6 2910141248	£1.75	£2.10
110 - HEX SOCKET HEAD CAP SCREW DIN-M12x70-8.8 BSD-2910141356.A9 2910141356	£2.61	£3.13
111 - MICROENCAPSULATED SCREW DIN EN-24014-M12x110-12.9 BSD-2914550034.A9 2914550034	£3.72	£4.47
112 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A38 2910211236	£1.75	£2.10
118 - SUPPRESSION FILTER BSD-1617328029.A3 1617328029	-
135 - REFERENCE PLATE BSD-3611119512.A3 3611119512	-
800 - MODIFICATION SET 110-240V BSD-1617000852.A6 1617000852	£777.57	£933.08
801 - MOTOR HOUSING BSD-1617000851.A4 1617000851	£798.41	£958.09
802 - FIELD 220-240V BSD-1614220156.A1 1614220156	£156.22	£187.46
803 - ARMATURE 220-240V BSD-1614011091.A2 1614011091	£458.51	£550.21
813 - NEEDLE-ROLLER BEARING D20xD37x17 BSD-1610910035.A16 1610910035	£23.86	£28.63
817 - STRIP TERMINAL BSD-1901091110.A72 1901091110	£1.75	£2.10
820 - NEEDLE-ROLLER BEARING D25xD37x17 BSD-1610910094.A3 1610910094	£27.31	£32.77
843 - TOOLHOLDER BSD-1617000428.A3 1617000428	£458.51	£550.21
844 - RETAINING BRACKET BSD-1618045026.A13 1618045026	£179.37	£215.24
854 - SWITCH HOUSING BSD-1617000858.A6 1617000858	£33.74	£40.49
858 - PROTECTIVE CAP BSD-1610591001.A0 1610591001	£21.52	£25.83
859 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A162 2910091118	£1.75	£2.10
861 - FIXING PLATE BSD-1617000429.A9 1617000429	£12.04	£14.45
863 - PARTS SET BSD-1617000A10.A9 1617000A10	£48.38	£58.06
879 - SPIRAL SPRING BSD-1614652001.A11 1614652001	£3.72	£4.47
881 - TORX OVAL-HEAD SCREW M4x10 BSD-1613490005.A8 1613490005	£2.61	£3.13
882 - SPRING LOCK WASHER BSD-1610151007.A8 1610151007	£1.75	£2.10
883 - CARBON-BRUSH SET BSD-1617000425.A3 1617000425	£27.23	£32.68
890 - UN. FLANGE-MTD. MOTOR 220-240V BSD-1617000849.A7 1617000849	£608.95	£730.74
895 - GREASE 1000 ML BSD-1615430007.A4 1615430007	£68.42	£82.10
897 - WEAR AND TEAR PART SET BSD-1617000426.A1 1617000426	£63.50	£76.20
898 - GREASE TUBE 225 ML BSD-1615430001.A14 1615430001	£23.86	£28.63
