Bosch GSH 3 / 0611320741 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

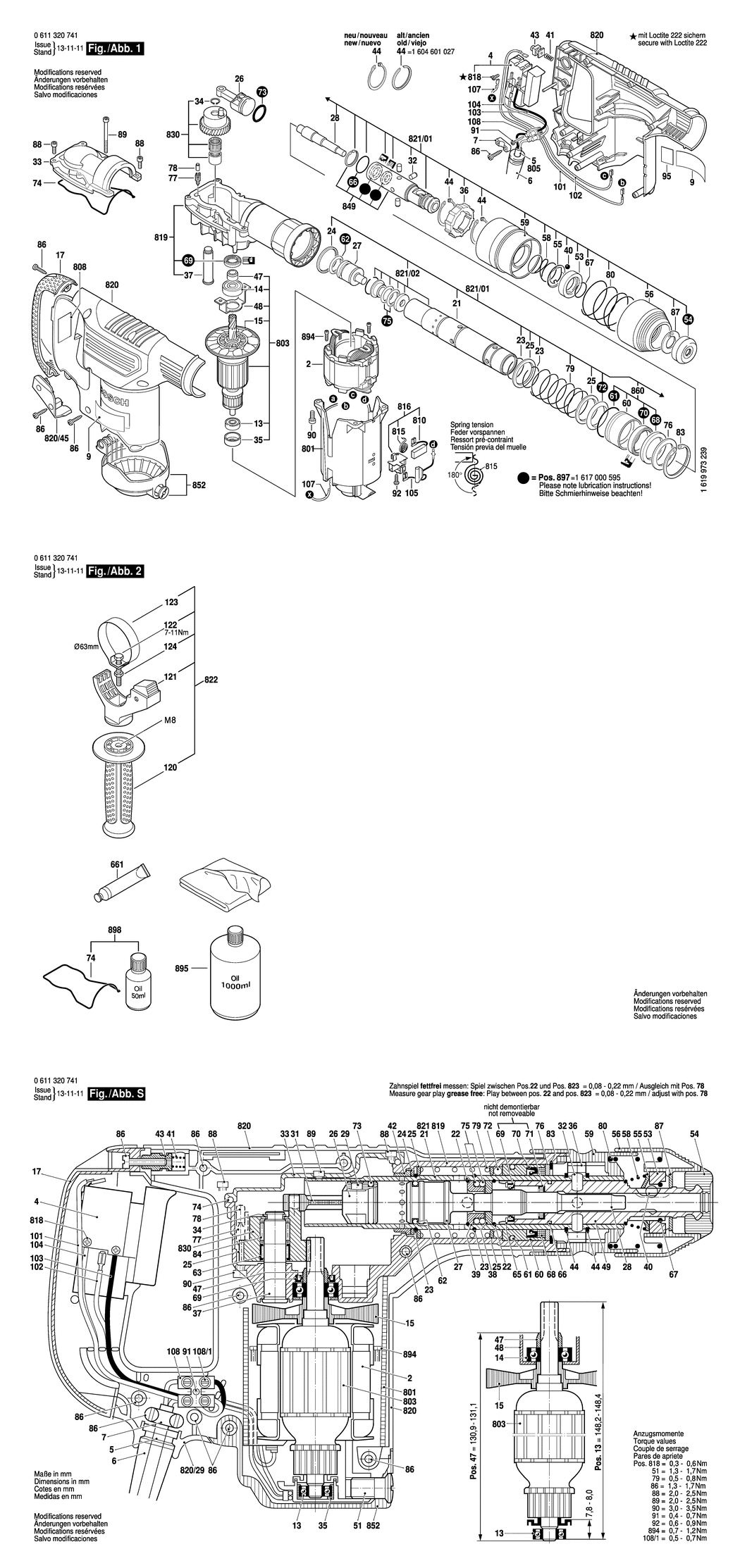

An exploded drawing and listing for the Bosch GSH 3 / 0611320741 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110-120V BSD-1614220178.A0 1614220178	£23.86	£28.63
4 - SWITCH BSD-1617200520.A0 1617200520	-
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H07RN-F BSD-1614460060.A4 1614460060	-
6 - GROMMET dia8.7-dia9.6x76 MM BSD-2600703019.A31 2600703019	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A3080 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110X85.A3 1611110X85	£3.72	£4.47
13 - BALL BEARING 7x19x6 BSD-2600905032.A1640 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING 10x26x8 BSD-1610905036.A16 1610905036	£7.36	£8.83
15 - FAN BSD-1616610088.A26 1616610088	£2.80	£3.36
17 - FLAP GRIP BSD-1615132075.A19 1615132075	£7.36	£8.83
21 - HAMMER PIPE BSD-1615806178.A4 1615806178	£45.67	£54.80
23 - RETAINING RING BSD-1614601044.A4 1614601044	£2.16	£2.59
24 - SUPPORTING DISC BSD-1610190051.A4 1610190051	£5.58	£6.70
25 - SUPPORTING DISC BSD-1610190052.A2 1610190052	£5.58	£6.70
26 - HAMMER PISTON BSD-1618700082.A2 1618700082	£11.30	£13.56
27 - STRIKER BSD-1618710084.A6 1618710084	£27.23	£32.68
28 - STRIKER PIN BSD-1613124079.A4 1613124079	£21.68	£26.01
32 - NEEDLE ROLLER BSD-1613100030.A42 1613100030	£2.80	£3.36
33 - GEAR COVER BSD-1615808091.A6 1615808091	£18.96	£22.75
34 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A151 2916080910	£2.16	£2.59
35 - INTERMEDIATE RING BSD-1600502023.A30 1600502023	£2.16	£2.59
36 - COLLAR BSD-1616409022.A4 1616409022	£7.36	£8.83
37 - ECCENTRIC SHAFT BSD-1613123004.A2 1613123004	£12.04	£14.45
40 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A809 1903230013	£2.16	£2.59
41 - COMPRESSION SPRING BSD-3604618008.A23 3604618008	£2.16	£2.59
43 - SCREW BUSHING BSD-1610390043.A26 1610390043	£1.75	£2.10
44 - SPRING RETAINING RING DIN 471-30x2.0-FST BSD-2916560010.A2 2916560010	£1.75	£2.10
47 - INNER RING BSD-1610250010.A26 1610250010	£5.58	£6.70
48 - FIXING PLATE BSD-1611329020.A24 1611329020	£2.61	£3.13
53 - THRUST RING BSD-1610422018.A15 1610422018	£6.52	£7.83
54 - PROTECTIVE CAP L=13 MM BSD-1610508039.A1 1610508039	£5.58	£6.70
55 - HOLDING PLATE BSD-1610190040.A4 1610190040	£2.61	£3.13
56 - PROTECTION SLEEVE BSD-1610499057.A4 1610499057	£16.41	£19.69
58 - COMPRESSION SPRING BSD-1614615004.A15 1614615004	£2.61	£3.13
59 - SLIDE SLEEVE BSD-1610522014.A4 1610522014	£7.36	£8.83
60 - PLAIN BEARING BSD-1610202023.A1 1610202023	£8.67	£10.41
61 - O-RING 39.0x3.0 MM BSD-1610210156.A23 1610210156	£1.75	£2.10
62 - O-RING 18.0x3.5 MM BSD-1610210105.A116 1610210105	£4.26	£5.11
66 - O-RING 21.0x2.0 MM BSD-1610210181.A1 1610210181	£2.16	£2.59
67 - RETAINING RING BSD-1614601032.A2 1614601032	£1.75	£2.10
68 - FELT WASHER BSD-1610205011.A5 1610205011	£2.16	£2.59
69 - ROTARY SHAFT LIP SEAL BSD-1610283031.A23 1610283031	£4.26	£5.11
70 - ROTARY SHAFT LIP SEAL BSD-1610283037.A5 1610283037	£10.10	£12.12
72 - O-RING 30.0x5.0 MM BSD-1610210182.A5 1610210182	£5.58	£6.70
73 - O-RING 18.64x3.53 MM BSD-1610210183.A1 1610210183	£2.16	£2.59
74 - SEALING FRAME BSD-1611014002.A2 1611014002	£3.72	£4.47
75 - O-RING 18.0x3.5 MM BSD-1610210159.A35 1610210159	£2.80	£3.36
76 - SUPPORTING DISC BSD-1610100015.A2 1610100015	£6.52	£7.83
77 - MAGNETIC STAND BSD-1610190050.A1 1610190050	£2.80	£3.36
78 - MAGNET BSD-1600290058.A2 1600290058	£5.30	£6.36
79 - COMPRESSION SPRING BSD-1614618002.A5 1614618002	£2.80	£3.36
80 - COMPRESSION SPRING BSD-1614621000.A71 1614621000	£2.80	£3.36
83 - SPRING RETAINING RING BSD-1614601036.A4 1614601036	£1.75	£2.10
86 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A170 2603490023	£1.75	£2.10
87 - BACKUP RING BSD-1610209006.A1 1610209006	£1.75	£2.10
88 - HEX SOCKET HEAD CAP SCREW BSD-1613414016.A1 1613414016	£1.75	£2.10
89 - HEX SOCKET HEAD CAP SCREW BSD-1613414017.A27 1613414017	£1.75	£2.10
90 - HEX SOCKET HEAD CAP SCREW DIN 7984-M5x12-8.8 BSD-2910131154.A5 2910131154	£1.75	£2.10
91 - TAPPING SCREW DIN 7983-ST-2.9x19 BSD-2912401008.A2 2912401008	£1.75	£2.10
92 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A355 2910211005	£1.75	£2.10
95 - REFERENCE PLATE BSD-161111C01H.A4 161111C01H	£2.16	£2.59
101 - CONNECTING CABLE L=360 MM BSD-1614449012.A24 1614449012	£3.72	£4.47
102 - CONNECTING CABLE L=220 MM BSD-1614431028.A2 1614431028	£2.61	£3.13
103 - CONNECTING CABLE L=180 MM BSD-1614437017.A2 1614437017	£2.61	£3.13
104 - CONNECTING CABLE BSD-1614437018.A26 1614437018	£4.26	£5.11
105 - CONNECTING CABLE BSD-1614449013.A0 1614449013	£2.52	£3.02
108 - CONNECTING TERMINAL BSD-1611091006.A23 1611091006	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202507H.A32 160202507H	£11.30	£13.56
121 - SUPPORT CLAMP BSD-1618040081.A3 1618040081	£5.30	£6.36
122 - HEX SCREW M 8x40 MM BSD-1613450017.A1 1613450017	£1.75	£2.10
123 - CLAMPING BAND dia 63 MM BSD-1611316018.A23 1611316018	£2.80	£3.36
124 - HEX NUT ISO-4035-M8-05 BSD-2915051180.A2 2915051180	£1.75	£2.10
661 - GREASE TUBE 30 ML BSD-1615430010.A156 1615430010	£6.52	£7.83
801 - INSULATING HOUSING BSD-1615108103.A27 1615108103	£12.04	£14.45
803 - ARMATURE WITH FAN 110-120V BSD-1614010240.A0 1614010240	£103.14	£123.77
808 - NAMEPLATE BSD-160111A3H5.A227 160111A3H5	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1617014139.A0 1617014139	£14.91	£17.89
815 - SPIRAL SPRING BSD-1614652003.A27 1614652003	£1.75	£2.10
816 - BRUSH HOLDER BSD-1617000397.A4 1617000397	£18.96	£22.75
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2954 2603410001	£1.75	£2.10
819 - GEAR HOUSING BSD-1615806181.A3 1615806181	£68.42	£82.10
820 - HOUSING SECTION BSD-1615104044.A1 1615104044	£37.27	£44.72
820/45 - COVER BSD-1615104039.A2 1615104039	£10.10	£12.12
821/01 - HAMMER PIPE BSD-1615806182.A2 1615806182	£240.72	£288.87
821/02 - HAMMER PIPE BSD-1615806183.A4 1615806183	£68.42	£82.10
822 - AUXILIARY HANDLE BSD-1612025059.A1 1612025059	£21.52	£25.83
830 - ECCENTRIC BSD-1612210119.A3 1612210119	£57.02	£68.42
849 - TOOL HOLDING FIXTURE BSD-1618598238.A2 1618598238	£63.50	£76.20
852 - BRUSH-COVER BSD-1615500310.A23 1615500310	£8.67	£10.41
860 - PLAIN BEARING BSD-1610422019.A6 1610422019	£23.86	£28.63
894 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A290 2603435015	£2.16	£2.59
895 - OIL RESERVOIR 1000 ML BSD-1615430019.A54 1615430019	£59.53	£71.44
897 - WEAR AND TEAR PART SET BSD-1617000595.A6 1617000595	£48.38	£58.06
898 - OIL RESERVOIR 50 ML BSD-1615437509.A4 1615437509	£11.30	£13.56

Attribute Name	Value
Brand	Bosch
