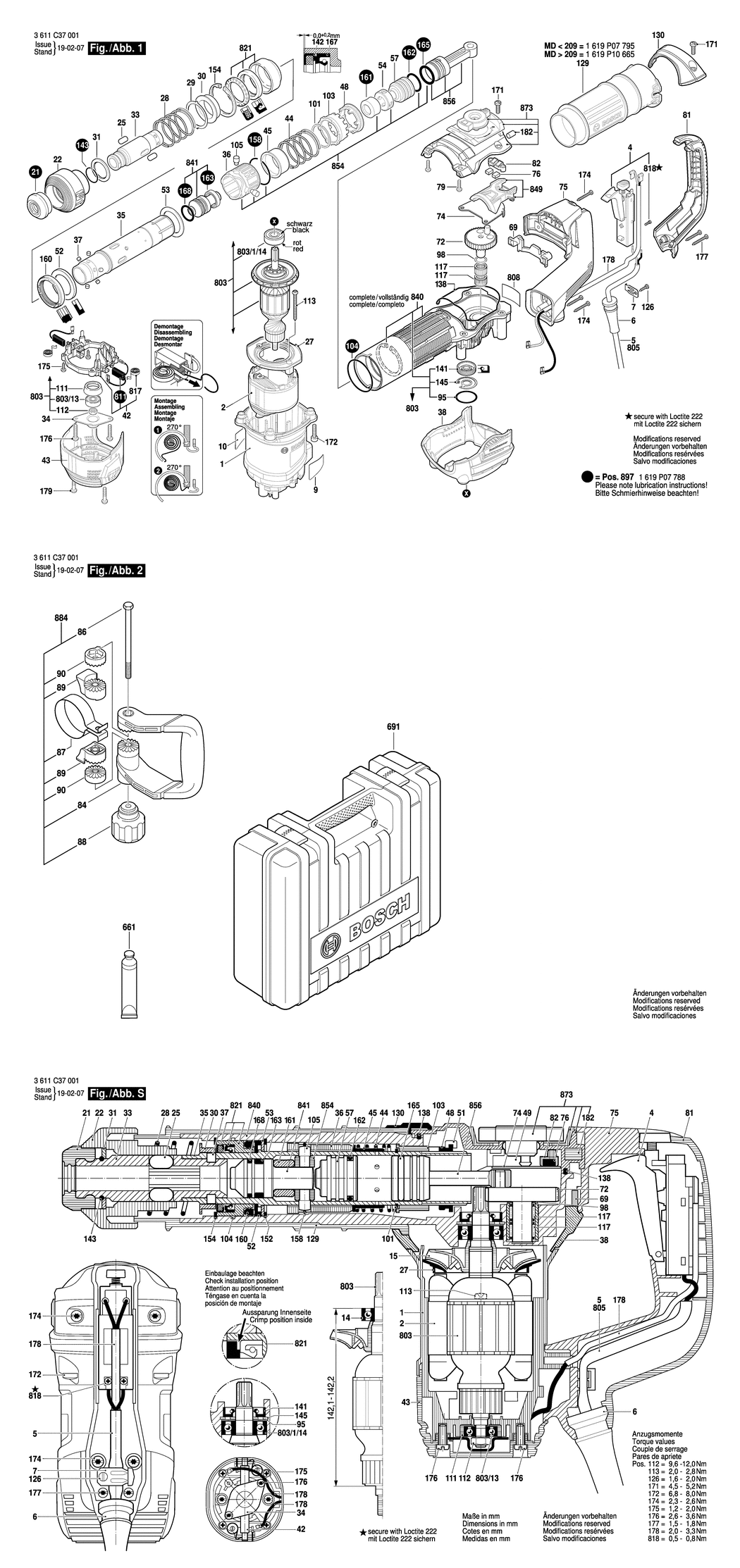

An exploded drawing and listing for the Bosch GSH 5 BASIC / 3611C37001 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1619P07704.A0 1619P07704 £21.52 £25.83
2 - FIELD 220-240V BSD-1619P05379.A0 1619P05379 £33.74 £40.49
4 - SWITCH BSD-1619P07720.A4 1619P07720 £18.96 £22.75
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A261 1607000227 £23.86 £28.63
6 - GROMMET BSD-1619P07722.A0 1619P07722 £2.16 £2.59
7 - FASTENING CLAMP BSD-1601302018.A93 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0ZT.A2 160111C0ZT £2.61 £3.13
10 - STICKER BSD-160111C0ZU.A0 160111C0ZU £2.16 £2.59
21 - PROTECTIVE CAP BSD-1619P07829.A0 1619P07829 £4.26 £5.11
22 - PROTECTION SLEEVE BSD-1619P07724.A0 1619P07724 £21.52 £25.83
25 - STOPPING DEVICE BSD-1619P07742.A3 1619P07742 £8.67 £10.41
27 - AIR-DEFLECTOR RING BSD-1619P07739.A3 1619P07739 £2.61 £3.13
28 - COMPRESSION SPRING BSD-1614621000.A145 1614621000 £2.80 £3.36
29 - WASHER BSD-1619P10522.A1 1619P10522 £2.16 £2.59
30 - SUPPORTING DISC BSD-1619P07715.A0 1619P07715 £10.10 £12.12
31 - SUPPORTING DISC BSD-1619P07743.A8 1619P07743 £7.36 £8.83
33 - TOOLHOLDER BSD-1619P07748.A0 1619P07748 £37.27 £44.72
34 - FLANGE BSD-1610516013.A36 1610516013 £1.75 £2.10
35 - HAMMER PIPE BSD-1619P07734.A4 1619P07734 £72.18 £86.62
36 - INTERMEDIATE SLEEVE BSD-1619P07702.A4 1619P07702 £7.36 £8.83
37 - CYLINDRICAL ROLLER BSD-1619P07749.A4 1619P07749 £1.75 £2.10
38 - COVERING HOOD BSD-1619P07710.A3 1619P07710 £13.12 £15.75
42 - BRUSH HOLDER BSD-1619P07754.A3 1619P07754 £21.68 £26.01
43 - FAN COVER BSD-1619P07711.A1 1619P07711 £12.04 £14.45
44 - COMPRESSION SPRING BSD-1619P07755.A1 1619P07755 £2.52 £3.02
45 - CONTROL BUSHING BSD-1619P07756.A3 1619P07756 £11.30 £13.56
48 - CLUTCH SLEEVE BSD-1619P07780.A0 1619P07780 £6.52 £7.83
52 - STOP SLEEVE BSD-1619P07738.A0 1619P07738 £6.52 £7.83
53 - SUPPORTING DISC BSD-1619P07792.A3 1619P07792 £2.61 £3.13
54 - GUIDE BUSHING BSD-1610231001.A2 1610231001 £12.04 £14.45
57 - STRIKER BSD-1619P07762.A3 1619P07762 £21.68 £26.01
69 - RETAINING BRACKET BSD-1610099004.A24 1610099004 £2.80 £3.36
72 - ECCENTRIC COG WHEEL Z=43 BSD-1619P07723.A3 1619P07723 £41.62 £49.95
74 - GUIDE PLATE BSD-1619P07772.A4 1619P07772 £2.61 £3.13
75 - HANDLE BSD-1619P07708.A4 1619P07708 £14.91 £17.89
76 - MAGNET BSD-1619P07789.A1 1619P07789 £3.72 £4.47
79 - TORX OVAL-HEAD SCREW M5x12-TORX.T25 BSD-1613435015.A27 1613435015 £2.61 £3.13
81 - HANDLE COVER BSD-1619P07709.A0 1619P07709 £13.12 £15.75
82 - SUPPORT BRACKET BSD-1619P07786.A1 1619P07786 £1.75 £2.10
84 - AUXILIARY HANDLE BSD-1615132109.A19 1615132109 £23.86 £28.63
86 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A3 2911011270 £4.26 £5.11
87 - CLAMPING BAND BSD-1619P07800.A1 1619P07800 £8.67 £10.41
88 - STAR KNOB M8 BSD-1619P16922.A53 1619P16922 £6.45 £7.74
89 - CLAMPING PIECE BSD-1619P07803.A1 1619P07803 £2.16 £2.59
90 - CATCH DISK BSD-1610190053.A38 1610190053 £2.49 £2.99
95 - O-RING 32.0x1.5 MM BSD-1610210173.A4 1610210173 £2.16 £2.59
98 - SHIM RING 1.0 MM BSD-1610101015.A32 1610101015 £1.75 £2.10
101 - RETAINING RING BSD-1610224009.A4 1610224009 £1.75 £2.10
103 - BUSHING BSD-1619P07781.A3 1619P07781 £11.30 £13.56
104 - O-RING BSD-1619P07740.A1 1619P07740 £2.80 £3.36
105 - DRIVING PIN BSD-1613120021.A2 1613120021 £1.75 £2.10
111 - BUSHING BSD-1610290064.A43 1610290064 £1.75 £2.10
112 - HEX NUT DIN 936-M8x1-8 BSD-1613300008.A36 1613300008 £2.61 £3.13
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A355 1613435009 £1.75 £2.10
117 - NEEDLE-ROLLER ASSEMBLY BSD-1619P07713.A3 1619P07713 £3.72 £4.47
126 - SCREW 4x16 BSD-2603490022.A441 2603490022 £1.75 £2.10
129 - HOLDING SLEEVE BSD-1619P10665.A1 1619P10665 £12.04 £14.45
130 - COVER BSD-1619P07796.A0 1619P07796 £6.52 £7.83
138 - SEALING FRAME BSD-1619P07797.A4 1619P07797 £2.80 £3.36
141 - ROTARY SHAFT LIP SEAL BSD-1610290066.A43 1610290066 £10.10 £12.12
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A69 1614601021 £7.36 £8.83
145 - SPRING RETAINING RING BSD-1610119012.A53 1610119012 £2.61 £3.13
154 - CLIP BSD-1619P07801.A3 1619P07801 £5.30 £6.36
158 - RETAINING RING BSD-1619P07751.A0 1619P07751 £1.75 £2.10
160 - DAMPING RING BSD-1619P07806.A3 1619P07806 £7.36 £8.83
161 - DAMPING RUBBER BSD-1610290093.A6 1610290093 £1.75 £2.10
162 - O-RING 24.0x4.0 MM BSD-1610210091.A50 1610210091 £3.72 £4.47
163 - SEAL RING BSD-1610290065.A18 1610290065 £8.13 £9.76
165 - O-RING 25.0x4.0 MM BSD-1610210153.A23 1610210153 £7.36 £8.83
168 - O-RING 22.0x3.0 MM BSD-1610210144.A57 1610210144 £5.30 £6.36
171 - TORX OVAL-HEAD SCREW M5x16-TORX. T25 BSD-1619P07816.A11 1619P07816 £1.75 £2.10
172 - TORX OVAL-HEAD SCREW M6x30-TORX.T30 BSD-1613435013.A21 1613435013 £2.16 £2.59
174 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A74 1613435012 £2.16 £2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A466 2912401018 £1.75 £2.10
176 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A75 1613435012 £2.16 £2.59
177 - SCREW ST3.9x32 BSD-1619P07821.A2 1619P07821 £1.75 £2.10
178 - CONNECTION CABLE BSD-1619P07822.A2 1619P07822 £6.61 £7.93
179 - SCREW BSD-1619P07815.A2 1619P07815 £1.75 £2.10
182 - FELT SEAL BSD-1619P09862.A2 1619P09862 £2.16 £2.59
661 - GREASE TUBE 30 ML BSD-1615430010.A214 1615430010 £6.52 £7.83
691 - CARRYING CASE BSD-16054381D1.A9 16054381D1 £45.67 £54.80
803 - ARMATURE 220-240V BSD-1619P07761.A1 1619P07761 £120.11 £144.13
803/13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A93 1610900026 £12.04 £14.45
803/1/14 - GROOVE BALL BEARING 12x32x10 BSD-1610905028.A41 1610905028 £16.41 £19.69
805 - POWER SUPPLY CORD BSD-1617000723.A3 1617000723 £27.23 £32.68
808 - NAMEPLATE BSD-160111A4XK.A0 160111A4XK -
811 - CARBON-BRUSH SET BSD-1617014138.A24 1617014138 £21.52 £25.83
817 - SPIRAL SPRING BSD-1614652004.A65 1614652004 £7.36 £8.83
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A84 2910011082 £1.75 £2.10
821 - BUSHING BSD-1619P07768.A1 1619P07768 £21.52 £25.83
840 - IMPACT MECHANISM HOUSING BSD-1619P10667.A4 1619P10667 £93.88 £112.65
841 - STRIKER BSD-1619P07839.A2 1619P07839 £27.23 £32.68
849 - CONTROL FORK BSD-1619P07798.A2 1619P07798 £3.72 £4.47
854 - GUIDE BUSHING BSD-1619P07773.A1 1619P07773 £21.68 £26.01
856 - HAMMER PISTON BSD-1619P07775.A3 1619P07775 £21.68 £26.01
873 - HOUSING COVER BSD-1619P07799.A2 1619P07799 £23.86 £28.63
884 - AUXILIARY HANDLE BSD-1619P10294.A2 1619P10294 £40.80 £48.96
897 - WEAR AND TEAR PART SET BSD-1619P07788.A2 1619P07788 £37.27 £44.72
