Bosch GST 100 BCE / 0601589650 / I 230 Volt Spare Parts

Bosch GST 100 BCE / 0601589650 / I 230 Volt Spare Parts

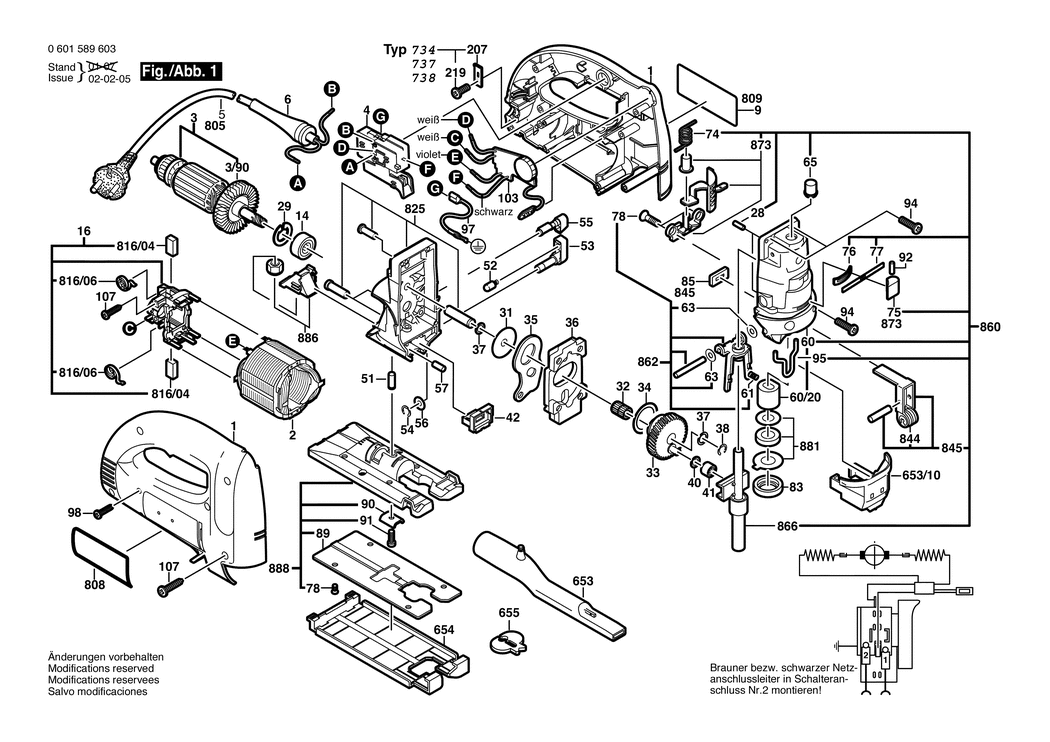

An exploded drawing and listing for the Bosch GST 100 BCE / 0601589650 / I 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104582.A3 2605104582 -
2 - FIELD 230-240V BSD-2604220584.A61 2604220584 £21.68 £26.01
3 - ARMATURE 230-240V BSD-2604011115.A8 2604011115 -
3/90 - FAN BSD-2606610089.A78 2606610089 £5.30 £6.36
4 - ON-OFF SWITCH BSD-2607200537.A2 2607200537 -
5 - POWER SUPPLY CORD I / BR 4.15m 2 x 1.0mm H05VV-F BSD-2604460285.A1 2604460285 -
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A467 2600703017 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-2601116509.A0 2601116509 -
14 - BALL BEARING 9x24x7 BSD-2600905095.A151 2600905095 £12.04 £14.45
16 - BRUSH PLATE BSD-2605807082.A45 2605807082 £27.23 £32.68
28 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A119 1903201042 £2.16 £2.59
29 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A23 2916660008 £2.16 £2.59
31 - SHIM 0.5 MM BSD-2600101048.A154 2600101048 £1.75 £2.10
32 - NEEDLE-ROLLER ASSEMBLY BSD-2600913040.A156 2600913040 £5.58 £6.70
33 - ECCENTRIC COG WHEEL BSD-2606320101.A18 2606320101 £27.23 £32.68
34 - SHIM 0.5 MM BSD-2600102614.A65 2600102614 £1.32 £1.58
35 - FORK LEVER BSD-2601923010.A36 2601923010 £2.52 £3.02
36 - COUNTERWEIGHT BSD-2601098032.A25 2601098032 £14.91 £17.89
37 - SHIM 0.3 MM BSD-2600101047.A17 2600101047 £1.75 £2.10
38 - LOCKING WASHER DIN 6799-6-FST BSD-2916080909.A138 2916080909 £1.75 £2.10
40 - INTERMEDIATE RING BSD-2600200038.A58 2600200038 £1.75 £2.10
41 - NEEDLE BEARING BSD-2600917900.A14 2600917900 £8.67 £10.41
42 - AIR ELIMINATOR BSD-2602305048.A45 2602305048 £1.32 £1.58
51 - BEARING BOLT BSD-2603105053.A15 2603105053 £1.75 £2.10
52 - RATCHET CAP BSD-2600590006.A556 2600590006 £1.75 £2.10
53 - ROTARY KNOB BSD-2602026063.A16 2602026063 £3.34 £4.01
54 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A19 2916080908 £1.75 £2.10
55 - ROTARY KNOB BSD-2602026065.A45 2602026065 £2.16 £2.59
56 - SHIM 0.3 MM BSD-2600100607.A326 2600100607 £1.75 £2.10
57 - STRAIGHT PIN 17.35+0.1 MM BSD-2603100069.A48 2603100069 £1.75 £2.10
60 - GEAR COVER BSD-2605808081.A24 2605808081 -
60/20 - BUSHING BSD-2600301037.A51 2600301037 £1.75 £2.10
61 - COMPRESSION SPRING BSD-2604610042.A42 2604610042 £2.33 £2.80
63 - SHIM BSD-2600101095.A26 2600101095 £1.75 £2.10
65 - SEAL BSD-2601015064.A21 2601015064 £2.33 £2.80
74 - TORSION SPRING BSD-2604651011.A30 2604651011 £2.80 £3.36
75 - CAP-HANDLE BSD-2600591010.A16 2600591010 £2.61 £3.13
76 - SEAL BSD-2601015065.A44 2601015065 £2.33 £2.80
77 - COVER PLATE BSD-2601016079.A44 2601016079 £5.30 £6.36
78 - THREAD-FORMING TAP. SCREW BSD-2603421014.A6 2603421014 £1.75 £2.10
83 - RETAINING SNAP RING BSD-2600202037.A21 2600202037 £2.52 £3.02
85 - SEALING PLATE BSD-2601015057.A58 2601015057 £3.80 £4.56
89 - WORK BOARD BSD-2601098082.A11 2601098082 -
90 - PROFILE BEADING BSD-2601030022.A8 2601030022 £2.61 £3.13
91 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A410 2910141197 £1.75 £2.10
92 - SLOTTED SPRING PIN 2x6 DIN 1481 BSD-2917760034.A52 2917760034 £1.75 £2.10
94 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A315 2603410049 £1.75 £2.10
95 - PROTECTING COVER BSD-2603101046.A59 2603101046 £1.75 £2.10
97 - EARTH CONDUCTOR BSD-2604448210.A14 2604448210 £1.75 £2.10
98 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A853 2603490018 £1.75 £2.10
103 - SPEED GOVERNOR 220-240V BSD-2607230069.A6 2607230069 -
107 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A917 2603490024 £1.75 £2.10
653 - SUCTION NOZZLE BSD-2605730038.A14 2605730038 -
653/10 - COVERING HOOD BSD-2605510159.A17 2605510159 £1.95 £2.34
654 - PAD BSD-2608000184.A27 2608000184 -
655 - SPLINTERING PROTECTOR BSD-2601016065.A137 2601016065 £5.30 £6.36
808 - REFERENCE PLATE BSD-2601116105.A0 2601116105 -
816/04 - CARBON-BRUSH SET BSD-2604320914.A28 2604320914 -
816/06 - SPIRAL SPRING BSD-1604652013.A322 1604652013 £1.75 £2.10
825 - GEAR HOUSING BSD-2605806896.A58 2605806896 £46.82 £56.18
844 - ROLLER SET BSD-2600326904.A35 2600326904 -
845 - ROLLER LEVER BSD-2601321904.A58 2601321904 -
860 - GEAR COVER BSD-2605808927.A52 2605808927 £103.14 £123.77
862 - GUIDE BRACKET BSD-2601322900.A58 2601322900 -
866 - LIFTING ROD BSD-2600780911.A6 2600780911 -
873 - HOLDING PLATE BSD-2601990906.A7 2601990906 £9.49 £11.39
881 - SEAL KIT BSD-2600290902.A35 2600290902 £3.34 £4.01
886 - FAN COVER BSD-2605500908.A36 2605500908 -
888 - BASE PLATE BSD-2608000920.A51 2608000920 -
