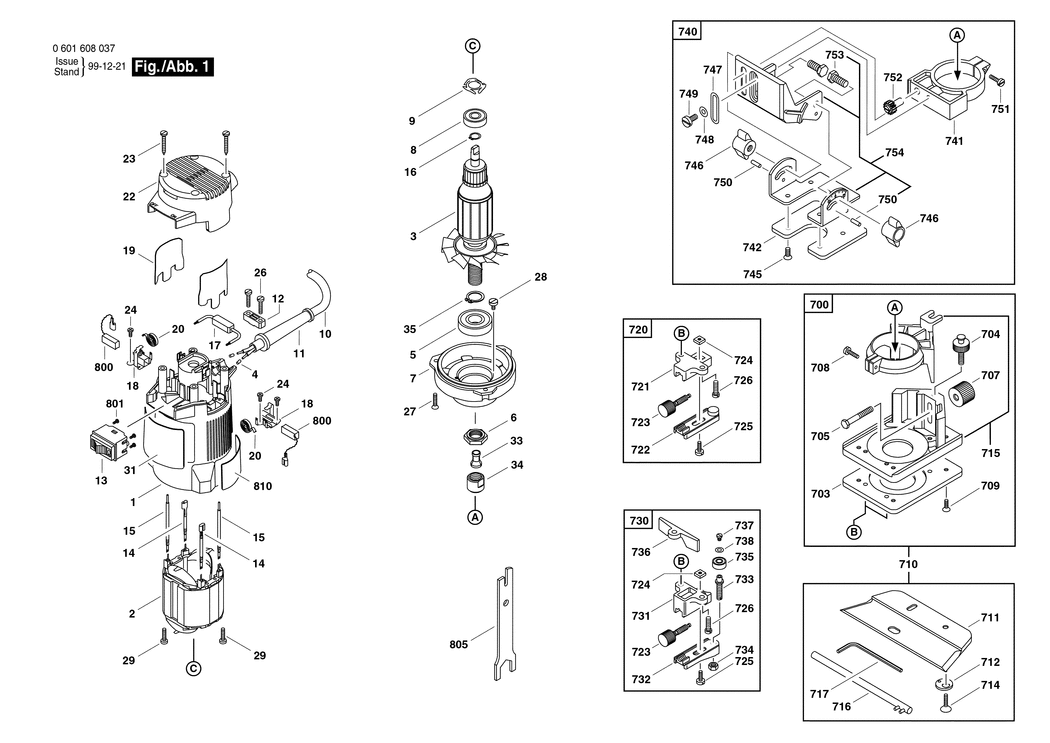

An exploded drawing and listing for the Bosch GUF 4-22 A / 0601608042 / GB 240 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108573.A2 3605108573 £16.41 £19.69
2 - FIELD 220-230V BSD-2604220438.A22 2604220438 £27.23 £32.68
3 - ARMATURE 240V BSD-3604011566.A1 3604011566 -
4 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A568 1900452012 £1.75 £2.10
5 - GROOVE BALL BEARING BSD-2610908032.A2 2610908032 -
6 - HEX NUT BSD-3603311521.A3 3603311521 £2.80 £3.36
7 - BEARING HOUSING BSD-3605702573.A0 3605702573 -
8 - BALL BEARING 7x22x7 BSD-1900905018.A1212 1900905018 £18.96 £22.75
9 - SPRING LOCK WASHER BSD-3600150501.A21 3600150501 £2.33 £2.80
10 - POWER SUPPLY CORD 4.25m 2 x 1.0mm H07RN-F BSD-3604460614.A1 3604460614 -
11 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A18 2600703011 £2.80 £3.36
12 - CABLE CLIP BSD-2601035001.A990 2601035001 £1.75 £2.10
13 - ON-OFF SWITCH BSD-3607200511.A0 3607200511 -
14 - CONNECTING CABLE BSD-3604441501.A3 3604441501 -
15 - CONNECTING CABLE BSD-3604441509.A0 3604441509 -
16 - SPRING RETAINING RING DIN 471-7x0.8-FST BSD-2916640004.A34 2916640004 £1.75 £2.10
17 - SUPPRESSION CAPACITOR BSD-3607328516.A2 3607328516 -
18 - BRUSH HOLDER BSD-1600A003G4.A399 1600A003G4 £3.72 £4.47
19 - INSULATOR BSD-3601033503.A2 3601033503 -
20 - SPIRAL SPRING BSD-1604652013.A821 1604652013 £1.75 £2.10
22 - HOUSING COVER BSD-3605500580.A1 3605500580 £10.10 £12.12
23 - TAPPING SCREW DIN 7971-ST3.5x33-C BSD-2910211214.A0 2910211214 -
24 - TAPPING SCREW BZ 2.9x6.5DIN7981-A2 BSD-2910611404.A1 2910611404 -
26 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2492 2910211019 £1.75 £2.10
27 - TAPPING SCREW DIN 7982-ST3.5x16-F-H BSD-2910601412.A7 2910601412 £2.61 £3.13
28 - COUNTERSUNK-HEAD SCREW DIN 7500-AM4x6-ST BSD-2914461044.A0 2914461044 -
29 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1459 2603490017 £2.16 £2.59
31 - NAMEPLATE BSD-2610906891.A0 2610906891 -
33 - COLLET 1/4 BSD-2608570064.A0 2608570064 -
34 - UNION NUT SW 14 BSD-2603312001.A31 2603312001 -
35 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A335 2916650003 £1.75 £2.10
700 - MILLING FIXTURE BSD-3605702619.A1 3605702619 -
703 - COVER PLATE BSD-3601039503.A1 3601039503 £10.10 £12.12
704 - SCREW BSD-3603481516.A2 3603481516 £4.26 £5.11
705 - HEX SCREW DIN 931-M5x30-5.6-A BSD-2911001166.A2 2911001166 -
707 - KNURLED BUTTON BSD-3603345508.A1 3603345508 -
708 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A946 2910021122 £2.16 £2.59
709 - SCREW BSD-3603415562.A7 3603415562 -
710 - MILLING FIXTURE BSD-3605702625.A1 3605702625 -
711 - PLATE BSD-3601032522.A1 3601032522 -
712 - SCREW BSD-3600132505.A1 3600132505 -
714 - SCREW BSD-3603415565.A0 3603415565 -
715 - PARTS SET BSD-3607000615.A1 3607000615 £68.42 £82.10
717 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A135 1907950004 £5.58 £6.70
720 - PARALLEL-GUIDE BSD-3607000506.A1 3607000506 -
721 - SUPPORT BSD-3602380500.A1 3602380500 -
722 - GUIDE PIECE BSD-3602386502.A2 3602386502 -
723 - KNURLED BUTTON BSD-3603481512.A2 3603481512 -
724 - SQUARE NUT DIN 562-M4-04 BSD-2915121004.A34 2915121004 -
725 - PAN HEAD SCREW DIN 85-M4x10-4.8 BSD-2910091120.A4 2910091120 £1.75 £2.10
726 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8 BSD-2910021126.A93 2910021126 £1.75 £2.10
730 - PARALLEL-GUIDE BSD-3607000555.A1 3607000555 -
731 - SUPPORT BSD-3602380501.A1 3602380501 -
732 - GUIDE PIECE BSD-3602386504.A0 3602386504 -
733 - KNURLED THUMBSCREW BSD-3603481514.A0 3603481514 -
734 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A44 2915011006 -
735 - BALL BEARING BSD-2610906500.A1 2610906500 £21.52 £25.83
736 - PAD BSD-3602305502.A1 3602305502 -
737 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A104 2910091046 £1.75 £2.10
738 - PLAIN WASHER BSD-2916014006.A1 2916014006 -
740 - BASE PLATE BSD-3605702613.A1 3605702613 -
741 - CLAMP RING BSD-3605702547.A2 3605702547 -
742 - BASE PLATE BSD-3600190514.A0 3600190514 -
745 - SCREW BSD-3603415562.A8 3603415562 -
746 - WING NUT M6 BSD-1603339006.A177 1603339006 £2.52 £3.02
747 - WASHER BSD-3600100523.A1 3600100523 -
748 - SPRING WASHER BSD-3600100520.A13 3600100520 £2.16 £2.59
749 - PAN HEAD SCREW DIN 85-AM5x10-4.8 BSD-2910091152.A1 2910091152 -
750 - BOLT BSD-3603106510.A1 3603106510 -
751 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8 BSD-2910021126.A94 2910021126 £1.75 £2.10
752 - SCREW BSD-3606100504.A1 3606100504 -
753 - HEX SCREW DIN 933-M6x16-5.6-A BSD-2911051197.A10 2911051197 £1.75 £2.10
754 - BASE BSD-3607000514.A1 3607000514 -
800 - CARBON-BRUSH SET BSD-1607014116.A153 1607014116 £11.30 £13.56
801 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A493 2603410023 -
805 - SINGLE-HEAD ENG. WRENCH SW 4/14 BSD-9601497907.A2 9601497907 -
810 - NAMEPLATE BSD-3601119595.A12 3601119595 £3.72 £4.47
