Bosch GWS 19-230 / 0601352865 / S 230 Volt Spare Parts

Home Details Reviews Delivery

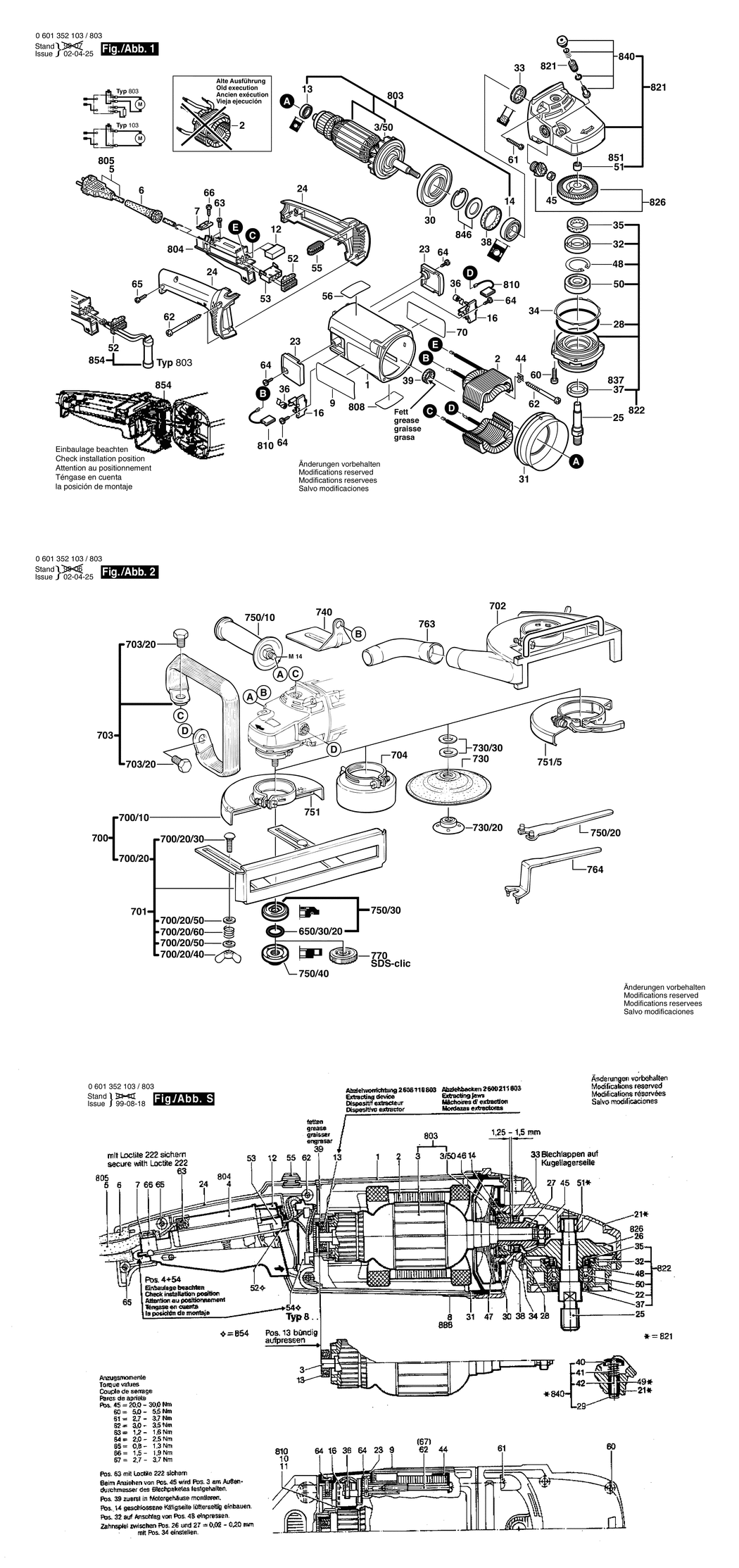

An exploded drawing and listing for the Bosch GWS 19-230 / 0601352865 / S 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108144.A34 1605108144	-
2 - FIELD 220-240V BSD-1604220380.A99 1604220380	£33.74	£40.49
3/50 - FAN BSD-1606610127.A198 1606610127	£2.80	£3.36
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A34 1600703023	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A810 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118323.A2 1601118323	-
12 - SUPPRESSION FILTER BSD-1607328035.A123 1607328035	£4.26	£5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A584 1600905011	£5.58	£6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905025.A0 1600905025	-
16 - BRUSH HOLDER BSD-1604336021.A107 1604336021	£2.80	£3.36
23 - SEALING CAP BSD-1605500150.A83 1605500150	£3.72	£4.47
24 - HANDLE BSD-1605132117.A128 1605132117	£11.30	£13.56
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A107 1603523100	£14.91	£17.89
28 - O-RING 79.0x1.78 MM BSD-1600210033.A666 1600210033	£1.75	£2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A109 1600591010	£2.16	£2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A69 1600591011	£1.75	£2.10
32 - RETAINING SNAP RING BSD-1600290019.A639 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A180 1600290013	£2.61	£3.13
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A365 1600290064	£2.16	£2.59
34 - SHIM 0.15 MM BSD-1600190020.A22 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A805 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A22 1600190022	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A37 1600205034	£1.75	£2.10
36 - SPIRAL SPRING BSD-1604652015.A331 1604652015	£2.80	£3.36
37 - SEAL RING BSD-1600290036.A524 1600290036	£2.16	£2.59
38 - RUBBER RING 7 MM BSD-1600206020.A679 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A16 1600206030	£1.75	£2.10
44 - HOLDING BRACKET BSD-1601334008.A85 1601334008	£2.61	£3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A179 1603300019	£1.75	£2.10
48 - RETAINING CLIP BSD-1600119010.A377 1600119010	£1.75	£2.10
50 - GROOVE BALL BEARING BSD-3600905134.A29 3600905134	£11.30	£13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A397 1600200031	£2.80	£3.36
52 - CABLE ROUTING BSD-1602388027.A0 1602388027	£2.61	£3.13
53 - SOCKET HOUSING BSD-1605190038.A116 1605190038	£1.75	£2.10
55 - STORAGE LEDGE BSD-1602388029.A176 1602388029	£1.75	£2.10
56 - REFERENCE PLATE BSD-1601110530.A17 1601110530	-
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A256 1603435023	£2.16	£2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A306 2912401038	£1.75	£2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A89 1603435024	£1.75	£2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A174 1603410014	£1.75	£2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A39 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A703 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1526 2910211019	£1.75	£2.10
70 - MANUFACTURER'S NAMEPLATE BSD-1601110984.A11 1601110984	-
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A631 1600210039	£2.16	£2.59
700 - PARTS SET dia230 MM BSD-1607000251.A104 1607000251	-
700/10 - PROTECTIVE COVER dia230 MM BSD-1605510223.A23 1605510223	-
700/20 - GUIDE BLOCK BSD-1608135003.A280 1608135003	-
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A118 2910281244	-
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A31 2915191007	£3.72	£4.47
700/20/50 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A116 2600100041	£1.75	£2.10
700/20/60 - COMPRESSION SPRING BSD-1604643003.A249 1604643003	£6.52	£7.83
701 - GUIDE BLOCK BSD-1608135003.A281 1608135003	-
702 - PROTECTIVE COVER dia230 MM BSD-1605510180.A64 1605510180	£71.74	£86.09
703 - STRAP-SHAPED HANDLE BSD-1607000247.A181 1607000247	£50.82	£60.99
703/20 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A199 2603450007	£5.58	£6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A113 1605510181	-
730 - BACKING PAD dia180 MM BSD-1608601006.A121 1608601006	-
730/20 - ROUND NUT M14 BSD-1603345004.A60 1603345004	£7.87	£9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A115 2916011022	£1.75	£2.10
740 - PROTECTING COVER BSD-1601329013.A147 1601329013	£11.37	£13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A149 2602025075	£10.30	£12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A193 1607950048	£4.88	£5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A384 1605703099	£7.45	£8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A180 1603340040	£6.20	£7.44
751 - PROTECTIVE COVER dia230 MM BSD-1605510223.A24 1605510223	-
751/5 - PROTECTIVE COVER dia230 MM BSD-1605510223.A25 1605510223	-
763 - SUCTION BEND dia 35 MM BSD-1600793007.A139 1600793007	£19.24	£23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A2 1607950004	£8.33	£10.00
770 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A396 1603340027	£46.82	£56.18
803 - ARMATURE 230-240V BSD-1604011148.A3 1604011148	£103.14	£123.77
804 - SWITCH BSD-1607200109.A6 1607200109	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A625 1607000228	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3H3.A822 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014171.A192 1607014171	£14.91	£17.89
821 - GEAR HOUSING BSD-1605805592.A111 1605805592	£72.18	£86.62
822 - BEARING FLANGE dia230 MM BSD-1607000985.A135 1607000985	£27.23	£32.68
822 - BEARING FLANGE dia230 MM BSD-1607000932.A10 1607000932	-
822 - BEARING FLANGE dia 230 MM BSD-1607000922.A47 1607000922	£45.67	£54.80
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A0 1600A005BH	£45.67	£54.80
837 - SEAL RING BSD-1600290020.A166 1600290020	£1.75	£2.10
840 - PUSH-BUTTON BSD-1607000206.A2 1607000206	£11.30	£13.56
846 - RETAINING WASHER BSD-1607000C3E.A135 1607000C3E	£12.04	£14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A868 2600910001	£4.26	£5.11
854 - WIREWOUND RESISTOR BSD-1607000926.A20 1607000926	£16.41	£19.69

Attribute Name	Value
Brand	Bosch
