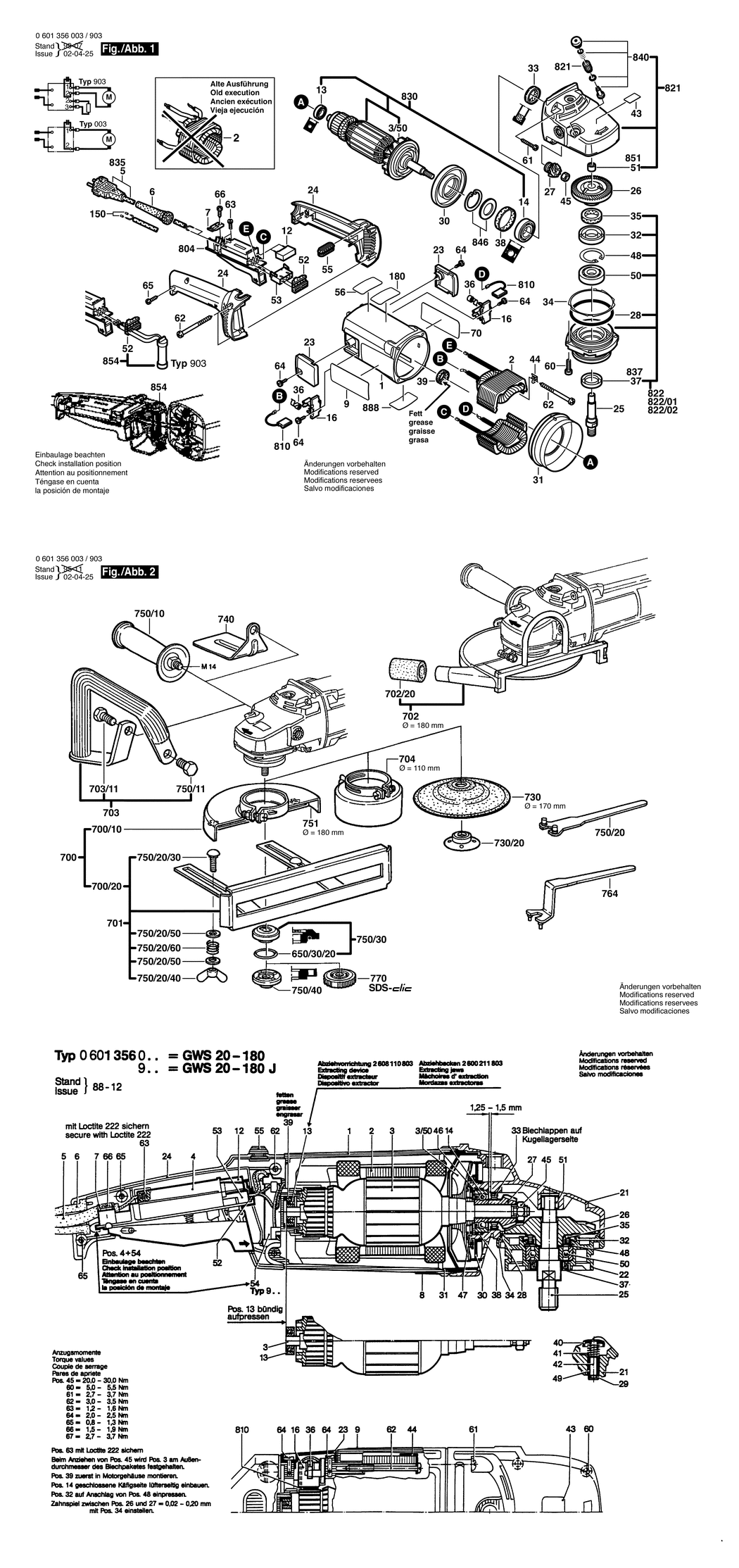

1 - MOTOR HOUSING
BSD-1605108144.A58
1605108144
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220380.A77
1604220380
|
£35.42
|
£42.51
|
|
|
3/50 - FAN
BSD-1606610127.A93
1606610127
|
£2.94
|
£3.53
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A174
1600703023
|
£2.74
|
£3.29
|
|
|
6 - GROMMET dia7.9-dia12.0x120 MM
BSD-1600703022.A75
1600703022
|
£2.94
|
£3.53
|
|
|
6 - GROMMET dia8.8-dia9.0x70 MM
BSD-1600703024.A73
1600703024
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A416
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118325.A3
1601118325
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A35
1607328035
|
£4.48
|
£5.37
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A220
1600905011
|
£5.87
|
£7.04
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905025.A67
1600905025
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336021.A13
1604336021
|
£2.94
|
£3.53
|
|
|
23 - SEALING CAP
BSD-1605500150.A30
1605500150
|
£3.91
|
£4.69
|
|
|
24 - HANDLE
BSD-1605132117.A48
1605132117
|
£11.87
|
£14.24
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A29
1603523100
|
£15.65
|
£18.78
|
|
|
26 - CROWN GEAR Z=53
BSD-1606333618.A61
1606333618
|
-
|
|
|
|
27 - BEVEL GEAR Z=17
BSD-1606333237.A25
1606333237
|
-
|
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A299
1600210033
|
£1.84
|
£2.21
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A88
1600591010
|
£2.27
|
£2.72
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A90
1600591011
|
£1.84
|
£2.21
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A196
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A344
1600290013
|
£2.74
|
£3.29
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A413
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A414
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A413
1600190022
|
£1.84
|
£2.21
|
|
|
35 - FELT WASHER
BSD-1600205034.A325
1600205034
|
£1.75
|
£2.10
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A203
1604652015
|
£2.94
|
£3.53
|
|
|
37 - SEAL RING
BSD-1600290036.A99
1600290036
|
£2.27
|
£2.72
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A23
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A297
1600206030
|
£1.84
|
£2.21
|
|
|
43 - REFERENCE PLATE
BSD-1601110470.A27
1601110470
|
£1.84
|
£2.21
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A121
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A209
1603300019
|
£1.84
|
£2.21
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A405
1600119010
|
£1.84
|
£2.21
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905134.A17
3600905134
|
£11.87
|
£14.24
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A360
1600200031
|
£2.80
|
£3.36
|
|
|
52 - CABLE ROUTING
BSD-1602388027.A30
1602388027
|
£2.74
|
£3.29
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A79
1605190038
|
£1.84
|
£2.21
|
|
|
55 - STORAGE LEDGE
BSD-1602388029.A146
1602388029
|
£1.84
|
£2.21
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A279
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A318
2912401038
|
£1.84
|
£2.21
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A66
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A204
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A21
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A744
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1608
2910211019
|
£1.84
|
£2.21
|
|
|
70 - REFERENCE PLATE
BSD-1601110551.A6
1601110551
|
-
|
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A659
1600210039
|
£2.27
|
£2.72
|
|
|
700 - PARTS SET dia180 MM
BSD-1607000250.A7
1607000250
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia180 MM
BSD-1605510222.A163
1605510222
|
-
|
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135006.A27
1608135006
|
-
|
|
|
|
702 - SUCTION HOOD dia180 MM
BSD-1605510179.A45
1605510179
|
£61.24
|
£73.49
|
|
|
702/20 - UNION dia32.3xdia34.9x75 MM
BSD-1600309009.A108
1600309009
|
-
|
|
|
|
703 - STRAP-SHAPED HANDLE
BSD-1607000247.A199
1607000247
|
£50.82
|
£60.99
|
|
|
703/11 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A158
2603450007
|
£5.87
|
£7.04
|
|
|
704 - PROTECTIVE COVER dia110 MM
BSD-1605510181.A110
1605510181
|
-
|
|
|
|
730 - BACKING PAD dia180 MM
BSD-1608601006.A133
1608601006
|
-
|
|
|
|
730/20 - ROUND NUT M14
BSD-1603345004.A82
1603345004
|
£8.26
|
£9.91
|
|
|
740 - PROTECTING COVER
BSD-1601329013.A154
1601329013
|
£11.37
|
£13.64
|
|
|
750/10 - AUXILIARY HANDLE M14x1.5 MM
BSD-2602025075.A131
2602025075
|
£10.82
|
£12.98
|
|
|
750/11 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A157
2603450007
|
£5.87
|
£7.04
|
|
|
750/20 - PIN-TYPE FACE-WRENCH
BSD-1607950048.A190
1607950048
|
£5.12
|
£6.15
|
|
|
750/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A132
2910281244
|
-
|
|
|
|
750/20/40 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A13
2915191007
|
£3.72
|
£4.47
|
|
|
750/20/50 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A104
2600100041
|
£1.84
|
£2.21
|
|
|
750/20/60 - COMPRESSION SPRING
BSD-1604643003.A246
1604643003
|
£6.52
|
£7.83
|
|
|
750/30 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A409
1605703099
|
£7.82
|
£9.39
|
|
|
750/40 - CLAMPING NUT M14
BSD-1603340040.A155
1603340040
|
£6.51
|
£7.81
|
|
|
751 - PROTECTIVE COVER dia180 MM
BSD-1605510222.A164
1605510222
|
-
|
|
|
|
764 - PIN-TYPE FACE-WRENCH
BSD-1607950004.A6
1607950004
|
£8.75
|
£10.50
|
|
|
770 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A408
1603340027
|
£49.16
|
£58.99
|
|
|
804 - SWITCH
BSD-1607200104.A4
1607200104
|
£31.64
|
£37.97
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A186
1607014171
|
£14.91
|
£17.89
|
|
|
821 - GEAR HOUSING
BSD-1605805592.A88
1605805592
|
£72.18
|
£86.62
|
|
|
822 - BEARING FLANGE dia180 MM
BSD-1607000986.A10
1607000986
|
-
|
|
|
|
822/01 - BEARING FLANGE dia180 MM
BSD-1607000931.A43
1607000931
|
£31.79
|
£38.15
|
|
|
822/02 - BEARING FLANGE dia180 MM
BSD-1607000921.A36
1607000921
|
£38.47
|
£46.16
|
|
|
830 - ARMATURE 230V
BSD-1604011145.A19
1604011145
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A667
1607000228
|
£23.86
|
£28.63
|
|
|
837 - SEAL RING
BSD-1600290020.A156
1600290020
|
£1.84
|
£2.21
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A32
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A16
1607000342
|
£3.91
|
£4.69
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A814
2600910001
|
£4.48
|
£5.37
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A740
160111A3H3
|
£2.74
|
£3.29
|
|
