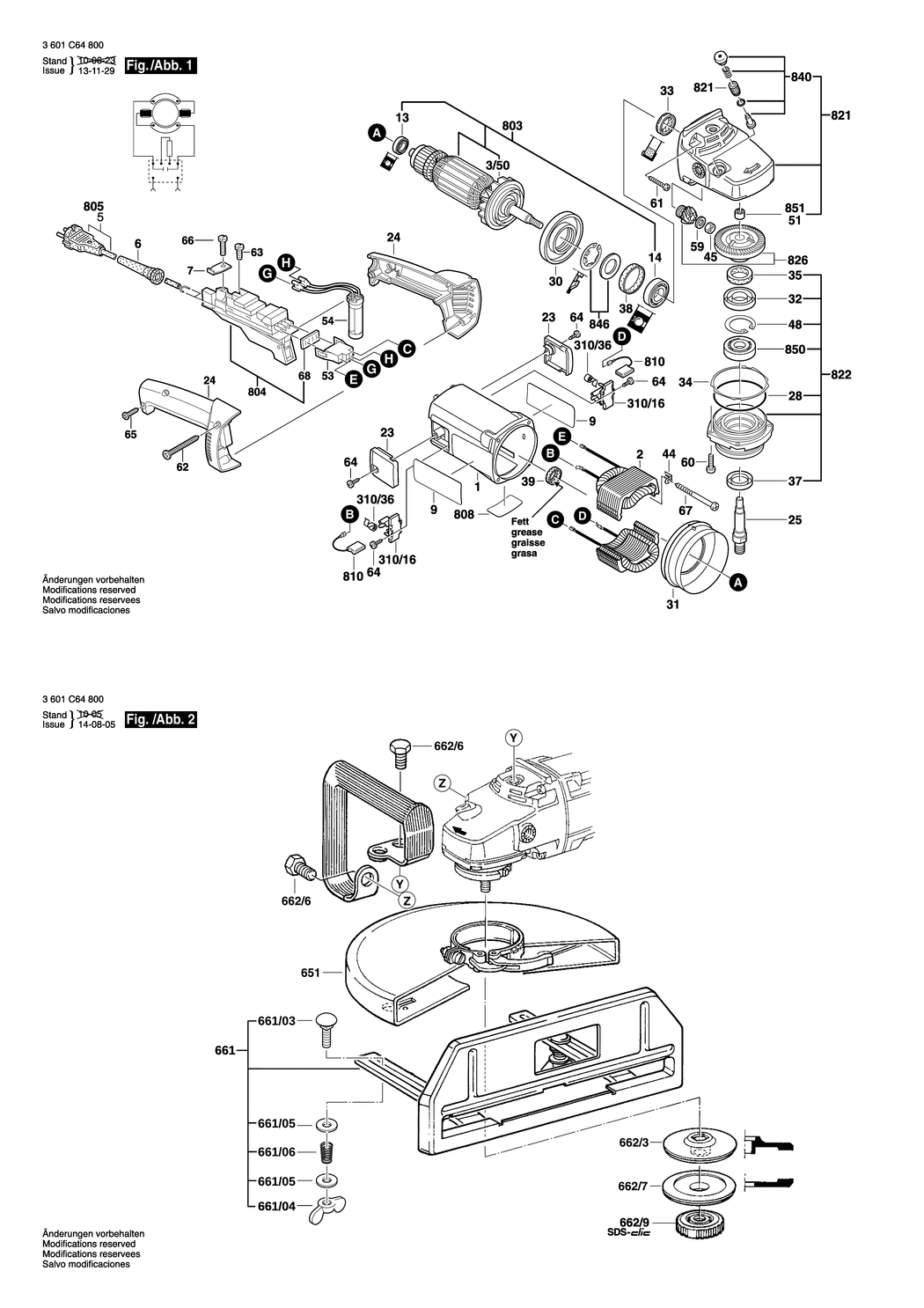

1 - MOTOR HOUSING
BSD-1605108145.A38
1605108145
|
£23.86
|
£28.63
|
|
|
2 - FIELD 220-240V
BSD-1604220381.A48
1604220381
|
£39.61
|
£47.53
|
|
|
3/50 - FAN
BSD-1606610127.A185
1606610127
|
£2.94
|
£3.53
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460440.A45
1604460440
|
£22.60
|
£27.12
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A58
1600703023
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A632
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118357.A1
1601118357
|
£3.72
|
£4.47
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A556
1600905011
|
£5.87
|
£7.04
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905023.A145
1600905023
|
£12.64
|
£15.17
|
|
|
23 - SEALING CAP
BSD-1605500150.A123
1605500150
|
£3.91
|
£4.69
|
|
|
24 - HANDLE
BSD-1605132140.A19
1605132140
|
£12.04
|
£14.45
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523105.A10
1603523105
|
£38.47
|
£46.16
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A623
1600210033
|
£1.84
|
£2.21
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A144
1600591010
|
£2.27
|
£2.72
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A34
1600591011
|
£1.84
|
£2.21
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A677
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A223
1600290013
|
£2.74
|
£3.29
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A66
1600190022
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A66
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A761
1600190021
|
£2.61
|
£3.13
|
|
|
35 - FELT WASHER
BSD-1600205034.A67
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1600290020.A5
1600290020
|
£1.84
|
£2.21
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A729
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A5
1600206030
|
£1.84
|
£2.21
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A80
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A177
1603300019
|
£1.84
|
£2.21
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A680
1600119010
|
£1.84
|
£2.21
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A474
1600200031
|
£2.80
|
£3.36
|
|
|
53 - SOCKET HOUSING
BSD-1605190068.A163
1605190068
|
£1.75
|
£2.10
|
|
|
54 - WIREWOUND RESISTOR
BSD-1604503015.A3
1604503015
|
£12.04
|
£14.45
|
|
|
59 - PLAIN WASHER 1.8 MM
BSD-1600101655.A5
1600101655
|
£1.75
|
£2.10
|
|
|
60 - THREAD-FORMING TAP. SCREW
BSD-1603435076.A146
1603435076
|
£2.74
|
£3.29
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A71
2912401038
|
£1.84
|
£2.21
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A267
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A166
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A676
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A174
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A648
2910211019
|
£1.84
|
£2.21
|
|
|
67 - LENS HEAD SCREW
BSD-3603435040.A27
3603435040
|
£1.75
|
£2.10
|
|
|
68 - SEALING PLATE
BSD-1601006011.A487
1601006011
|
£2.74
|
£3.29
|
|
|
310/16 - BRUSH HOLDER
BSD-1604336021.A143
1604336021
|
£2.94
|
£3.53
|
|
|
310/36 - SPIRAL SPRING
BSD-1604652015.A310
1604652015
|
£2.94
|
£3.53
|
|
|
651 - PROTECTIVE COVER dia300 MM
BSD-1605510212.A12
1605510212
|
£164.02
|
£196.83
|
|
|
661 - GUIDE BLOCK dia300 MM
BSD-1608190014.A0
1608190014
|
£135.25
|
£162.30
|
|
|
661/03 - ROUND-HEAD BOLT M 8x30 DIN 603
BSD-2910281246.A10
2910281246
|
-
|
|
|
|
661/04 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A217
2915191007
|
£3.72
|
£4.47
|
|
|
661/05 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A302
2600100041
|
£1.84
|
£2.21
|
|
|
661/06 - COMPRESSION SPRING
BSD-1604643003.A49
1604643003
|
£6.52
|
£7.83
|
|
|
662/3 - CLAMPING-FLANGE
BSD-1605703101.A1
1605703101
|
£75.79
|
£90.95
|
|
|
662/6 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A434
2603450007
|
£5.87
|
£7.04
|
|
|
662/7 - CONICAL SPRING WASHER
BSD-1605703100.A3
1605703100
|
£27.23
|
£32.68
|
|
|
662/9 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A281
1603340027
|
£49.16
|
£58.99
|
|
|
803 - ARMATURE 230-240V
BSD-1604011156.A10
1604011156
|
£135.25
|
£162.30
|
|
|
804 - SWITCH
BSD-1607000973.A1
1607000973
|
£62.51
|
£75.01
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2882
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A531
1607014171
|
£14.91
|
£17.89
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 171
BSD-1607000480.A222
1607000480
|
£102.57
|
£123.08
|
|
|
821 - GEAR HOUSING
BSD-1605805592.A69
1605805592
|
£72.18
|
£86.62
|
|
|
822 - PARTS SET
BSD-1607000947.A11
1607000947
|
£50.80
|
£60.96
|
|
|
826 - BEVEL GEAR SET
BSD-1600A003DA.A11
1600A003DA
|
£218.41
|
£262.09
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A196
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A349
1607000342
|
£3.91
|
£4.69
|
|
|
850 - GROOVE BALL BEARING
BSD-3600905134.A105
3600905134
|
£11.87
|
£14.24
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A275
2600910001
|
£4.48
|
£5.37
|
|
