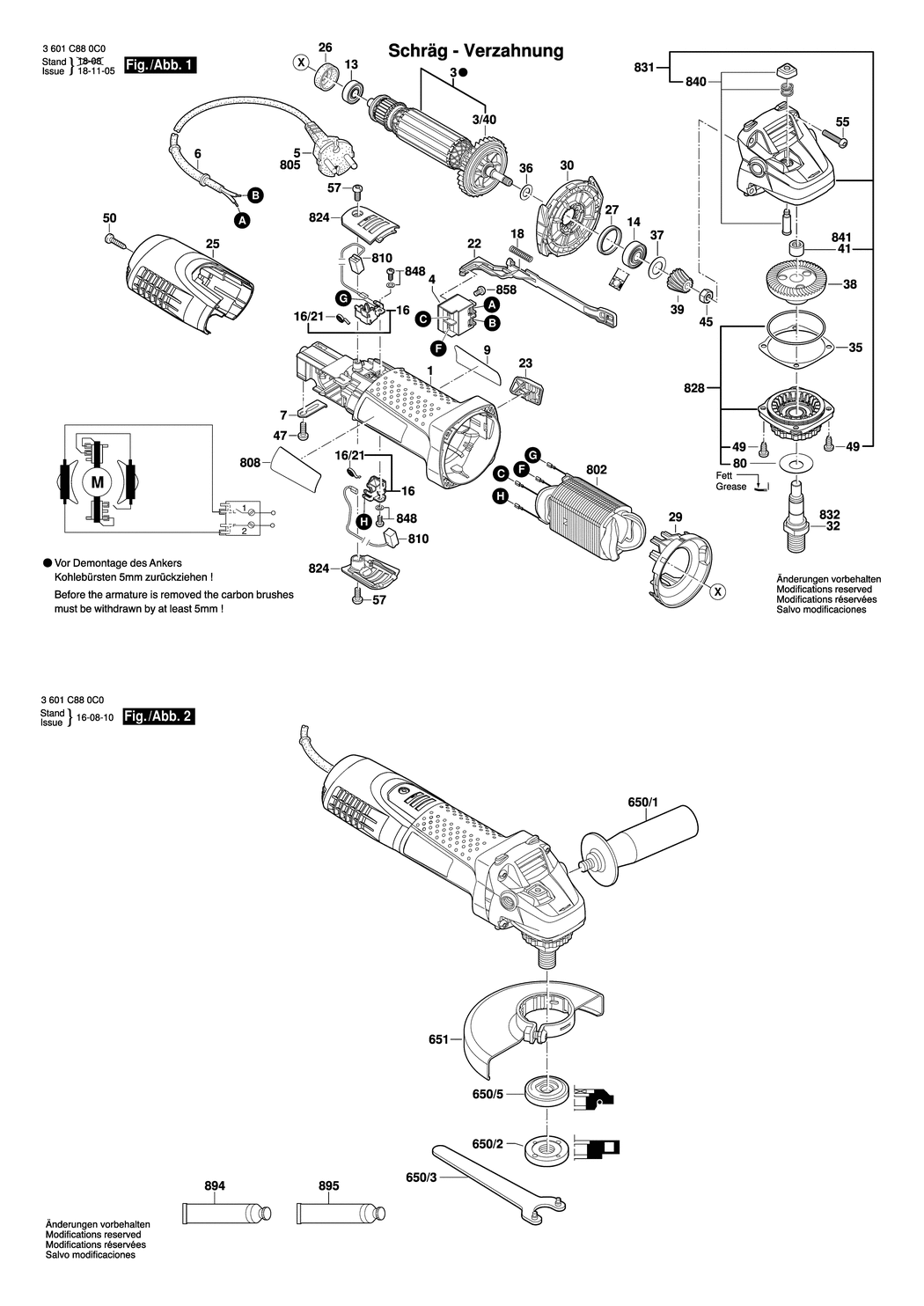

1 - MOTOR HOUSING
BSD-1619P09415.A8
1619P09415
|
£8.67
|
£10.41
|
|
|
3 - ARMATURE 110-120V
BSD-1604010BK5.A2
1604010BK5
|
£23.86
|
£28.63
|
|
|
3/40 - FAN
BSD-1619P02801.A22
1619P02801
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200179.A87
1607200179
|
£10.59
|
£12.71
|
|
|
5 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F
BSD-1604460263.A1
1604460263
|
£4.26
|
£5.11
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A528
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A196
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 7-100
BSD-1619P02853.A3
1619P02853
|
£2.61
|
£3.13
|
|
|
13 - BALL BEARING 7x19x6 MM
BSD-1619P00456.A23
1619P00456
|
£2.80
|
£3.36
|
|
|
14 - BALL BEARING
BSD-1619P00455.A51
1619P00455
|
£3.72
|
£4.47
|
|
|
16 - BRUSH HOLDER
BSD-1619P02845.A34
1619P02845
|
£2.80
|
£3.36
|
|
|
16/21 - SPIRAL SPRING
BSD-1619P02809.A9
1619P02809
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A206
1604611031
|
£2.80
|
£3.36
|
|
|
22 - ADJUSTING SLIDE
BSD-1619P02811.A23
1619P02811
|
£1.75
|
£2.10
|
|
|
23 - SWITCH BUTTON
BSD-1619P09290.A13
1619P09290
|
-
|
|
|
|
25 - HOUSING COVER
BSD-1619P09922.A3
1619P09922
|
£3.80
|
£4.56
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A78
1600502023
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A181
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1619P02818.A9
1619P02818
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1619P02819.A12
1619P02819
|
£1.75
|
£2.10
|
|
|
32 - GRINDING SPINDLE M10. SW12
BSD-1603523111.A3
1603523111
|
£6.52
|
£7.83
|
|
|
35 - SHIM 0.1 MM
BSD-1619P02821.A26
1619P02821
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1619P02822.A47
1619P02822
|
£1.75
|
£2.10
|
|
|
36 - WASHER
BSD-1619P00987.A46
1619P00987
|
£1.75
|
£2.10
|
|
|
37 - COVER DISC
BSD-1600100033.A168
1600100033
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR
BSD-1619P02823.A27
1619P02823
|
£8.67
|
£10.41
|
|
|
39 - BEVEL GEAR
BSD-1619P02825.A33
1619P02825
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A398
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A32
2609110052
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2
BSD-1603435068.A193
1603435068
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-1619P00105.A32
1619P00105
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x25
BSD-1619P01066.A64
1619P01066
|
£1.75
|
£2.10
|
|
|
57 - TORX OVAL-HEAD SCREW 4x12
BSD-1619P02848.A8
1619P02848
|
£1.75
|
£2.10
|
|
|
80 - COVER DISC
BSD-1619P09390.A15
1619P09390
|
£2.16
|
£2.59
|
|
|
650/1 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A200
160202509T
|
£3.72
|
£4.47
|
|
|
650/2 - ROUND NUT WITH 2 HOLES
BSD-1619P09976.A11
1619P09976
|
£2.16
|
£2.59
|
|
|
650/3 - PIN-TYPE FACE-WRENCH
BSD-2609110015.A7
2609110015
|
£2.61
|
£3.13
|
|
|
650/5 - CLAMPING-FLANGE M10. 16-20 MM
BSD-1605703113.A10
1605703113
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER dia100 MM
BSD-1600A00XU5.A7
1600A00XU5
|
£8.67
|
£10.41
|
|
|
802 - FIELD 100-110V
BSD-1609P20630.A1
1609P20630
|
-
|
|
|
|
808 - NAMEPLATE
BSD-1619P02862.A0
1619P02862
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1619P02870.A9
1619P02870
|
£8.67
|
£10.41
|
|
|
812 - SUPPRESSION CAPACITOR
BSD-1619P07240.A4
1619P07240
|
£6.52
|
£7.83
|
|
|
823 - SWITCH BUTTON
BSD-1619P10838.A16
1619P10838
|
£1.75
|
£2.10
|
|
|
824 - BRUSH-COVER
BSD-1619P14294.A1
1619P14294
|
£2.61
|
£3.13
|
|
|
828 - BEARING FLANGE
BSD-1619P07452.A42
1619P07452
|
£10.10
|
£12.12
|
|
|
831 - GEAR HOUSING
BSD-1619P02872.A15
1619P02872
|
£16.41
|
£19.69
|
|
|
840 - PUSH-BUTTON
BSD-1619P02873.A10
1619P02873
|
£2.16
|
£2.59
|
|
|
841 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A211
1600910018
|
£5.30
|
£6.36
|
|
|
848 - TORX OVAL-HEAD SCREW
BSD-1619P14292.A2
1619P14292
|
£2.16
|
£2.59
|
|
|
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H
BSD-2910641081.A114
2910641081
|
-
|
|
|
|
894 - GREASE TUBE 225 ML
BSD-1615430020.A52
1615430020
|
£21.52
|
£25.83
|
|
|
895 - GREASE TUBE 225 ML
BSD-1605430003.A282
1605430003
|
£33.74
|
£40.49
|
|
