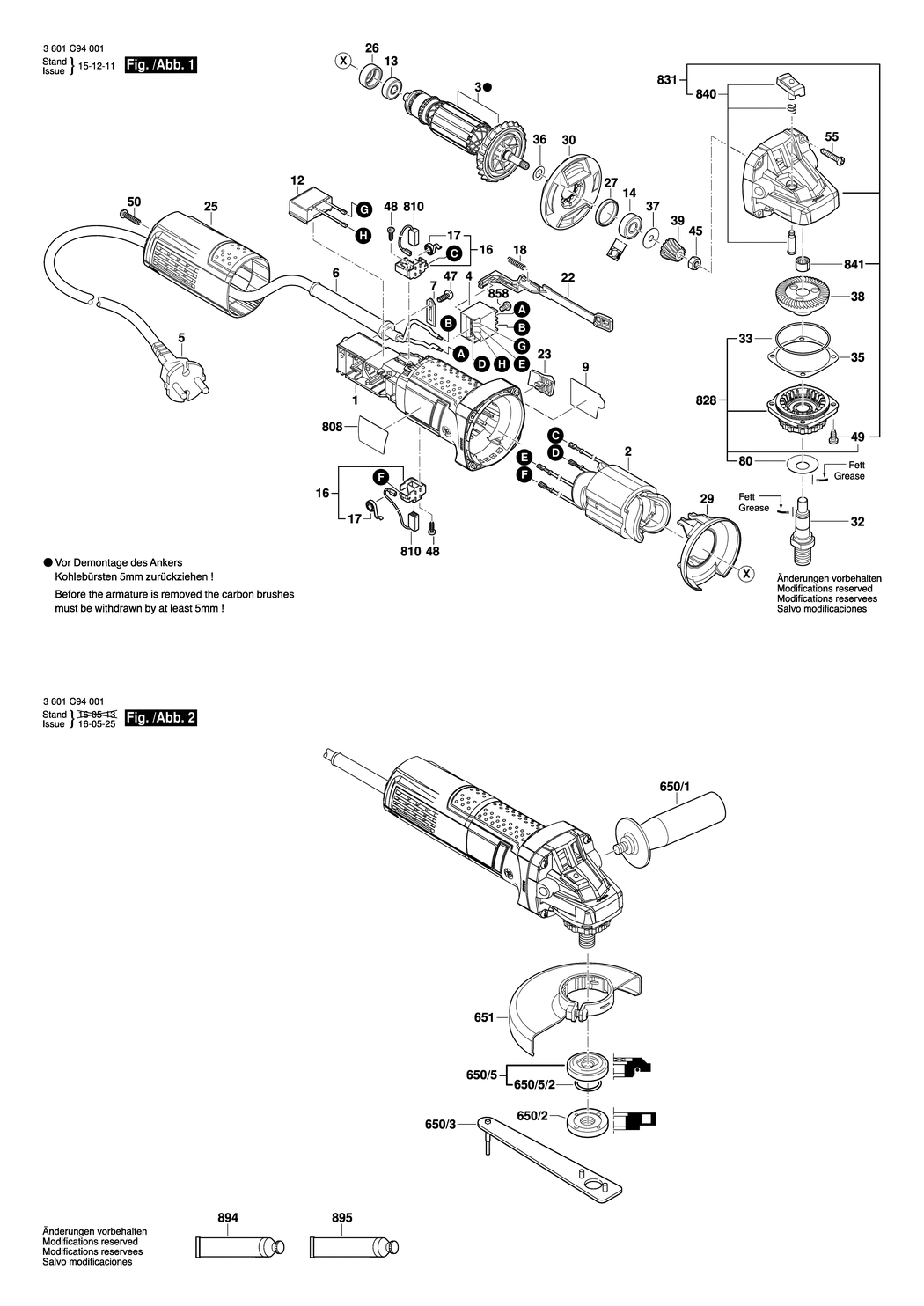

1 - MOTOR HOUSING
BSD-1619P10958.A10
1619P10958
|
£5.30
|
£6.36
|
|
|
2 - FIELD 220-240V
BSD-1619P08334.A5
1619P08334
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 220-240V
BSD-1619P08234.A8
1619P08234
|
£27.23
|
£32.68
|
|
|
4 - SWITCH
BSD-1607200326.A1
1607200326
|
£14.91
|
£17.89
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 0.75mm H05 VV-F
BSD-1604460260.A14
1604460260
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A872
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A559
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 700
BSD-1619P11135.A0
1619P11135
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION FILTER
BSD-1619P13041.A13
1619P13041
|
£3.54
|
£4.25
|
|
|
13 - GROOVE BALL BEARING
BSD-1619P08829.A16
1619P08829
|
£6.52
|
£7.83
|
|
|
14 - GROOVE BALL BEARING
BSD-1619P13103.A5
1619P13103
|
£2.80
|
£3.36
|
|
|
16 - BRUSH HOLDER
BSD-1619P01811.A79
1619P01811
|
£2.80
|
£3.36
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A621
1604652013
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1619P11487.A26
1619P11487
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-1619P10967.A10
1619P10967
|
£1.75
|
£2.10
|
|
|
23 - SWITCH BUTTON
BSD-1619P10969.A31
1619P10969
|
£1.88
|
£2.25
|
|
|
25 - HOUSING COVER
BSD-1619P10963.A14
1619P10963
|
£3.72
|
£4.47
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A148
1600502023
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A766
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1619P10970.A8
1619P10970
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1619P14139.A25
1619P14139
|
£1.75
|
£2.10
|
|
|
32 - GRINDING SPINDLE M 14. SW 17
BSD-1619P06419.A5
1619P06419
|
£11.30
|
£13.56
|
|
|
33 - O-RING 44.0x1.0 MM
BSD-1619P02820.A29
1619P02820
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1619P02821.A33
1619P02821
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1619P02822.A40
1619P02822
|
£1.75
|
£2.10
|
|
|
36 - WASHER
BSD-1619P00987.A26
1619P00987
|
£1.75
|
£2.10
|
|
|
37 - COVER DISC
BSD-1600100033.A113
1600100033
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR
BSD-1619P02823.A32
1619P02823
|
£8.67
|
£10.41
|
|
|
39 - BEVEL GEAR
BSD-1619P02825.A28
1619P02825
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1482
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A144
2609110052
|
£1.75
|
£2.10
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-1619P00220.A112
1619P00220
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1619P12666.A7
1619P12666
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-1619P00105.A120
1619P00105
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x25
BSD-1619P01066.A12
1619P01066
|
£1.75
|
£2.10
|
|
|
80 - COVER DISC
BSD-1619P09390.A26
1619P09390
|
£2.16
|
£2.59
|
|
|
650/1 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A813
160202509T
|
£3.72
|
£4.47
|
|
|
650/2 - ROUND NUT M14
BSD-1603345043.A519
1603345043
|
£8.67
|
£10.41
|
|
|
650/3 - PIN-TYPE FACE-WRENCH
BSD-1619P08927.A23
1619P08927
|
£4.26
|
£5.11
|
|
|
650/5 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A801
2605703014
|
£7.36
|
£8.83
|
|
|
650/5/2 - O-RING 20.35x1.78 MM
BSD-1600210039.A23
1600210039
|
£2.16
|
£2.59
|
|
|
651 - PROTECTIVE COVER dia115 MM
BSD-1600A00XU6.A49
1600A00XU6
|
£11.30
|
£13.56
|
|
|
808 - NAMEPLATE
BSD-1619P11049.A0
1619P11049
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1619P11715.A13
1619P11715
|
£6.66
|
£7.99
|
|
|
828 - BEARING FLANGE
BSD-1619P07452.A11
1619P07452
|
£10.10
|
£12.12
|
|
|
831 - GEAR HOUSING
BSD-1619P12186.A19
1619P12186
|
£14.91
|
£17.89
|
|
|
840 - PUSH BUTTON
BSD-1619P12188.A8
1619P12188
|
£1.75
|
£2.10
|
|
|
841 - PLAIN BEARING
BSD-1600200029.A342
1600200029
|
£4.26
|
£5.11
|
|
|
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H
BSD-2910641081.A10
2910641081
|
-
|
|
|
|
894 - GREASE TUBE 225 ML
BSD-1615430020.A169
1615430020
|
£21.52
|
£25.83
|
|
|
895 - GREASE TUBE 225 ML
BSD-1605430003.A124
1605430003
|
£33.74
|
£40.49
|
|
