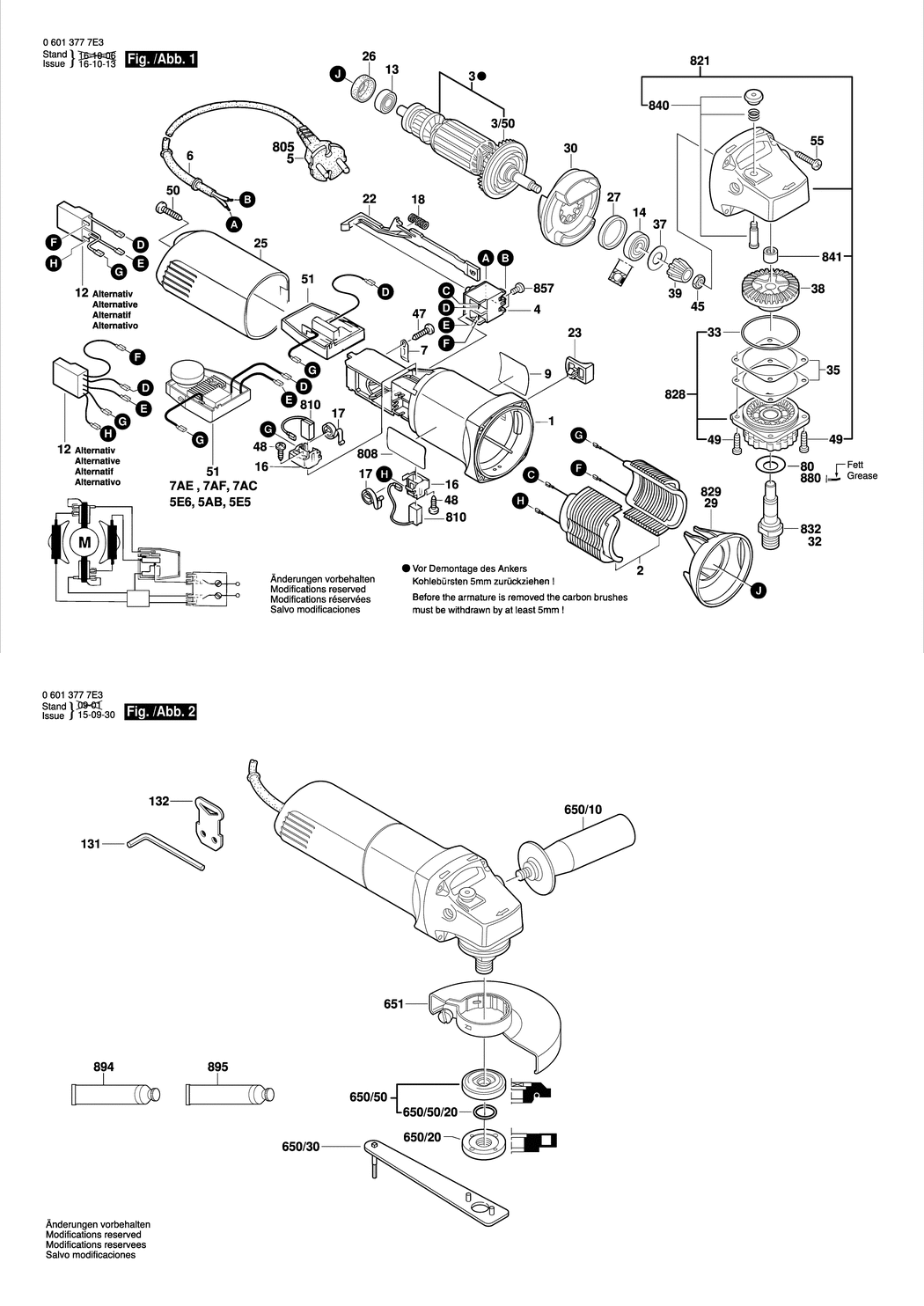

1 - MOTOR HOUSING
BSD-1619P09772.A76
1619P09772
|
£13.12
|
£15.75
|
|
|
2 - FIELD 220-240V
BSD-1604220340.A6
1604220340
|
-
|
|
|
|
3 - ARMATURE WITH FAN 220-240V
BSD-1604010667.A23
1604010667
|
£33.45
|
£40.14
|
|
|
3/50 - FAN
BSD-1606610141.A44
1606610141
|
£4.26
|
£5.11
|
|
|
4 - SWITCH
BSD-1607200146.A44
1607200146
|
£10.10
|
£12.12
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1205
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A500
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 850 C
BSD-1611110F56.A12
1611110F56
|
£3.72
|
£4.47
|
|
|
13 - GROOVE BALL BEARING
BSD-1619P08829.A41
1619P08829
|
£6.52
|
£7.83
|
|
|
14 - GROOVE BALL BEARING
BSD-1619P11240.A44
1619P11240
|
£3.94
|
£4.73
|
|
|
16 - BRUSH HOLDER
BSD-1619P01811.A55
1619P01811
|
£2.80
|
£3.36
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A476
1604652013
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A62
1604611031
|
£2.80
|
£3.36
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319009.A34
1602319009
|
£2.80
|
£3.36
|
|
|
23 - SWITCH BUTTON
BSD-1619P02762.A12
1619P02762
|
£2.61
|
£3.13
|
|
|
25 - HOUSING COVER
BSD-1605500194.A52
1605500194
|
£5.30
|
£6.36
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A201
1600502023
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A453
1600206025
|
£2.16
|
£2.59
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591024.A37
1600591024
|
£3.72
|
£4.47
|
|
|
33 - O-RING 42.0x1.1 MM
BSD-1600210041.A39
1600210041
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.1 MM
BSD-1600136016.A65
1600136016
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.2 MM
BSD-1600136017.A47
1600136017
|
£2.61
|
£3.13
|
|
|
37 - COVER DISC
BSD-1600100033.A18
1600100033
|
£2.61
|
£3.13
|
|
|
38 - CONVERSION GEAR
BSD-2609110150.A77
2609110150
|
£6.52
|
£7.83
|
|
|
39 - PINION
BSD-2609110149.A43
2609110149
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1052
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A130
2609110052
|
£1.75
|
£2.10
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-1619P00220.A190
1619P00220
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2
BSD-1603435068.A139
1603435068
|
£1.75
|
£2.10
|
|
|
50 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A272
2910611020
|
£1.75
|
£2.10
|
|
|
51 - REGULATOR 220-240V
BSD-1607233139.A8
1607233139
|
£40.80
|
£48.96
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-H
BSD-2910611022.A69
2910611022
|
-
|
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A707
160202509T
|
£3.72
|
£4.47
|
|
|
650/20 - ROUND NUT M14
BSD-1603345043.A384
1603345043
|
£8.67
|
£10.41
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1619P08927.A117
1619P08927
|
£4.26
|
£5.11
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A602
2605703014
|
£7.36
|
£8.83
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A703
1600210039
|
£2.16
|
£2.59
|
|
|
651 - PROTECTIVE COVER dia115 MM
BSD-1600A00XU6.A34
1600A00XU6
|
£11.30
|
£13.56
|
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A155
1607000385
|
£14.91
|
£17.89
|
|
|
808 - NAMEPLATE
BSD-1619P06797.A0
1619P06797
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1619P11715.A43
1619P11715
|
£6.66
|
£7.99
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 145
BSD-1607000483.A27
1607000483
|
£63.50
|
£76.20
|
|
|
821 - GEAR HOUSING
BSD-1605806466.A52
1605806466
|
£16.41
|
£19.69
|
|
|
828 - BEARING FLANGE
BSD-1619P02708.A37
1619P02708
|
£10.10
|
£12.12
|
|
|
829 - AIR-DEFLECTOR RING
BSD-1600591023.A65
1600591023
|
£2.61
|
£3.13
|
|
|
832 - GRINDING SPINDLE
BSD-1607000D6A.A265
1607000D6A
|
£7.36
|
£8.83
|
|
|
840 - PUSH-BUTTON
BSD-1607000298.A77
1607000298
|
£4.26
|
£5.11
|
|
|
841 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A717
1600910018
|
£5.30
|
£6.36
|
|
|
857 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H
BSD-2910641081.A57
2910641081
|
-
|
|
|
|
880 - SEALING DISK
BSD-3600150021.A18
3600150021
|
£3.80
|
£4.56
|
|
