Bosch GWS 850 C / 06013777AF / EU 230 Volt Spare Parts

Home Details Reviews Delivery

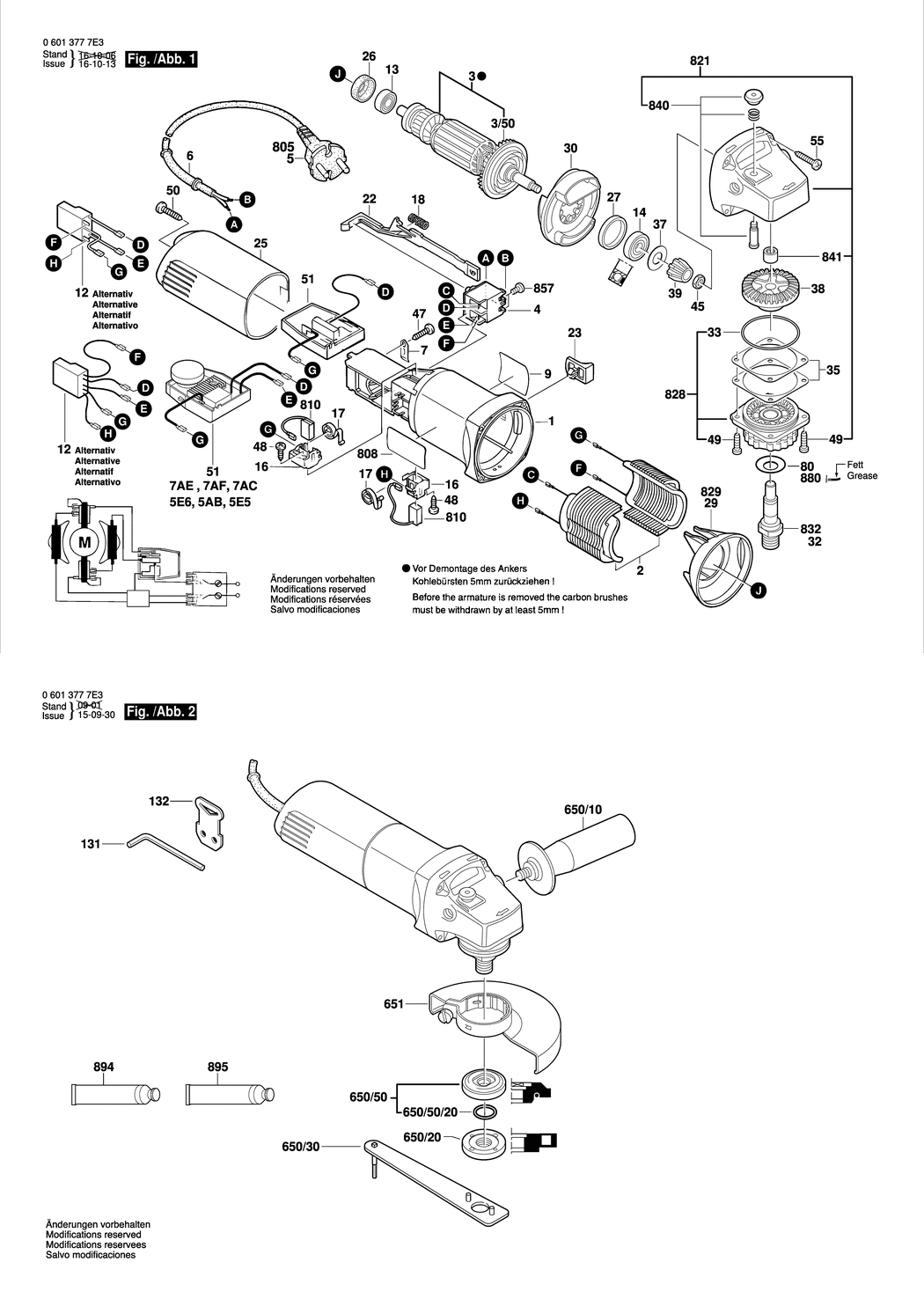

An exploded drawing and listing for the Bosch GWS 850 C / 06013777AF / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P09772.A94 1619P09772	£13.12	£15.75
2 - FIELD 220-240V BSD-1604220340.A17 1604220340	-
3 - ARMATURE WITH FAN 220-240V BSD-1604010667.A7 1604010667	£33.45	£40.14
3/50 - FAN BSD-1606610141.A74 1606610141	£4.26	£5.11
4 - SWITCH BSD-160720031V.A9 160720031V	£10.10	£12.12
5 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F BSD-1604460312.A18 1604460312	£10.10	£12.12
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1615 2600703012	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302017.A908 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GWS 850 C BSD-1611110F56.A19 1611110F56	£3.72	£4.47
12 - SUPPRESSION FILTER BSD-2609120008.A29 2609120008	£14.91	£17.89
13 - GROOVE BALL BEARING BSD-1619P08829.A43 1619P08829	£6.52	£7.83
14 - GROOVE BALL BEARING BSD-1619P11240.A63 1619P11240	£3.94	£4.73
16 - BRUSH HOLDER BSD-1619P01811.A121 1619P01811	£2.80	£3.36
17 - SPIRAL SPRING BSD-1604652013.A935 1604652013	£1.75	£2.10
18 - COMPRESSION SPRING BSD-1604611031.A148 1604611031	£2.80	£3.36
22 - ADJUSTING SLIDE BSD-1602319009.A12 1602319009	£2.80	£3.36
23 - SWITCH BUTTON BSD-1619P02762.A55 1619P02762	£2.61	£3.13
25 - HOUSING COVER BSD-1605500194.A57 1605500194	£5.30	£6.36
26 - INTERMEDIATE RING BSD-1600502023.A273 1600502023	£2.16	£2.59
27 - RUBBER RING BSD-1600206025.A975 1600206025	£2.16	£2.59
30 - AIR-DEFLECTOR RING BSD-1600591024.A81 1600591024	£3.72	£4.47
33 - O-RING 42.0x1.1 MM BSD-1600210041.A6 1600210041	£2.61	£3.13
35 - SHIM 0.1 MM BSD-1600136016.A83 1600136016	£2.61	£3.13
35 - SHIM 0.2 MM BSD-1600136017.A29 1600136017	£2.61	£3.13
37 - COVER DISC BSD-1600100033.A3 1600100033	£2.61	£3.13
38 - CONVERSION GEAR BSD-2609110150.A8 2609110150	£6.52	£7.83
39 - PINION BSD-2609110149.A112 2609110149	£4.26	£5.11
45 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A936 2915011007	-
47 - SPECIAL SCREW BSD-2609110052.A64 2609110052	£1.75	£2.10
48 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A204 1619P00220	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2 BSD-1603435068.A11 1603435068	£1.75	£2.10
50 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A504 2910611020	£1.75	£2.10
51 - SPEED GOVERNOR 230V BSD-16072335C0.A3 16072335C0	£40.80	£48.96
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-H BSD-2910611022.A26 2910611022	-
131 - HEX SCREW DRIVER 4x95 BSD-1619P01598.A47 1619P01598	£2.61	£3.13
132 - KEY HOLDER BSD-3602311050.A4 3602311050	£2.16	£2.59
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A536 160202509T	£3.72	£4.47
650/20 - ROUND NUT M14 BSD-1603345043.A1095 1603345043	£8.67	£10.41
650/30 - PIN-TYPE FACE-WRENCH BSD-1619P08927.A167 1619P08927	£4.26	£5.11
650/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A316 2605703014	£7.36	£8.83
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A780 1600210039	£2.16	£2.59
651 - PROTECTIVE COVER dia125 MM BSD-1600A00XU7.A31 1600A00XU7	£9.49	£11.39
810 - CARBON-BRUSH SET BSD-1619P07571.A17 1619P07571	£10.10	£12.12
821 - GEAR HOUSING BSD-1605806466.A81 1605806466	£16.41	£19.69
828 - BEARING FLANGE BSD-1619P02708.A45 1619P02708	£10.10	£12.12
829 - AIR-DEFLECTOR RING BSD-1600591023.A12 1600591023	£2.61	£3.13
832 - GRINDING SPINDLE M 14. SW 17 BSD-1619P06419.A36 1619P06419	£11.30	£13.56
840 - PUSH-BUTTON BSD-1607000298.A9 1607000298	£4.26	£5.11
841 - PLAIN BEARING BSD-1600200029.A59 1600200029	£4.26	£5.11
857 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H BSD-2910641081.A94 2910641081	-
880 - COVER DISC BSD-1619P09390.A52 1619P09390	£2.16	£2.59
894 - GREASE TUBE 225 ML BSD-1615430020.A225 1615430020	£21.52	£25.83
895 - GREASE TUBE 225 ML BSD-1605430003.A245 1605430003	£33.74	£40.49
