Bosch GWS 9-115 / 3601G90060 / GB 110 Volt Spare Parts

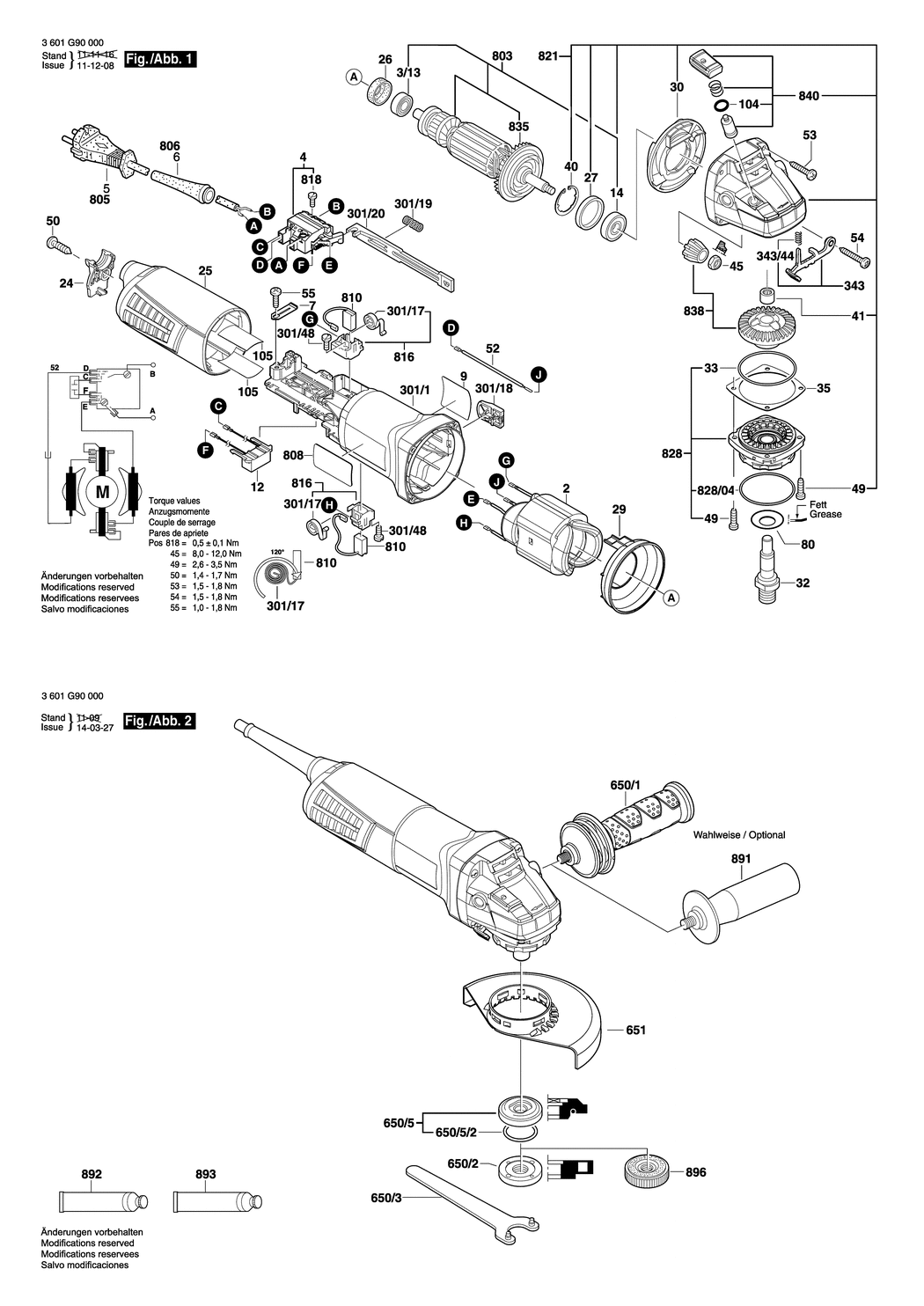

An exploded drawing and listing for the Bosch GWS 9-115 / 3601G90060 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110V BSD-1604220471.A0 1604220471	£31.64	£37.97
3/13 - BALL BEARING 7x19x6 BSD-2600905032.A470 2600905032	£5.30	£6.36
4 - ON-OFF SWITCH BSD-1607200086.A425 1607200086	£11.30	£13.56
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H07 RN-F BSD-1604460205.A9 1604460205	£27.23	£32.68
6 - GROMMET BSD-1600703043.A22 1600703043	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302017.A727 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GWS 9-115 BSD-1601118L02.A4 1601118L02	£2.61	£3.13
12 - SUPPRESSION CAPACITOR BSD-1607328074.A14 1607328074	£6.52	£7.83
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A239 1600905032	£5.58	£6.70
24 - COVER BSD-1605500279.A8 1605500279	£2.80	£3.36
25 - HOUSING COVER BSD-1605500278.A10 1605500278	£8.67	£10.41
26 - INTERMEDIATE RING BSD-1600502023.A175 1600502023	£2.16	£2.59
27 - RUBBER RING BSD-1600206025.A673 1600206025	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1600591025.A176 1600591025	£2.61	£3.13
30 - AIR DISTRIBUTOR BSD-1600591050.A2 1600591050	£2.61	£3.13
32 - GRINDING SPINDLE BSD-1607000D6A.A97 1607000D6A	£7.36	£8.83
33 - O-RING 46.0x1.1 MM BSD-1600210035.A254 1600210035	£1.75	£2.10
35 - SHIM 0.1 MM BSD-1600136013.A478 1600136013	£2.61	£3.13
35 - SHIM 0.2 MM BSD-1600136014.A42 1600136014	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136015.A478 1600136015	£2.61	£3.13
35 - SHIM 0.15 MM BSD-1600136020.A40 1600136020	£3.72	£4.47
40 - RETAINING CLIP BSD-1600119011.A238 1600119011	£2.16	£2.59
41 - PLAIN BEARING BSD-1600200029.A206 1600200029	£4.26	£5.11
45 - HEX NUT M7. SW10 BSD-1603300016.A229 1603300016	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A50 2914491410	£1.75	£2.10
50 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1218 2603490023	£1.75	£2.10
52 - CONNECTING CABLE L=90 MM BSD-1604448013.A4 1604448013	£2.16	£2.59
53 - TORX OVAL-HEAD SCREW BSD-1603435078.A196 1603435078	£1.75	£2.10
54 - TORX OVAL-HEAD SCREW 4x30 BSD-1603414026.A60 1603414026	£1.75	£2.10
55 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A503 2603490021	£1.75	£2.10
80 - SEALING DISK BSD-3600150021.A116 3600150021	£3.80	£4.56
104 - O-RING 4.5x1.0 MM BSD-1600210044.A222 1600210044	£1.75	£2.10
105 - INSULATING PLATE BSD-1601008005.A143 1601008005	£4.26	£5.11
301/1 - MOTOR HOUSING BSD-1605108287.A5 1605108287	£10.10	£12.12
301/17 - SPIRAL SPRING BSD-1604652021.A93 1604652021	£1.75	£2.10
301/18 - SWITCH HANDLE BSD-1602026088.A84 1602026088	£1.75	£2.10
301/19 - COMPRESSION SPRING BSD-1604611026.A297 1604611026	£1.75	£2.10
301/20 - ADJUSTING SLIDE BSD-1602319010.A111 1602319010	£1.75	£2.10
301/48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A21 1613435034	£1.75	£2.10
343 - CATCH LEVER BSD-1607000742.A31 1607000742	£7.36	£8.83
343/44 - COMPRESSION SPRING BSD-1604611042.A187 1604611042	£1.75	£2.10
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION BSD-16020250A0.A189 16020250A0	£21.42	£25.71
650/2 - ROUND NUT M14 BSD-1603345043.A813 1603345043	£8.67	£10.41
650/3 - PIN-TYPE FACE-WRENCH BSD-1607950052.A210 1607950052	£3.72	£4.47
650/5 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A836 2605703014	£7.36	£8.83
650/5/2 - O-RING 20.35x1.78 MM BSD-1600210039.A43 1600210039	£2.16	£2.59
651 - PROTECTIVE COVER BSD-1600A00XK8.A3 1600A00XK8	£14.91	£17.89
803 - ARMATURE WITH FAN 110V BSD-1607000V50.A0 1607000V50	£63.50	£76.20
808 - NAMEPLATE BSD-160111A3H3.A10 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607000V53.A22 1607000V53	£13.12	£15.75
816 - BRUSH HOLDER BSD-1607000V54.A4 1607000V54	£2.80	£3.36
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A337 2910110048	£1.75	£2.10
821 - GEAR HOUSING BSD-1607000V55.A13 1607000V55	£31.64	£37.97
828 - BEARING FLANGE BSD-1607000D6C.A29 1607000D6C	£12.04	£14.45
828/04 - O-RING 47.0x1.5 MM BSD-3600210109.A5 3600210109	£2.16	£2.59
835 - FAN BSD-1606610132.A171 1606610132	£2.16	£2.59
838 - SET OF GEARWHEELS BSD-1607000D4Y.A220 1607000D4Y	£21.42	£25.71
840 - PUSH-BUTTON BSD-1607000V41.A78 1607000V41	£4.26	£5.11
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A981 160202509T	£3.72	£4.47
892 - GREASE TUBE 225 ML BSD-1605430003.A80 1605430003	£33.74	£40.49
893 - GREASE TUBE 225 ML BSD-1615430020.A117 1615430020	£21.52	£25.83
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A702 1603340027	£46.82	£56.18
