Bosch GWS 9-115 P / 3601G90200 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

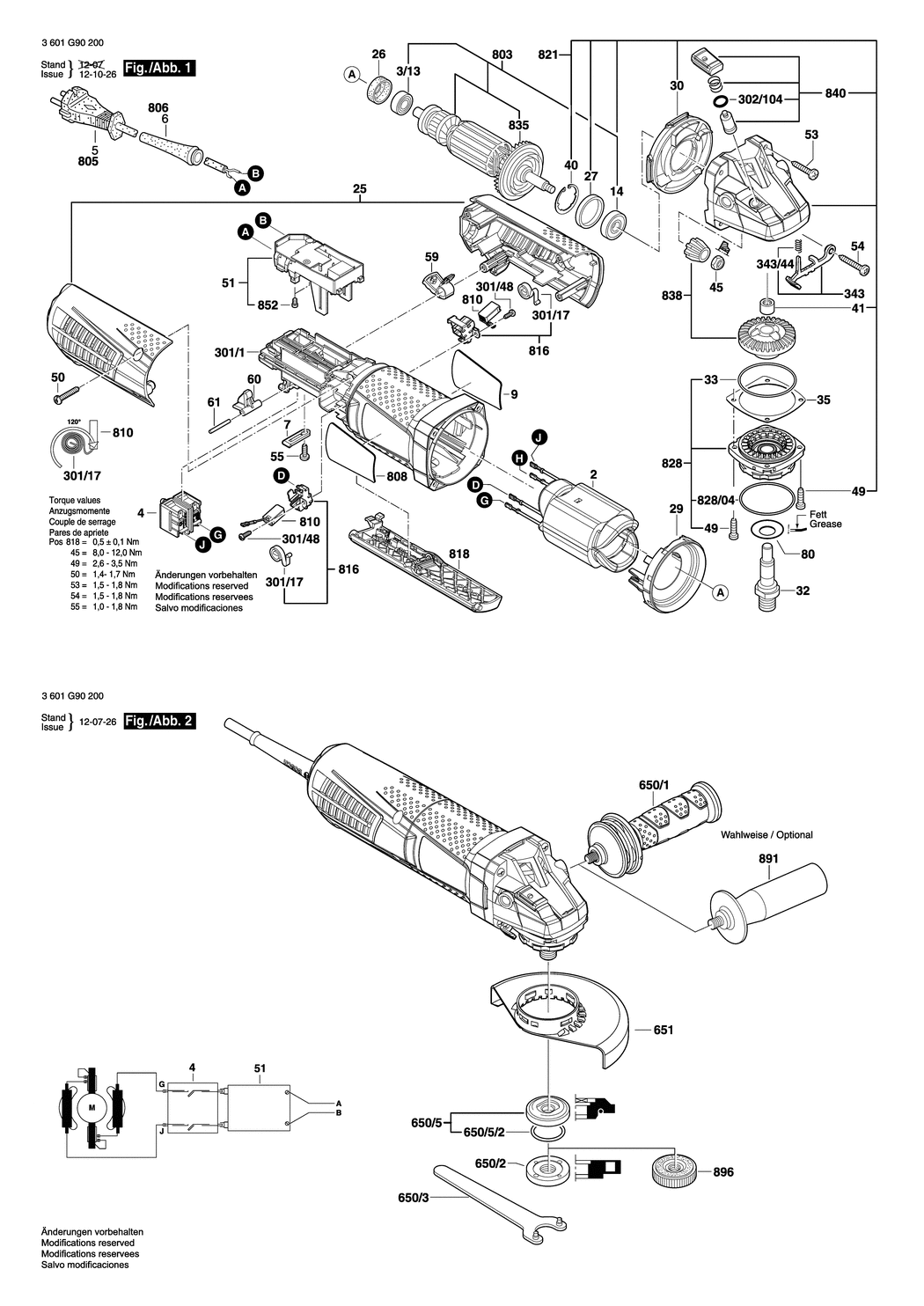

An exploded drawing and listing for the Bosch GWS 9-115 P / 3601G90200 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1604220513.A1 1604220513	£27.23	£32.68
3/13 - BALL BEARING 7x19x6 BSD-2600905032.A471 2600905032	£5.30	£6.36
4 - SWITCH BSD-1607200256.A31 1607200256	£12.04	£14.45
6 - GROMMET BSD-1600703042.A18 1600703042	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302017.A729 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GWS 9-115 P BSD-160111C006.A2 160111C006	£2.61	£3.13
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A244 1600905032	£5.58	£6.70
25 - HOUSING SECTION BSD-160510829A.A2 160510829A	£7.36	£8.83
26 - INTERMEDIATE RING BSD-1600502023.A180 1600502023	£2.16	£2.59
27 - RUBBER RING BSD-1600206025.A676 1600206025	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1600591047.A1 1600591047	£2.16	£2.59
30 - AIR DISTRIBUTOR BSD-1600591048.A83 1600591048	£2.61	£3.13
32 - GRINDING SPINDLE BSD-1607000D6A.A100 1607000D6A	£7.36	£8.83
33 - O-RING 46.0x1.1 MM BSD-1600210035.A251 1600210035	£1.75	£2.10
35 - SHIM 0.1 MM BSD-1600136013.A474 1600136013	£2.61	£3.13
35 - SHIM 0.2 MM BSD-1600136014.A46 1600136014	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136015.A474 1600136015	£2.61	£3.13
35 - SHIM 0.15 MM BSD-1600136020.A44 1600136020	£3.72	£4.47
40 - RETAINING CLIP BSD-1600119011.A241 1600119011	£2.16	£2.59
41 - PLAIN BEARING BSD-1600200029.A203 1600200029	£4.26	£5.11
45 - HEX NUT M7. SW10 BSD-1603300016.A233 1603300016	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A47 2914491410	£1.75	£2.10
50 - TORX OVAL-HEAD SCREW BSD-1603435078.A200 1603435078	£1.75	£2.10
51 - SUPPRESSION FILTER BSD-1600A01Z6C.A3 1600A01Z6C	£13.12	£15.75
53 - TORX OVAL-HEAD SCREW BSD-1603435078.A201 1603435078	£1.75	£2.10
54 - TORX OVAL-HEAD SCREW 4x30 BSD-1603414026.A56 1603414026	£1.75	£2.10
55 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A505 2603490021	£1.75	£2.10
59 - PLUG BSD-1600591054.A12 1600591054	£1.75	£2.10
60 - REVERSE-TRANSFER LEVER BSD-1602026095.A10 1602026095	£1.75	£2.10
61 - STRAIGHT PIN BSD-2917890086.A2 2917890086	£1.32	£1.58
80 - SEALING DISK BSD-3600150021.A108 3600150021	£3.80	£4.56
301/1 - MOTOR HOUSING BSD-1605108293.A6 1605108293	£13.12	£15.75
301/17 - SPIRAL SPRING BSD-1604652021.A91 1604652021	£1.75	£2.10
301/48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A24 1613435034	£1.75	£2.10
302/104 - O-RING 4.5x1.0 MM BSD-1600210044.A220 1600210044	£1.75	£2.10
343 - CATCH LEVER BSD-1607000742.A27 1607000742	£7.36	£8.83
343/44 - COMPRESSION SPRING BSD-1604611042.A191 1604611042	£1.75	£2.10
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION BSD-16020250A0.A186 16020250A0	£21.42	£25.71
650/2 - ROUND NUT M14 BSD-1603345043.A817 1603345043	£8.67	£10.41
650/3 - PIN-TYPE FACE-WRENCH BSD-1607950052.A206 1607950052	£3.72	£4.47
650/5 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A834 2605703014	£7.36	£8.83
650/5/2 - O-RING 20.35x1.78 MM BSD-1600210055.A22 1600210055	-
651 - PROTECTIVE COVER BSD-1600A00XK8.A8 1600A00XK8	£14.91	£17.89
803 - ARMATURE 230V BSD-1607000V57.A0 1607000V57	£59.53	£71.44
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A110 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3HJ.A1 160111A3HJ	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607000V37.A78 1607000V37	£14.91	£17.89
816 - BRUSH HOLDER BSD-1607000V43.A76 1607000V43	£3.72	£4.47
818 - SWITCH-PAWL BSD-1607000504.A16 1607000504	£10.10	£12.12
821 - GEAR HOUSING BSD-1607000V39.A23 1607000V39	£31.64	£37.97
828 - BEARING FLANGE BSD-1607000D6C.A26 1607000D6C	£12.04	£14.45
828/04 - O-RING 47.0x1.5 MM BSD-3600210109.A9 3600210109	£2.16	£2.59
835 - FAN BSD-1606610132.A174 1606610132	£2.16	£2.59
838 - SET OF GEARWHEELS BSD-1607000D4Y.A224 1607000D4Y	£21.42	£25.71
840 - PUSH-BUTTON BSD-1607000V41.A71 1607000V41	£4.26	£5.11
852 - PAN HEAD SCREW BSD-1607000V42.A11 1607000V42	£1.75	£2.10
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A975 160202509T	£3.72	£4.47
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A696 1603340027	£46.82	£56.18
