Bosch GWS 9-115 P / 3601G90260 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

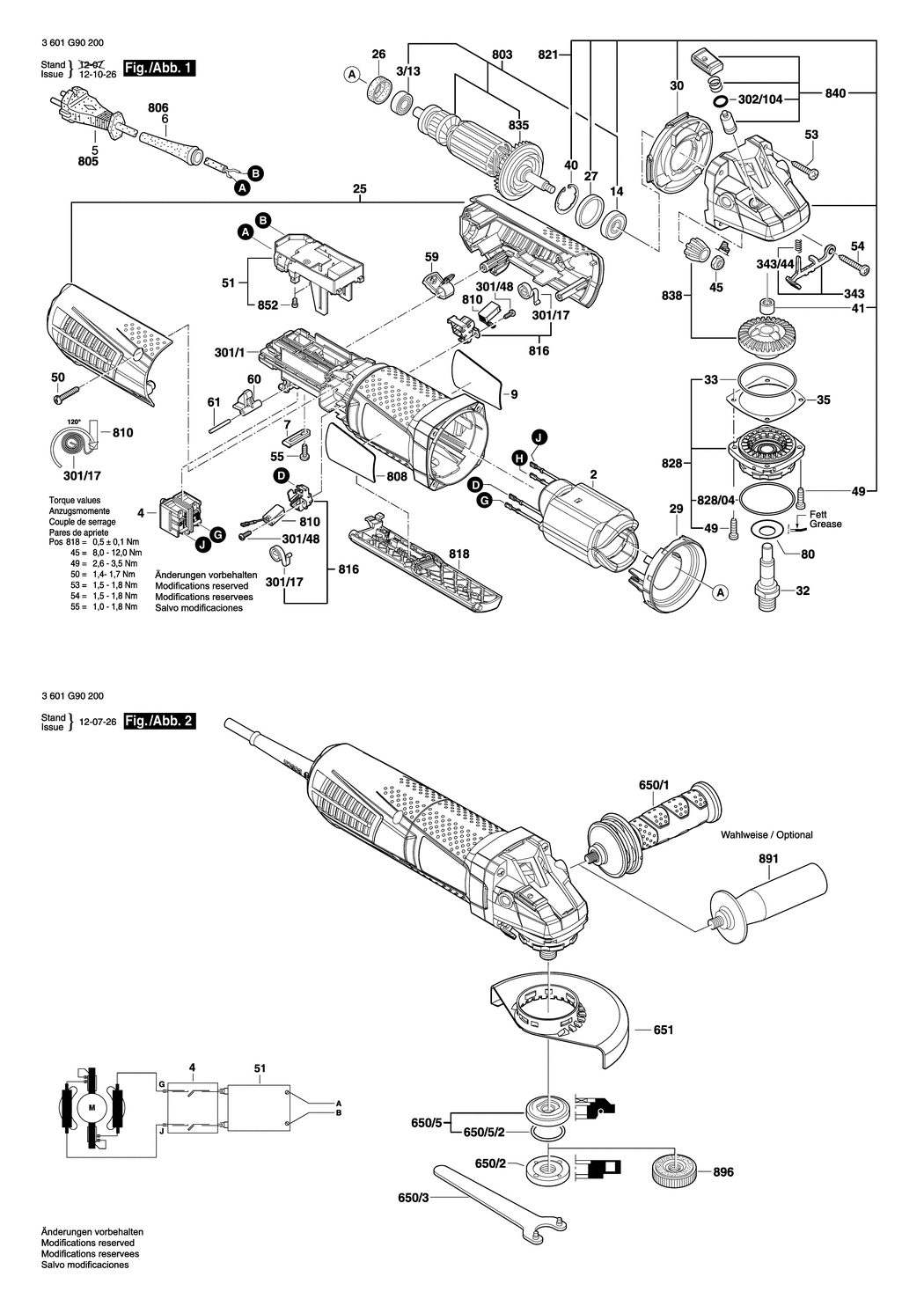

An exploded drawing and listing for the Bosch GWS 9-115 P / 3601G90260 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 120V BSD-1604220514.A0 1604220514	£33.74	£40.49
3/13 - BALL BEARING 7x19x6 BSD-2600905032.A475 2600905032	£5.30	£6.36
4 - SWITCH BSD-1607200256.A33 1607200256	£12.04	£14.45
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H07 RN-F BSD-1604460205.A10 1604460205	£27.23	£32.68
6 - GROMMET BSD-1600703043.A20 1600703043	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302017.A730 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GWS 9-115 P BSD-160111C006.A1 160111C006	£2.61	£3.13
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A241 1600905032	£5.58	£6.70
25 - HOUSING SECTION BSD-160510829A.A1 160510829A	£7.36	£8.83
26 - INTERMEDIATE RING BSD-1600502023.A177 1600502023	£2.16	£2.59
27 - RUBBER RING BSD-1600206025.A677 1600206025	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1600591047.A3 1600591047	£2.16	£2.59
30 - AIR DISTRIBUTOR BSD-1600591048.A81 1600591048	£2.61	£3.13
32 - GRINDING SPINDLE BSD-1607000D6A.A101 1607000D6A	£7.36	£8.83
33 - O-RING 46.0x1.1 MM BSD-1600210035.A250 1600210035	£1.75	£2.10
35 - SHIM 0.1 MM BSD-1600136013.A473 1600136013	£2.61	£3.13
35 - SHIM 0.2 MM BSD-1600136014.A47 1600136014	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136015.A473 1600136015	£2.61	£3.13
35 - SHIM 0.15 MM BSD-1600136020.A45 1600136020	£3.72	£4.47
40 - RETAINING CLIP BSD-1600119011.A242 1600119011	£2.16	£2.59
41 - PLAIN BEARING BSD-1600200029.A202 1600200029	£4.26	£5.11
45 - HEX NUT M7. SW10 BSD-1603300016.A235 1603300016	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A48 2914491410	£1.75	£2.10
50 - TORX OVAL-HEAD SCREW BSD-1603435078.A205 1603435078	£1.75	£2.10
51 - SUPPRESSION FILTER BSD-1600A01Z6C.A4 1600A01Z6C	£13.12	£15.75
53 - TORX OVAL-HEAD SCREW BSD-1603435078.A204 1603435078	£1.75	£2.10
54 - TORX OVAL-HEAD SCREW 4x30 BSD-1603414026.A54 1603414026	£1.75	£2.10
55 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A509 2603490021	£1.75	£2.10
59 - PLUG BSD-1600591054.A14 1600591054	£1.75	£2.10
60 - REVERSE-TRANSFER LEVER BSD-1602026095.A11 1602026095	£1.75	£2.10
61 - STRAIGHT PIN BSD-2917890086.A1 2917890086	£1.32	£1.58
80 - SEALING DISK BSD-3600150021.A111 3600150021	£3.80	£4.56
301/1 - MOTOR HOUSING BSD-1605108293.A7 1605108293	£13.12	£15.75
301/17 - SPIRAL SPRING BSD-1604652021.A88 1604652021	£1.75	£2.10
301/48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A25 1613435034	£1.75	£2.10
302/104 - O-RING 4.5x1.0 MM BSD-1600210044.A219 1600210044	£1.75	£2.10
343 - CATCH LEVER BSD-1607000742.A26 1607000742	£7.36	£8.83
343/44 - COMPRESSION SPRING BSD-1604611042.A192 1604611042	£1.75	£2.10
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION BSD-16020250A0.A184 16020250A0	£21.42	£25.71
650/2 - ROUND NUT M14 BSD-1603345043.A819 1603345043	£8.67	£10.41
650/3 - PIN-TYPE FACE-WRENCH BSD-1607950052.A205 1607950052	£3.72	£4.47
650/5 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A832 2605703014	£7.36	£8.83
650/5/2 - O-RING 20.35x1.78 MM BSD-1600210055.A23 1600210055	-
651 - PROTECTIVE COVER BSD-1600A00XK8.A9 1600A00XK8	£14.91	£17.89
803 - ARMATURE 110V BSD-1607000V58.A0 1607000V58	£59.53	£71.44
808 - NAMEPLATE BSD-160111A3HJ.A0 160111A3HJ	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607000V37.A79 1607000V37	£14.91	£17.89
816 - BRUSH HOLDER BSD-1607000V43.A77 1607000V43	£3.72	£4.47
818 - SWITCH-PAWL BSD-1607000504.A17 1607000504	£10.10	£12.12
821 - GEAR HOUSING BSD-1607000V39.A22 1607000V39	£31.64	£37.97
828 - BEARING FLANGE BSD-1607000D6C.A24 1607000D6C	£12.04	£14.45
828/04 - O-RING 47.0x1.5 MM BSD-3600210109.A8 3600210109	£2.16	£2.59
835 - FAN BSD-1606610132.A175 1606610132	£2.16	£2.59
838 - SET OF GEARWHEELS BSD-1607000D4Y.A223 1607000D4Y	£21.42	£25.71
840 - PUSH-BUTTON BSD-1607000V41.A73 1607000V41	£4.26	£5.11
852 - PAN HEAD SCREW BSD-1607000V42.A9 1607000V42	£1.75	£2.10
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A976 160202509T	£3.72	£4.47
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A697 1603340027	£46.82	£56.18
