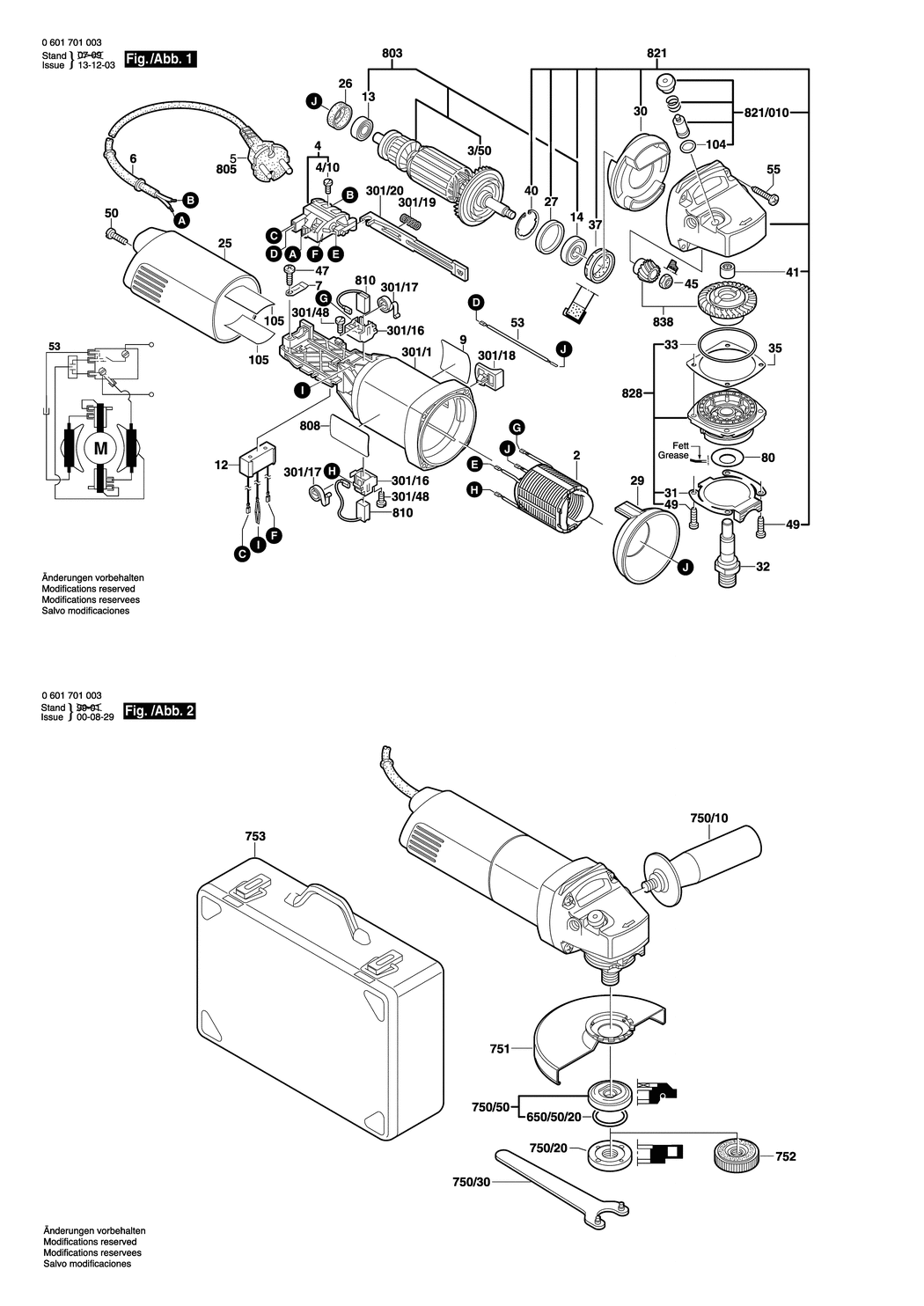

2 - FIELD 220-240V
BSD-1604220283.A34
1604220283
|
£27.31
|
£32.77
|
|
|
3/50 - FAN
BSD-1606610132.A283
1606610132
|
£2.16
|
£2.59
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A126
1607200086
|
£11.30
|
£13.56
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A109
2910110048
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A740
2600703012
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A482
2600703013
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A56
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118A72.A0
1601118A72
|
£3.34
|
£4.01
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328039.A12
1607328039
|
£11.30
|
£13.56
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1575
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A84
1600905032
|
£5.58
|
£6.70
|
|
|
25 - HOUSING COVER
BSD-1600508017.A23
1600508017
|
£5.58
|
£6.70
|
|
|
26 - RUBBER RING
BSD-1600206036.A321
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A344
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A229
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A138
1600591014
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A158
1601290007
|
£5.30
|
£6.36
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A671
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A22
3600210124
|
£2.80
|
£3.36
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A145
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A326
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A377
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A143
1600136015
|
£2.61
|
£3.13
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A602
1600290016
|
£2.61
|
£3.13
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A65
1600119011
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A135
1600910018
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A595
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A263
2912401018
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A285
1603435026
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A381
2912401420
|
£1.75
|
£2.10
|
|
|
53 - CONNECTING CABLE L=90 MM
BSD-1604448013.A74
1604448013
|
£2.16
|
£2.59
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A20
1603415005
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A495
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A435
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A273
1601008005
|
£4.26
|
£5.11
|
|
|
301/1 - MOTOR HOUSING
BSD-1605108208.A51
1605108208
|
£11.30
|
£13.56
|
|
|
301/16 - BRUSH HOLDER
BSD-1601323025.A27
1601323025
|
£3.72
|
£4.47
|
|
|
301/17 - SPIRAL SPRING
BSD-1604652013.A342
1604652013
|
£1.75
|
£2.10
|
|
|
301/18 - SWITCH HANDLE
BSD-1602026057.A174
1602026057
|
£1.97
|
£2.36
|
|
|
301/19 - COMPRESSION SPRING
BSD-1604611026.A85
1604611026
|
£1.75
|
£2.10
|
|
|
301/20 - ADJUSTING SLIDE
BSD-1602319011.A87
1602319011
|
£1.75
|
£2.10
|
|
|
301/48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A120
2912401005
|
£1.75
|
£2.10
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1250
1600210039
|
£2.16
|
£2.59
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A129
160202509T
|
£3.72
|
£4.47
|
|
|
750/20 - CLAMPING NUT M14
BSD-1603340040.A270
1603340040
|
£6.20
|
£7.44
|
|
|
750/30 - PIN-TYPE FACE-WRENCH
BSD-1607950043.A47
1607950043
|
£4.02
|
£4.83
|
|
|
750/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A41
1605703099
|
£7.45
|
£8.94
|
|
|
751 - PROTECTIVE COVER dia 125MM
BSD-2605510104.A51
2605510104
|
-
|
|
|
|
752 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A236
1603340027
|
£46.82
|
£56.18
|
|
|
753 - CARRYING CASE
BSD-1605438100.A32
1605438100
|
-
|
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010660.A3
1604010660
|
£68.42
|
£82.10
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A412
1607000227
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A3320
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A50
1607014176
|
£13.12
|
£15.75
|
|
|
821 - GEAR HOUSING
BSD-1605806451.A121
1605806451
|
£37.27
|
£44.72
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A399
1607000253
|
£2.49
|
£2.99
|
|
|
828 - BEARING FLANGE
BSD-1605805079.A99
1605805079
|
£18.96
|
£22.75
|
|
|
838 - GEAR UNIT
BSD-1607000D4Y.A145
1607000D4Y
|
£21.42
|
£25.71
|
|
