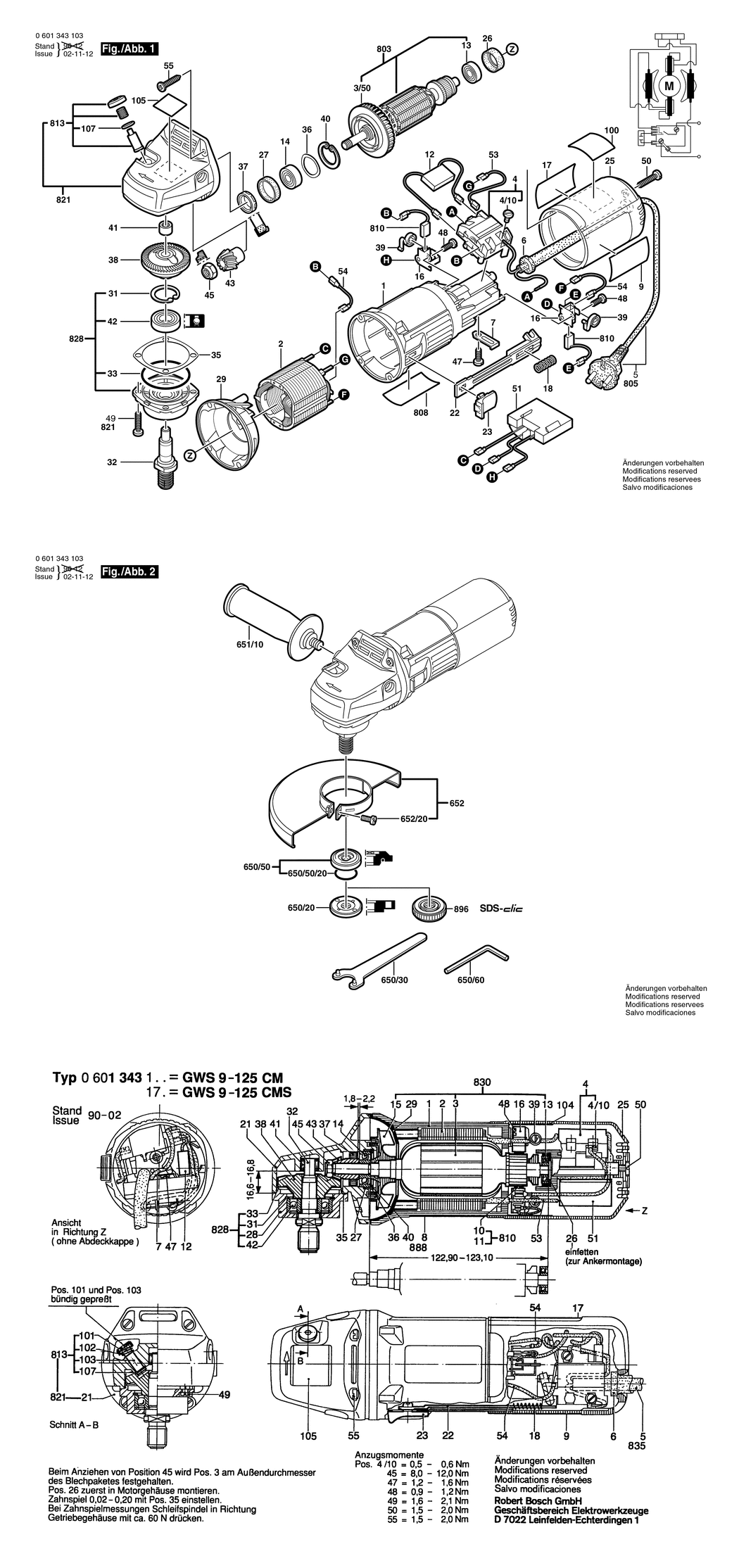

1 - MOTOR HOUSING
BSD-16051082CC.A37
16051082CC
|
£13.12
|
£15.75
|
|
|
2 - FIELD 240V
BSD-1604220223.A1
1604220223
|
-
|
|
|
|
3/50 - FAN
BSD-1606610121.A127
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A298
1607200086
|
£11.30
|
£13.56
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A580
2910110048
|
£1.75
|
£2.10
|
|
|
5 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05RN-F
BSD-1604460190.A15
1604460190
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1690
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A872
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110607.A5
1601110607
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328029.A103
1607328029
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A984
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A39
1600905011
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1600A003G4.A475
1600A003G4
|
£3.72
|
£4.47
|
|
|
17 - MANUFACTURER'S NAMEPLATE
BSD-1601110781.A24
1601110781
|
-
|
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A496
1604611026
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A70
1602319002
|
£2.61
|
£3.13
|
|
|
23 - SWITCH HANDLE
BSD-1602026057.A456
1602026057
|
£1.97
|
£2.36
|
|
|
25 - HOUSING COVER
BSD-1600508006.A4
1600508006
|
-
|
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A92
1600502020
|
£2.61
|
£3.13
|
|
|
27 - RUBBER RING
BSD-1600206025.A1047
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A219
1601328005
|
£2.61
|
£3.13
|
|
|
31 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A125
2916660013
|
£2.16
|
£2.59
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A486
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A409
3600210124
|
£2.80
|
£3.36
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A132
1600136010
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A197
1600136011
|
£2.16
|
£2.59
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A126
1600136012
|
£1.75
|
£2.10
|
|
|
36 - SPRING WASHER
BSD-1600150011.A157
1600150011
|
£1.75
|
£2.10
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A155
1600290016
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR Z=36
BSD-1606333601.A124
1606333601
|
£8.49
|
£10.19
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A860
1604652013
|
£1.75
|
£2.10
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A80
2916660009
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A412
1600910018
|
£5.30
|
£6.36
|
|
|
42 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A16
1600905006
|
£12.04
|
£14.45
|
|
|
43 - BEVEL GEAR Z=11
BSD-1606333242.A112
1606333242
|
£48.38
|
£58.06
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A465
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A65
2910211018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A100
2910211005
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A123
1603435026
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A1019
2910211021
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR 240V
BSD-1607233016.A1
1607233016
|
-
|
|
|
|
53 - CONNECTING CABLE L=95 MM
BSD-1604448005.A28
1604448005
|
£2.80
|
£3.36
|
|
|
54 - CONNECTING CABLE L=40 MM
BSD-1604448006.A90
1604448006
|
£2.61
|
£3.13
|
|
|
55 - TAPPING SCREW DIN7981-ST3.9x22-C-Z
BSD-2912401021.A47
2912401021
|
£1.75
|
£2.10
|
|
|
100 - STICKER
BSD-1601110378.A1
1601110378
|
-
|
|
|
|
105 - REFERENCE PLATE
BSD-1601110470.A104
1601110470
|
£1.75
|
£2.10
|
|
|
107 - O-RING 4.5x1.0 MM
BSD-1600210044.A329
1600210044
|
£1.75
|
£2.10
|
|
|
650/20 - ROUND NUT M14
BSD-1603345043.A1128
1603345043
|
£8.67
|
£10.41
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A298
1607950052
|
£3.72
|
£4.47
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A349
2605703014
|
£7.36
|
£8.83
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A813
1600210039
|
£2.16
|
£2.59
|
|
|
650/60 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A56
1907950006
|
£4.26
|
£5.11
|
|
|
651/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A595
160202509T
|
£3.72
|
£4.47
|
|
|
652 - PROTECTIVE COVER
BSD-1600A0136N.A21
1600A0136N
|
£23.86
|
£28.63
|
|
|
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A150
2910022197
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A234
2910141197
|
£1.75
|
£2.10
|
|
|
803 - ARMATURE WITH FAN 240V
BSD-1604010251.A3
1604010251
|
£72.18
|
£86.62
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1847
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014116.A176
1607014116
|
£11.30
|
£13.56
|
|
|
813 - PUSH-BUTTON
BSD-1607000253.A179
1607000253
|
£2.49
|
£2.99
|
|
|
821 - GEAR HOUSING
BSD-1605806480.A136
1605806480
|
£48.38
|
£58.06
|
|
|
828 - BEARING FLANGE
BSD-1607000936.A52
1607000936
|
£27.23
|
£32.68
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A958
1603340027
|
£46.82
|
£56.18
|
|
