Bosch H 28-MLS / 3611B4AW01 / EU 230 Volt Spare Parts

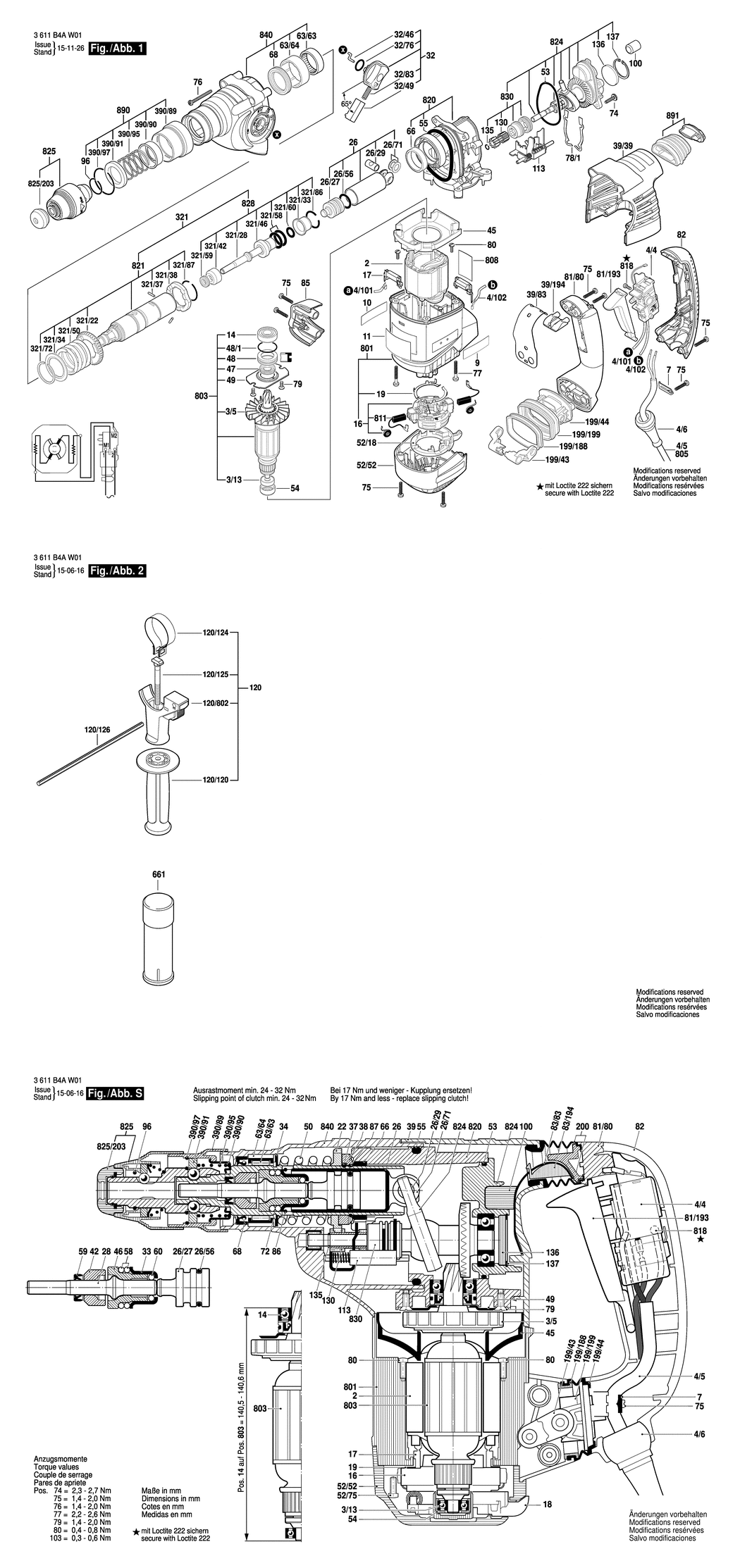

An exploded drawing and listing for the Bosch H 28-MLS / 3611B4AW01 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220117.A17 1614220117	£16.41	£19.69
3/5 - FAN BSD-1616610104.A4 1616610104	£8.67	£10.41
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A13 1610905032	£5.30	£6.36
4/4 - SWITCH BSD-1617200127.A10 1617200127	£27.23	£32.68
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A116 1600703034	£2.61	£3.13
4/101 - CONNECTING CABLE BSD-1614490015.A14 1614490015	£2.80	£3.36
4/102 - CONNECTING CABLE BSD-1614490016.A22 1614490016	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302017.A805 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110W27.A0 1611110W27	£2.33	£2.80
10 - MANUFACTURER'S NAMEPLATE BSD-1611110W37.A0 1611110W37	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110W28.A1 1611110W28	£1.32	£1.58
14 - GROOVE BALL BEARING BSD-1610905044.A13 1610905044	£8.67	£10.41
16 - BRUSH PLATE BSD-1614336064.A5 1614336064	£21.52	£25.83
17 - SUPPRESSION FILTER BSD-1614465011.A98 1614465011	£6.52	£7.83
19 - SWITCH CONTACT BSD-1611329024.A134 1611329024	£1.75	£2.10
26 - HAMMER PISTON BSD-16170006A5.A35 16170006A5	£41.62	£49.95
26/27 - STRIKER BSD-1610311019.A3 1610311019	£21.52	£25.83
26/29 - PISTON PIN BSD-1613105020.A1 1613105020	£5.30	£6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A105 1610210121	£2.61	£3.13
26/71 - GUIDE DISC BSD-1610100016.A54 1610100016	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026165.A1 1612026165	£14.91	£17.89
32/46 - DRIVER PIN BSD-1614690009.A22 1614690009	£3.72	£4.47
32/49 - SWITCH BUTTON BSD-1612026035.A224 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A357 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A91 1614611006	£3.72	£4.47
39/39 - GEAR COVER BSD-1615808116.A1 1615808116	£11.78	£14.13
39/83 - LEAF SPRING BSD-1614690008.A14 1614690008	£5.30	£6.36
39/194 - SCREW PLATE BSD-1610099013.A36 1610099013	£2.16	£2.59
45 - AIR-DEFLECTOR RING BSD-1610591046.A25 1610591046	£1.75	£2.10
47 - ROTARY SHAFT LIP SEAL BSD-1610283047.A32 1610283047	£12.04	£14.45
48 - BEARING RING BSD-1610290102.A23 1610290102	£6.52	£7.83
48/1 - O-RING 24.0x2.0 MM BSD-1610210208.A44 1610210208	£1.75	£2.10
49 - END SHIELD BSD-1615700044.A98 1615700044	£2.16	£2.59
52/18 - CLUTCH SLEEVE BSD-1610290098.A0 1610290098	£4.26	£5.11
52/52 - COVER BSD-1615108170.A3 1615108170	£10.10	£12.12
53 - O-RING BSD-1610210245.A10 1610210245	£2.80	£3.36
54 - INTERMEDIATE RING BSD-1600502023.A133 1600502023	£2.16	£2.59
55 - SEAL RING 63.0x5.0 MM BSD-1610210206.A4 1610210206	£5.58	£6.70
63/63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A151 1610910063	£5.58	£6.70
63/64 - BUSHING BSD-1610390069.A72 1610390069	£2.16	£2.59
66 - PLAIN BEARING BSD-1610202021.A0 1610202021	£2.61	£3.13
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A106 1610283036	£7.36	£8.83
74 - TORX OVAL-HEAD SCREW BSD-160343000V.A15 160343000V	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A958 2603490023	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A119 2603490027	£1.75	£2.10
77 - THREAD-FORMING TAP. SCREW M4x30 DIN7500-1 T-20 BSD-1613490017.A2 1613490017	£2.61	£3.13
78/1 - SHIM 0.3 MM BSD-1600A003TA.A10 1600A003TA	£1.75	£2.10
78/1 - SHIM 0.15 MM BSD-1600A004FU.A24 1600A004FU	£1.75	£2.10
78/1 - SHIM 0.45 MM BSD-1600A004FV.A10 1600A004FV	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A29 1613435023	£1.75	£2.10
80 - LENS HEAD SCREW BSD-1613435038.A34 1613435038	£1.75	£2.10
81/80 - HANDLE BSD-1615133034.A1 1615133034	£12.04	£14.45
81/193 - SWITCH-PAWL BSD-1612026126.A11 1612026126	£2.61	£3.13
82 - HANDLE COVER BSD-16170006CJ.A0 16170006CJ	£12.04	£14.45
85 - COVER BSD-1615500442.A1 1615500442	£2.52	£3.02
96 - RETAINING RING BSD-1614601046.A71 1614601046	£1.75	£2.10
100 - DAMPING RUBBER BSD-1610026003.A0 1610026003	£1.75	£2.10
113 - SWITCHING PANEL BSD-1616325002.A14 1616325002	£12.04	£14.45
120 - AUXILIARY HANDLE BSD-1612025096.A1 1612025096	£21.68	£26.01
120/120 - AUXILIARY HANDLE BSD-1612025083.A4 1612025083	£8.67	£10.41
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A128 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x80 MM BSD-1613490001.A82 1613490001	£8.67	£10.41
120/126 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A558 1613001009	£3.72	£4.47
120/802 - SUPPORT CLAMP BSD-16170006CR.A0 16170006CR	£5.58	£6.70
130 - GEAR SLEEVE BSD-1616333049.A9 1616333049	£18.96	£22.75
135 - RETAINING RING BSD-1614601067.A0 1614601067	£1.75	£2.10
136 - FELT DISC BSD-1610205017.A23 1610205017	£1.75	£2.10
137 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A110 2916660012	£1.75	£2.10
199/43 - ROCKER ARM BSD-1612099002.A0 1612099002	£2.61	£3.13
199/44 - ROCKER FOOT BSD-1614611025.A12 1614611025	£2.80	£3.36
199/188 - GRIP-SPRING TENSIONING E BSD-1610209008.A4 1610209008	£3.72	£4.47
199/199 - BELLOWS BSD-1610284004.A1 1610284004	£6.52	£7.83
321 - TOOLHOLDER BSD-16170006BV.A12 16170006BV	£88.07	£105.68
321/22 - CYLINDRICAL GEAR BSD-1616312004.A0 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124097.A24 1613124097	£21.68	£26.01
321/33 - HOLDING JACKET BSD-1610590020.A60 1610590020	£6.52	£7.83
321/34 - SUPPORTING DISC BSD-1610190067.A78 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A172 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A60 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102084.A13 1610102084	£8.67	£10.41
321/46 - GUIDE BUSHING BSD-1610390068.A13 1610390068	£16.41	£19.69
321/50 - COMPRESSION SPRING BSD-1614615008.A83 1614615008	£5.58	£6.70
321/58 - O-RING 18.0x3.5 MM BSD-1610210105.A164 1610210105	£4.26	£5.11
321/59 - SHAFT SEAL BSD-1600A009VC.A60 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.5x3.5 MM BSD-1610210209.A43 1610210209	£1.75	£2.10
321/72 - RETAINING RING BSD-1604601027.A40 1604601027	£1.75	£2.10
321/86 - RETAINING RING BSD-1614601034.A123 1614601034	£2.16	£2.59
321/87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A257 1604601028	£1.75	£2.10
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A23 1600A00NC8	£2.61	£3.13
390/90 - COLLAR SLEEVE BSD-1610590016.A5 1610590016	£4.26	£5.11
390/91 - BACKUP RING BSD-1610200033.A63 1610200033	£2.80	£3.36
390/95 - COMPRESSION SPRING BSD-1614643016.A40 1614643016	£2.16	£2.59
390/97 - RETAINING RING BSD-1614601047.A10 1614601047	£1.75	£2.10
661 - OIL SPRAY TIN BSD-1615439012.A32 1615439012	£11.30	£13.56
801 - MOTOR HOUSING BSD-16170006CH.A0 16170006CH	£54.42	£65.30
803 - ARMATURE 230V BSD-1617000690.A3 1617000690	£81.81	£98.17
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A111 1614460026	£18.96	£22.75
808 - NAMEPLATE BSD-160111A3HD.A119 160111A3HD	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A157 1617000525	£11.30	£13.56
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A31 1607000485	£72.18	£86.62
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A67 2603410001	£1.75	£2.10
820 - INTERMEDIATE FLANGE BSD-1617000A5J.A12 1617000A5J	£31.64	£37.97
821 - TOOL HOLDING FIXTURE BSD-16170006BU.A37 16170006BU	£63.50	£76.20
824 - JACK SHAFT BSD-1617000A5K.A22 1617000A5K	£59.53	£71.44
825 - TOOL HOLDING FIXTURE BSD-1617000895.A1 1617000895	£46.82	£56.18
825/203 - PROTECTIVE CAP BSD-1610508047.A149 1610508047	£2.29	£2.75
828 - STRIKER PIN BSD-16170006A7.A37 16170006A7	£48.38	£58.06
830 - GEAR SLEEVE BSD-1617000698.A35 1617000698	£31.64	£37.97
840 - IMPACT MECHANISM HOUSING BSD-16170006CP.A1 16170006CP	£59.53	£71.44
890 - GUIDE SLEEVE BSD-1617000V41.A5 1617000V41	£11.30	£13.56
891 - BELLOWS BSD-1610284010.A1 1610284010	£8.67	£10.41
