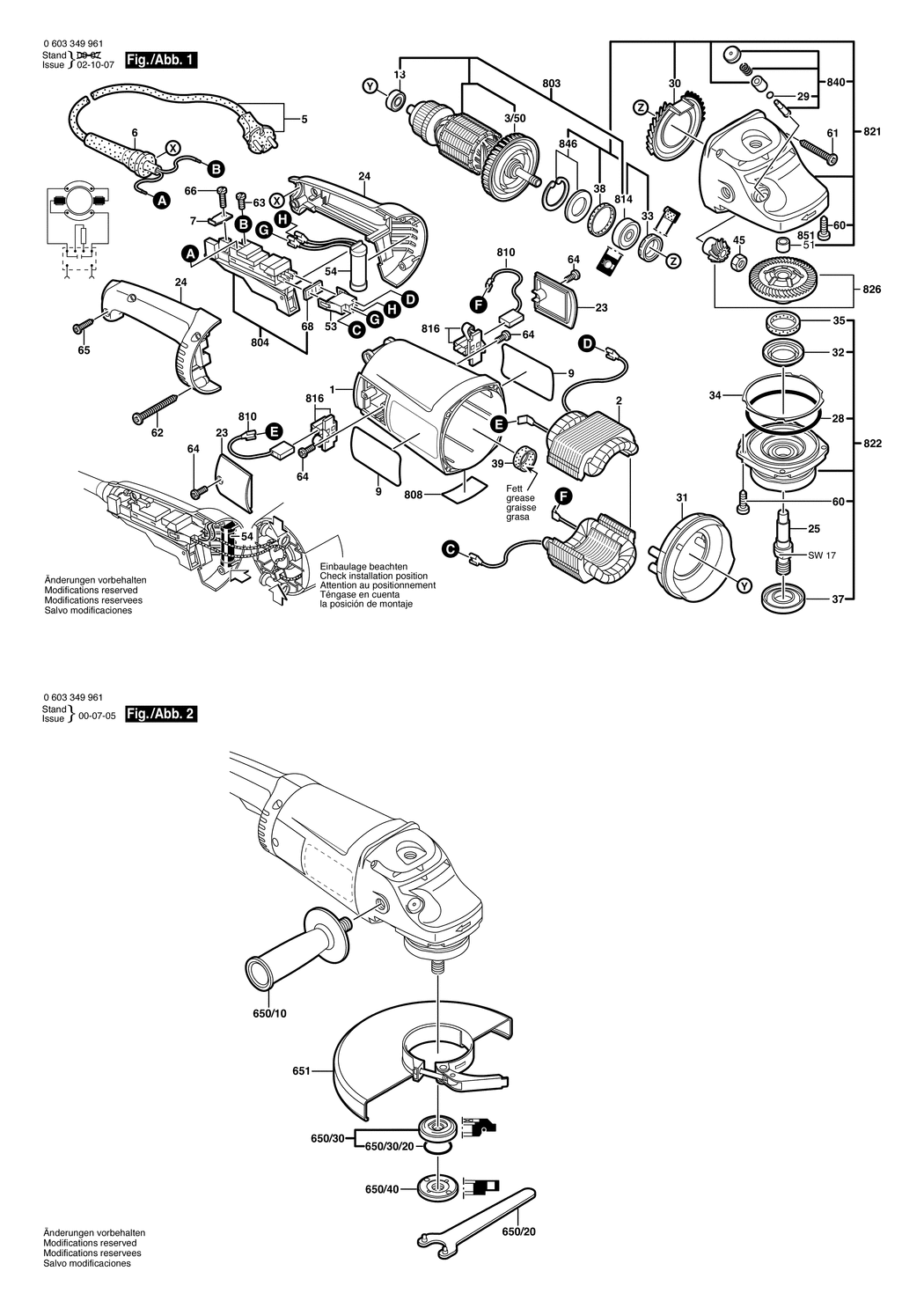

1 - MOTOR HOUSING
BSD-1605108229.A0
1605108229
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220380.A28
1604220380
|
£33.74
|
£40.49
|
|
|
3/50 - FAN
BSD-1600A00J93.A89
1600A00J93
|
£2.80
|
£3.36
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H07 RN-F
BSD-1604460455.A8
1604460455
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A378
1600703023
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A5
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118C38.A0
1601118C38
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118C20.A0
1601118C20
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A153
1600905011
|
£5.58
|
£6.70
|
|
|
23 - SEALING CAP
BSD-1605500229.A0
1605500229
|
-
|
|
|
|
24 - HANDLE
BSD-1605132139.A0
1605132139
|
£11.30
|
£13.56
|
|
|
25 - GRINDING SPINDLE
BSD-160312305U.A259
160312305U
|
£13.12
|
£15.75
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A139
1600210033
|
£1.75
|
£2.10
|
|
|
29 - O-RING 4.0x1.0 MM
BSD-1600210034.A157
1600210034
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A12
1600591029
|
£2.61
|
£3.13
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A359
1600591028
|
£2.33
|
£2.80
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A25
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A497
1600290013
|
£2.61
|
£3.13
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A311
1600290064
|
£2.16
|
£2.59
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A717
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A110
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A717
1600190022
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A636
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1600290036.A59
1600290036
|
£2.16
|
£2.59
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A474
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A253
1600206030
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A605
1603300019
|
£1.75
|
£2.10
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A410
1600200031
|
£2.80
|
£3.36
|
|
|
53 - SOCKET HOUSING
BSD-1605190068.A4
1605190068
|
£1.75
|
£2.10
|
|
|
54 - WIREWOUND RESISTOR
BSD-1604503015.A97
1604503015
|
£12.04
|
£14.45
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A241
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A565
2912401038
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW 4.8x55
BSD-1603435060.A5
1603435060
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A627
1603410014
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A443
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A494
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2228
2910211019
|
£1.75
|
£2.10
|
|
|
68 - SEALING PLATE
BSD-1601006011.A363
1601006011
|
£2.61
|
£3.13
|
|
|
650/10 - AUXILIARY HANDLE M14
BSD-1602025022.A801
1602025022
|
£13.41
|
£16.09
|
|
|
650/10 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A178
1602025030
|
£18.96
|
£22.75
|
|
|
650/20 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A518
1607950061
|
£5.42
|
£6.50
|
|
|
650/30 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A380
2605703014
|
£7.36
|
£8.83
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A956
1600210039
|
£2.16
|
£2.59
|
|
|
650/40 - ROUND NUT M14
BSD-1603345043.A1183
1603345043
|
£8.67
|
£10.41
|
|
|
651 - PROTECTIVE COVER dia230 MM
BSD-1605510340.A0
1605510340
|
-
|
|
|
|
803 - ARMATURE 220-240V
BSD-1604011930.A5
1604011930
|
£70.24
|
£84.29
|
|
|
804 - SWITCH
BSD-1607000703.A2
1607000703
|
£36.63
|
£43.96
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A65
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A62
1607014171
|
£14.91
|
£17.89
|
|
|
814 - GROOVE BALL BEARING 10x35x11
BSD-1600905023.A7
1600905023
|
£12.04
|
£14.45
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A345
1604336048
|
£7.36
|
£8.83
|
|
|
821 - GEAR HOUSING
BSD-1607000968.A44
1607000968
|
-
|
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000985.A80
1607000985
|
£27.23
|
£32.68
|
|
|
826 - ASSEMBLY OF SERVICE PARTS
BSD-1600A005BH.A79
1600A005BH
|
£45.67
|
£54.80
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A133
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A159
1607000C3E
|
£12.04
|
£14.45
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A671
2600910001
|
£4.26
|
£5.11
|
|
