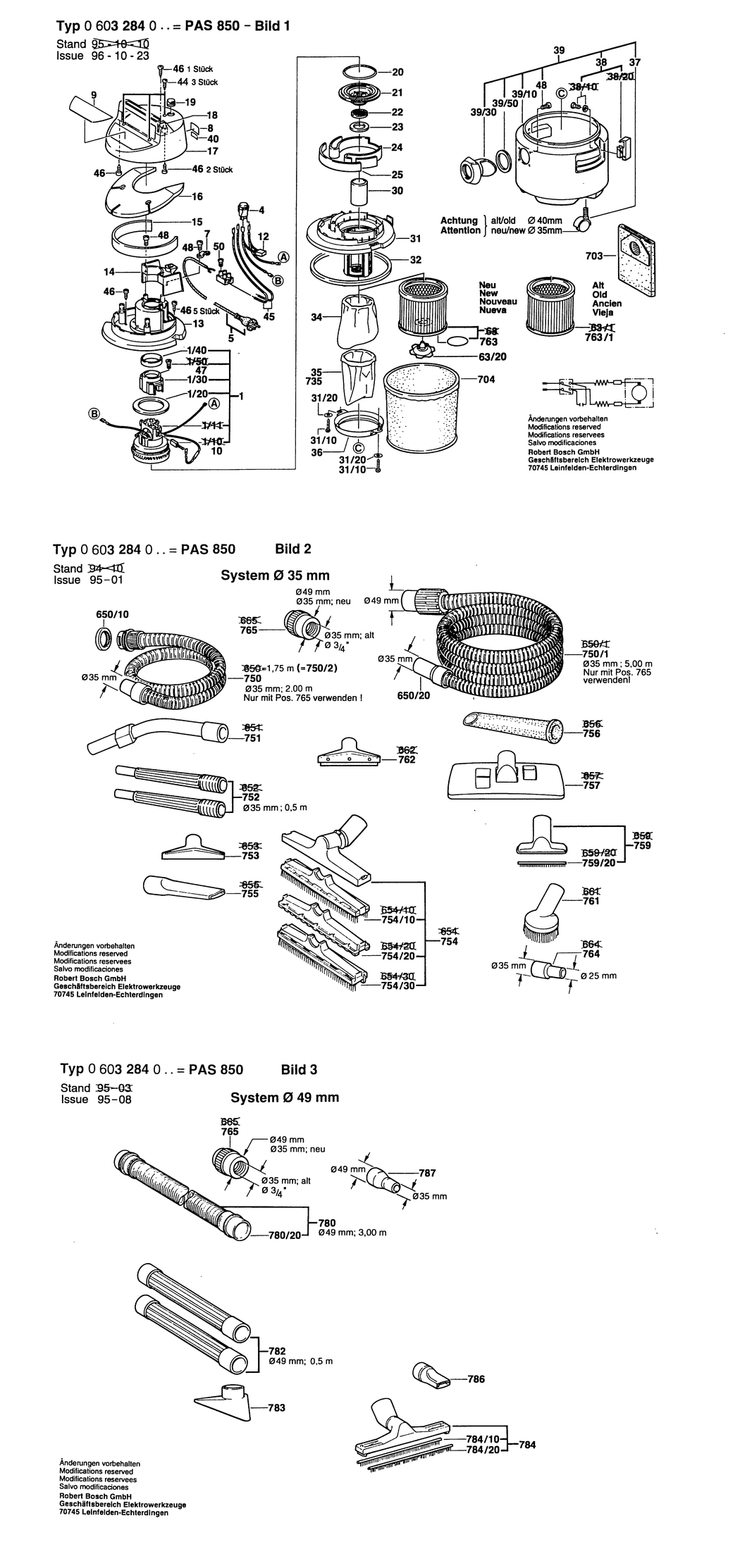

An exploded drawing and listing for the Bosch PAS 850 / 0603284003 / EU 220 Volt
Ex VAT Inc VAT
1 - SUCTION BLOWER 220V BSD-1609390575.A7 1609390575 -
1/20 - RUBBER RING BSD-1609390483.A5 1609390483 -
1/30 - PROTECTIVE CAP BSD-1609390484.A3 1609390484 -
1/40 - SEAL RING BSD-1609390487.A4 1609390487 -
4 - ON-OFF SWITCH BSD-1609390485.A5 1609390485 -
5 - POWER SUPPLY CORD EU 5m 2 x 0.75mm H05VV-F BSD-1609390486.A0 1609390486 -
7 - FASTENING CLAMP BSD-1609390488.A4 1609390488 -
8 - NAMEPLATE BSD-1601110625.A0 1601110625 -
9 - MANUFACTURER'S NAMEPLATE BSD-1601110634.A4 1601110634 -
10 - CARBON-BRUSH SET BSD-1609390489.A4 1609390489 -
12 - SUPPRESSION FILTER BSD-1609390490.A1 1609390490 -
13 - BLOWER COVER BSD-1609390507.A4 1609390507 -
14 - COVER BSD-1609390508.A4 1609390508 -
15 - DAMPING RING BSD-1609390509.A4 1609390509 £1.95 £2.34
16 - DAMPING DISC BSD-1609390510.A4 1609390510 -
17 - SEALING CAP BSD-1609390511.A4 1609390511 -
18 - CARRYING HANDLE BSD-1609390512.A4 1609390512 -
19 - PROTECTIVE FLAP BSD-1609390513.A4 1609390513 -
20 - SEAL RING BSD-1609390514.A4 1609390514 -
21 - SEAL BSD-1609390515.A4 1609390515 -
22 - FILTER DISC BSD-1609390516.A4 1609390516 -
23 - SEAL RING BSD-1609390517.A4 1609390517 -
24 - INSULATING STRIP BSD-1609390518.A4 1609390518 -
25 - INSULATING STRIP BSD-1609390519.A4 1609390519 -
30 - FLOAT BSD-1609390521.A4 1609390521 -
31 - FLOAT CHAMBER BSD-1609390557.A0 1609390557 -
31/10 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A411 2910611006 £1.75 £2.10
31/20 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A16 2916011892 £1.75 £2.10
32 - SEAL RING BSD-1609390523.A4 1609390523 -
34 - AIR FILTER BSD-1609390524.A3 1609390524 £3.80 £4.56
36 - FRAME BSD-1609390556.A4 1609390556 -
37 - IMPELLER dia 35 MM BSD-1609390593.A4 1609390593 -
37 - IMPELLER dia 40 MM BSD-1609390527.A8 1609390527 £9.49 £11.39
38 - BENT-LEVER CLOSURE BSD-1609390528.A0 1609390528 -
39 - DUST CONTAINER dia 35 MM BSD-1609390594.A4 1609390594 -
39/30 - FITTING BSD-1609390558.A8 1609390558 -
39/50 - SEALING DISK BSD-1609390553.A8 1609390553 -
40 - STICKER BSD-1601110265.A280 1601110265 -
44 - TAPPING SCREW 4.2x25 MM BSD-1609390560.A0 1609390560 -
45 - CONNECTING CABLE BSD-1609390530.A8 1609390530 -
46 - TAPPING SCREW DIN 7981 ST4.8x22-C-H BSD-2910611035.A3 2910611035 -
47 - TAPPING SCREW DIN 7976-ST2.9x6.5-C-H BSD-2910601304.A0 2910601304 -
48 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A409 2910611006 £1.75 £2.10
50 - CONNECTING TERMINAL BSD-1609390591.A4 1609390591 -
650/10 - RUBBER RING BSD-1609390555.A0 1609390555 £3.34 £4.01
650/20 - FITTING BSD-1609203V36.A40 1609203V36 £23.86 £28.63
703 - DUST BAG BSD-1609390472.A4 1609390472 -
704 - DUST SEPARATOR BSD-2607001129.A0 2607001129 -
735 - PAPER BAG BSD-1609390471.A0 1609390471 -
750 - AIR HOSE dia 35 MM. 2 M.1 BSD-2607000163.A60 2607000163 -
750/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A106 1609202230 £85.74 £102.89
750/2 - AIR HOSE dia 35 MM. 1.75 MM BSD-1609390491.A4 1609390491 -
751 - SETTING TUBE dia 35 MM BSD-2607000164.A21 2607000164 £22.56 £27.07
752 - SUCTION PIPE dia 35 MM. 0.5 MM BSD-1609390492.A4 1609390492 -
753 - SUCTION NOZZLE dia 35 MM BSD-2607000170.A21 2607000170 £13.12 £15.74
754 - SUCTION NOZZLE dia 35 MM BSD-1609390478.A4 1609390478 £34.99 £41.99
754/10 - FLAT BRUSH BSD-1609390493.A4 1609390493 £21.68 £26.01
754/20 - FLAT BRUSH BSD-1609390494.A97 1609390494 -
754/30 - STRIP BRUSH BSD-1609390495.A4 1609390495 £16.41 £19.69
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A107 2607000165 £5.24 £6.29
756 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A60 1609201229 £17.49 £20.99
757 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A78 1609201230 £41.99 £50.39
759 - SUCTION NOZZLE dia 35 MM BSD-2607000166.A21 2607000166 £8.74 £10.49
759/20 - BRUSH INSERT BSD-1609202534.A52 1609202534 £2.80 £3.36
761 - SUCTION BRUSH dia 35 MM BSD-1609390481.A71 1609390481 £8.74 £10.49
762 - SUCTION NOZZLE dia 35 MM BSD-2607000168.A21 2607000168 -
763 - AIR FILTER dia147/dia185 MM BSD-2609390304.A0 2609390304 -
763/1 - AIR FILTER dia147/dia185 MM BSD-2609390304.A1 2609390304 -
764 - FITTING dia 25x35 MM BSD-1600499005.A5 1600499005 £3.49 £4.19
765 - ADAPTER dia49/dia35 MM+dia3/4 BSD-1609390474.A4 1609390474 £6.31 £7.57
780 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A82 2607000167 £64.74 £77.69
780/20 - FITTING dia 49 MM BSD-1609390577.A0 1609390577 £5.58 £6.70
782 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A37 1609200968 £12.24 £14.69
783 - SUCTION NOZZLE dia 49 MM BSD-2607000169.A39 2607000169 -
784 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A45 1609200970 £26.24 £31.49
784/10 - FLAT BRUSH BSD-1609201109.A55 1609201109 -
784/20 - FLAT BRUSH BSD-1609201110.A72 1609201110 -
786 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A77 1609200971 £7.87 £9.44
787 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A62 1609200976 £3.61 £4.33
