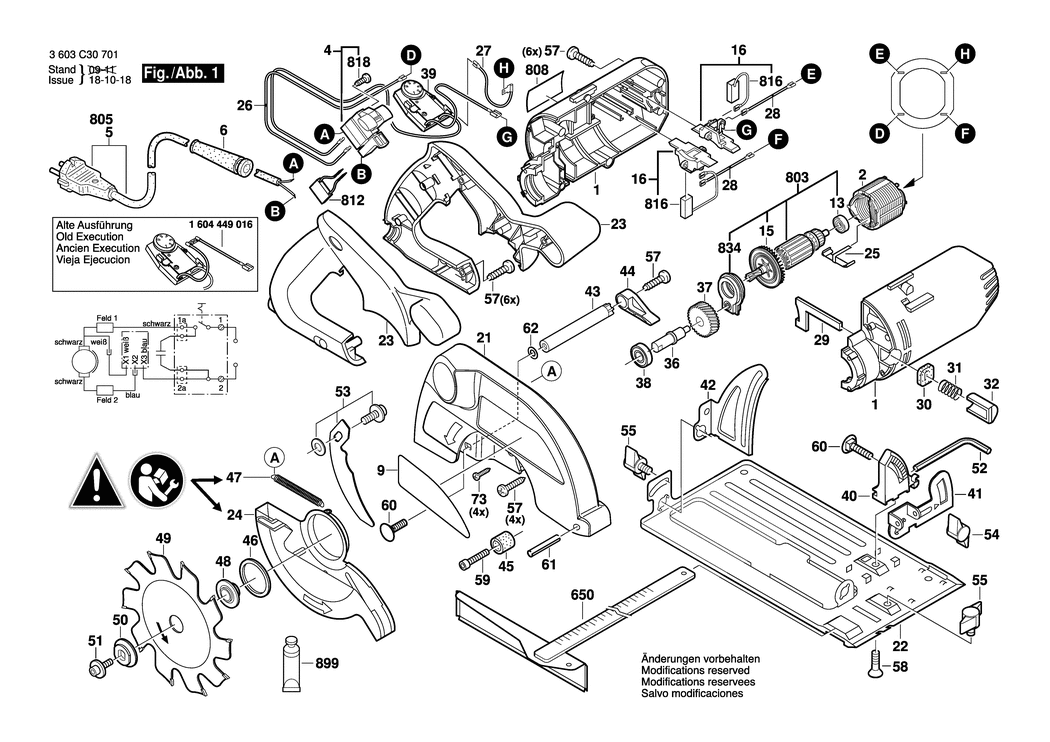

1 - MOTOR HOUSING
BSD-1605108206.A14
1605108206
|
£16.74
|
£20.09
|
|
|
2 - FIELD 230V
BSD-1604220345.A2
1604220345
|
£27.23
|
£32.68
|
|
|
4 - SWITCH
BSD-1607200198.A19
1607200198
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460140.A8
2604460140
|
£21.68
|
£26.01
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A705
2600703017
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE PKS 54 CE
BSD-1601118B06.A2
1601118B06
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A686
2600905032
|
£5.30
|
£6.36
|
|
|
15 - FAN
BSD-1606610144.A18
1606610144
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-1604336043.A10
1604336043
|
£7.78
|
£9.33
|
|
|
21 - PROTECTIVE COVER
BSD-1605510375.A8
1605510375
|
£30.28
|
£36.33
|
|
|
22 - BASE PLATE
BSD-1608000117.A20
1608000117
|
£16.74
|
£20.09
|
|
|
23 - HANDLE
BSD-1605500216.A2
1605500216
|
-
|
|
|
|
24 - PIVOTING BLADE GUARD
BSD-1605510265.A12
1605510265
|
£16.41
|
£19.69
|
|
|
25 - CONTACT SPRING
BSD-1601290010.A21
1601290010
|
£1.75
|
£2.10
|
|
|
26 - CONNECTING PIPING
BSD-1604449018.A8
1604449018
|
£2.16
|
£2.59
|
|
|
27 - CONNECTING PIPING
BSD-1604449017.A5
1604449017
|
£2.16
|
£2.59
|
|
|
28 - CONNECTING CABLE
BSD-1604449013.A17
1604449013
|
£1.75
|
£2.10
|
|
|
29 - SAFETY CATCH
BSD-1601900005.A18
1601900005
|
£1.95
|
£2.34
|
|
|
30 - FELT SEAL
BSD-1601015033.A17
1601015033
|
£1.75
|
£2.10
|
|
|
31 - COMPRESSION SPRING
BSD-1604610018.A19
1604610018
|
£1.75
|
£2.10
|
|
|
32 - PUSH-BUTTON
BSD-1603231019.A40
1603231019
|
-
|
|
|
|
36 - DRIVE SHAFT
BSD-1603124133.A34
1603124133
|
£10.10
|
£12.12
|
|
|
37 - CYLINDRICAL GEAR
BSD-1606320600.A22
1606320600
|
£5.87
|
£7.04
|
|
|
38 - GROOVE BALL BEARING 12x28x8
BSD-1600905031.A42
1600905031
|
£6.52
|
£7.83
|
|
|
39 - SPEED GOVERNOR 230-240V
BSD-1607233143.A7
1607233143
|
-
|
|
|
|
40 - MITER SQUARE
BSD-1608190024.A21
1608190024
|
£2.33
|
£2.80
|
|
|
41 - BOW
BSD-1601329031.A15
1601329031
|
£1.95
|
£2.34
|
|
|
42 - GUIDE BRACKET
BSD-1601329032.A7
1601329032
|
£5.01
|
£6.01
|
|
|
43 - SPACER TUBE
BSD-1600360004.A14
1600360004
|
£2.61
|
£3.13
|
|
|
44 - TENSIONING LEVER
BSD-1602002006.A41
1602002006
|
£1.75
|
£2.10
|
|
|
45 - RUBBER BUFFER
BSD-1600305002.A53
1600305002
|
£1.32
|
£1.58
|
|
|
46 - CLAMP RING
BSD-1600102024.A11
1600102024
|
£2.16
|
£2.59
|
|
|
47 - EXTENSION SPRING
BSD-1604650019.A16
1604650019
|
£2.80
|
£3.36
|
|
|
48 - CLAMPING-FLANGE
BSD-1605703125.A10
1605703125
|
£2.52
|
£3.02
|
|
|
49 - CIRCULAR SAW BLADE
BSD-1608640084.A15
1608640084
|
-
|
|
|
|
50 - CONICAL SPRING WASHER
BSD-1605703108.A37
1605703108
|
£2.80
|
£3.36
|
|
|
51 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A393
1603414007
|
£2.29
|
£2.75
|
|
|
52 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A637
1907950006
|
£4.26
|
£5.11
|
|
|
53 - RIVING KNIFE
BSD-1600025022.A30
1600025022
|
-
|
|
|
|
54 - WING NUT M6
BSD-1603339006.A17
1603339006
|
£2.52
|
£3.02
|
|
|
55 - WING SCREW M6
BSD-1603480018.A28
1603480018
|
£2.16
|
£2.59
|
|
|
57 - SCREW 4x16
BSD-2603490022.A1041
2603490022
|
£1.75
|
£2.10
|
|
|
58 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A877
2603490017
|
£2.16
|
£2.59
|
|
|
59 - THREAD-FORMING TAP. SCREW M6x25 MM
BSD-1603414010.A0
1603414010
|
£1.75
|
£2.10
|
|
|
60 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A99
2910281201
|
£1.75
|
£2.10
|
|
|
61 - SLOTTED SPRING PIN 6x36 DIN 7346
BSD-2917780157.A48
2917780157
|
£1.75
|
£2.10
|
|
|
62 - PLAIN WASHER
BSD-2916011894.A6
2916011894
|
£1.75
|
£2.10
|
|
|
73 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A878
2603490017
|
£2.16
|
£2.59
|
|
|
650 - PARALLEL-GUIDE
BSD-2608005036.A123
2608005036
|
£8.67
|
£10.41
|
|
|
803 - ARMATURE WITH FAN 230V
BSD-1604010771.A1
1604010771
|
£58.76
|
£70.51
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A386
160111A3H3
|
£2.61
|
£3.13
|
|
|
812 - SUPPRESSION FILTER
BSD-1607328028.A760
1607328028
|
£5.30
|
£6.36
|
|
|
816 - CARBON-BRUSH SET
BSD-1607014176.A285
1607014176
|
£13.12
|
£15.75
|
|
|
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A60
2603410001
|
£1.75
|
£2.10
|
|
|
834 - BEARING BRACKET
BSD-1605808070.A17
1605808070
|
£12.04
|
£14.45
|
|
|
899 - GREASE TUBE 225 ML
BSD-1605430003.A5
1605430003
|
£33.74
|
£40.49
|
|
