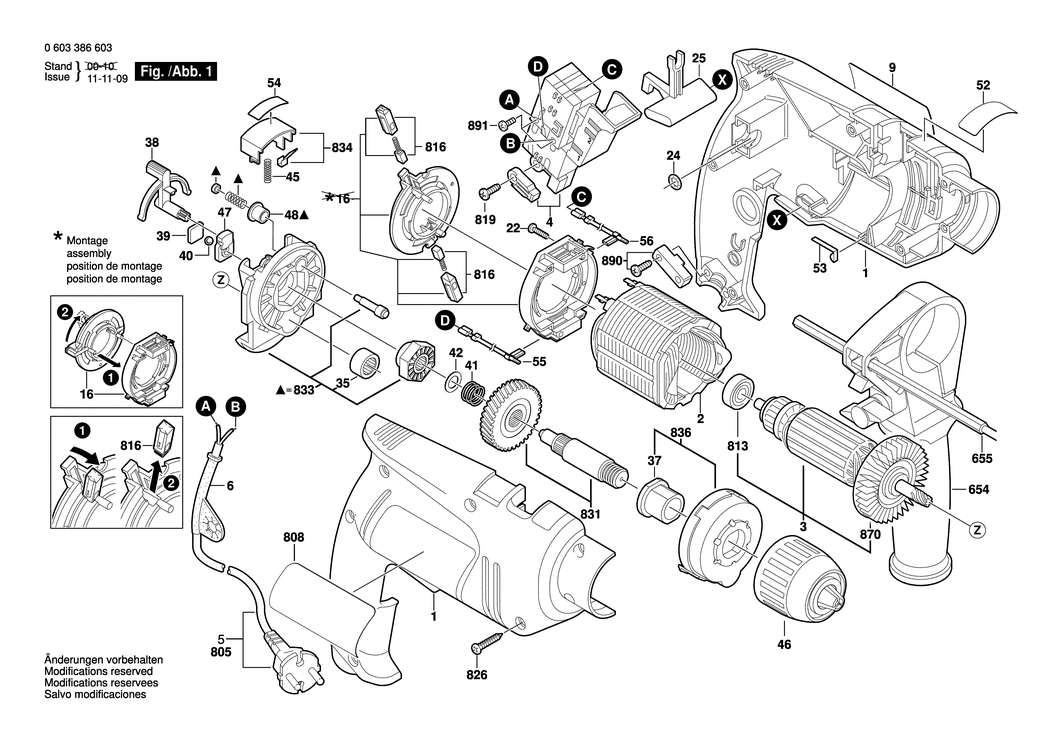

An exploded drawing and listing for the Bosch PSB 650 RE / 0603386603 / EU 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104560.A51 2605104560 £14.72 £17.67
2 - FIELD 220-240V BSD-2604220688.A46 2604220688 £27.23 £32.68
3 - ARMATURE 220-240V BSD-2604011154.A9 2604011154 £30.28 £36.33
4 - SWITCH BSD-2607200556.A10 2607200556 £27.23 £32.68
6 - GROMMET dia6.2-dia6.9x90 MM BSD-2600707066.A23 2600707066 £2.48 £2.97
9 - MANUFACTURER'S NAMEPLATE PSB 650 RE BSD-2601117335.A13 2601117335 £3.34 £4.01
9 - MANUFACTURER'S NAMEPLATE PSB 6500 RE BSD-2601117971.A2 2601117971 £1.75 £2.10
16 - BRUSH PLATE BSD-2604337104.A29 2604337104 £13.41 £16.09
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H BSD-2910611002.A145 2910611002 £1.75 £2.10
24 - O-RING 5.0x1.5 MM BSD-1900210000.A551 1900210000 £1.75 £2.10
25 - CHANGE-OVER SWITCH BSD-2602098008.A194 2602098008 £1.75 £2.10
35 - NEEDLE BEARING BSD-2600914019.A75 2600914019 £5.30 £6.36
37 - POROUS BEARING BSD-2600301052.A19 2600301052 -
38 - INDEXING DISK BSD-2601990010.A67 2601990010 -
39 - PRESSURE PLATE BSD-2601074004.A128 2601074004 £1.75 £2.10
40 - BALL DIN 5401-5 G28 BSD-1903230009.A45 1903230009 £1.75 £2.10
41 - COMPRESSION SPRING BSD-2604616006.A99 2604616006 £1.75 £2.10
42 - SHIM 0.3 MM BSD-2600101047.A474 2600101047 £1.75 £2.10
45 - COMPRESSION SPRING BSD-2604610047.A107 2604610047 £1.75 £2.10
46 - KEYLESS CHUCK BSD-2608572173.A74 2608572173 -
47 - FRAME BSD-2608040120.A55 2608040120 £2.61 £3.13
48 - SLEEVE BSD-2600390031.A32 2600390031 -
52 - REFERENCE PLATE BSD-2601119419.A63 2601119419 £3.72 £4.47
53 - CONTACT STRAP BSD-2601329043.A66 2601329043 £1.32 £1.58
54 - REFERENCE PLATE BSD-2601119602.A114 2601119602 £3.72 £4.47
55 - PVC-INSULATED CABLE L=95 MM BSD-1614431025.A9 1614431025 £2.61 £3.13
56 - PVC-INSULATED CABLE L=120 MM BSD-2604448228.A139 2604448228 £2.16 £2.59
654 - AUXILIARY HANDLE BSD-2602025125.A152 2602025125 £10.10 £12.12
655 - DEPTH-GAUGE BSD-2609005615.A202 2609005615 £4.26 £5.11
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F BSD-1607000388.A13 1607000388 £12.04 £14.45
808 - MARKING PLATE BSD-2601117832.A0 2601117832 -
813 - BALL BEARING 7x19x6 BSD-2600905032.A1147 2600905032 £5.30 £6.36
816 - BRUSH HOLDER BSD-1607000CJ1.A54 1607000CJ1 -
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A226 2910611006 £1.75 £2.10
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A403 2910611020 £1.75 £2.10
831 - DRILLING SPINDLE 1/2 BSD-2606135929.A86 2606135929 -
833 - BEARING BRACKET BSD-2605807932.A122 2605807932 -
834 - PUSH-BUTTON BSD-2603231040.A10 2603231040 -
836 - GEAR COVER BSD-2605808922.A25 2605808922 £10.82 £12.99
870 - FAN BSD-2606610029.A79 2606610029 £2.61 £3.13
890 - FASTENING PARTS KIT BSD-2607001305.A177 2607001305 £4.26 £5.11
891 - CROSS RECESSED-HEAD SCREW M3x5 BSD-2603410046.A213 2603410046 £2.16 £2.59
