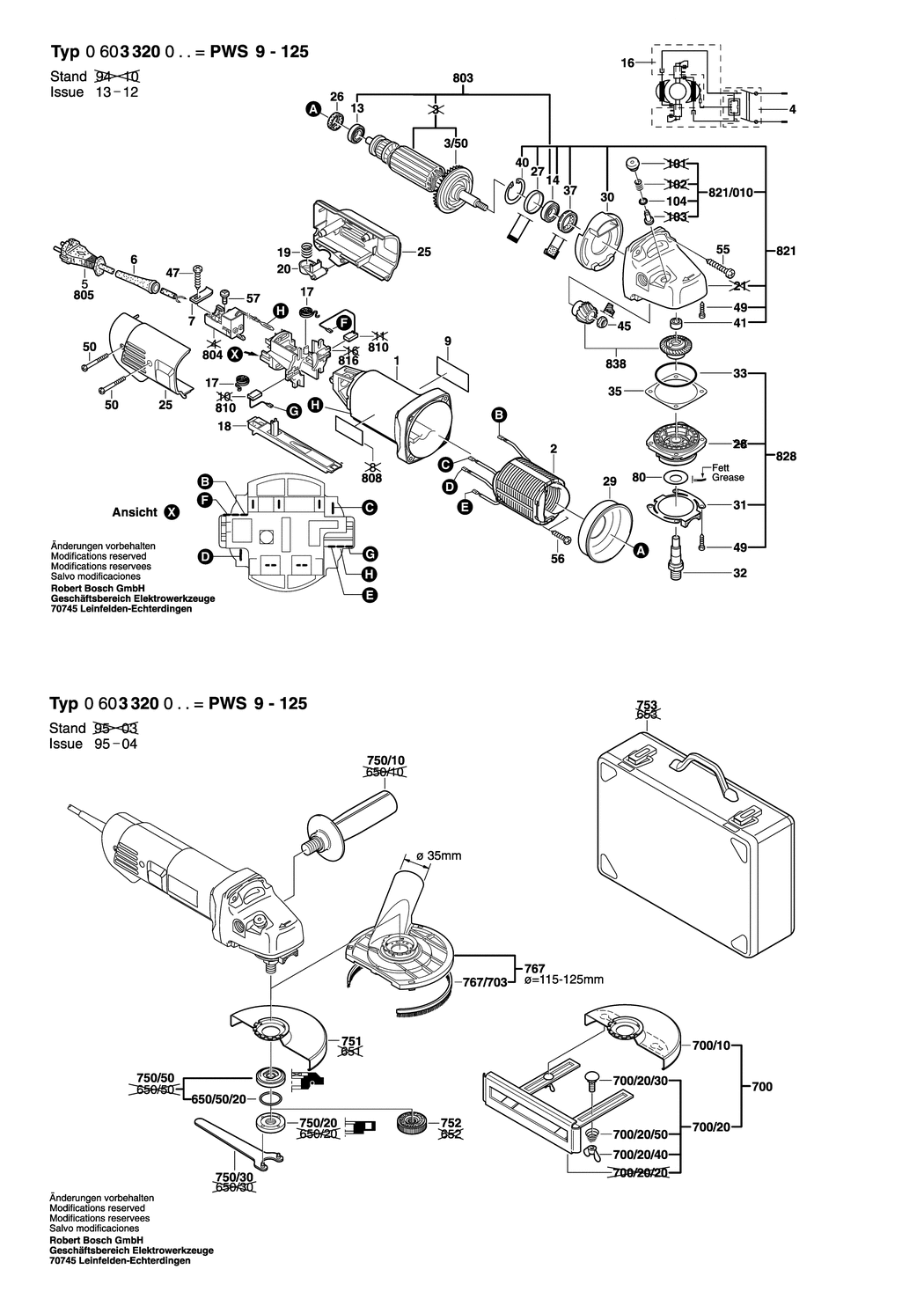

An exploded drawing and listing for the Bosch PWS 9-125 / 0603320003 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108169.A3 1605108169 -
2 - FIELD 220-240V BSD-1604220283.A40 1604220283 £27.31 £32.77
3/50 - FAN BSD-1606610132.A273 1606610132 £2.16 £2.59
6 - GROMMET dia6.4-dia7.2x67 MM BSD-1600703030.A63 1600703030 £2.61 £3.13
6 - GROMMET dia8.7-dia9.5x67 MM BSD-1600703032.A30 1600703032 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302017.A11 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118157.A4 1601118157 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1511 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A112 1600905032 £5.58 £6.70
17 - SPIRAL SPRING BSD-1604652013.A261 1604652013 £1.75 £2.10
18 - SWITCH-PAWL BSD-1602319013.A67 1602319013 £8.49 £10.19
19 - COMPRESSION SPRING BSD-1604611024.A20 1604611024 £1.75 £2.10
20 - SHIFT-LEVER KNOB BSD-1602319007.A60 1602319007 £1.75 £2.10
25 - HOUSING COVER BSD-1605500184.A8 1605500184 -
26 - RUBBER RING BSD-1600206036.A342 1600206036 £1.75 £2.10
27 - RUBBER RING BSD-1600206025.A289 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1600591013.A65 1600591013 -
30 - AIR-DEFLECTOR RING BSD-1600591014.A66 1600591014 £2.61 £3.13
31 - CLAMPING SPRING BSD-1601290007.A109 1601290007 £5.30 £6.36
32 - GRINDING SPINDLE BSD-1607000D6A.A750 1607000D6A £7.36 £8.83
33 - O-RING 46.0x1.1 MM BSD-1600210035.A323 1600210035 £1.75 £2.10
35 - SHIM 0.1 MM BSD-1600136013.A194 1600136013 £2.61 £3.13
35 - SHIM 0.15 MM BSD-1600136020.A409 1600136020 £3.72 £4.47
35 - SHIM 0.2 MM BSD-1600136014.A326 1600136014 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136015.A194 1600136015 £2.61 £3.13
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A530 1600290016 £2.61 £3.13
40 - RETAINING CLIP BSD-1600119011.A131 1600119011 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A87 1600910018 £5.30 £6.36
45 - HEX NUT M7. SW10 BSD-1603300016.A656 1603300016 £1.75 £2.10
47 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A655 1603435042 £1.75 £2.10
49 - THREAD-FORMING TAP. SCREW BSD-1603435026.A191 1603435026 £2.16 £2.59
50 - PLASTIC-CUTTING SCREW BSD-1603435037.A49 1603435037 £1.75 £2.10
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z BSD-2912401022.A26 2912401022 £1.75 £2.10
56 - PLASTIC-CUTTING SCREW BSD-1603435044.A12 1603435044 -
57 - SOCKET HEAD CAP SCREW M3.5x7 MM BSD-1603429002.A86 1603429002 £1.75 £2.10
80 - SEALING DISK BSD-3600150021.A415 3600150021 £3.80 £4.56
104 - O-RING 4.5x1.0 MM BSD-1600210044.A532 1600210044 £1.75 £2.10
650/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1134 1600210039 £2.16 £2.59
700 - PARTS SET dia 125 MM BSD-2607001188.A51 2607001188 -
700/10 - PROTECTIVE COVER dia 125MM BSD-2605510101.A24 2605510101 £22.22 £26.67
700/20 - GUIDE BLOCK BSD-1608135004.A173 1608135004 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16 BSD-2910281158.A154 2910281158 -
700/20/40 - WING NUT M 5 DIN 315-G-5 BSD-2915191105.A73 2915191105 -
700/20/50 - COMPRESSION SPRING BSD-1604643004.A150 1604643004 -
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A37 160202509T £3.72 £4.47
750/20 - CLAMPING NUT M14 BSD-1603340040.A242 1603340040 £6.20 £7.44
750/30 - PIN-TYPE FACE-WRENCH BSD-1607950043.A64 1607950043 £4.02 £4.83
750/50 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A9 1605703099 £7.45 £8.94
751 - PROTECTIVE COVER dia 125MM BSD-2605510104.A72 2605510104 -
752 - FAST LOCKING FLANGE M14 BSD-1603340031.A33 1603340031 £20.12 £24.14
753 - CARRYING CASE BSD-1605438089.A5 1605438089 -
767 - SUCTION HOOD dia115-125MM BSD-2605510107.A36 2605510107 -
767/703 - BRUSH BSD-2605730036.A77 2605730036 £21.53 £25.84
803 - ARMATURE 230-240V BSD-1604010444.A10 1604010444 -
804 - SWITCH BSD-1607200120.A49 1607200120 -
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A302 1607000228 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A3383 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014176.A108 1607014176 £13.12 £15.75
816 - BRUSH HOLDER BSD-1604336030.A50 1604336030 £16.74 £20.09
821 - GEAR HOUSING BSD-1605806451.A87 1605806451 £37.27 £44.72
821/010 - PUSH-BUTTON BSD-1607000253.A322 1607000253 £2.49 £2.99
828 - BEARING FLANGE BSD-1605805079.A63 1605805079 £18.96 £22.75
838 - GEAR UNIT BSD-1607000D4Y.A113 1607000D4Y £21.42 £25.71
