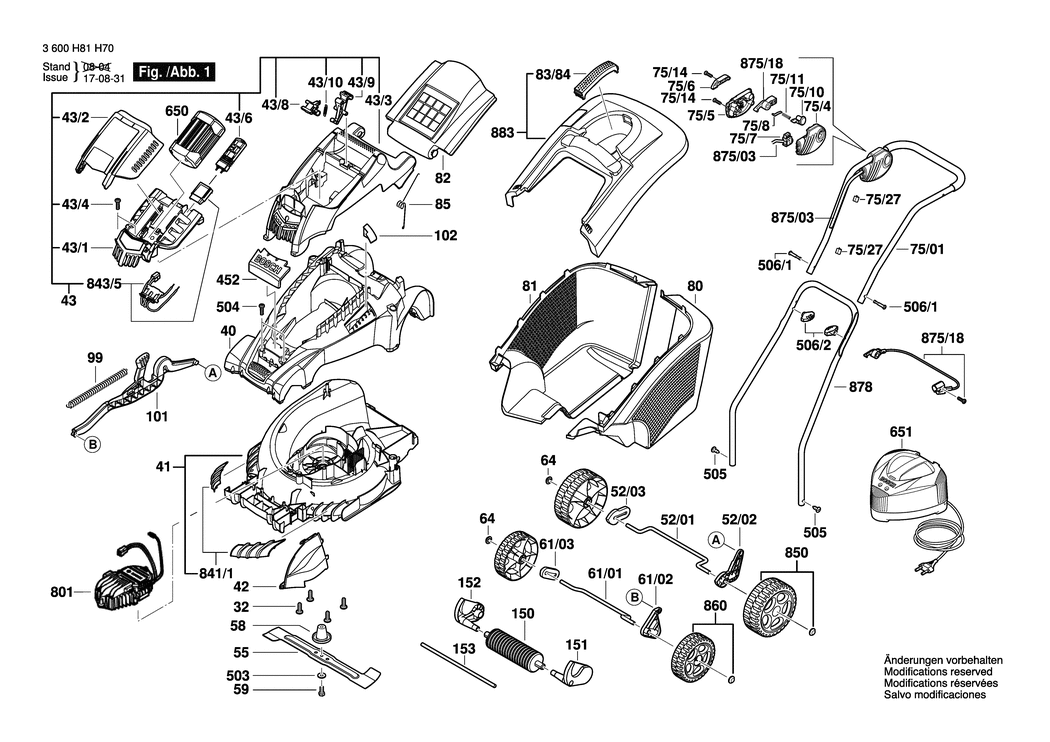

32 - SCREW
BSD-F016L66162.A11
F016L66162
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L66159.A33
F016L66159
|
£37.27
|
£44.72
|
|
|
41 - HOUSING
BSD-F016L65989.A0
F016L65989
|
£48.38
|
£58.06
|
|
|
42 - COVER PANEL
BSD-F016L66041.A7
F016L66041
|
-
|
|
|
|
43 - MOTOR HOOD
BSD-F016L66780.A18
F016L66780
|
£80.61
|
£96.73
|
|
|
43/1 - BATTERY TRAY
BSD-F016L65952.A1
F016L65952
|
£36.62
|
£43.95
|
|
|
43/2 - BATTERY COVER
BSD-F016L65954.A1
F016L65954
|
£13.41
|
£16.09
|
|
|
43/3 - MOTOR HOOD
BSD-F016L65953.A5
F016L65953
|
-
|
|
|
|
43/4 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A327
F016T49429
|
£1.75
|
£2.10
|
|
|
43/6 - INSULATOR
BSD-F016L66669.A19
F016L66669
|
-
|
|
|
|
43/8 - RELEASE LEVER
BSD-F016L66107.A41
F016L66107
|
£3.34
|
£4.01
|
|
|
43/9 - LOCKING DEVICE
BSD-F016L65988.A42
F016L65988
|
£1.95
|
£2.34
|
|
|
43/10 - SPRING
BSD-F016L66108.A9
F016L66108
|
£1.75
|
£2.10
|
|
|
52/01 - AXLE
BSD-F016L65931.A0
F016L65931
|
£5.01
|
£6.01
|
|
|
52/02 - LEVER
BSD-F016L90582.A98
F016L90582
|
-
|
|
|
|
52/03 - SPACER
BSD-F016L90583.A94
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L65957.A0
F016L65957
|
£40.80
|
£48.96
|
|
|
58 - ADAPTER
BSD-F016L65958.A1
F016L65958
|
-
|
|
|
|
59 - BOLT M10x30
BSD-F016L66141.A64
F016L66141
|
£2.61
|
£3.13
|
|
|
61/01 - AXLE
BSD-F016L65930.A1
F016L65930
|
£3.80
|
£4.56
|
|
|
61/02 - LEVER
BSD-F016L90581.A94
F016L90581
|
£7.78
|
£9.33
|
|
|
61/03 - SPACER
BSD-F016L90585.A98
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP 9 MM
BSD-F016F05700.A14
F016F05700
|
£1.95
|
£2.34
|
|
|
75/01 - HANDLE
BSD-F016L66182.A2
F016L66182
|
£33.74
|
£40.49
|
|
|
75/4 - SWITCH HOUSING
BSD-F016L65739.A26
F016L65739
|
-
|
|
|
|
75/5 - SWITCH HOUSING
BSD-F016L66235.A58
F016L66235
|
£3.34
|
£4.01
|
|
|
75/6 - CABLE CLEAT
BSD-F016T49630.A42
F016T49630
|
-
|
|
|
|
75/7 - ON-OFF SWITCH
BSD-F016F05717.A14
F016F05717
|
£14.91
|
£17.89
|
|
|
75/8 - LEAF SPRING
BSD-F016L66416.A12
F016L66416
|
£1.66
|
£1.99
|
|
|
75/10 - PUSH-BUTTON
BSD-F016F05705.A63
F016F05705
|
£3.75
|
£4.50
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A68
F016T49226
|
-
|
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A325
F016T49429
|
£1.75
|
£2.10
|
|
|
75/27 - CABLE CLIP
BSD-F016L90575.A13
F016L90575
|
£1.75
|
£2.10
|
|
|
80 - COLLECTOR BOX BOTTOM L/H
BSD-F016L64304.A14
F016L64304
|
£21.68
|
£26.01
|
|
|
81 - COLLECTOR BOX BOTTOM R/H
BSD-F016L64338.A23
F016L64338
|
£16.41
|
£19.69
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A111
F016L66137
|
£13.32
|
£15.99
|
|
|
83/84 - HANDLE
BSD-F016L66441.A68
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A178
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A47
F016L59327
|
£2.80
|
£3.36
|
|
|
101 - LINK PIECE
BSD-F016L65971.A0
F016L65971
|
-
|
|
|
|
102 - RESTRICTOR
BSD-F016L66111.A41
F016L66111
|
£3.80
|
£4.56
|
|
|
150 - ROLLER DRUM
BSD-F016L66175.A38
F016L66175
|
-
|
|
|
|
151 - BRACKET
BSD-F016L64900.A14
F016L64900
|
-
|
|
|
|
152 - BRACKET
BSD-F016L64901.A68
F016L64901
|
-
|
|
|
|
153 - SPINDLE
BSD-F016L65870.A38
F016L65870
|
£6.61
|
£7.93
|
|
|
452 - COMPANY LOGO ROTAK 43 LI
BSD-F016L66288.A7
F016L66288
|
£3.80
|
£4.56
|
|
|
503 - SPRING WASHER 1/2
BSD-F016L66173.A12
F016L66173
|
£1.75
|
£2.10
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A326
F016T49429
|
£1.75
|
£2.10
|
|
|
505 - SCREW
BSD-F016L65803.A97
F016L65803
|
-
|
|
|
|
506/1 - BOLT M6x50
BSD-F016L59277.A77
F016L59277
|
£3.80
|
£4.56
|
|
|
506/2 - WING NUT
BSD-F016L66136.A14
F016L66136
|
£4.26
|
£5.11
|
|
|
650 - SLIDE-IN ACCU PACKAGE PBA 36V 2.6Ah H-B Li
BSD-2607336107.A31
2607336107
|
-
|
|
|
|
651 - FAST CHARGER GB 230/18-36V. 1h
BSD-2607225902.A4
2607225902
|
£52.49
|
£62.99
|
|
|
801 - MOTOR ASSEMBLY
BSD-F016104248.A5
F016104248
|
£263.33
|
£316.00
|
|
|
841/1 - COVER
BSD-F016104318.A18
F016104318
|
£5.87
|
£7.04
|
|
|
843/5 - WIRING HARNESS
BSD-F016104244.A16
F016104244
|
-
|
|
|
|
850 - WHEEL
BSD-F016103992.A15
F016103992
|
-
|
|
|
|
860 - WHEEL
BSD-F016103994.A62
F016103994
|
-
|
|
|
|
875/03 - CONNECTING CABLE
BSD-F016103675.A9
F016103675
|
-
|
|
|
|
875/18 - CONTROL BAR
BSD-F016103601.A15
F016103601
|
-
|
|
|
|
878 - BOTTOM HANDLE
BSD-F016L65571.A2
F016L65571
|
£21.52
|
£25.83
|
|
|
883 - COVER
BSD-F016103608.A99
F016103608
|
£27.23
|
£32.68
|
|
