Bosch TBS 12-A / 3601JE4W00 / --- 12 Volt Spare Parts

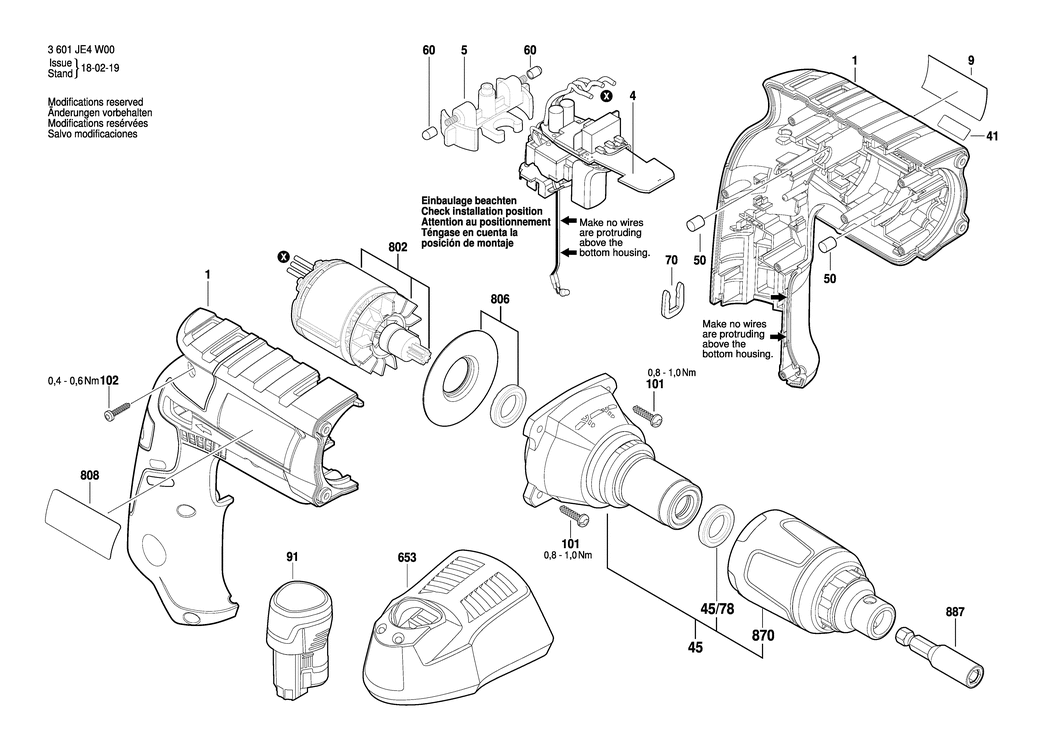

An exploded drawing and listing for the Bosch TBS 12-A / 3601JE4W00 / --- 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101782.A0 2609101782	£21.52	£25.83
4 - ELECTRONIC MODULE BSD-160723359M.A2 160723359M	£81.81	£98.17
5 - ADJUSTING LEVER BSD-2609101481.A1 2609101481	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE WÃ¼rth BSD-2609138367.A0 2609138367	£2.61	£3.13
41 - STICKER BSD-2609138368.A0 2609138368	£2.61	£3.13
45 - GEAR UNIT BSD-2609199808.A2 2609199808	£72.18	£86.62
45/78 - SEAL RING BSD-3600290502.A76 3600290502	£3.72	£4.47
50 - DAMPING RUBBER BSD-2603100056.A300 2603100056	£1.75	£2.10
60 - RATCHET CAP BSD-2600590006.A954 2600590006	£1.75	£2.10
70 - CLIP BSD-2609110537.A40 2609110537	£1.75	£2.10
91 - BATTERY PACK LI 12V 2.0Ah. Li-Ion. 24 Wh PL BSD-1607A3506L.A5 1607A3506L	£51.22	£61.47
101 - TORX OVAL-HEAD SCREW BSD-2609110353.A44 2609110353	£2.16	£2.59
102 - SCREW BSD-2609110883.A53 2609110883	£2.16	£2.59
653 - FAST CHARGER EU 10.8-12V. 30 min AL 30-LI PL BSD-2607226167.A9 2607226167	£59.53	£71.44
802 - MOTOR SPARE PARTS SET BSD-2609199809.A0 2609199809	£59.53	£71.44
806 - FRICTION WASHER BSD-2609199822.A2 2609199822	£3.72	£4.47
808 - NAMEPLATE BSD-2609138366.A0 2609138366	£2.61	£3.13
870 - DEPTH-GAUGE BSD-2609199484.A4 2609199484	£16.41	£19.69
887 - TOOLHOLDER BSD-2609111664.A2 2609111664	£21.68	£26.01

Attribute Name	Value
Brand	Bosch
