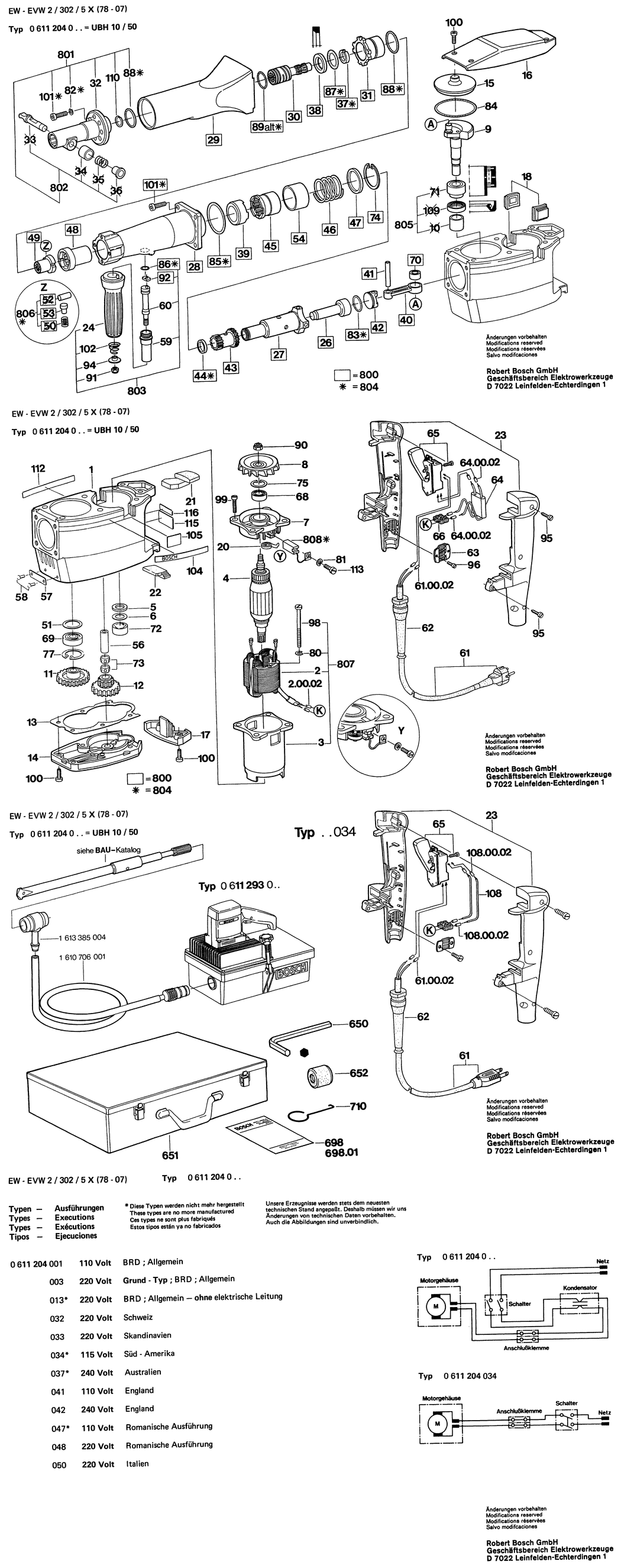

1 - MOTOR HOUSING
BSD-1615106021.A11
1615106021
|
-
|
|
|
|
2 - ASSEMBLY OF SERVICE PARTS 100V
BSD-1617031012.A1
1617031012
|
-
|
|
|
|
3 - POLE HOUSING
BSD-1617000059.A34
1617000059
|
-
|
|
|
|
4 - ARMATURE 100V
BSD-1614011032.A1
1614011032
|
-
|
|
|
|
5 - SEALING DISK
BSD-1610108012.A64
1610108012
|
£1.75
|
£2.10
|
|
|
6 - SHIM 1.0 MM
BSD-1610102013.A70
1610102013
|
£1.75
|
£2.10
|
|
|
7 - BEARING FLANGE
BSD-1615805060.A39
1615805060
|
-
|
|
|
|
8 - FAN
BSD-1616610047.A38
1616610047
|
-
|
|
|
|
9 - ECCENTRIC SHAFT
BSD-1616110016.A5
1616110016
|
-
|
|
|
|
11 - CYLINDRICAL GEAR Z=38
BSD-1616317017.A8
1616317017
|
-
|
|
|
|
12 - CYLINDRICAL GEAR Z=47/18
BSD-1616328033.A1
1616328033
|
-
|
|
|
|
13 - SEALING PLATE
BSD-1611015012.A51
1611015012
|
£2.33
|
£2.80
|
|
|
14 - GEAR COVER
BSD-1615808039.A41
1615808039
|
-
|
|
|
|
15 - SEALING CAP
BSD-1615500168.A5
1615500168
|
£2.52
|
£3.02
|
|
|
16 - FAN COVER
BSD-1615500276.A55
1615500276
|
£52.15
|
£62.58
|
|
|
17 - SWITCH COVER
BSD-1615500261.A65
1615500261
|
£7.78
|
£9.33
|
|
|
18 - SEALING CAP
BSD-1615500282.A5
1615500282
|
£2.33
|
£2.80
|
|
|
20 - SPIRAL SPRING
BSD-1614652000.A13
1614652000
|
-
|
|
|
|
21 - RUBBER PLATE
BSD-1612392001.A2
1612392001
|
£3.80
|
£4.56
|
|
|
22 - RUBBER PLATE
BSD-1612392000.A64
1612392000
|
£3.80
|
£4.56
|
|
|
23 - HANDLE
BSD-1615133025.A32
1615133025
|
£23.86
|
£28.63
|
|
|
24 - AUXILIARY HANDLE
BSD-1612025011.A13
1612025011
|
-
|
|
|
|
26 - STRIKER
BSD-1618710032.A17
1618710032
|
-
|
|
|
|
27 - HAMMER PISTON
BSD-1618700026.A15
1618700026
|
-
|
|
|
|
28 - GUIDE TUBE
BSD-1615806022.A15
1615806022
|
-
|
|
|
|
29 - HAMMER PIPE
BSD-1615190002.A0
1615190002
|
-
|
|
|
|
30 - BIT HOLDER
BSD-1618598058.A6
1618598058
|
-
|
|
|
|
31 - INTERMEDIATE FLANGE
BSD-1615700012.A11
1615700012
|
-
|
|
|
|
37 - RETAINING SNAP RING
BSD-1610224001.A38
1610224001
|
£1.75
|
£2.10
|
|
|
38 - SUPPORTING DISC
BSD-1610114012.A29
1610114012
|
£11.30
|
£13.56
|
|
|
39 - CARRIER
BSD-1616490002.A6
1616490002
|
-
|
|
|
|
40 - CONNECTING ROD
BSD-1612001022.A15
1612001022
|
-
|
|
|
|
41 - PISTON PIN
BSD-1610700016.A15
1610700016
|
-
|
|
|
|
42 - SEALING CAP
BSD-1615500177.A11
1615500177
|
-
|
|
|
|
43 - CYLINDRICAL GEAR
BSD-1616328029.A17
1616328029
|
-
|
|
|
|
44 - RETAINING SNAP RING
BSD-1610209002.A6
1610209002
|
-
|
|
|
|
45 - CROWN GEAR Z=24
BSD-1616334005.A0
1616334005
|
-
|
|
|
|
46 - COMPRESSION SPRING
BSD-1614624009.A17
1614624009
|
-
|
|
|
|
47 - PLAIN WASHER
BSD-1610100002.A1
1610100002
|
-
|
|
|
|
48 - CROWN GEAR Z=16
BSD-1616334003.A17
1616334003
|
-
|
|
|
|
49 - CARRIER
BSD-1616325000.A0
1616325000
|
-
|
|
|
|
51 - SHIM 1.0 MM
BSD-1610102014.A1
1610102014
|
-
|
|
|
|
54 - BUSHING
BSD-1610501028.A17
1610501028
|
-
|
|
|
|
56 - BEARING BOLT
BSD-1610300057.A65
1610300057
|
£4.75
|
£5.70
|
|
|
57 - NAMEPLATE
BSD-160111A3H3.A310
160111A3H3
|
£2.61
|
£3.13
|
|
|
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST
BSD-2917721034.A28
2917721034
|
£1.75
|
£2.10
|
|
|
59 - THREADED SLEEVE
BSD-1613359000.A4
1613359000
|
-
|
|
|
|
60 - ECCENTRIC BOLT
BSD-1613523005.A16
1613523005
|
-
|
|
|
|
61 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A557
1607000228
|
£23.86
|
£28.63
|
|
|
61/20 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A477
1900452012
|
£1.75
|
£2.10
|
|
|
61/20/1 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A141
1900452003
|
£2.61
|
£3.13
|
|
|
62 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1136
3600703011
|
£2.80
|
£3.36
|
|
|
63 - FASTENING CLAMP
BSD-1611302006.A37
1611302006
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-1617328002.A76
1617328002
|
-
|
|
|
|
64/20 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A478
1900452012
|
£1.75
|
£2.10
|
|
|
65 - ON-OFF SWITCH
BSD-1617200017.A45
1617200017
|
-
|
|
|
|
66 - CONNECTING TERMINAL
BSD-1611091002.A55
1611091002
|
£1.75
|
£2.10
|
|
|
68 - GROOVE BALL BEARING 10x32x12
BSD-1610905001.A4
1610905001
|
£14.91
|
£17.89
|
|
|
69 - GROOVE BALL BEARING
BSD-1610900013.A1
1610900013
|
£11.30
|
£13.56
|
|
|
70 - NEEDLE-ROLLER BEARING
BSD-1610910049.A73
1610910049
|
£37.26
|
£44.71
|
|
|
72 - NEEDLE-ROLLER BEARING
BSD-1610910007.A78
1610910007
|
£21.68
|
£26.01
|
|
|
73 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913001.A5
1610913001
|
£11.30
|
£13.56
|
|
|
74 - SPRING RETAINING RING 55x2MM. DIN 472
BSD-2916660024.A91
2916660024
|
£5.30
|
£6.36
|
|
|
75 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A427
2916660013
|
£2.16
|
£2.59
|
|
|
77 - SPRING RETAINING RING 40x1.75 MM. DIN 472
BSD-2916660018.A1
2916660018
|
£2.61
|
£3.13
|
|
|
80 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A208
2916680006
|
-
|
|
|
|
81 - SPRING WASHER DIN 137-A4
BSD-1600150006.A402
1600150006
|
-
|
|
|
|
82 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A34
2916680009
|
-
|
|
|
|
83 - O-RING 28x2.5 MM
BSD-1900210128.A61
1900210128
|
£2.61
|
£3.13
|
|
|
84 - O-RING 70x3 MM
BSD-1900210160.A62
1900210160
|
£5.58
|
£6.70
|
|
|
85 - O-RING 55x3 MM
BSD-1900210152.A73
1900210152
|
£3.72
|
£4.47
|
|
|
86 - O-RING 12x2.5 MM
BSD-1900210110.A17
1900210110
|
£2.61
|
£3.13
|
|
|
87 - O-RING 28.0x6.0 MM
BSD-1610210015.A0
1610210015
|
-
|
|
|
|
88 - O-RING 35.0x3.0 MM
BSD-3600210131.A2
3600210131
|
£3.72
|
£4.47
|
|
|
89 - O-RING 25x3 MM
BSD-1900210126.A16
1900210126
|
-
|
|
|
|
90 - HEX NUT DIN 985-M8-8
BSD-2915061005.A101
2915061005
|
£2.61
|
£3.13
|
|
|
91 - HEX NUT DIN 985-M8-8
BSD-2915061005.A102
2915061005
|
£2.61
|
£3.13
|
|
|
92 - SLIDER
BSD-1610190000.A4
1610190000
|
-
|
|
|
|
94 - DISC SPRING
BSD-1610550023.A13
1610550023
|
-
|
|
|
|
95 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A151
2910211011
|
£1.75
|
£2.10
|
|
|
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1024
2910021118
|
£1.75
|
£2.10
|
|
|
98 - SOCKET HEAD CAP SCREW DIN 84-B5x65-5.8
BSD-2910011179.A21
2910011179
|
-
|
|
|
|
98 - TAPPING SCREW B 4.8x68 MM
BSD-1613412001.A101
1613412001
|
£1.75
|
£2.10
|
|
|
99 - SOCKET HEAD CAP SCREW DIN 84-AM6x28-8.8
BSD-2910021204.A3
2910021204
|
-
|
|
|
|
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8
BSD-2910141199.A69
2910141199
|
£3.72
|
£4.47
|
|
|
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8
BSD-2910141244.A155
2910141244
|
£1.75
|
£2.10
|
|
|
102 - COMPRESSION SPRING
BSD-1614643000.A3
1614643000
|
-
|
|
|
|
104 - MANUFACTURER'S NAMEPLATE
BSD-1611110162.A11
1611110162
|
-
|
|
|
|
105 - REFERENCE PLATE
BSD-1601110058.A274
1601110058
|
£1.75
|
£2.10
|
|
|
108 - CONNECTING CABLE
BSD-1614437008.A15
1614437008
|
-
|
|
|
|
110 - RETAINING RING DIN 9045-24
BSD-2916601012.A26
2916601012
|
£2.52
|
£3.02
|
|
|
112 - REFERENCE PLATE
BSD-1601110076.A6
1601110076
|
-
|
|
|
|
113 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A274
2910011120
|
£1.75
|
£2.10
|
|
|
650 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A388
1907950007
|
£5.30
|
£6.36
|
|
|
652 - SEALING CAP dia15xdia27.5x36 MM
BSD-1610508001.A4
1610508001
|
-
|
|
|
|
800 - EXCHANGE GROUP
BSD-1617099000.A4
1617099000
|
-
|
|
|
|
801 - TOOL HOLDER SET
BSD-1617000013.A1
1617000013
|
-
|
|
|
|
802 - LOCKING BOLT SET
BSD-1617000014.A126
1617000014
|
£24.45
|
£29.34
|
|
|
803 - SET OF HANDLES
BSD-1617000015.A1
1617000015
|
-
|
|
|
|
804 - SERVICE BOX
BSD-1617000020.A6
1617000020
|
-
|
|
|
|
805 - SEAL KIT
BSD-1617031004.A1
1617031004
|
-
|
|
|
|
806 - PARTS SET
BSD-1617000025.A4
1617000025
|
-
|
|
|
|
807 - ASSEMBLY OF SERVICE PARTS 100V
BSD-1617031012.A0
1617031012
|
-
|
|
|
|
808 - CARBON-BRUSH SET
BSD-1617014110.A24
1617014110
|
£18.96
|
£22.75
|
|
