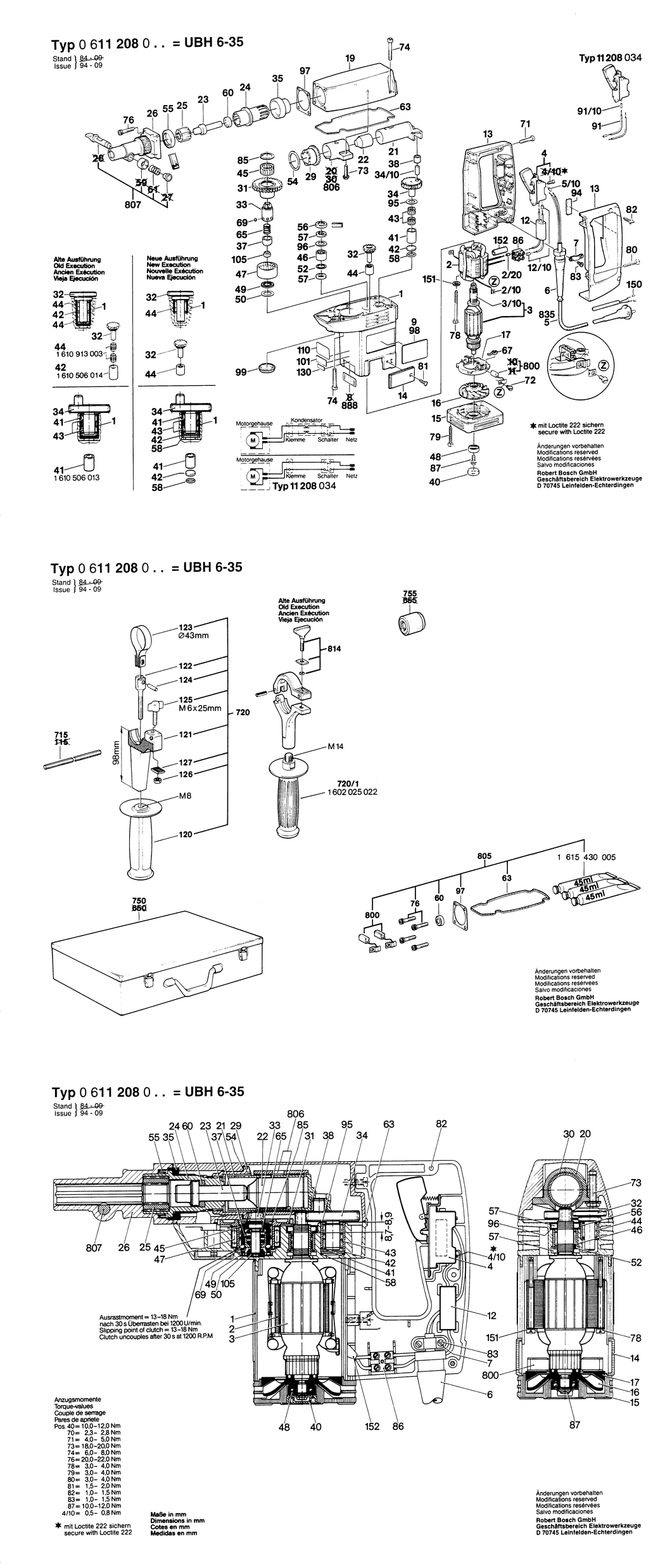

An exploded drawing and listing for the Bosch UBH 6/35 / 0611208048 / F 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1615102138.A5 1615102138 -
2 - FIELD 220-230V BSD-1614220054.A1 1614220054 -
2/10 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A86 1901350003 £1.75 £2.10
2/20 - END SPLICE dia1.3xdia1.6x10 MM BSD-1610452003.A12 1610452003 -
3 - ARMATURE 220-230V BSD-1614010013.A0 1614010013 -
3/10 - BUSHING BSD-1610300045.A12 1610300045 -
4 - ON-OFF SWITCH BSD-1617200017.A28 1617200017 -
5/10 - END SPLICE DIN 46 228-A2.5-7 BSD-1900452003.A26 1900452003 £2.61 £3.13
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A607 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A21 1601302014 £2.61 £3.13
8 - NAMEPLATE BSD-1611104001.A7 1611104001 -
9 - MANUFACTURER'S NAMEPLATE BSD-1611110477.A6 1611110477 -
12 - SUPPRESSION FILTER BSD-1617328002.A14 1617328002 -
12/10 - END SPLICE BSD-3604477009.A26 3604477009 £2.61 £3.13
13 - HANDLE BSD-1615132019.A24 1615132019 -
14 - SEALING CAP BSD-1615500283.A7 1615500283 -
15 - BEARING COVER BSD-1615808070.A0 1615808070 -
16 - FAN BSD-1616610053.A6 1616610053 -
17 - BRUSH HOLDER BSD-1614336000.A11 1614336000 -
19 - GEAR HOUSING BSD-1615806026.A1 1615806026 -
21 - HAMMER PISTON BSD-1618700041.A6 1618700041 -
22 - STRIKER BSD-1618710038.A13 1618710038 -
23 - STRIKER PIN BSD-1613124029.A6 1613124029 -
24 - GUIDE BUSHING BSD-1616490007.A5 1616490007 -
25 - CARRIER BSD-1616490005.A9 1616490005 -
26 - TOOLHOLDER BSD-1618597023.A11 1618597023 -
29 - BEVEL GEAR Z=31 BSD-1616333015.A5 1616333015 -
31 - CYLINDRICAL GEAR Z=51 BSD-1616303001.A12 1616303001 -
32 - TOOTHED SHAFT Z=14/22 BSD-1616312000.A18 1616312000 -
33 - BEVEL GEAR Z=8 BSD-1616333011.A13 1616333011 -
34 - ECCENTRIC SHAFT Z=36 BSD-1616110025.A24 1616110025 -
34/10 - BEARING BOLT BSD-1613100011.A13 1613100011 £3.72 £4.47
35 - GUIDE SLEEVE BSD-1610328011.A13 1610328011 -
37 - GUIDE SLEEVE BSD-1610506015.A6 1610506015 -
38 - BUSHING BSD-1610300046.A11 1610300046 -
40 - THREADED RING BSD-1613344002.A12 1613344002 -
41 - BEARING SLEEVE BSD-1610400029.A1 1610400029 -
42 - COVER DISC BSD-1610000002.A18 1610000002 -
43 - NEEDLE-ROLLER ASSEMBLY dia13 MM BSD-1610913004.A21 1610913004 £3.80 £4.56
44 - NEEDLE BEARING BSD-1610910067.A1 1610910067 -
45 - NEEDLE-ROLLER ASSEMBLY BSD-1610913002.A0 1610913002 -
46 - NEEDLE BEARING BSD-1600910011.A5 1600910011 £16.41 £19.69
47 - NEEDLE BEARING BSD-1610910058.A12 1610910058 -
48 - BALL BEARING 9x26x8 BSD-1900905025.A69 1900905025 £21.52 £25.83
49 - THRUST NEEDLE RIM BSD-1610920001.A20 1610920001 £3.72 £4.47
50 - THRUST BEARING DISC BSD-1610101608.A5 1610101608 £2.16 £2.59
52 - SUPPORTING DISC 1.5 MM BSD-1610101607.A19 1610101607 -
54 - SUPPORTING DISC 1.0 MM BSD-1610102614.A17 1610102614 -
55 - SEAL RING BSD-1610283013.A13 1610283013 -
56 - RETAINING SNAP RING BSD-1610500004.A67 1610500004 -
57 - FELT WASHER BSD-1610205002.A6 1610205002 £1.75 £2.10
58 - O-RING 20.0x1.5 MM BSD-1610210075.A74 1610210075 £2.61 £3.13
60 - BACKUP RING BSD-1610290003.A17 1610290003 -
63 - SEALING FRAME BSD-1611015018.A6 1611015018 -
65 - COMPRESSION SPRING BSD-1614619004.A0 1614619004 -
67 - SPIRAL SPRING BSD-1604652006.A260 1604652006 £1.75 £2.10
69 - BALL DIN 5401-6 G28 BSD-1903230011.A381 1903230011 £2.61 £3.13
71 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8 BSD-2910011164.A61 2910011164 -
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A19 2910021118 £1.75 £2.10
73 - HEX SCREW BSD-1613454002.A23 1613454002 -
74 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A65 2910141168 £3.80 £4.56
76 - HEX SOCKET HEAD CAP SCREW M 6X30 BSD-1613414006.A0 1613414006 -
78 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A177 1603435008 £1.32 £1.58
79 - TAPPING SCREW DIN 7971-BZ4.8x32 BSD-2910211037.A97 2910211037 £1.75 £2.10
80 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A48 2910211036 £1.75 £2.10
81 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A7 2910601118 £1.75 £2.10
82 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A481 2910211019 £1.75 £2.10
83 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A486 2910211018 £1.75 £2.10
85 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A1 2916660012 £1.75 £2.10
86 - STRIP TERMINAL BSD-1901091110.A57 1901091110 £1.75 £2.10
87 - HEX SCREW BSD-1613454001.A1 1613454001 -
91/10 - END SPLICE dia1.3xdia1.6x10 MM BSD-1610452003.A10 1610452003 -
94 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A267 1602381001 -
95 - SUPPORTING DISC 0.5 MM BSD-1610101609.A19 1610101609 -
96 - SUPPORTING DISC 1.5 MM BSD-1610102017.A1 1610102017 £1.95 £2.34
97 - SEALING PLATE BSD-1611015020.A18 1611015020 £1.75 £2.10
98 - MANUFACTURER'S NAMEPLATE BSD-1611110476.A9 1611110476 -
99 - SEALING CAP BSD-1615500222.A6 1615500222 -
101 - REFERENCE PLATE BSD-1611110126.A1 1611110126 -
105 - SPRING RETAINING RING BSD-1610502005.A0 1610502005 -
120 - AUXILIARY HANDLE M8 BSD-1612025019.A471 1612025019 £6.52 £7.83
121 - SUPPORT CLAMP BSD-1618040077.A16 1618040077 -
122 - STUD BOLT M8 BSD-1613521001.A29 1613521001 £5.58 £6.70
123 - CLAMPING BAND dia43 MM BSD-1611316003.A10 1611316003 £2.61 £3.13
124 - STRAIGHT PIN BSD-1613100012.A22 1613100012 £2.61 £3.13
125 - WING SCREW M6x25 MM BSD-1613480009.A11 1613480009 £1.88 £2.25
126 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A367 2915011007 -
127 - CLAMPING PLATE BSD-1611030009.A28 1611030009 -
130 - STICKER BSD-1601110265.A363 1601110265 -
655 - PROTECTIVE CAP BSD-2600508019.A7 2600508019 £1.75 £2.10
706 - BIT HOLDER 1/2 - 20 UNF-2 A BSD-1618598094.A16 1618598094 -
708 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A450 1608571069 £23.86 £28.63
715 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A104 1613001008 £8.67 £10.41
720 - AUXILIARY HANDLE BSD-1612025020.A11 1612025020 £26.12 £31.35
720/1 - AUXILIARY HANDLE M14 BSD-1602025022.A1367 1602025022 £13.41 £16.09
750 - CARRYING CASE BSD-1615438142.A6 1615438142 -
755 - PROTECTIVE CAP BSD-1610508014.A15 1610508014 -
800 - CARBON-BRUSH SET BSD-1617014108.A19 1617014108 £18.96 £22.75
805 - WEAR AND TEAR PART SET BSD-1617000057.A0 1617000057 -
806 - BEARING PEDESTAL BSD-1615819002.A16 1615819002 -
807 - LOCKING BOLT SET BSD-1617000014.A82 1617000014 £24.45 £29.34
814 - PARTS SET BSD-1617000038.A8 1617000038 -
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A160 1607000228 £23.86 £28.63
888 - NAMEPLATE BSD-160111A3H3.A3103 160111A3H3 £2.61 £3.13
