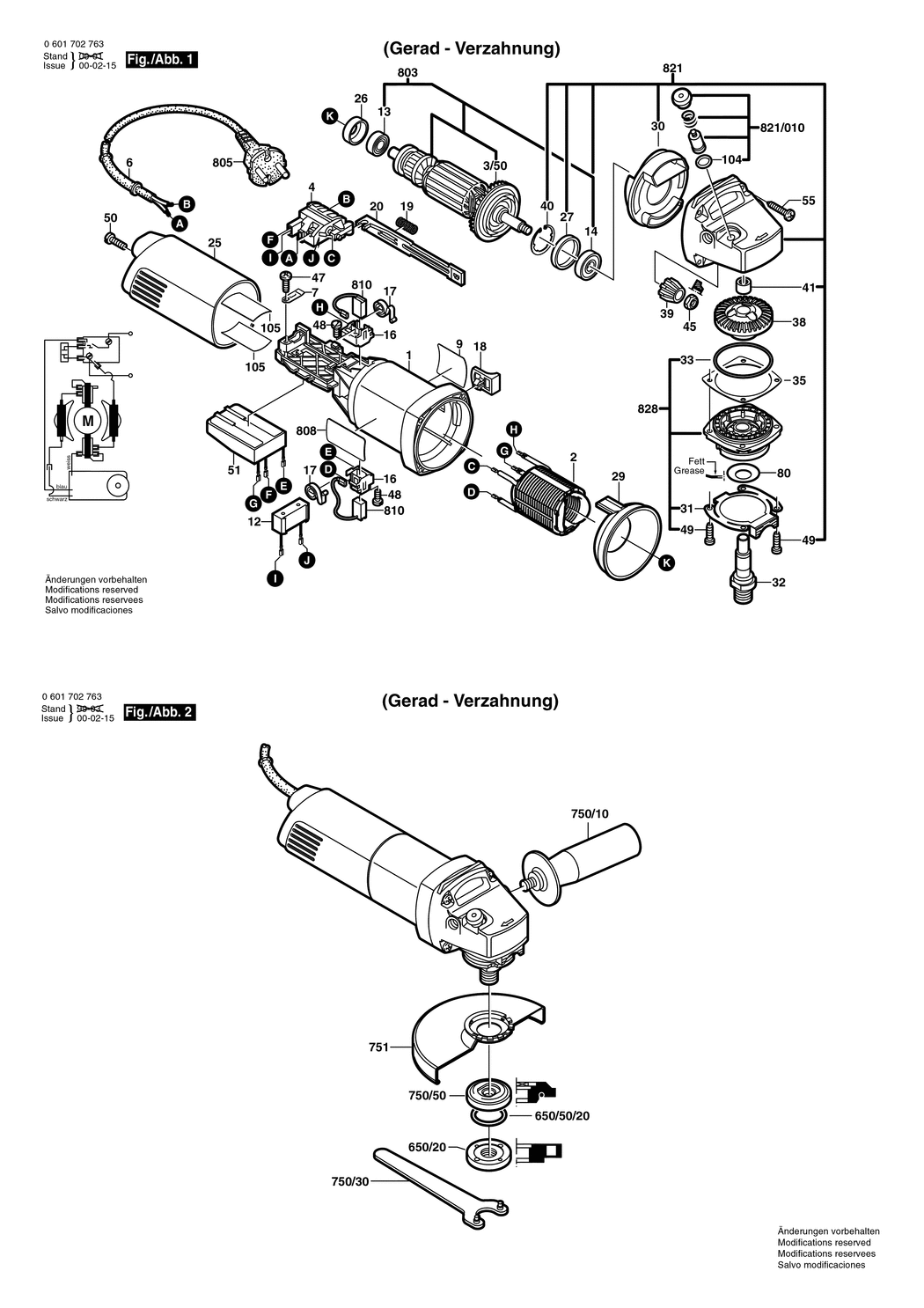

1 - MOTOR HOUSING
BSD-1605108217.A5
1605108217
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220301.A30
1604220301
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-1606610129.A35
1606610129
|
£2.16
|
£2.59
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A104
1607200086
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A466
2600703013
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A75
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118769.A0
1601118769
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328042.A16
1607328042
|
£6.52
|
£7.83
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1597
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A52
1600905032
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1601323023.A42
1601323023
|
£3.72
|
£4.47
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A350
1604652013
|
£1.75
|
£2.10
|
|
|
18 - SWITCH HANDLE
BSD-1602026057.A161
1602026057
|
£1.97
|
£2.36
|
|
|
19 - COMPRESSION SPRING
BSD-1604611026.A77
1604611026
|
£1.75
|
£2.10
|
|
|
20 - ADJUSTING SLIDE
BSD-1602319010.A51
1602319010
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-1600508027.A4
1600508027
|
-
|
|
|
|
26 - RUBBER RING
BSD-1600206036.A315
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A349
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A212
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A154
1600591014
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A139
1601290007
|
£5.30
|
£6.36
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A653
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A50
3600210124
|
£2.80
|
£3.36
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A131
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A339
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A389
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A131
1600136015
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR Z=38
BSD-1606333616.A17
1606333616
|
£9.49
|
£11.39
|
|
|
39 - BEVEL GEAR Z=11
BSD-1606333617.A103
1606333617
|
-
|
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A78
1600119011
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A165
1600910018
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A619
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A234
2912401018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A151
2912401005
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A271
1603435026
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A412
2912401420
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR 220-240V
BSD-1607233116.A5
1607233116
|
£37.72
|
£45.27
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A35
1603415005
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A464
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A458
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A236
1601008005
|
£4.26
|
£5.11
|
|
|
650/20 - CLAMPING NUT M14
BSD-1603340040.A287
1603340040
|
£6.20
|
£7.44
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1227
1600210039
|
£2.16
|
£2.59
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A105
160202509T
|
£3.72
|
£4.47
|
|
|
750/30 - PIN-TYPE FACE-WRENCH
BSD-1607950043.A27
1607950043
|
£4.02
|
£4.83
|
|
|
750/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A45
1605703099
|
£7.45
|
£8.94
|
|
|
751 - PROTECTIVE COVER dia 125MM
BSD-2605510101.A16
2605510101
|
£22.22
|
£26.67
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010640.A37
1604010640
|
£59.53
|
£71.44
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A421
1607000227
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A210
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A65
1607014176
|
£13.12
|
£15.75
|
|
|
821 - GEAR HOUSING
BSD-1605806465.A48
1605806465
|
£40.80
|
£48.96
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A376
1607000253
|
£2.49
|
£2.99
|
|
|
828 - BEARING FLANGE
BSD-1605805079.A92
1605805079
|
£18.96
|
£22.75
|
|
