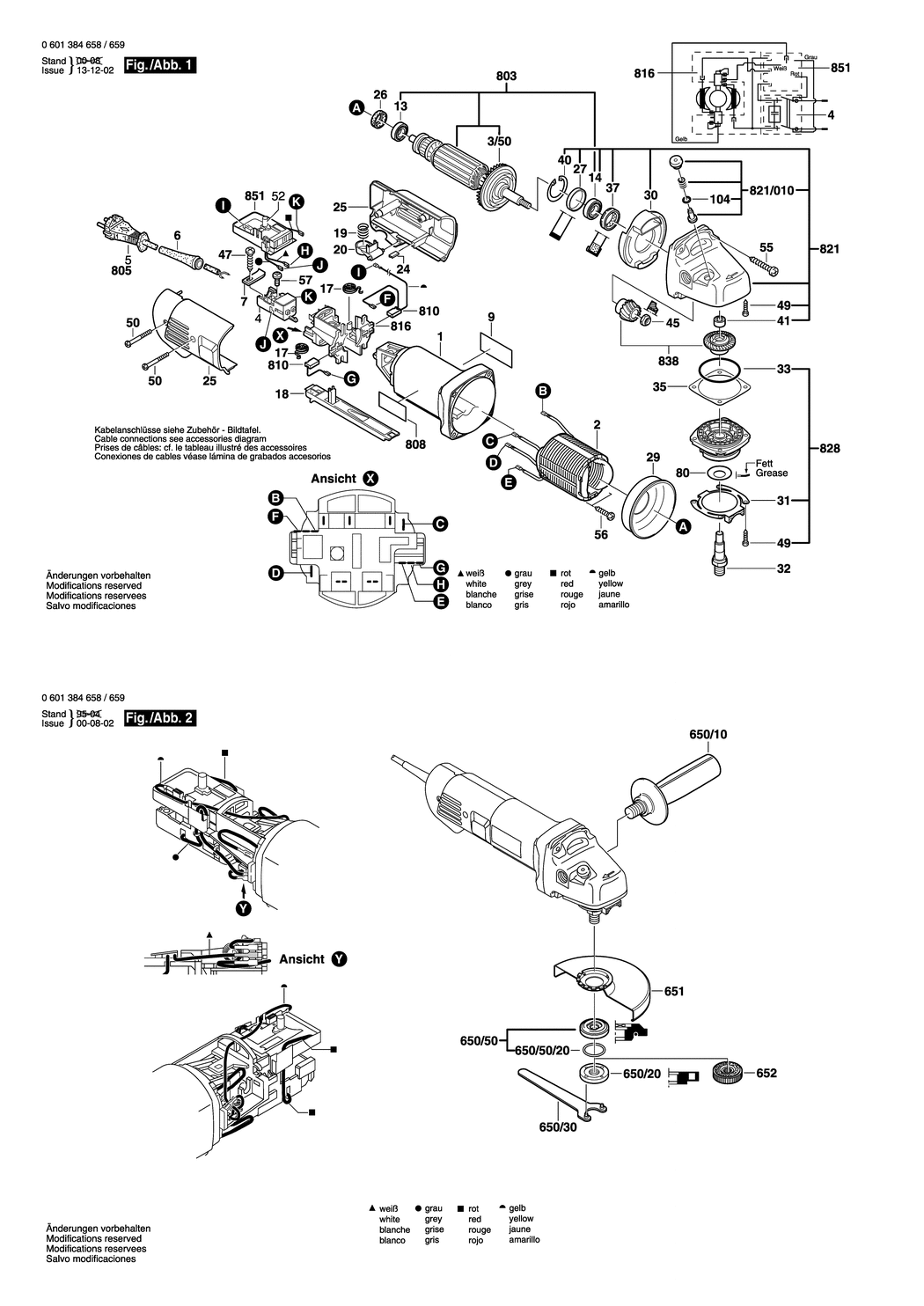

1 - MOTOR HOUSING
BSD-1605108178.A1
1605108178
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220284.A74
1604220284
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-1606610132.A208
1606610132
|
£2.16
|
£2.59
|
|
|
4 - SWITCH
BSD-1607200115.A43
1607200115
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A14
1600703030
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia7.3-dia8.6x67 MM
BSD-1600703031.A95
1600703031
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia8.7-dia9.5x67 MM
BSD-1600703032.A2
1600703032
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A263
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118482.A1
1601118482
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A2074
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A170
1600905032
|
£5.58
|
£6.70
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A65
1604652013
|
£1.75
|
£2.10
|
|
|
18 - SWITCH-PAWL
BSD-1602319013.A50
1602319013
|
£8.49
|
£10.19
|
|
|
19 - COMPRESSION SPRING
BSD-1604611024.A40
1604611024
|
£1.75
|
£2.10
|
|
|
20 - SHIFT-LEVER KNOB
BSD-1602319007.A5
1602319007
|
£1.75
|
£2.10
|
|
|
24 - GUIDING PLATE
BSD-1600499013.A1
1600499013
|
-
|
|
|
|
25 - HOUSING COVER
BSD-1605500198.A0
1605500198
|
-
|
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A84
1600502023
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A91
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591013.A71
1600591013
|
-
|
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A60
1600591014
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A44
1601290007
|
£5.30
|
£6.36
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A510
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A127
3600210124
|
£2.80
|
£3.36
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A29
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A491
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A29
1600136015
|
£2.61
|
£3.13
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A674
1600290016
|
£2.61
|
£3.13
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A183
1600119011
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A0
1600200029
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A794
1603300016
|
£1.75
|
£2.10
|
|
|
47 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A468
1603435042
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A364
1603435026
|
£2.16
|
£2.59
|
|
|
50 - PLASTIC-CUTTING SCREW
BSD-1603435037.A116
1603435037
|
£1.75
|
£2.10
|
|
|
52 - LIGHT CONDUCTOR 15.7 MM
BSD-1609270562.A47
1609270562
|
£10.82
|
£12.99
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A72
2912401022
|
£1.75
|
£2.10
|
|
|
56 - PLASTIC-CUTTING SCREW
BSD-1603435044.A65
1603435044
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW M3.5x7 MM
BSD-1603429002.A133
1603429002
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A396
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A608
1600210044
|
£1.75
|
£2.10
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A309
160202509T
|
£3.72
|
£4.47
|
|
|
650/20 - ROUND NUT M14
BSD-1603345043.A231
1603345043
|
£8.67
|
£10.41
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A519
1607950052
|
£3.72
|
£4.47
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A272
2605703014
|
£7.36
|
£8.83
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1484
1600210039
|
£2.16
|
£2.59
|
|
|
651 - PROTECTIVE COVER dia 125 MM
BSD-1605510229.A1
1605510229
|
-
|
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1604010445.A17
1604010445
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A44
1607000385
|
£14.91
|
£17.89
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A258
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON BRUSH
BSD-1607014148.A28
1607014148
|
£14.72
|
£17.67
|
|
|
816 - BRUSH HOLDER
BSD-1604336031.A43
1604336031
|
-
|
|
|
|
821 - GEAR HOUSING
BSD-1605806451.A177
1605806451
|
£37.27
|
£44.72
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A511
1607000253
|
£2.49
|
£2.99
|
|
|
828 - BEARING FLANGE
BSD-1605805079.A43
1605805079
|
£18.96
|
£22.75
|
|
|
838 - GEAR UNIT
BSD-1607000D4Y.A211
1607000D4Y
|
£21.42
|
£25.71
|
|
|
851 - SPEED GOVERNOR 220-240V
BSD-1607000289.A8
1607000289
|
-
|
|
|
