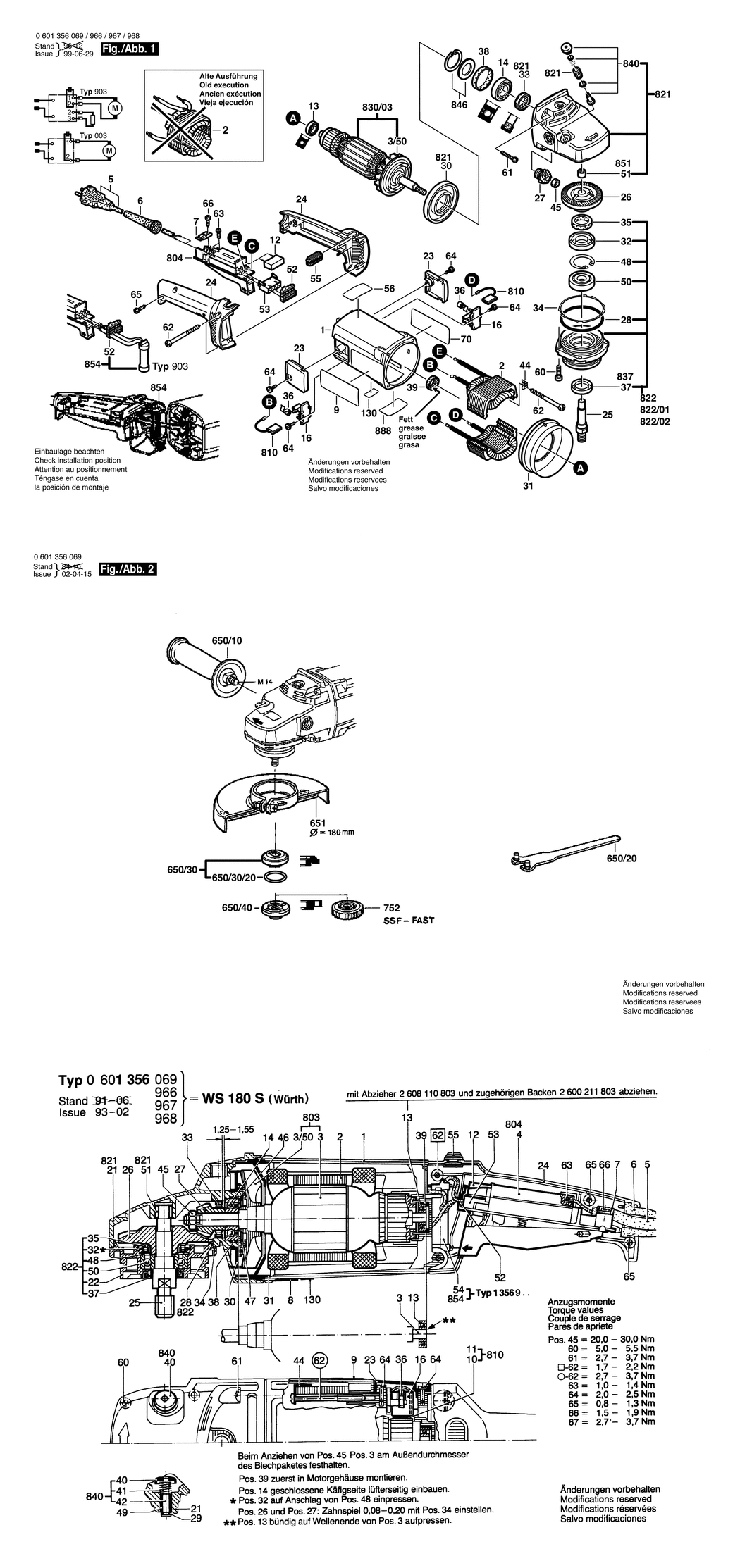

1 - MOTOR HOUSING
BSD-1605108159.A1
1605108159
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220380.A60
1604220380
|
£33.74
|
£40.49
|
|
|
3/50 - FAN
BSD-1606610127.A69
1606610127
|
£2.80
|
£3.36
|
|
|
5 - POWER SUPPLY CORD
BSD-1607000391.A19
1607000391
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A188
1600703023
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia7.9-dia12.0x120 MM
BSD-1600703022.A63
1600703022
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia8.8-dia9.0x70 MM
BSD-1600703024.A61
1600703024
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A427
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118286.A1
1601118286
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A21
1607328035
|
£4.26
|
£5.11
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A207
1600905011
|
£5.58
|
£6.70
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905025.A80
1600905025
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336021.A37
1604336021
|
£2.80
|
£3.36
|
|
|
23 - SEALING CAP
BSD-1605500167.A2
1605500167
|
-
|
|
|
|
24 - HANDLE
BSD-1605132119.A5
1605132119
|
£11.30
|
£13.56
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A19
1603523100
|
£14.91
|
£17.89
|
|
|
26 - CROWN GEAR Z=53
BSD-1606333618.A70
1606333618
|
-
|
|
|
|
27 - BEVEL GEAR Z=17
BSD-1606333237.A32
1606333237
|
-
|
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A310
1600210033
|
£1.75
|
£2.10
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A74
1600591010
|
£2.16
|
£2.59
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A104
1600591011
|
£1.75
|
£2.10
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A206
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A335
1600290013
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A402
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A425
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A402
1600190022
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A314
1600205034
|
£1.75
|
£2.10
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A199
1604652015
|
£2.80
|
£3.36
|
|
|
37 - SEAL RING
BSD-1600290036.A108
1600290036
|
£2.16
|
£2.59
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A34
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A286
1600206030
|
£1.75
|
£2.10
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A106
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A204
1603300019
|
£1.75
|
£2.10
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A396
1600119010
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905134.A12
3600905134
|
£11.30
|
£13.56
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A372
1600200031
|
£2.80
|
£3.36
|
|
|
52 - CABLE ROUTING
BSD-1602388027.A23
1602388027
|
£2.61
|
£3.13
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A92
1605190038
|
£1.75
|
£2.10
|
|
|
55 - STORAGE LEDGE
BSD-1602388029.A152
1602388029
|
£1.75
|
£2.10
|
|
|
56 - REFERENCE PLATE
BSD-1601110854.A5
1601110854
|
-
|
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A287
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A327
2912401038
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A58
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A196
1603410014
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A29
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A735
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1599
2910211019
|
£1.75
|
£2.10
|
|
|
70 - MANUFACTURER'S NAMEPLATE
BSD-1601110851.A0
1601110851
|
-
|
|
|
|
130 - STICKER
BSD-1601110265.A166
1601110265
|
-
|
|
|
|
650/10 - AUXILIARY HANDLE M14
BSD-1602025022.A244
1602025022
|
£13.41
|
£16.09
|
|
|
650/10 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A461
1602025030
|
£18.96
|
£22.75
|
|
|
650/20 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A9
1607950061
|
£5.42
|
£6.50
|
|
|
650/30 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A612
2605703014
|
£7.36
|
£8.83
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A647
1600210039
|
£2.16
|
£2.59
|
|
|
650/40 - CLAMPING NUT M14
BSD-1603340040.A166
1603340040
|
£6.20
|
£7.44
|
|
|
651 - PROTECTIVE COVER dia180 MM
BSD-1605510176.A55
1605510176
|
-
|
|
|
|
752 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340033.A13
1603340033
|
-
|
|
|
|
804 - SWITCH
BSD-1607200105.A38
1607200105
|
£48.38
|
£58.06
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A177
1607014171
|
£14.91
|
£17.89
|
|
|
821 - GEAR HOUSING
BSD-1605805592.A80
1605805592
|
£72.18
|
£86.62
|
|
|
822 - BEARING FLANGE dia180 MM
BSD-1607000986.A1
1607000986
|
-
|
|
|
|
822/01 - BEARING FLANGE dia180 MM
BSD-1607000931.A53
1607000931
|
£30.28
|
£36.33
|
|
|
822/02 - BEARING FLANGE dia180 MM
BSD-1607000921.A22
1607000921
|
£36.63
|
£43.96
|
|
|
830/03 - ARMATURE 230-240V
BSD-1604011148.A18
1604011148
|
£103.14
|
£123.77
|
|
|
837 - SEAL RING
BSD-1600290020.A146
1600290020
|
£1.75
|
£2.10
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A24
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A15
1607000342
|
£3.72
|
£4.47
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A818
2600910001
|
£4.26
|
£5.11
|
|
|
854 - WIREWOUND RESISTOR
BSD-1607000926.A24
1607000926
|
£16.41
|
£19.69
|
|
|
888 - NAMEPLATE
BSD-160111A3HC.A9
160111A3HC
|
£2.61
|
£3.13
|
|
