Bosch WS 230 S / 0601362968 / S 230 Volt Spare Parts

Home Details Reviews Delivery

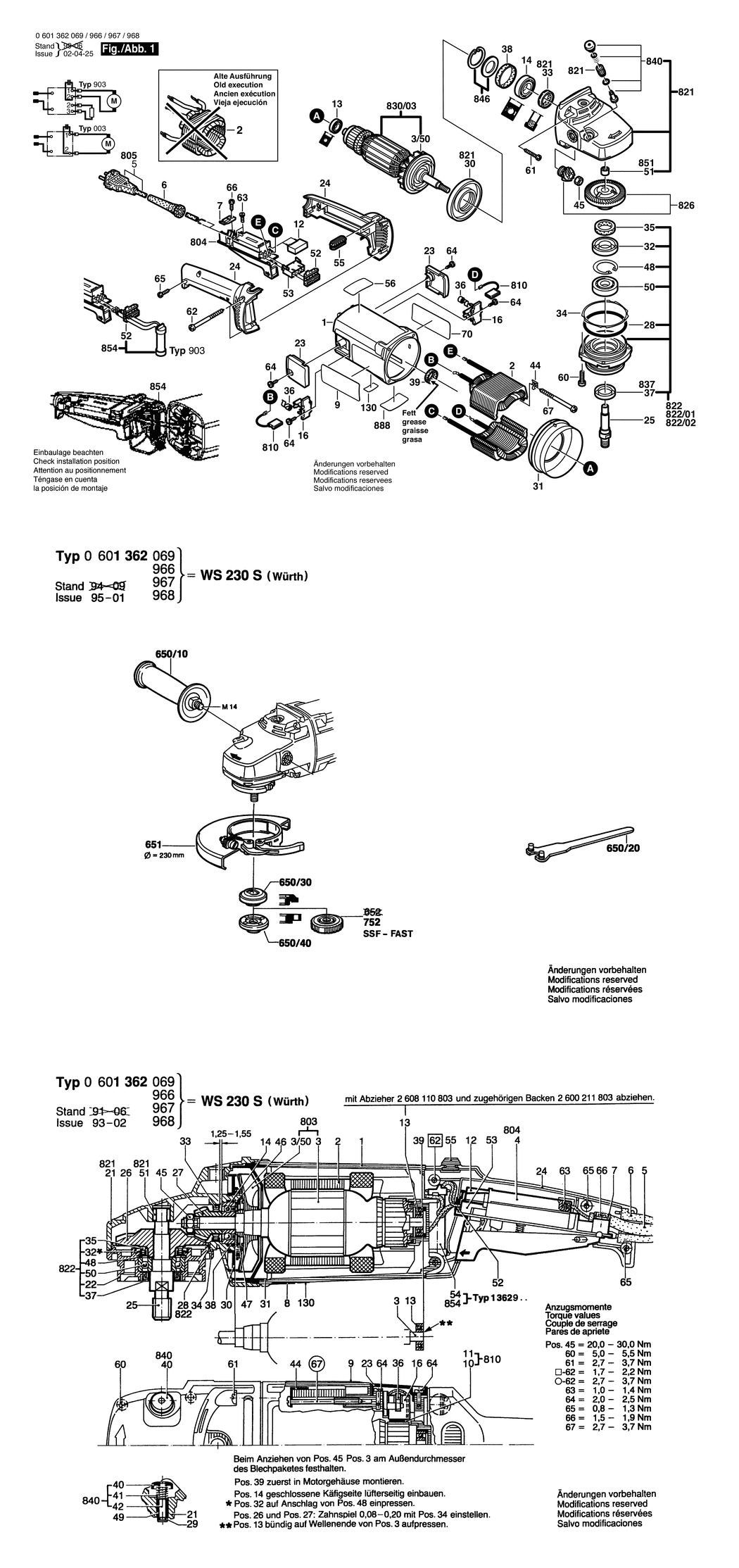

An exploded drawing and listing for the Bosch WS 230 S / 0601362968 / S 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108160.A2 1605108160	-
2 - FIELD 220-240V BSD-1604220381.A33 1604220381	£37.72	£45.27
3/50 - FAN BSD-1606610127.A154 1606610127	£2.80	£3.36
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A66 1600703023	£2.61	£3.13
6 - GROMMET dia7.9-dia12.0x120 MM BSD-1600703022.A83 1600703022	£2.80	£3.36
6 - GROMMET dia8.8-dia9.0x70 MM BSD-1600703024.A83 1600703024	-
7 - FASTENING CLAMP BSD-1601302018.A617 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118285.A1 1601118285	-
12 - SUPPRESSION FILTER BSD-1607328035.A101 1607328035	£4.26	£5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A751 1600905011	£5.58	£6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905025.A51 1600905025	-
16 - BRUSH HOLDER BSD-1604336021.A159 1604336021	£2.80	£3.36
23 - SEALING CAP BSD-1605500167.A7 1605500167	-
24 - HANDLE BSD-1605132119.A12 1605132119	£11.30	£13.56
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A152 1603523100	£14.91	£17.89
28 - O-RING 79.0x1.78 MM BSD-1600210033.A792 1600210033	£1.75	£2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A171 1600591010	£2.16	£2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A7 1600591011	£1.75	£2.10
32 - RETAINING SNAP RING BSD-1600290019.A524 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A22 1600290013	£2.61	£3.13
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A398 1600290064	£2.16	£2.59
34 - SHIM 0.15 MM BSD-1600190020.A234 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A593 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A235 1600190022	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A172 1600205034	£1.75	£2.10
36 - SPIRAL SPRING BSD-1604652015.A677 1604652015	£2.80	£3.36
37 - SEAL RING BSD-1600290036.A421 1600290036	£2.16	£2.59
38 - RUBBER RING 7 MM BSD-1600206020.A502 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A79 1600206030	£1.75	£2.10
44 - HOLDING BRACKET BSD-1601334008.A14 1601334008	£2.61	£3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A101 1603300019	£1.75	£2.10
48 - RETAINING CLIP BSD-1600119010.A519 1600119010	£1.75	£2.10
50 - GROOVE BALL BEARING BSD-3600905134.A180 3600905134	£11.30	£13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A630 1600200031	£2.80	£3.36
52 - CABLE ROUTING BSD-1602388027.A301 1602388027	£2.61	£3.13
53 - SOCKET HOUSING BSD-1605190038.A12 1605190038	£1.75	£2.10
55 - STORAGE LEDGE BSD-1602388029.A298 1602388029	£1.75	£2.10
56 - REFERENCE PLATE BSD-1601110854.A1 1601110854	-
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A73 1603435023	£2.16	£2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A107 2912401038	£1.75	£2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A180 1603435024	£1.75	£2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A105 1603410014	£1.75	£2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A494 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A374 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A900 2910211019	£1.75	£2.10
67 - TAPPING SCREW BZ 4.8x78 MM BSD-1603435019.A29 1603435019	-
70 - MANUFACTURER'S NAMEPLATE BSD-1601110853.A0 1601110853	-
650/10 - AUXILIARY HANDLE M14 BSD-1602025022.A1236 1602025022	£13.41	£16.09
650/10 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1080 1602025030	£18.96	£22.75
650/20 - PIN-TYPE FACE-WRENCH BSD-1607950061.A774 1607950061	£5.42	£6.50
650/30 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A266 2605703014	£7.36	£8.83
651 - PROTECTIVE COVER dia230 MM BSD-1605510223.A176 1605510223	-
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340033.A0 1603340033	-
804 - SWITCH BSD-1607200109.A1 1607200109	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A90 1607000228	£23.86	£28.63
810 - CARBON-BRUSH SET BSD-1607014171.A555 1607014171	£14.91	£17.89
821 - GEAR HOUSING BSD-1605805592.A17 1605805592	£72.18	£86.62
822 - BEARING FLANGE dia230 MM BSD-1607000985.A0 1607000985	£27.23	£32.68
822/01 - BEARING FLANGE dia230 MM BSD-1607000932.A57 1607000932	-
822/02 - BEARING FLANGE dia 230 MM BSD-1607000922.A74 1607000922	£45.67	£54.80
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A124 1600A005BH	£45.67	£54.80
830/03 - ARMATURE 230-240V BSD-1604011156.A28 1604011156	£135.25	£162.30
837 - SEAL RING BSD-1600290020.A102 1600290020	£1.75	£2.10
840 - PUSH-BUTTON BSD-1607000206.A216 1607000206	£11.30	£13.56
846 - RETAINING WASHER BSD-1607000C3E.A235 1607000C3E	£12.04	£14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A483 2600910001	£4.26	£5.11
854 - WIREWOUND RESISTOR BSD-1607000926.A37 1607000926	£16.41	£19.69
888 - NAMEPLATE BSD-160111A3HC.A255 160111A3HC	£2.61	£3.13
