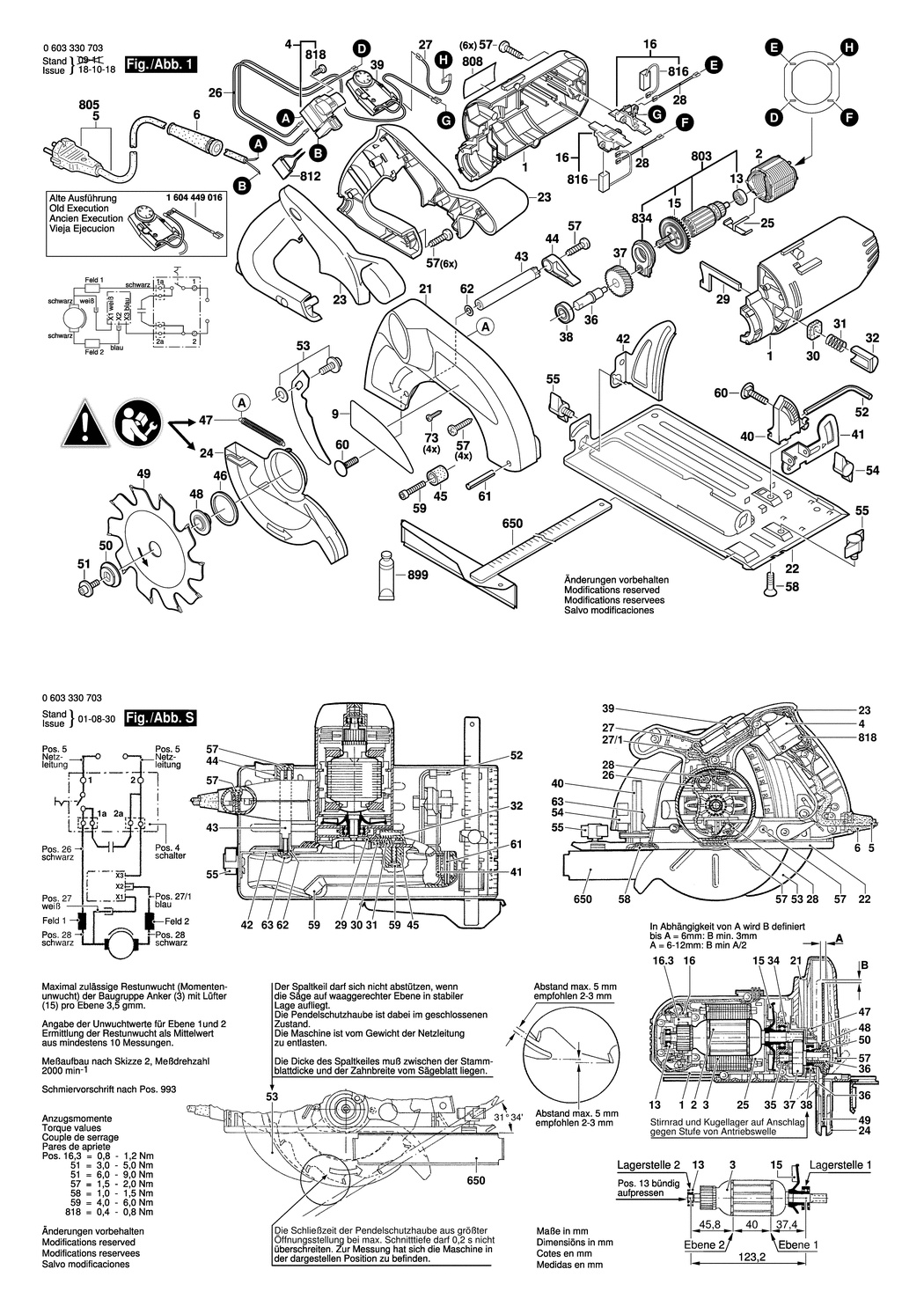

1 - MOTOR HOUSING
BSD-1605108206.A8
1605108206
|
£16.74
|
£20.09
|
|
|
2 - FIELD 230V
BSD-1604220345.A4
1604220345
|
£27.23
|
£32.68
|
|
|
4 - SWITCH
BSD-1607200198.A4
1607200198
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A761
2600703017
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE PKS 54 CE
BSD-1601118B06.A4
1601118B06
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A108
2600905032
|
£5.30
|
£6.36
|
|
|
15 - FAN
BSD-1606610144.A5
1606610144
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-1604336043.A0
1604336043
|
£7.78
|
£9.33
|
|
|
21 - PROTECTIVE COVER
BSD-1605510298.A9
1605510298
|
-
|
|
|
|
22 - BASE PLATE
BSD-1608000117.A5
1608000117
|
£16.74
|
£20.09
|
|
|
23 - HANDLE
BSD-1605500216.A4
1605500216
|
-
|
|
|
|
24 - PIVOTING BLADE GUARD
BSD-1605510265.A5
1605510265
|
£16.41
|
£19.69
|
|
|
25 - CONTACT SPRING
BSD-1601290010.A4
1601290010
|
£1.75
|
£2.10
|
|
|
26 - CONNECTING PIPING
BSD-1604449018.A22
1604449018
|
£2.16
|
£2.59
|
|
|
27 - CONNECTING CABLE
BSD-1604449016.A0
1604449016
|
-
|
|
|
|
28 - CONNECTING CABLE
BSD-1604449013.A1
1604449013
|
£1.75
|
£2.10
|
|
|
29 - SAFETY CATCH
BSD-1601900005.A11
1601900005
|
£1.95
|
£2.34
|
|
|
30 - FELT SEAL
BSD-1601015033.A10
1601015033
|
£1.75
|
£2.10
|
|
|
31 - COMPRESSION SPRING
BSD-1604610018.A14
1604610018
|
£1.75
|
£2.10
|
|
|
32 - PUSH-BUTTON
BSD-1603231019.A44
1603231019
|
-
|
|
|
|
36 - DRIVE SHAFT
BSD-1603124133.A11
1603124133
|
£10.10
|
£12.12
|
|
|
37 - CYLINDRICAL GEAR
BSD-1606320600.A4
1606320600
|
£5.87
|
£7.04
|
|
|
38 - GROOVE BALL BEARING 12x28x8
BSD-1600905031.A55
1600905031
|
£6.52
|
£7.83
|
|
|
39 - SPEED GOVERNOR 230-240V
BSD-1607233143.A4
1607233143
|
-
|
|
|
|
40 - MITER SQUARE
BSD-1608190024.A10
1608190024
|
£2.33
|
£2.80
|
|
|
41 - BOW
BSD-1601329031.A5
1601329031
|
£1.95
|
£2.34
|
|
|
42 - GUIDE BRACKET
BSD-1601329032.A17
1601329032
|
£5.01
|
£6.01
|
|
|
43 - SPACER TUBE
BSD-1600360004.A5
1600360004
|
£2.61
|
£3.13
|
|
|
44 - TENSIONING LEVER
BSD-1602002006.A45
1602002006
|
£1.75
|
£2.10
|
|
|
45 - RUBBER BUFFER
BSD-1600305002.A9
1600305002
|
£1.32
|
£1.58
|
|
|
46 - CLAMP RING
BSD-1600102024.A5
1600102024
|
£2.16
|
£2.59
|
|
|
47 - EXTENSION SPRING
BSD-1604650010.A66
1604650010
|
£1.75
|
£2.10
|
|
|
48 - CLAMPING-FLANGE
BSD-1605703125.A20
1605703125
|
£2.52
|
£3.02
|
|
|
49 - CIRCULAR SAW BLADE
BSD-1608640084.A5
1608640084
|
-
|
|
|
|
50 - CONICAL SPRING WASHER
BSD-1605703108.A68
1605703108
|
£2.80
|
£3.36
|
|
|
51 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A308
1603414007
|
£2.29
|
£2.75
|
|
|
52 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A254
1907950006
|
£4.26
|
£5.11
|
|
|
53 - RIVING KNIFE
BSD-1600025022.A0
1600025022
|
-
|
|
|
|
54 - WING NUT M6
BSD-1603339006.A117
1603339006
|
£2.52
|
£3.02
|
|
|
55 - WING SCREW M6
BSD-1603480018.A63
1603480018
|
£2.16
|
£2.59
|
|
|
57 - SCREW 4x16
BSD-2603490022.A1318
2603490022
|
£1.75
|
£2.10
|
|
|
58 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1060
2603490017
|
£2.16
|
£2.59
|
|
|
59 - THREAD-FORMING TAP. SCREW M6x25 MM
BSD-1603414010.A93
1603414010
|
£1.75
|
£2.10
|
|
|
60 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A157
2910281201
|
£1.75
|
£2.10
|
|
|
61 - SLOTTED SPRING PIN 6x36 DIN 7346
BSD-2917780157.A7
2917780157
|
£1.75
|
£2.10
|
|
|
62 - PLAIN WASHER
BSD-2916011894.A52
2916011894
|
£1.75
|
£2.10
|
|
|
73 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1061
2603490017
|
£2.16
|
£2.59
|
|
|
650 - PARALLEL-GUIDE
BSD-2608005036.A48
2608005036
|
£8.67
|
£10.41
|
|
|
803 - ARMATURE WITH FAN 230V
BSD-1604010771.A8
1604010771
|
£58.76
|
£70.51
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A168
1607000386
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1298
160111A3H3
|
£2.61
|
£3.13
|
|
|
812 - SUPPRESSION FILTER
BSD-1607328028.A672
1607328028
|
£5.30
|
£6.36
|
|
|
816 - CARBON-BRUSH SET
BSD-1607014176.A289
1607014176
|
£13.12
|
£15.75
|
|
|
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A364
2603410001
|
£1.75
|
£2.10
|
|
|
834 - BEARING BRACKET
BSD-1605808070.A10
1605808070
|
£12.04
|
£14.45
|
|
|
899 - GREASE TUBE 225 ML
BSD-1605430003.A206
1605430003
|
£33.74
|
£40.49
|
|
