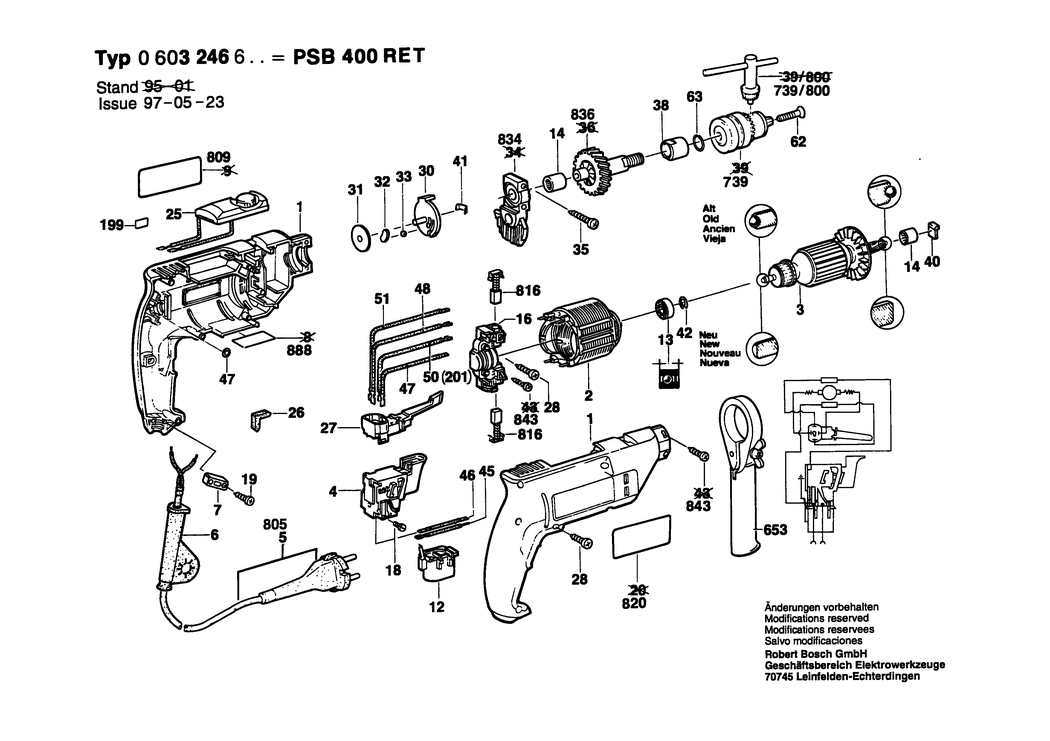

1 - HOUSING SECTION
BSD-2605104320.A3
2605104320
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A82
2604220423
|
£25.68
|
£30.81
|
|
|
3 - ARMATURE 220-240V
BSD-2604010707.A48
2604010707
|
-
|
|
|
|
4 - PARTS SET
BSD-2607002138.A5
2607002138
|
-
|
|
|
|
3/60 - FAN
BSD-1606610116.A22
1606610116
|
£2.64
|
£3.17
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A408
2600707059
|
£3.91
|
£4.69
|
|
|
7 - CABLE CLIP
BSD-2601035001.A504
2601035001
|
£1.84
|
£2.21
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A224
2607329114
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A3
2600905046
|
£11.30
|
£13.56
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A139
2600905032
|
£5.57
|
£6.68
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A601
2600917003
|
£2.94
|
£3.53
|
|
|
16 - BRUSH PLATE
BSD-2609992606.A30
2609992606
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A447
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1395
2603490022
|
£1.84
|
£2.21
|
|
|
25 - TORQUE CONTROL
BSD-2607233004.A6
2607233004
|
-
|
|
|
|
26 - DAMPING PLATE
BSD-2601022000.A510
2601022000
|
£1.75
|
£2.10
|
|
|
27 - CHANGE-OVER SWITCH
BSD-2607200231.A248
2607200231
|
£17.22
|
£20.67
|
|
|
28 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A20
2912401420
|
£1.84
|
£2.21
|
|
|
30 - INDEXING DISK
BSD-2601990000.A32
2601990000
|
£1.84
|
£2.21
|
|
|
31 - SUPPORTING DISC
BSD-2600100034.A55
2600100034
|
£1.75
|
£2.10
|
|
|
32 - PRESSURE PLATE
BSD-2600025005.A25
2600025005
|
£1.75
|
£2.10
|
|
|
33 - BALL DIN 5401-6 G28
BSD-1903230011.A183
1903230011
|
£2.74
|
£3.29
|
|
|
35 - OVAL-HEAD SCREW DIN 7985-M4x25-8.8
BSD-2910951132.A25
2910951132
|
-
|
|
|
|
38 - SINTERED-METAL BUSHING
BSD-2600301013.A25
2600301013
|
-
|
|
|
|
40 - PRESSURE PLATE
BSD-2601330005.A15
2601330005
|
-
|
|
|
|
41 - DISC SPRING
BSD-2601290014.A54
2601290014
|
£1.84
|
£2.21
|
|
|
42 - SPACER RING
BSD-2600209004.A17
2600209004
|
-
|
|
|
|
45 - EARTH CONDUCTOR
BSD-2604448103.A130
2604448103
|
-
|
|
|
|
46 - CABLE L=173 MM
BSD-2604448060.A3
2604448060
|
-
|
|
|
|
47 - CABLE L=98 MM
BSD-2604448045.A112
2604448045
|
-
|
|
|
|
48 - CONNECTING CABLE L=88 MM
BSD-2604448034.A214
2604448034
|
£1.75
|
£2.10
|
|
|
50 - CONNECTING CABLE L=73 MM
BSD-2604448115.A102
2604448115
|
£1.75
|
£2.10
|
|
|
51 - CONNECTING CABLE L=103 MM
BSD-2604448132.A148
2604448132
|
£1.84
|
£2.21
|
|
|
62 - COUNTERSUNK-HEAD SCREW M6x31 MM
BSD-2603421209.A82
2603421209
|
£1.38
|
£1.66
|
|
|
63 - RETAINING RING
BSD-2604601004.A579
2604601004
|
£1.75
|
£2.10
|
|
|
199 - STICKER
BSD-1601110265.A138
1601110265
|
-
|
|
|
|
653 - AUXILIARY HANDLE
BSD-2602025057.A12
2602025057
|
-
|
|
|
|
739 - KEY CHUCK 1/2-20 UNF
BSD-1608571061.A30
1608571061
|
£19.24
|
£23.09
|
|
|
739/800 - CHUCK WRENCH SG2
BSD-2607950007.A1594
2607950007
|
£6.85
|
£8.22
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A140
1607000386
|
£22.60
|
£27.12
|
|
|
809 - STICKER
BSD-2601110917.A5
2601110917
|
-
|
|
|
|
816 - CARBON-BRUSH SET
BSD-2604321909.A1
2604321909
|
£8.92
|
£10.70
|
|
|
816/020 - RATCHET CAP
BSD-2601322017.A162
2601322017
|
£1.84
|
£2.21
|
|
|
820 - STICKER
BSD-2601110920.A1
2601110920
|
-
|
|
|
|
834 - BEARING BRACKET
BSD-2605807917.A51
2605807917
|
-
|
|
|
|
836 - DRILLING SPINDLE Z= 45
BSD-2606135910.A8
2606135910
|
-
|
|
|
|
843 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A130
2910611006
|
£1.84
|
£2.21
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1406
160111A3H3
|
£2.74
|
£3.29
|
|
