Dewalt D23650 Type 1 Circular Saw Spare Parts

Home Details Reviews Delivery

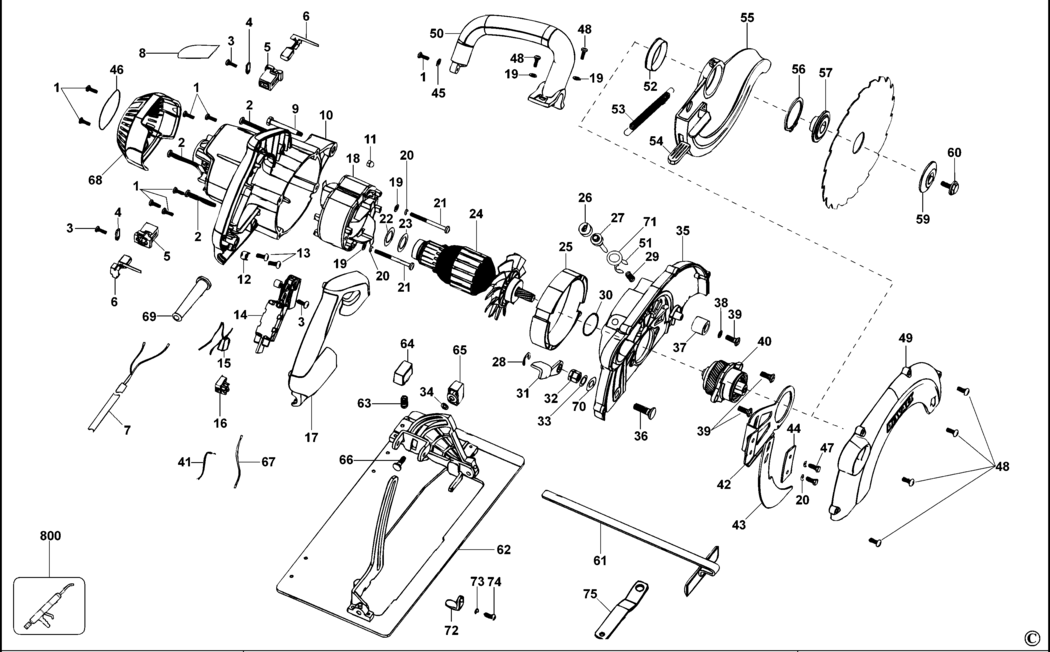

An exploded drawing and spare parts listing for the Dewalt D23650 Type 1 Circular Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-596861-00.A0 596861-00	£1.42	£1.70
2 - SCREW BDE-596862-00.A4 596862-00	-
3 - SCREW BDE-596863-00.A2 596863-00	-
4 - CLAMP BDE-596864-00.A2 596864-00	£1.42	£1.70
5 - BRUSH HOLDER BDE-596865-00.A0 596865-00	-
6 - NO LONGER AVAILABLE GB BDE-000000-00.A92644 000000-00	-
6 - NO LONGER AVAILABLE LX BDE-000000-00.A92645 000000-00	-
7 - CORDSET GB BDE-597549-00.A0 597549-00	£33.13	£39.76
7 - CORDSET LX BDE-597550-00.A3 597550-00	-
8 - RATING PLATE GB BDE-N036774 N036774	-
8 - RATING PLATE LX BDE-N036775 N036775	£1.42	£1.70
9 - PIN BDE-596869-00.A2 596869-00	£1.78	£2.13
10 - NO LONGER AVAILABLE BDE-000000-00.A92647 000000-00	-
11 - NUT BDE-596871-00.A0 596871-00	£1.78	£2.13
12 - CORD CLAMP GB BDE-596872-00.A2 596872-00	-
12 - CORD CLAMP LX BDE-597556-00.A0 597556-00	£1.42	£1.70
13 - SCREW BDE-596873-00.A0 596873-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A92648 000000-00	-
15 - NO LONGER AVAILABLE LX BDE-000000-00.A92649 000000-00	-
15 - NO LONGER AVAILABLE GB BDE-000000-00.A92650 000000-00	-
16 - TERMINAL BLOCK BDE-596876-00.A2 596876-00	£1.42	£1.70
17 - HANDLE COVER BDE-596877-00.A0 596877-00	£10.57	£12.68
18 - NO LONGER AVAILABLE GB BDE-000000-00.A92651 000000-00	-
18 - NO LONGER AVAILABLE LX BDE-000000-00.A92652 000000-00	-
19 - WASHER BDE-596879-00.A1 596879-00	£1.42	£1.70
20 - NO LONGER AVAILABLE BDE-000000-00.A92653 000000-00	-
21 - SCREW BDE-596881-00.A1 596881-00	£1.42	£1.70
22 - NO LONGER AVAILABLE BDE-000000-00.A92654 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A92655 000000-00	-
24 - NO LONGER AVAILABLE GB BDE-000000-00.A92656 000000-00	-
24 - NO LONGER AVAILABLE LX BDE-000000-00.A92657 000000-00	-
25 - BAFFLE FAN BDE-596885-00.A1 596885-00	£4.58	£5.49
26 - BUTTON BDE-596886-00.A0 596886-00	£1.42	£1.70
27 - SPINDLE LOCK BDE-596887-00.A1 596887-00	£5.72	£6.87
28 - RETAINER BDE-596888-00.A1 596888-00	-
29 - SPRING BDE-596889-00.A1 596889-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A92658 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A92659 000000-00	-
32 - NUT BDE-596892-00.A1 596892-00	£1.42	£1.70
33 - WASHER SPRING BDE-596893-00.A1 596893-00	£1.42	£1.70
34 - NO LONGER AVAILABLE BDE-000000-00.A92660 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A92661 000000-00	-
36 - BOLT BDE-596896-00.A1 596896-00	£1.78	£2.13
37 - NO LONGER AVAILABLE BDE-000000-00.A92662 000000-00	-
38 - WASHER BDE-596898-00.A0 596898-00	£1.42	£1.70
39 - SCREW BDE-596899-00.A5 596899-00	£1.42	£1.70
40 - NO LONGER AVAILABLE BDE-000000-00.A92670 000000-00	-
41 - LEADWIRE GB BDE-596901-00.A0 596901-00	£1.42	£1.70
41 - LEADWIRE LX BDE-597557-00.A0 597557-00	£1.42	£1.70
42 - NO LONGER AVAILABLE BDE-000000-00.A92663 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A92664 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A92665 000000-00	-
45 - WASHER BDE-596905-00.A2 596905-00	£1.42	£1.70
46 - NO LONGER AVAILABLE BDE-000000-00.A92666 000000-00	-
47 - SCREW BDE-596906-00.A0 596906-00	-
48 - SCREW BDE-596907-00.A4 596907-00	£1.42	£1.70
49 - GUARD BDE-596908-00.A0 596908-00	£15.63	£18.76
50 - LOOP HANDLE BDE-596909-00.A2 596909-00	£19.40	£23.28
51 - RETAINER BDE-596910-00.A0 596910-00	£1.42	£1.70
52 - SLEEVE BDE-596911-00.A5 596911-00	£1.42	£1.70
53 - NO LONGER AVAILABLE BDE-000000-00.A92667 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A92668 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A92669 000000-00	-
56 - CIRCLIP BDE-596915-00.A0 596915-00	-
57 - INNER FLANGE BDE-596916-00.A2 596916-00	-
59 - OUTER FLANGE BDE-596918-00.A0 596918-00	£9.41	£11.29
60 - BLADE BOLT BDE-596919-00.A4 596919-00	-
61 - NO LONGER AVAILABLE BDE-000000-00.A92671 000000-00	-
62 - SHOE SA BDE-596921-00.A0 596921-00	£59.41	£71.29
63 - SPRING BDE-596922-00.A4 596922-00	£1.42	£1.70
64 - NO LONGER AVAILABLE BDE-000000-00.A92672 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A92673 000000-00	-
66 - SCREW BDE-596925-00.A0 596925-00	£1.42	£1.70
67 - LEADWIRE LX BDE-597558-00.A1 597558-00	-
67 - LEADWIRE GB BDE-596926-00.A2 596926-00	-
68 - END CAP BDE-596927-00.A0 596927-00	-
69 - CORD PROTECTOR GB BDE-596928-00.A2 596928-00	£1.42	£1.70
69 - CORD PROTECTOR LX BDE-597559-00.A0 597559-00	£1.42	£1.70
70 - WASHER BDE-596929-00.A0 596929-00	£1.42	£1.70
71 - NO LONGER AVAILABLE BDE-000000-00.A92674 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A92675 000000-00	-
73 - WASHER BDE-597546-00.A4 597546-00	£1.42	£1.70
74 - NO LONGER AVAILABLE BDE-000000-00.A92676 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A92677 000000-00	-
800 - GREASE 8 Grams BDE-870889-03.A59 870889-03	£7.85	£9.42

Attribute Name	Value
Brand	Dewalt
