Dewalt D27107 Type 5 Combination Saw Spare Parts

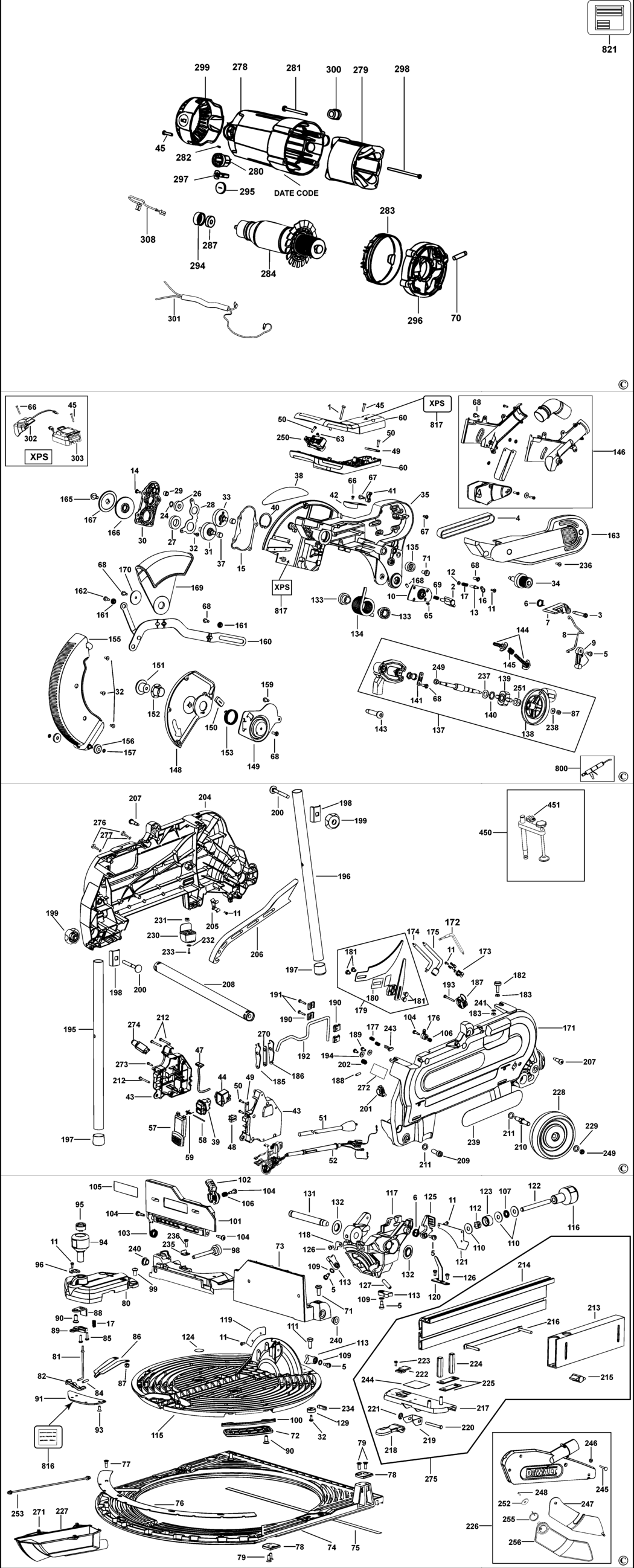

An exploded drawing and spare parts listing for the Dewalt D27107 Type 5 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A6 98094-35	£1.50	£1.80
2 - KNOB BDE-147107-06.A2 147107-06	£3.80	£4.56
3 - BOLT BDE-152852-00.A74 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A5 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A65 153639-00	£1.50	£1.80
6 - SPRING TORSION BDE-398472-00.A13 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A9 605603-00	£1.50	£1.80
8 - LINKAGE SA BDE-606278-00.A1 606278-00	£1.50	£1.80
9 - PLATE BDE-606279-00.A12 606279-00	£1.50	£1.80
10 - PLATE BDE-607221-00.A7 607221-00	£7.85	£9.42
11 - SCREW BDE-330045-05.A217 330045-05	£1.50	£1.80
12 - WASHER FELT BDE-618480-00.A9 618480-00	£1.50	£1.80
13 - LOCKING PIN BDE-153561-00.A36 153561-00	£1.50	£1.80
14 - SCREW BDE-385915-01.A47 385915-01	£1.50	£1.80
15 - GASKET BDE-391315-00.A24 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A35 393071-00	£1.50	£1.80
17 - SPRING BDE-868082-00.A206 868082-00	£1.50	£1.80
24 - CIRCLIP BDE-860079-03.A85 860079-03	£1.50	£1.80
26 - BEARING BDE-605040-59.A36 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A11 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A12 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A5 391616-00	£4.69	£5.63
30 - GEARCASE COVER BDE-621759-00.A5 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A1 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A41 330045-49	£1.50	£1.80
33 - SPINDLE & GEAR SA BDE-869219-07.A12 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A5 N027131SV	£115.77	£138.92
35 - ARM BDE-N139375.A4 N139375	£283.82	£340.58
37 - BEARING BDE-386780-00.A56 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A14 621329-00	£3.30	£3.96
39 - SWITCH GB BDE-637691-00.A8 637691-00	£41.24	£49.49
40 - RETAINER BDE-616726-00.A20 616726-00	£1.50	£1.80
41 - CORD CLAMP BDE-612350-00.A5 612350-00	£1.50	£1.80
42 - COVER BDE-613781-00.A9 613781-00	£1.50	£1.80
43 - HOUSING SWITCH GB BDE-605786-01.A9 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A4 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A314 330019-13	£1.50	£1.80
47 - CONNECTING WIRE BDE-652121-00.A4 652121-00	£1.50	£1.80
48 - TERMINAL BLOCK BDE-326057-00.A4 326057-00	£1.50	£1.80
49 - CORD CLAMP BDE-607858-00.A7 607858-00	£1.50	£1.80
50 - SCREW BDE-330013-22.A29 330013-22	-
51 - CORDSET GB BDE-330060-85.A6 330060-85	£19.90	£23.88
52 - SET OF LEAD WIRES BDE-639912-01.A3 639912-01	-
57 - SWITCH COVER BDE-N377629.A10 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A9 607854-00	£1.50	£1.80
59 - SPRING TORSION BDE-613782-01.A3 613782-01	£1.50	£1.80
60 - HANDLE SA BDE-607855-00.A4 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A62 384127-01	£1.50	£1.80
65 - SCREW BDE-860091-04.A16 860091-04	£1.50	£1.80
66 - SCREW BDE-860094-03.A1 860094-03	£1.50	£1.80
67 - SCREW BDE-330045-15.A28 330045-15	£1.50	£1.80
68 - SCREW.SPECIAL BDE-330045-23.A25 330045-23	£1.50	£1.80
69 - SPRING BDE-606014-00.A23 606014-00	£1.50	£1.80
70 - SCREW BDE-394034-00.A16 394034-00	£1.50	£1.80
71 - SCREW BDE-330045-32.A0 330045-32	£1.50	£1.80
72 - PLATE BDE-621647-00.A4 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A0 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A10 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A5 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A2 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A1 615876-00	£1.50	£1.80
78 - PLATE BDE-607103-00.A12 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A12 98104-16	£1.50	£1.80
80 - NOSE BDE-N162168.A11 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A4 605799-00	£1.50	£1.80
82 - ACTUATOR BDE-399162-00.A4 399162-00	£1.50	£1.80
84 - PIN BDE-399009-00.A12 399009-00	£1.50	£1.80
85 - SCREW.TEMP BDE-860094-00.A155 860094-00	£1.50	£1.80
86 - DETENT BDE-606898-00.A1 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A18 860092-02	£1.50	£1.80
88 - PLATE BDE-606900-00.A4 606900-00	£1.50	£1.80
89 - PAD BDE-606896-00.A1 606896-00	£1.50	£1.80
90 - SCREW BDE-617561-00.A12 617561-00	£1.50	£1.80
91 - COVER BDE-606897-00.A12 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A13 860205-01	£1.50	£1.80
94 - KNOB BDE-399004-00.A12 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A3 605785-00	£1.50	£1.80
96 - POINTER BDE-611991-00.A0 611991-00	£1.50	£1.80
98 - KNOB BDE-606198-00.A1 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A21 N409486	£1.50	£1.80
100 - PAD BDE-607129-00.A1 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A4 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A1 610251-00	£1.50	£1.80
103 - SPRING BDE-610250-00.A12 610250-00	£1.50	£1.80
104 - SCREW BDE-N399933.A1 N399933	£1.50	£1.80
105 - WARNING LABEL BDE-610710-00.A5 610710-00	£1.50	£1.80
106 - SPRING BDE-941586-00.A9 941586-00	£1.50	£1.80
107 - BEARING THRUST BDE-153451-00.A27 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A16 153655-00	£1.50	£1.80
110 - WASHER BDE-153781-00.A47 153781-00	£1.50	£1.80
111 - SCREW BDE-153797-03.A10 153797-03	£1.50	£1.80
112 - NUT BDE-330021-10.A9 330021-10	£1.50	£1.80
113 - PAWL BDE-391347-00.A24 391347-00	£1.50	£1.80
115 - ROTARY TABLE + 122 124 BDE-869233-02.A4 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A1 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A10 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A10 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A12 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A1 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A12 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A2 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A11 606362-00	£1.50	£1.80
124 - WARNING LABEL BDE-610707-00.A18 610707-00	£1.50	£1.80
125 - LATCH BDE-613709-00.A5 613709-00	£1.50	£1.80
126 - SCREW BDE-860094-06.A1 860094-06	£1.50	£1.80
127 - SCREW BDE-153576-03.A17 153576-03	£1.50	£1.80
129 - ADJUSTER BDE-615589-00.A1 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A1 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A6 148296-00	£1.50	£1.80
133 - SPACER BDE-146732-00.A55 146732-00	£1.50	£1.80
134 - SPRING BDE-619571-00.A13 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A40 146753-00	£1.50	£1.80
137 - ADJUSTER HEIGHT BDE-609837-00.A13 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A0 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A13 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A0 604107-00	£1.50	£1.80
141 - CLAMP BDE-609840-00.A0 609840-00	£1.50	£1.80
143 - BOLT BDE-610254-00.A0 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A12 614072-00	£1.50	£1.80
145 - SPRING BDE-606688-00.A13 606688-00	£1.50	£1.80
146 - DUST PORT BDE-N166053.A4 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A5 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A4 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A12 609514-00	£1.50	£1.80
151 - RETAINING PLATE BDE-146750-03.A1 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A1 609314-00	£1.50	£1.80
153 - SPRING TORSION BDE-609496-00.A12 609496-00	£1.50	£1.80
155 - GUARD BDE-N298999.A12 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A26 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A8 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A6 394589-01	£1.50	£1.80
160 - LEVER SA BDE-N225776.A0 N225776	-
161 - SLEEVE BDE-146740-02.A31 146740-02	£1.50	£1.80
162 - SCREW BDE-605590-00.A5 605590-00	£1.50	£1.80
163 - BELT COVER BDE-610556-01.A9 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-647776-00.A17 647776-00	£1.66	£1.99
166 - WASHER INNER CLAMP BDE-616319-00.A24 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A7 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A75 150075-00	£1.50	£1.80
169 - GUARD BDE-605593-00.A6 605593-00	-
170 - WASHER BDE-607536-00.A13 607536-00	£4.69	£5.63
171 - FSO KIT BDE-656421-00.A7 656421-00	£245.11	£294.13
172 - WRENCH SPECIAL BDE-N040940.A31 N040940	£9.41	£11.29
173 - HOLDER BDE-391358-01.A4 391358-01	£1.50	£1.80
174 - WRENCH SPECIAL BDE-385567-01.A2 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A29 608563-01	£7.18	£8.62
176 - RETAINER BDE-615993-00.A6 615993-00	£1.50	£1.80
177 - SPRING BDE-946866-00.A15 946866-00	£1.50	£1.80
179 - RIVING KNIFE KIT BDE-N097056.A5 N097056	£55.30	£66.36
180 - SHIM BDE-609497-00.A1 609497-00	£1.50	£1.80
181 - SCREW BDE-607181-00.A6 607181-00	£1.50	£1.80
182 - BUMPER BDE-616634-00.A7 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A38 860083-15	£1.50	£1.80
185 - LOCK BDE-606233-00.A0 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A13 606232-00	£4.69	£5.63
187 - CORD CLAMP BDE-605601-00.A8 605601-00	£1.50	£1.80
188 - PIN BDE-607132-00.A13 607132-00	£1.50	£1.80
189 - SCREW BDE-330045-55.A29 330045-55	£1.50	£1.80
190 - BEARING BLOCK BDE-153379-00.A10 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A5 610574-00	£1.50	£1.80
192 - ROD BDE-611094-00.A1 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A32 861090-00	£1.50	£1.80
194 - WASHER BDE-860073-14.A14 860073-14	£1.50	£1.80
195 - FRONT LEG BDE-613233-00.A1 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A7 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A28 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A1 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A13 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A0 98131-90	£1.50	£1.80
201 - CABLE CLAMP BDE-861091-00.A0 861091-00	£1.50	£1.80
202 - SPRING BDE-860112-11.A63 860112-11	£1.50	£1.80
204 - FRAME LH BDE-655032-00.A3 655032-00	£144.10	£172.92
205 - CLIP BDE-615994-00.A10 615994-00	£1.50	£1.80
206 - PUSHROD BDE-860610-01.A16 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A7 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A8 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A9 942447-00	£1.50	£1.80
210 - AXLE STUB BDE-611623-00.A6 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A48 98197-08	£1.50	£1.80
212 - SCREW BDE-330045-50.A8 330045-50	£1.50	£1.80
213 - FENCE BDE-605789-00.A5 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A2 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A3 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A6 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A1 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A6 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A6 605796-00	£1.50	£1.80
220 - CLEVIS PIN BDE-605795-00.A14 605795-00	£1.50	£1.80
221 - WASHER CLAMP BDE-392948-00.A13 392948-00	£1.50	£1.80
222 - POINTER BDE-605798-00.A14 605798-00	£1.50	£1.80
223 - SCREW BDE-330045-05.A216 330045-05	£1.50	£1.80
224 - NUT BDE-612284-00.A6 612284-00	£1.50	£1.80
225 - WASHER BDE-605790-00.A7 605790-00	£1.50	£1.80
226 - GUARD SA BDE-N162338.A6 N162338	£47.08	£56.49
226 - GUARD KIT BDE-N181532.A0 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A11 N060425	£19.90	£23.88
228 - WHEEL BDE-612441-00.A6 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A77 941602-00	£1.50	£1.80
230 - FOOT BDE-N219072.A6 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A93 860083-14	£1.50	£1.80
232 - WASHER M8 BDE-860073-03.A125 860073-03	£1.50	£1.80
233 - SCREW BDE-860085-20.A24 860085-20	£1.50	£1.80
234 - SHOE BDE-621653-00.A6 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A13 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A155 330045-14	£1.50	£1.80
237 - WASHER BDE-623499-00.A6 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A49 860075-00	£1.50	£1.80
239 - IDENTITY LABEL BDE-617108-00.A7 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A6 607182-00	£1.50	£1.80
241 - WASHER BDE-860078-02.A49 860078-02	£1.50	£1.80
243 - SPRING CLIP BDE-620327-00.A0 620327-00	£1.50	£1.80
244 - IDENTITY LABEL BDE-624373-00.A0 624373-00	£1.50	£1.80
245 - SCREW BDE-860085-20.A23 860085-20	£1.50	£1.80
246 - NUT BDE-860092-05.A67 860092-05	£1.50	£1.80
247 - GUARD PLATE BDE-N162668.A0 N162668	£7.18	£8.62
248 - SCREW BDE-860084-11.A39 860084-11	£1.50	£1.80
249 - NUT BDE-860092-05.A68 860092-05	£1.50	£1.80
250 - SWITCH GB BDE-394375-02P.A15 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A13 330021-08	£1.50	£1.80
252 - WASHER BDE-860075-01.A23 860075-01	£1.50	£1.80
253 - CORD BDE-N060144.A9 N060144	£3.80	£4.56
255 - SPRING BDE-N056486.A3 N056486	£1.50	£1.80
256 - GUARD PLATE BDE-N164679.A7 N164679	£7.18	£8.62
270 - SPACER BDE-626334-00.A1 626334-00	£1.50	£1.80
271 - FASTENER BDE-868303-00.A23 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A11 626191-00	£1.50	£1.80
273 - SCREW BDE-146679-00.A1 146679-00	£1.50	£1.80
275 - FENCE BDE-611713-01.A6 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A10 949701-05	£1.50	£1.80
277 - NUT BDE-860083-15.A39 860083-15	£1.50	£1.80
278 - FIELD CASE BDE-N025823.A3 N025823	£17.48	£20.97
279 - FIELD 230V GB BDE-N071929.A5 N071929	£74.15	£88.98
280 - BRUSH HOLDER GB BDE-622440-00.A17 622440-00	£3.80	£4.56
281 - SCREW BDE-98094-55.A42 98094-55	£1.50	£1.80
282 - SCREW BDE-330022-16.A21 330022-16	£1.50	£1.80
283 - BAFFLE FAN BDE-391375-00.A68 391375-00	£1.82	£2.19
284 - ARMATURE 230V GB BDE-N158403.A6 N158403	£144.10	£172.92
287 - BEARING BDE-N110359.A78 N110359	£3.75	£4.50
294 - SLEEVE INSULATING BDE-650234-00.A7 650234-00	£1.50	£1.80
295 - BRUSH CAP BDE-622441-00.A1 622441-00	£1.50	£1.80
296 - MOUNTING BRACKET BDE-391282-00.A24 391282-00	£16.03	£19.24
297 - BRUSH GB BDE-N013883.A1 N013883	£2.26	£2.71
298 - SCREW BDE-330019-34.A14 330019-34	£1.50	£1.80
299 - END CAP BDE-660498-00.A6 660498-00	£1.50	£1.80
300 - BUSHING BDE-605155-00.A35 605155-00	£1.66	£1.99
301 - LEADWIRE BDE-N025819.A3 N025819	£12.17	£14.60
308 - BRUSH LEAD GB BDE-N025820.A8 N025820	£1.50	£1.80
450 - CLAMP SA BDE-630065-00.A3 630065-00	£14.57	£17.48
451 - KNOB LOWER BDE-147107-02.A9 147107-02	£2.26	£2.71
800 - GREASE BDE-5140061-28.A36 5140061-28	£51.90	£62.28
816 - WARNING LABEL BDE-N045702.A9 N045702	£2.78	£3.34
821 - RATING LABEL GB BDE-N203382 N203382	£7.18	£8.62

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27107 Type 5 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
