Dewalt D28411-LX Type 4 Angle Grinder Spare Parts

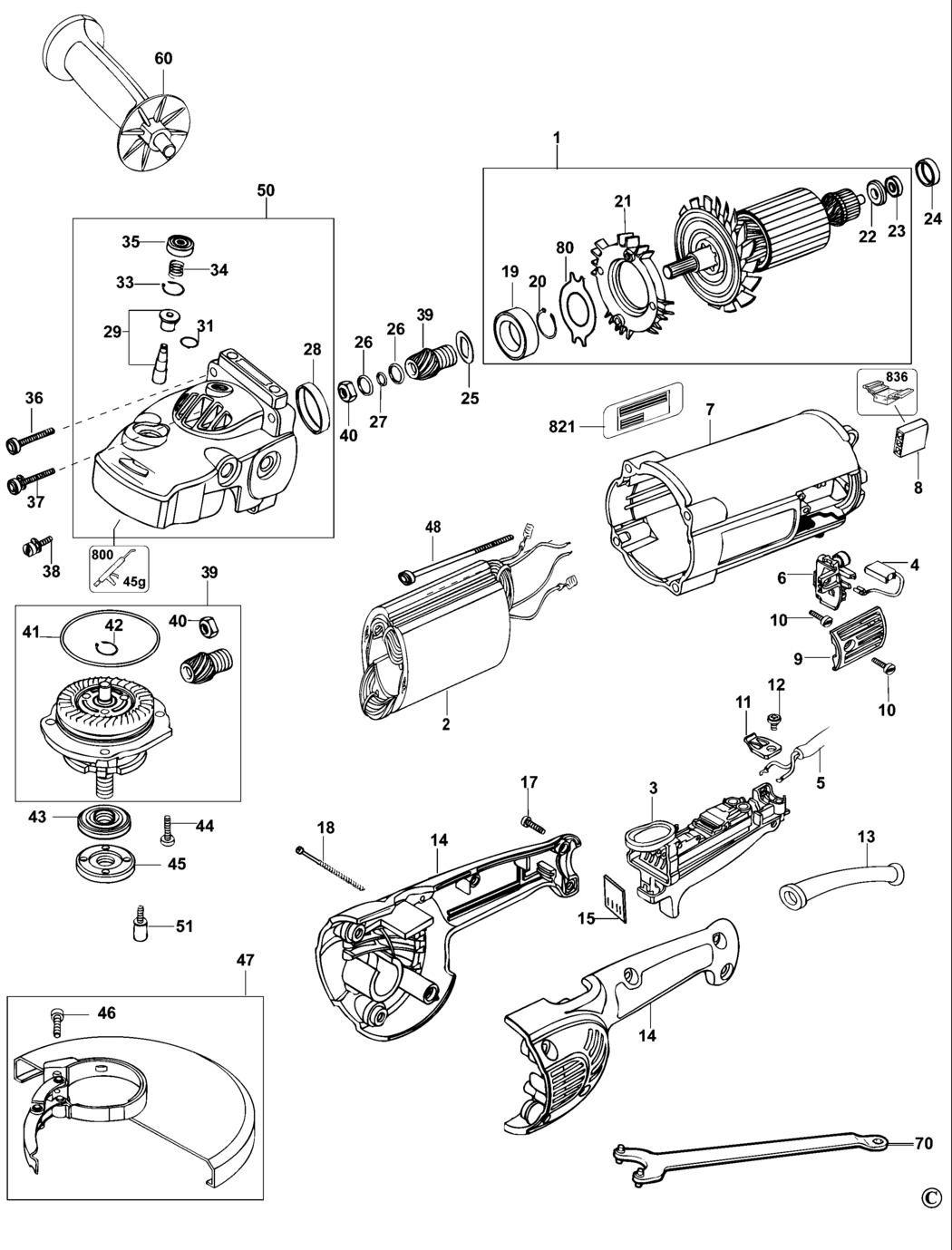

An exploded drawing and spare parts listing for the Dewalt D28411-LX Type 4 Angle Grinder

	Ex VAT	Inc VAT
1 - ARMATURE 115V LX BDE-583530-01.A1 583530-01	-
2 - NO LONGER AVAILABLE LX BDE-000000-00.A30198 000000-00	-
3 - NO LONGER AVAILABLE LX BDE-000000-00.A30199 000000-00	-
4 - BRUSH PAIR 115V LX BDE-585041-01.A7 585041-01	-
5 - CABLE 115V LX BDE-562226-16.A0 562226-16	£36.42	£43.70
6 - BRUSH HOLDER SA BDE-617001-00.A6 617001-00	£7.85	£9.42
7 - FIELD CASE BDE-393239-01.A21 393239-01	£14.57	£17.48
8 - CONNECTOR BDE-604389-00.A4 604389-00	£1.50	£1.80
9 - BRUSH COVER BDE-394387-01.A58 394387-01	£1.50	£1.80
10 - SCREW.TEMP BDE-330019-11.A25 330019-11	£1.50	£1.80
11 - CORD CLAMP BDE-398217-00.A38 398217-00	£1.50	£1.80
12 - SCREW BDE-330019-03.A96 330019-03	£1.50	£1.80
13 - CORD PROTECTOR BDE-947964-01.A53 947964-01	£3.80	£4.56
14 - HANDLE SA BDE-395185-00.A14 395185-00	£14.57	£17.48
15 - SEAL BDE-398720-00.A25 398720-00	£1.42	£1.70
17 - SCREW BDE-330019-32.A87 330019-32	£1.50	£1.80
18 - SCREW BDE-330019-50.A74 330019-50	£1.50	£1.80
19 - BEARING BDE-330003-13.A13 330003-13	£3.80	£4.56
20 - RETAINER BDE-398605-00.A34 398605-00	£1.50	£1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A30200 000000-00	-
22 - SHIELD BDE-393238-00.A60 393238-00	£1.50	£1.80
23 - BEARING BDE-330003-60.A70 330003-60	£2.78	£3.34
24 - SLEEVE INSULATING BDE-609970-00.A89 609970-00	£1.50	£1.80
25 - WASHER BDE-608568-00.A26 608568-00	£1.42	£1.70
26 - WASHER BDE-607502-00.A20 607502-00	£1.50	£1.80
27 - WASHER SPRING BDE-614045-00.A28 614045-00	£1.42	£1.70
28 - SLEEVE BDE-609971-00.A2 609971-00	£1.50	£1.80
29 - REPAIR KIT BDE-496443-00.A34 496443-00	£4.69	£5.63
31 - RING BDE-050049-00.A19 050049-00	£1.50	£1.80
33 - RETAINER BDE-603470-00.A41 603470-00	£1.50	£1.80
34 - SPRING BDE-395029-00.A6 395029-00	£1.50	£1.80
35 - CAP BDE-610999-00.A8 610999-00	£1.50	£1.80
36 - SCREW BDE-330019-26.A14 330019-26	£1.50	£1.80
37 - SCREW BDE-330045-59.A5 330045-59	£1.42	£1.70
38 - SCREW BDE-330045-58.A33 330045-58	£1.42	£1.70
39 - GEARCASE COVER SA BDE-N075444.A4 N075444	£69.63	£83.56
40 - LOCK NUT BDE-609125-00.A25 609125-00	£1.42	£1.70
41 - O RING BDE-397031-00.A38 397031-00	£1.50	£1.80
42 - RETAINER BDE-034109-00.A31 034109-00	£1.42	£1.70
43 - INNER FLANGE BDE-403150-01.A17 403150-01	£4.69	£5.63
44 - SCREW BDE-330045-15.A92 330045-15	£1.50	£1.80
45 - OUTER FLANGE BDE-401678-05.A42 401678-05	£4.69	£5.63
46 - SCREW BDE-606863-00.A49 606863-00	£1.50	£1.80
47 - GUARD SA BDE-N036837.A6 N036837	£19.90	£23.88
48 - SCREW BDE-330019-19.A14 330019-19	£1.50	£1.80
50 - GEARCASE BDE-N075439.A6 N075439	£53.92	£64.70
51 - SCREW BDE-N033051.A92 N033051	£1.50	£1.80
60 - SIDE HANDLE BDE-613777-00.A25 613777-00	£25.70	£30.84
70 - WRENCH PIN BDE-938733.A101 938733	£7.18	£8.62
80 - INSERT BDE-613366-00.A31 613366-00	£1.42	£1.70
800 - GREASE 50 GMS BDE-583534-00.A187 583534-00	£144.10	£172.92
821 - RATING PLATE LX BDE-N071694 N071694	£1.42	£1.70
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A14 559638-99	£24.39	£29.27

Attribute Name	Value
Brand	Dewalt
