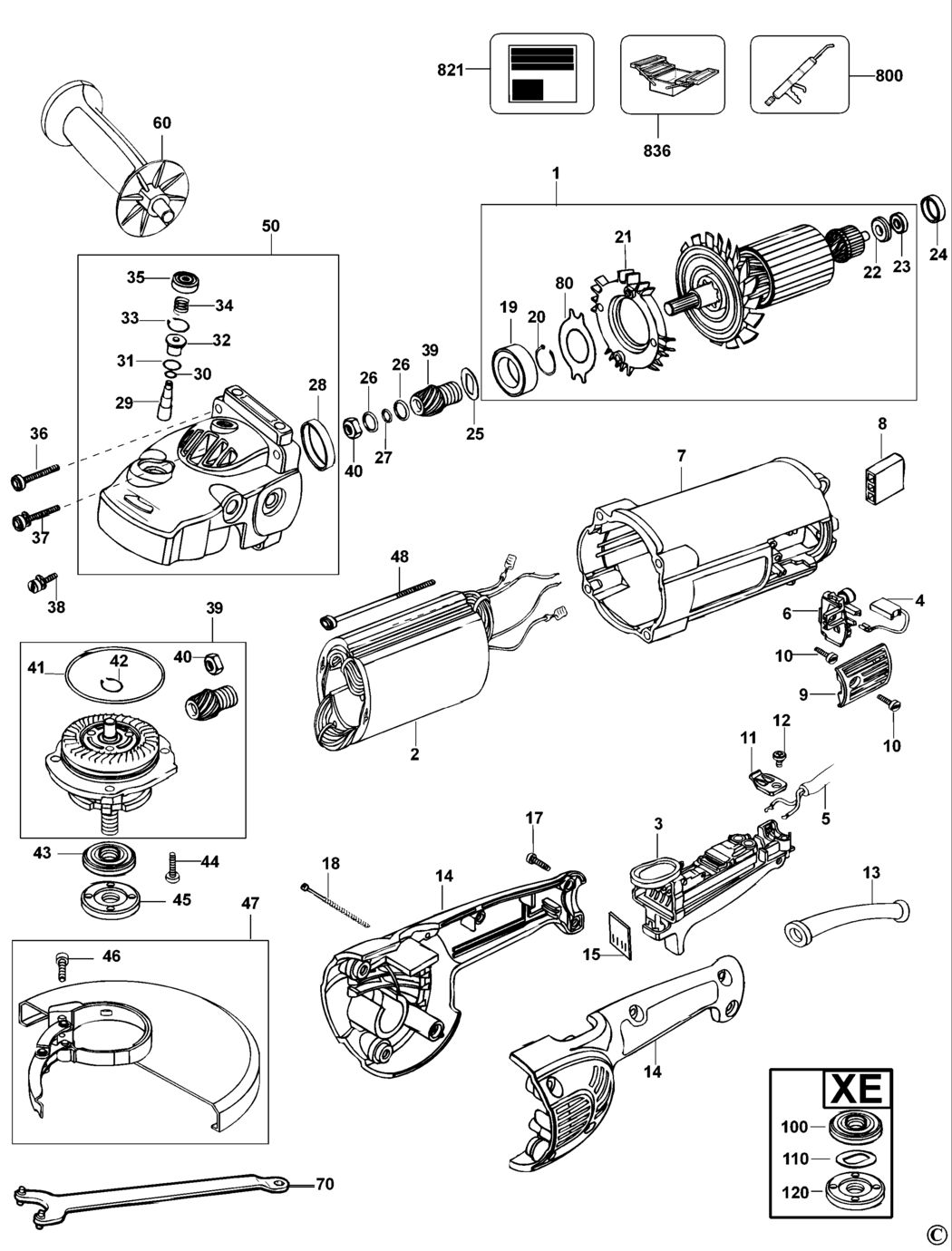

1 - ARMATURE 115V LX
BDE-583530-01.A4
583530-01
|
-
|
|
|
|
1 - ARMATURE 230V GB
BDE-583530-06.A0
583530-06
|
-
|
|
|
|
2 - NO LONGER AVAILABLE LX
BDE-000000-00.A25154
000000-00
|
-
|
|
|
|
2 - FIELD 230V GB
BDE-1005544-05.A1
1005544-05
|
£96.55
|
£115.86
|
|
|
3 - SWITCH SA GB
BDE-393440-03.A1
393440-03
|
£25.05
|
£30.06
|
|
|
3 - SWITCH SA LX
BDE-393440-03.A2
393440-03
|
£25.05
|
£30.06
|
|
|
4 - BRUSH PAIR 115V LX
BDE-585041-01.A3
585041-01
|
-
|
|
|
|
4 - BRUSH PAIR 230V GB
BDE-585041-00.A8
585041-00
|
£7.85
|
£9.42
|
|
|
5 - CABLE 240V GB
BDE-330060-75.A11
330060-75
|
-
|
|
|
|
5 - CABLE 115V LX
BDE-562226-16.A4
562226-16
|
£36.42
|
£43.70
|
|
|
6 - BRUSH HOLDER SA
BDE-617001-00.A12
617001-00
|
£7.85
|
£9.42
|
|
|
7 - FIELD CASE
BDE-393239-01.A28
393239-01
|
£14.57
|
£17.48
|
|
|
8 - CONNECTOR
BDE-604389-00.A15
604389-00
|
£1.50
|
£1.80
|
|
|
9 - BRUSH COVER
BDE-394387-01.A66
394387-01
|
£1.50
|
£1.80
|
|
|
10 - SCREW.TEMP
BDE-330019-11.A37
330019-11
|
£1.50
|
£1.80
|
|
|
11 - CORD CLAMP
BDE-398217-00.A28
398217-00
|
£1.50
|
£1.80
|
|
|
12 - SCREW
BDE-330019-03.A50
330019-03
|
£1.50
|
£1.80
|
|
|
13 - CORD PROTECTOR
BDE-947964-01.A50
947964-01
|
£3.80
|
£4.56
|
|
|
14 - HANDLE SA
BDE-395185-00.A21
395185-00
|
£14.57
|
£17.48
|
|
|
15 - SEAL
BDE-398720-00.A13
398720-00
|
£1.42
|
£1.70
|
|
|
17 - SCREW
BDE-330019-32.A102
330019-32
|
£1.50
|
£1.80
|
|
|
18 - SCREW
BDE-330019-50.A68
330019-50
|
£1.50
|
£1.80
|
|
|
19 - BEARING
BDE-330003-13.A20
330003-13
|
£3.80
|
£4.56
|
|
|
20 - RETAINER
BDE-398605-00.A23
398605-00
|
£1.50
|
£1.80
|
|
|
21 - NO LONGER AVAILABLE
BDE-000000-00.A25155
000000-00
|
-
|
|
|
|
22 - SHIELD
BDE-393238-00.A44
393238-00
|
£1.50
|
£1.80
|
|
|
23 - BEARING
BDE-330003-60.A52
330003-60
|
£2.78
|
£3.34
|
|
|
24 - SLEEVE INSULATING
BDE-609970-00.A69
609970-00
|
£1.50
|
£1.80
|
|
|
25 - WASHER
BDE-608568-00.A30
608568-00
|
£1.42
|
£1.70
|
|
|
26 - WASHER
BDE-607502-00.A30
607502-00
|
£1.50
|
£1.80
|
|
|
27 - WASHER SPRING
BDE-614045-00.A20
614045-00
|
£1.42
|
£1.70
|
|
|
28 - SLEEVE
BDE-609971-00.A21
609971-00
|
£1.50
|
£1.80
|
|
|
29 - REPAIR KIT
BDE-496443-00.A14
496443-00
|
£4.69
|
£5.63
|
|
|
30 - O RING
BDE-603608-00.A7
603608-00
|
£1.50
|
£1.80
|
|
|
31 - RING
BDE-050049-00.A6
050049-00
|
£1.50
|
£1.80
|
|
|
32 - REPAIR KIT
BDE-496443-00.A13
496443-00
|
£4.69
|
£5.63
|
|
|
33 - RETAINER
BDE-603470-00.A31
603470-00
|
£1.50
|
£1.80
|
|
|
34 - SPRING
BDE-395029-00.A17
395029-00
|
£1.50
|
£1.80
|
|
|
35 - CAP
BDE-610999-00.A17
610999-00
|
£1.50
|
£1.80
|
|
|
36 - SCREW
BDE-330019-26.A15
330019-26
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-330045-59.A13
330045-59
|
£1.42
|
£1.70
|
|
|
38 - SCREW
BDE-330045-58.A25
330045-58
|
£1.42
|
£1.70
|
|
|
39 - GEARCASE COVER SA
BDE-583532-00.A12
583532-00
|
-
|
|
|
|
40 - LOCK NUT
BDE-609125-00.A17
609125-00
|
£1.42
|
£1.70
|
|
|
41 - O RING
BDE-397031-00.A45
397031-00
|
£1.50
|
£1.80
|
|
|
42 - RETAINER
BDE-034109-00.A18
034109-00
|
£1.42
|
£1.70
|
|
|
43 - INNER FLANGE LX
BDE-403150-01.A3
403150-01
|
£4.69
|
£5.63
|
|
|
43 - INNER FLANGE GB
BDE-403150-01.A4
403150-01
|
£4.69
|
£5.63
|
|
|
44 - SCREW
BDE-330045-15.A72
330045-15
|
£1.50
|
£1.80
|
|
|
45 - OUTER FLANGE GB
BDE-401678-05.A40
401678-05
|
£4.69
|
£5.63
|
|
|
45 - OUTER FLANGE LX
BDE-401678-05.A41
401678-05
|
£4.69
|
£5.63
|
|
|
46 - SCREW
BDE-606863-00.A35
606863-00
|
£1.50
|
£1.80
|
|
|
47 - GUARD SA
BDE-N036837.A30
N036837
|
£19.90
|
£23.88
|
|
|
48 - SCREW
BDE-330019-19.A42
330019-19
|
£1.50
|
£1.80
|
|
|
50 - GEARCASE
BDE-N075439.A17
N075439
|
£53.92
|
£64.70
|
|
|
60 - SIDE HANDLE
BDE-613777-00.A15
613777-00
|
£25.70
|
£30.84
|
|
|
70 - WRENCH PIN
BDE-938733.A92
938733
|
£7.18
|
£8.62
|
|
|
80 - INSERT
BDE-613366-00.A18
613366-00
|
£1.42
|
£1.70
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A177
583534-00
|
£144.10
|
£172.92
|
|
|
821 - RATING PLATE LX
BDE-569037-00.A5
569037-00
|
£3.80
|
£4.56
|
|
|
821 - RATING PLATE GB
BDE-569037-00.A6
569037-00
|
£3.80
|
£4.56
|
|
|
836 - S.T.TERMINAL EXTRACTOR
BDE-559638-99.A2
559638-99
|
£24.39
|
£29.27
|
|
