Dewalt D28413 Type 3 Angle Grinder Spare Parts

Home Details Reviews Delivery

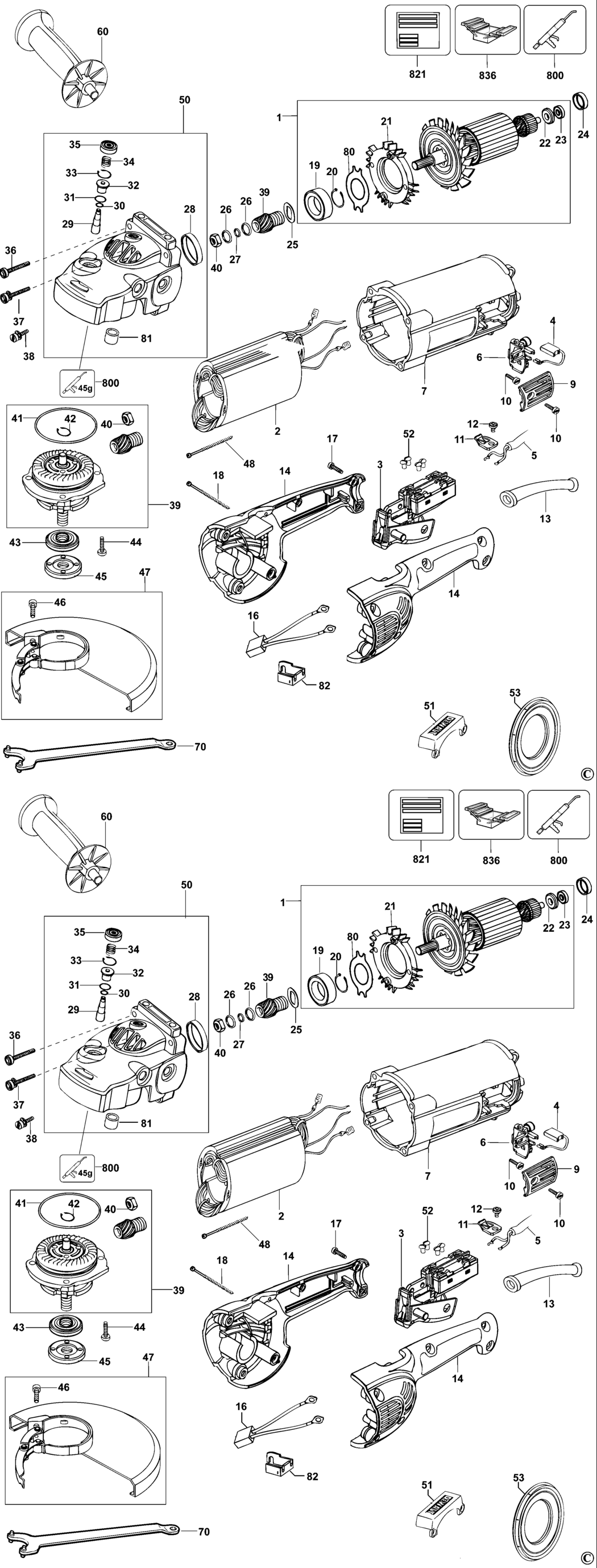

An exploded drawing and spare parts listing for the Dewalt D28413 Type 3 Angle Grinder

	Ex VAT	Inc VAT
2 - FIELD 230V BDE-617004-06.A5 617004-06	£84.42	£101.30
3 - SWITCH SA BDE-N015071.A6 N015071	£14.57	£17.48
4 - BRUSH KIT 230V BDE-N495294.A8 N495294	-
6 - BRUSH HOLDER SA BDE-617001-00.A1 617001-00	£7.85	£9.42
6 - BRUSH HOLDER SA BDE-617001-00.A2 617001-00	£7.85	£9.42
7 - FIELD CASE BDE-393239-00.A6 393239-00	£18.91	£22.69
9 - BRUSH COVER BDE-394387-00.A2 394387-00	£1.50	£1.80
10 - SCREW.TEMP BDE-330019-11.A17 330019-11	£1.50	£1.80
12 - SCREW.TEMP BDE-330019-11.A18 330019-11	£1.50	£1.80
13 - CORD PROTECTOR BDE-604118-00.A9 604118-00	£2.78	£3.34
14 - HANDLE & COVER BDE-636499-00.A11 636499-00	£24.39	£29.27
17 - SCREW BDE-330019-32.A90 330019-32	£1.50	£1.80
17 - SCREW BDE-330019-32.A91 330019-32	£1.50	£1.80
18 - SCREW BDE-330019-50.A71 330019-50	£1.50	£1.80
19 - BEARING BDE-605040-27.A16 605040-27	£4.69	£5.63
19 - BEARING BDE-605040-27.A17 605040-27	£4.69	£5.63
20 - RETAINER BDE-398605-00.A31 398605-00	£1.50	£1.80
20 - RETAINER BDE-398605-00.A32 398605-00	£1.50	£1.80
21 - SPACER BDE-614708-00.A16 614708-00	£5.72	£6.87
22 - SHIELD BDE-393238-00.A53 393238-00	£1.50	£1.80
22 - SHIELD BDE-393238-00.A54 393238-00	£1.50	£1.80
23 - BEARING BDE-N110359.A225 N110359	£3.75	£4.50
23 - BEARING BDE-N110359.A226 N110359	£3.75	£4.50
24 - SLEEVE INSULATING BDE-609970-00.A80 609970-00	£1.50	£1.80
24 - SLEEVE INSULATING BDE-609970-00.A81 609970-00	£1.50	£1.80
25 - WASHER BDE-608568-00.A15 608568-00	£1.42	£1.70
25 - WASHER BDE-608568-00.A16 608568-00	£1.42	£1.70
26 - WASHER BDE-607502-00.A12 607502-00	£1.50	£1.80
26 - WASHER BDE-607502-00.A13 607502-00	£1.50	£1.80
27 - WASHER SPRING BDE-614045-00.A25 614045-00	£1.42	£1.70
27 - WASHER SPRING BDE-614045-00.A26 614045-00	£1.42	£1.70
28 - SLEEVE BDE-609971-00.A10 609971-00	£1.50	£1.80
28 - SLEEVE BDE-609971-00.A11 609971-00	£1.50	£1.80
29 - LOCK PIN BDE-611212-00.A1 611212-00	£1.82	£2.19
29 - REPAIR KIT BDE-496443-00.A32 496443-00	£4.69	£5.63
30 - O RING BDE-603608-00.A15 603608-00	£1.50	£1.80
30 - O RING BDE-603608-00.A16 603608-00	£1.50	£1.80
31 - RING BDE-050049-00.A14 050049-00	£1.50	£1.80
31 - RING BDE-050049-00.A15 050049-00	£1.50	£1.80
32 - SLEEVE BDE-611213-00.A6 611213-00	£4.69	£5.63
32 - REPAIR KIT BDE-496443-00.A31 496443-00	£4.69	£5.63
33 - RETAINER BDE-603470-00.A35 603470-00	£1.50	£1.80
33 - RETAINER BDE-603470-00.A36 603470-00	£1.50	£1.80
34 - SPRING BDE-395029-00.A2 395029-00	£1.50	£1.80
34 - SPRING BDE-395029-00.A3 395029-00	£1.50	£1.80
35 - CAP BDE-610999-00.A2 610999-00	£1.50	£1.80
35 - CAP BDE-610999-00.A3 610999-00	£1.50	£1.80
36 - SCREW BDE-330019-26.A3 330019-26	£1.50	£1.80
36 - SCREW BDE-330019-26.A4 330019-26	£1.50	£1.80
37 - SCREW BDE-330045-70.A4 330045-70	-
38 - SCREW BDE-330045-67.A20 330045-67	£16.03	£19.24
39 - NO LONGER AVAILABLE BDE-000000-00.A29977 000000-00	-
39 - GEARCASE BDE-N120339.A0 N120339	-
40 - LOCK NUT BDE-609125-00.A22 609125-00	£1.42	£1.70
40 - LOCK NUT BDE-609125-00.A23 609125-00	£1.42	£1.70
41 - O RING BDE-397031-00.A28 397031-00	£1.50	£1.80
41 - O RING BDE-397031-00.A29 397031-00	£1.50	£1.80
42 - RETAINER BDE-034109-00.A22 034109-00	£1.42	£1.70
42 - RETAINER BDE-034109-00.A23 034109-00	£1.42	£1.70
43 - INNER FLANGE BDE-403150-01.A11 403150-01	£4.69	£5.63
43 - INNER FLANGE BDE-403150-01.A12 403150-01	£4.69	£5.63
44 - SCREW BDE-330045-15.A89 330045-15	£1.50	£1.80
44 - SCREW BDE-330045-14.A81 330045-14	£1.50	£1.80
45 - OUTER FLANGE BDE-401678-05.A52 401678-05	£4.69	£5.63
45 - OUTER FLANGE BDE-401678-05.A53 401678-05	£4.69	£5.63
46 - SCREW BDE-606863-00.A43 606863-00	£1.50	£1.80
46 - SCREW BDE-606863-00.A44 606863-00	£1.50	£1.80
47 - GUARD SA BDE-N036831.A2 N036831	£17.48	£20.97
47 - GUARD SA BDE-N036831.A3 N036831	£17.48	£20.97
48 - SCREW BDE-330019-19.A19 330019-19	£1.50	£1.80
48 - SCREW BDE-330019-19.A20 330019-19	£1.50	£1.80
51 - BUMPER BDE-620579-00.A6 620579-00	£5.72	£6.87
52 - SCREW BDE-384127-01.A110 384127-01	£1.50	£1.80
53 - BAFFLE BDE-614542-00.A11 614542-00	£1.50	£1.80
53 - BAFFLE BDE-614542-00.A12 614542-00	£1.50	£1.80
60 - SIDE HANDLE BDE-651858-00.A5 651858-00	-
70 - WRENCH PIN BDE-938733.A106 938733	£7.18	£8.62
70 - WRENCH PIN BDE-938733.A107 938733	£7.18	£8.62
80 - INSERT BDE-613366-00.A23 613366-00	£1.42	£1.70
80 - INSERT BDE-613366-00.A24 613366-00	£1.42	£1.70
81 - BEARING NEEDLE BDE-330004-06.A42 330004-06	£1.50	£1.80
81 - BEARING NEEDLE BDE-330004-06.A43 330004-06	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A210 583534-00	£144.10	£172.92
800 - GREASE 50 GMS BDE-583534-00.A211 583534-00	£144.10	£172.92
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A10 559638-99	£24.39	£29.27
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A11 559638-99	£24.39	£29.27

Attribute Name	Value
Brand	Dewalt
