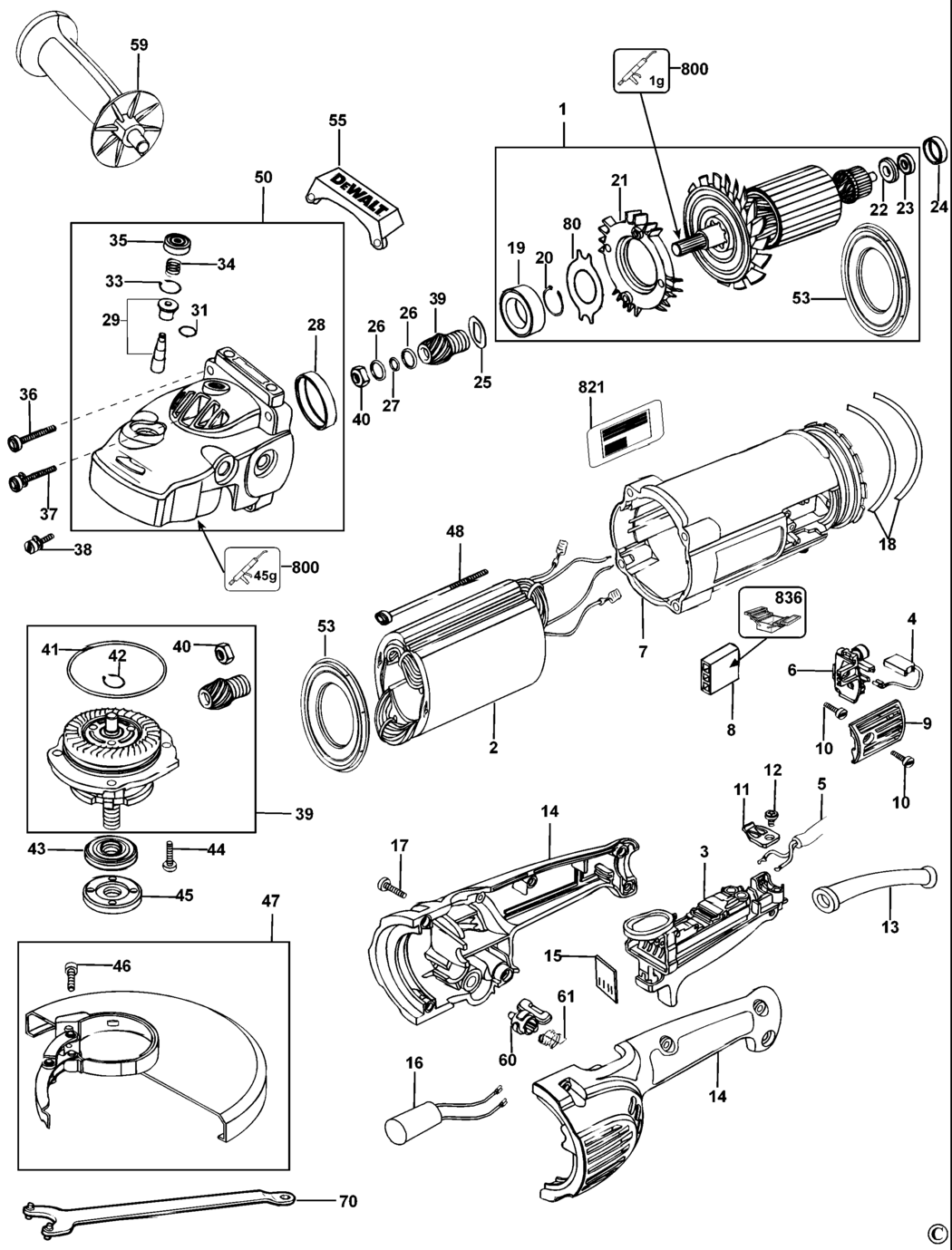

1 - ARMATURE 230V GB
BDE-N022342.A3
N022342
|
£187.30
|
£224.76
|
|
|
2 - FIELD 220V GB
BDE-1005544-04.A0
1005544-04
|
£105.49
|
£126.59
|
|
|
3 - SWITCH SA GB
BDE-393438-00.A10
393438-00
|
£45.14
|
£54.17
|
|
|
4 - BRUSH PAIR 230V GB
BDE-585041-00.A14
585041-00
|
£7.85
|
£9.42
|
|
|
5 - CABLE 240V GB
BDE-330060-75.A2
330060-75
|
-
|
|
|
|
7 - FIELD CASE
BDE-603341-01.A2
603341-01
|
£15.63
|
£18.76
|
|
|
8 - CONNECTOR
BDE-604389-00.A18
604389-00
|
£1.50
|
£1.80
|
|
|
9 - BRUSH COVER
BDE-394387-01.A26
394387-01
|
£1.50
|
£1.80
|
|
|
10 - SCREW.TEMP
BDE-330019-11.A66
330019-11
|
£1.50
|
£1.80
|
|
|
11 - CORD CLAMP
BDE-398217-00.A16
398217-00
|
£1.50
|
£1.80
|
|
|
12 - SCREW
BDE-330019-03.A128
330019-03
|
£1.50
|
£1.80
|
|
|
13 - CORD PROTECTOR
BDE-947964-01.A93
947964-01
|
£3.80
|
£4.56
|
|
|
14 - HANDLE SA
BDE-394399-00.A6
394399-00
|
£15.63
|
£18.76
|
|
|
15 - SEAL
BDE-398720-00.A4
398720-00
|
£1.42
|
£1.70
|
|
|
16 - CAPACITOR GB
BDE-397257-01.A13
397257-01
|
£9.41
|
£11.29
|
|
|
17 - SCREW
BDE-330019-32.A177
330019-32
|
£1.50
|
£1.80
|
|
|
18 - SEAL
BDE-398728-00.A8
398728-00
|
£1.42
|
£1.70
|
|
|
19 - BEARING
BDE-330003-13.A46
330003-13
|
£3.80
|
£4.56
|
|
|
20 - RETAINER
BDE-398605-00.A49
398605-00
|
£1.50
|
£1.80
|
|
|
21 - NO LONGER AVAILABLE
BDE-000000-00.A63279
000000-00
|
-
|
|
|
|
22 - SHIELD
BDE-393238-00.A82
393238-00
|
£1.50
|
£1.80
|
|
|
23 - BEARING
BDE-330003-60.A33
330003-60
|
£2.78
|
£3.34
|
|
|
24 - SLEEVE INSULATING
BDE-609970-00.A40
609970-00
|
£1.50
|
£1.80
|
|
|
25 - WASHER
BDE-608568-00.A3
608568-00
|
£1.42
|
£1.70
|
|
|
26 - WASHER
BDE-607502-00.A39
607502-00
|
£1.50
|
£1.80
|
|
|
27 - WASHER SPRING
BDE-614045-00.A3
614045-00
|
£1.42
|
£1.70
|
|
|
28 - SLEEVE
BDE-609971-00.A35
609971-00
|
£1.50
|
£1.80
|
|
|
29 - REPAIR KIT
BDE-496443-00.A47
496443-00
|
£4.69
|
£5.63
|
|
|
31 - RING
BDE-050049-00.A35
050049-00
|
£1.50
|
£1.80
|
|
|
33 - RETAINER
BDE-603470-00.A13
603470-00
|
£1.50
|
£1.80
|
|
|
34 - SPRING
BDE-395029-00.A33
395029-00
|
£1.50
|
£1.80
|
|
|
35 - CAP
BDE-610999-00.A32
610999-00
|
£1.50
|
£1.80
|
|
|
36 - SCREW
BDE-330019-26.A39
330019-26
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-330045-59.A22
330045-59
|
£1.42
|
£1.70
|
|
|
38 - SCREW
BDE-330045-58.A16
330045-58
|
£1.42
|
£1.70
|
|
|
39 - GEARCASE COVER SA
BDE-583532-00.A8
583532-00
|
-
|
|
|
|
40 - LOCK NUT
BDE-609125-00.A42
609125-00
|
£1.42
|
£1.70
|
|
|
41 - O RING
BDE-397031-00.A13
397031-00
|
£1.50
|
£1.80
|
|
|
42 - RETAINER
BDE-034109-00.A9
034109-00
|
£1.42
|
£1.70
|
|
|
43 - INNER FLANGE GB
BDE-403150-01.A44
403150-01
|
£4.69
|
£5.63
|
|
|
44 - SCREW
BDE-330045-15.A164
330045-15
|
£1.50
|
£1.80
|
|
|
45 - OUTER FLANGE GB
BDE-401678-05.A13
401678-05
|
£4.69
|
£5.63
|
|
|
46 - SCREW
BDE-606863-00.A26
606863-00
|
£1.50
|
£1.80
|
|
|
47 - GUARD SA
BDE-N036837.A27
N036837
|
£19.90
|
£23.88
|
|
|
48 - SCREW
BDE-330019-34.A38
330019-34
|
£1.50
|
£1.80
|
|
|
50 - GEARCASE
BDE-N075439.A23
N075439
|
£53.92
|
£64.70
|
|
|
53 - BAFFLE
BDE-614542-00.A26
614542-00
|
£1.50
|
£1.80
|
|
|
55 - BUMPER
BDE-620579-00.A2
620579-00
|
£5.72
|
£6.87
|
|
|
59 - SIDE HANDLE
BDE-613777-00.A29
613777-00
|
£25.70
|
£30.84
|
|
|
60 - LATCH
BDE-616318-00.A6
616318-00
|
£2.71
|
£3.25
|
|
|
61 - SPRING
BDE-612862-00.A2
612862-00
|
£1.42
|
£1.70
|
|
|
70 - WRENCH PIN
BDE-938733.A33
938733
|
£7.18
|
£8.62
|
|
|
80 - INSERT
BDE-613366-00.A4
613366-00
|
£1.42
|
£1.70
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A263
583534-00
|
£144.10
|
£172.92
|
|
|
836 - S.T.TERMINAL EXTRACTOR
BDE-559638-99.A32
559638-99
|
£24.39
|
£29.27
|
|
