Dewalt DC725K Type 1 Cordless Drill Spare Parts

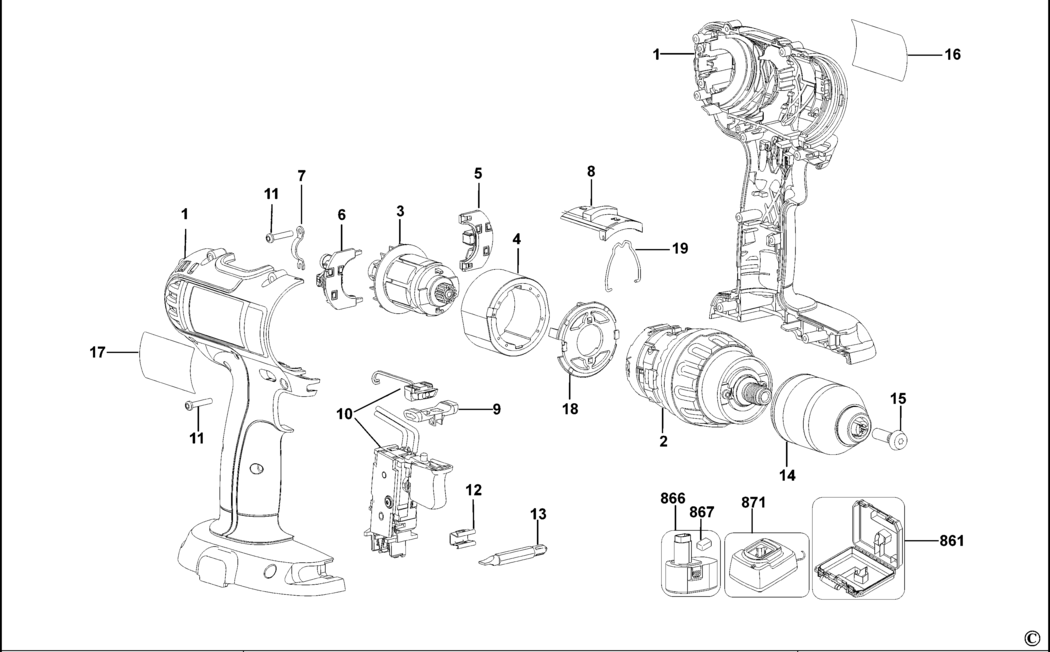

An exploded drawing and spare parts listing for the Dewalt DC725K Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-640567-03 640567-03	-
2 - TRANSMISSION ASSEMBLY inc 18 19 BDE-643127-00.A0 643127-00	-
3 - ARMATURE SA BDE-640548-00.A1 640548-00	-
4 - MAGNET SA BDE-N039821.A1 N039821	-
7 - CLAMP BDE-645373-00.A19 645373-00	£1.50	£1.80
8 - SLIDER BDE-656309-00.A15 656309-00	-
9 - REVERSER BDE-642891-00.A28 642891-00	£1.42	£1.70
11 - SCREW BDE-682211-00.A126 682211-00	£1.50	£1.80
12 - HOLDER BDE-148354-03.A347 148354-03	£1.50	£1.80
13 - BIT SCREWDRIVER BDE-607918-41.A19 607918-41	£1.50	£1.80
14 - CHUCK KEYLESS BDE-330075-73.A1 330075-73	-
15 - SCREW BDE-605256-02.A30 605256-02	£1.50	£1.80
16 - IDENTITY LABEL BDE-650190-00.A0 650190-00	£1.50	£1.80
18 - ADAPTOR BDE-632733-00.A35 632733-00	£1.50	£1.80
19 - SPRING CLIP BDE-391896-00.A44 391896-00	£1.50	£1.80
861 - KITBOX BDE-652211-00.A27 652211-00	£30.08	£36.10
867 - CAP BDE-645221-00.A90 645221-00	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
