Dewalt DC727K Type 10 Cordless Drill 12v Nicad Spare Parts

Home Details Reviews Delivery

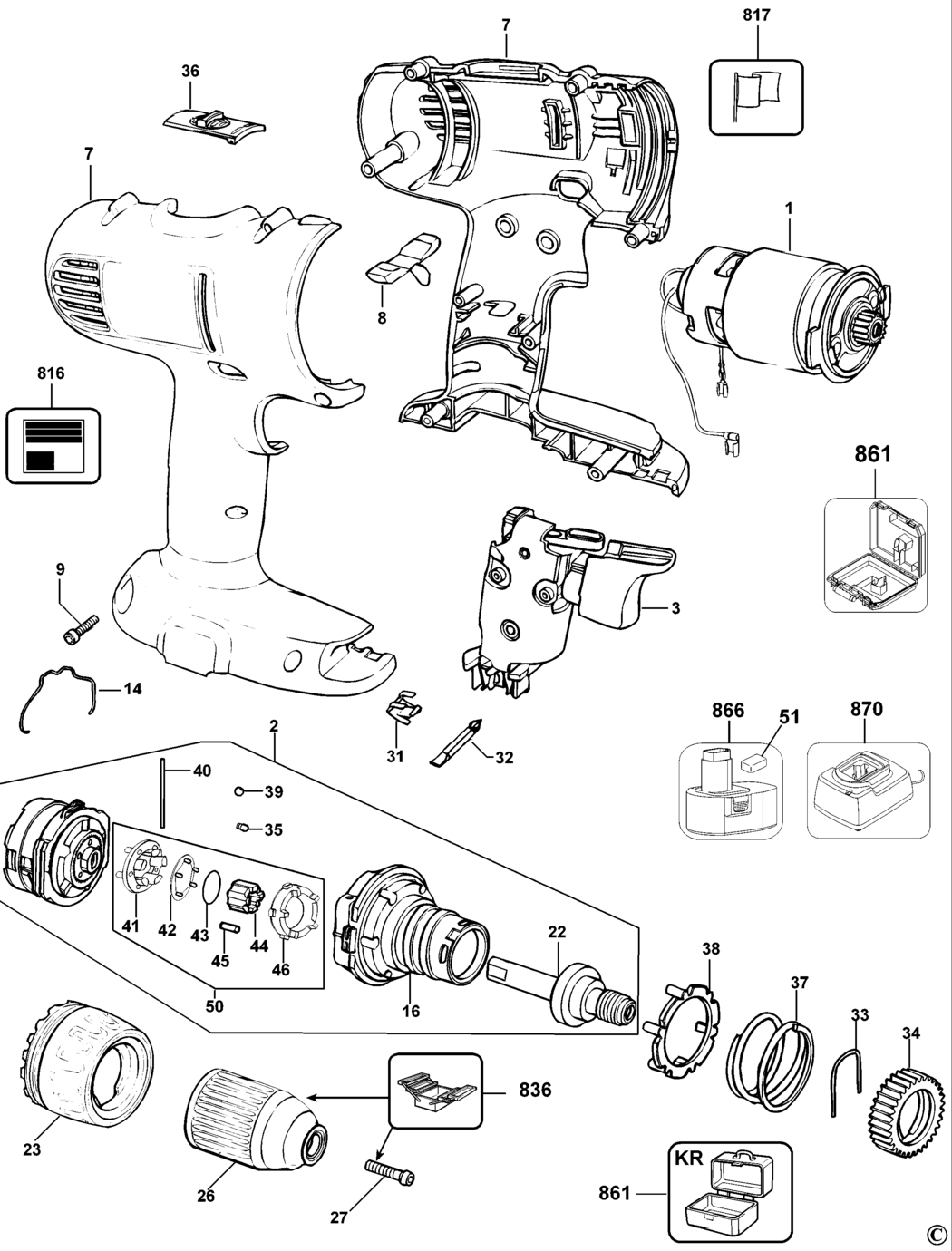

An exploded drawing and spare parts listing for the Dewalt DC727K Type 10 Cordless Drill 12v Nicad

	Ex VAT	Inc VAT
1 - MOTOR & PINION BDE-579731-00.A1 579731-00	-
2 - GEARBOX SA BDE-579730-01.A2 579730-01	-
3 - SWITCH SA BDE-N034934.A3 N034934	-
7 - HOUSING PAIR BDE-590261-02.A1 590261-02	£18.42	£22.10
8 - SLIDER BDE-623997-00.A11 623997-00	-
9 - SCREW BDE-682211-00.A401 682211-00	£1.50	£1.80
14 - SPRING CLIP BDE-391896-00.A15 391896-00	£1.50	£1.80
16 - NO LONGER AVAILABLE BDE-000000-00.A92335 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A92336 000000-00	-
23 - COLLAR BDE-618335-00.A8 618335-00	£5.72	£6.87
26 - CHUCK 10MM BDE-330075-60.A4 330075-60	£51.90	£62.28
27 - SCREW BDE-605256-02.A250 605256-02	£1.50	£1.80
31 - HOLDER BDE-148354-03.A85 148354-03	£1.50	£1.80
32 - BIT PHILLIPS BDE-297757-02.A140 297757-02	£1.82	£2.19
33 - CLIP BDE-798959-00.A97 798959-00	£1.82	£2.19
34 - ADJUSTER BDE-391911-00.A10 391911-00	£1.42	£1.70
35 - DETENT BDE-326467-00.A313 326467-00	£1.50	£1.80
36 - SLIDER SA BDE-392086-01SV.A1 392086-01SV	£37.35	£44.82
37 - SPRING BDE-391912-00.A8 391912-00	£1.42	£1.70
38 - PLATE BDE-397303-00.A5 397303-00	£7.18	£8.62
39 - BALL BDE-386690-00.A101 386690-00	£1.50	£1.80
40 - PIN BDE-392094-00.A0 392094-00	£1.42	£1.70
41 - NO LONGER AVAILABLE BDE-000000-00.A92337 000000-00	-
42 - CAGE BDE-624164-00.A3 624164-00	£1.42	£1.70
43 - SEAL BDE-061145-00.A15 061145-00	£1.50	£1.80
44 - NO LONGER AVAILABLE BDE-000000-00.A92338 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A92339 000000-00	-
46 - LOCK BDE-621211-00.A4 621211-00	-
50 - SPINDLE LOCK BDE-590263-00.A1 590263-00	-
51 - SAFETY CAP BDE-608522-00.A6 608522-00	£1.50	£1.80
816 - RATING PLATE GB BDE-N044726 N044726	-
817 - BRAND LABEL BDE-395657-00.A2 395657-00	£1.50	£1.80
836 - S.T.CHUCK REMOVAL JIG BDE-559655-99.A3 559655-99	£34.00	£40.80
861 - KITBOX BDE-652211-01.A6 652211-01	£30.08	£36.10
866 - NO LONGER AVAILABLE DC727KA GB BDE-000000-00.A92340 000000-00	-
870 - CHARGER 7.2V - 18V DC727KA GB BDE-572576-00.A147 572576-00	£110.62	£132.74

Attribute Name	Value
Brand	Dewalt
