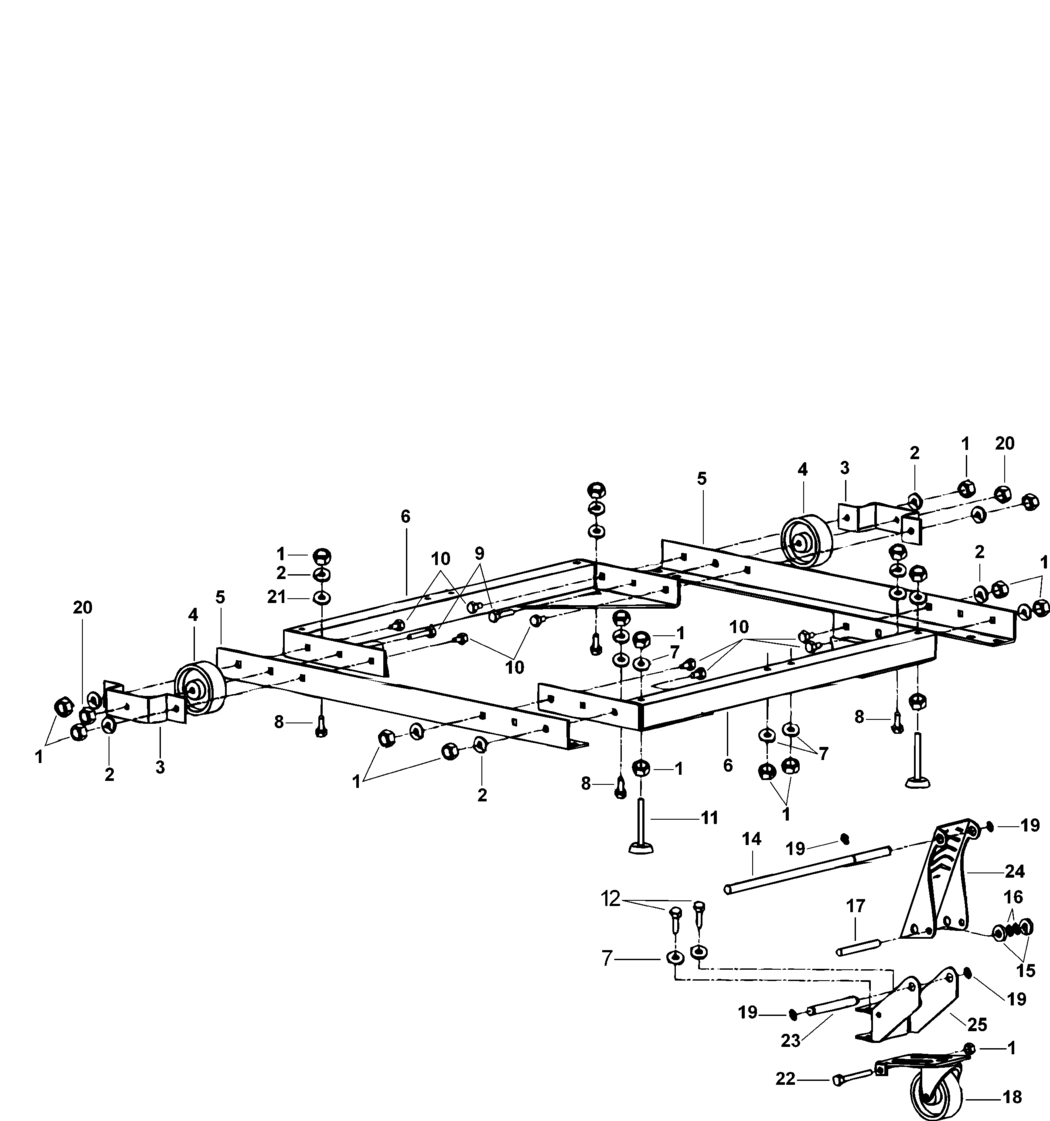

1 - NUT
BDE-330015-03.A82
330015-03
|
£1.50
|
£1.80
|
|
|
2 - WASHER LOCK
BDE-429898-05
429898-05
|
£1.42
|
£1.70
|
|
|
3 - BRACKET
BDE-429898-01
429898-01
|
£7.01
|
£8.41
|
|
|
4 - WHEEL
BDE-429898-02
429898-02
|
£4.58
|
£5.49
|
|
|
5 - BRACE
BDE-429898-03
429898-03
|
£18.42
|
£22.10
|
|
|
6 - FRAME
BDE-429898-04
429898-04
|
£43.02
|
£51.63
|
|
|
7 - WASHER
BDE-330016-03.A38
330016-03
|
£1.50
|
£1.80
|
|
|
8 - CARRIAGE BOLT
BDE-429898-06
429898-06
|
£1.42
|
£1.70
|
|
|
9 - BOLT
BDE-429898-07
429898-07
|
£1.42
|
£1.70
|
|
|
10 - CARRIAGE BOLT
BDE-98130-20.A0
98130-20
|
£1.42
|
£1.70
|
|
|
11 - FOOT
BDE-429898-08.A0
429898-08
|
£2.21
|
£2.65
|
|
|
12 - BOLT
BDE-429898-09
429898-09
|
£1.42
|
£1.70
|
|
|
14 - ROD
BDE-429898-12
429898-12
|
£5.72
|
£6.87
|
|
|
15 - ROLLER
BDE-429898-13
429898-13
|
£5.72
|
£6.87
|
|
|
16 - RETAINING PLATE
BDE-429898-14
429898-14
|
£1.42
|
£1.70
|
|
|
17 - PIN
BDE-429898-15
429898-15
|
£4.58
|
£5.49
|
|
|
18 - WHEEL SA
BDE-429898-16
429898-16
|
£15.63
|
£18.76
|
|
|
19 - RETAINER
BDE-429898-17
429898-17
|
£1.42
|
£1.70
|
|
|
20 - NUT
BDE-429898-00.A2
429898-00
|
£1.50
|
£1.80
|
|
|
21 - WASHER
BDE-429898-11
429898-11
|
£1.42
|
£1.70
|
|
|
22 - BOLT
BDE-429898-18
429898-18
|
£1.42
|
£1.70
|
|
|
23 - PIN
BDE-429898-19
429898-19
|
£1.42
|
£1.70
|
|
|
24 - PEDAL
BDE-429898-20
429898-20
|
£11.87
|
£14.24
|
|
|
25 - MOUNTING BRACKET
BDE-429898-21
429898-21
|
£10.57
|
£12.68
|
|
