Dewalt DPN1850PP Type 1 Brad Nailer 18 Gauge Spare Parts

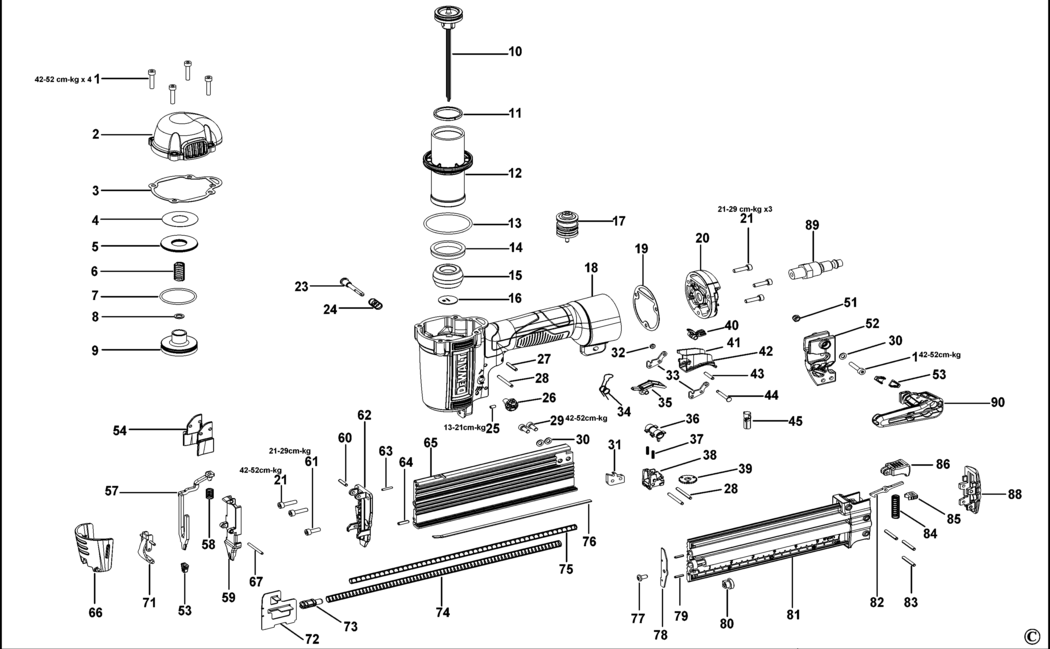

An exploded drawing and spare parts listing for the Dewalt DPN1850PP Type 1 Brad Nailer 18 Gauge

	Ex VAT	Inc VAT
1 - SCREW BDE-182237.A3 182237	£1.50	£1.80
2 - CAP BDE-9R205670 9R205670	£17.48	£20.97
3 - GASKET BDE-9R208913 9R208913	£2.78	£3.34
4 - PLATE BDE-N905958.A5 N905958	£1.51	£1.81
5 - SEAL BDE-180446.A5 180446	£1.50	£1.80
6 - SPRING BDE-180447.A9 180447	£1.50	£1.80
7 - O RING BDE-180448.A6 180448	£1.50	£1.80
8 - WASHER BDE-180449.A5 180449	£1.50	£1.80
9 - BODY BDE-180450-S.A6 180450-S	£1.50	£1.80
10 - PISTON SA BDE-180451.A1 180451	£10.85	£13.02
11 - PISTON RING BDE-N905972.A3 N905972	£2.26	£2.71
12 - CYLINDER BDE-180458.A5 180458	£2.78	£3.34
13 - O RING BDE-180459.A3 180459	£1.50	£1.80
14 - SEAL BDE-180460.A7 180460	£1.50	£1.80
15 - BUMPER BDE-180461.A3 180461	£1.50	£1.80
16 - GUIDE BDE-N906034.A4 N906034	£1.50	£1.80
17 - VALVE BDE-9R205626.A0 9R205626	£12.17	£14.60
19 - GASKET BDE-180463.A3 180463	£1.50	£1.80
20 - CAP BDE-180465.A9 180465	£5.88	£7.06
21 - SCREW BDE-MSC4070-16.A8 MSC4070-16	£1.50	£1.80
23 - PIN BDE-9R195255.A1 9R195255	£2.26	£2.71
24 - SPRING BDE-180481.A12 180481	£1.50	£1.80
25 - GRUB SCREW BDE-9R198788.A7 9R198788	£1.50	£1.80
26 - BUTTON BDE-9R208907.A0 9R208907	£1.50	£1.80
27 - SPIROL PIN BDE-107583.A2 107583	£1.50	£1.80
28 - PIN BDE-174345.A9 174345	£1.50	£1.80
29 - SCREW BDE-MSC4070-10.A22 MSC4070-10	£1.50	£1.80
30 - WASHER BDE-N905878.A9 N905878	-
31 - BACKPLATE BDE-180500.A5 180500	£1.50	£1.80
32 - GROMMET BDE-391814-C3D1.A0 391814-C3D1	£1.50	£1.80
33 - BRACKET BDE-9R201812.A0 9R201812	£1.50	£1.80
34 - SPRING BDE-9R205607.A0 9R205607	£1.50	£1.80
35 - ROCKER BDE-9R205614.A0 9R205614	£7.18	£8.62
36 - PAWL BDE-9R201813.A7 9R201813	£5.88	£7.06
37 - SPRING BDE-9R201809.A7 9R201809	£1.50	£1.80
38 - GUIDE BDE-9R198774.A2 9R198774	£1.50	£1.80
39 - WHEEL ADJUSTER BDE-9R203952.A2 9R203952	£1.50	£1.80
40 - ROCKER BDE-9R205615.A1 9R205615	£1.50	£1.80
41 - TRIGGER BDE-9R205611.A0 9R205611	£7.18	£8.62
42 - TRIGGER BDE-9R205608.A1 9R205608	£3.30	£3.96
43 - PIN BDE-181920.A0 181920	£1.50	£1.80
44 - PIN BDE-9R196682.A6 9R196682	£1.50	£1.80
45 - CONTACT SA BDE-9R201814.A0 9R201814	£10.85	£13.02
51 - NUT M4 BDE-MHE4070-100.A14 MHE4070-100	£1.50	£1.80
52 - BRACKET BDE-9R196726.A0 9R196726	£2.78	£3.34
53 - FOOT BDE-9R208924 9R208924	£1.50	£1.80
54 - COVER BDE-9R203845 9R203845	£1.50	£1.80
57 - TRIP SA BDE-9R196686.A0 9R196686	£7.18	£8.62
58 - SPRING BDE-9R207509.A2 9R207509	£1.50	£1.80
59 - DOOR BDE-9R196725.A1 9R196725	£19.90	£23.88
60 - ROLLPIN BDE-192046.A3 192046	£1.50	£1.80
61 - SCREW BDE-MSC4070-12.A14 MSC4070-12	£1.50	£1.80
62 - NOSE BDE-9R196719.A1 9R196719	£24.39	£29.27
63 - PIN BDE-180490.A6 180490	£1.50	£1.80
64 - PIN BDE-MPG030012.A32 MPG030012	£1.50	£1.80
65 - MAGAZINE BDE-9R196743 9R196743	£19.90	£23.88
66 - COVER BDE-9R203842 9R203842	£1.50	£1.80
67 - SPIROL PIN BDE-195327.A3 195327	£1.50	£1.80
71 - LATCH BDE-9R196742.A0 9R196742	£9.41	£11.29
72 - PUSHER BDE-9R196677.A2 9R196677	£1.82	£2.19
73 - PUSHER BDE-9R208925.A0 9R208925	£18.91	£22.69
74 - SPRING BDE-180495.A1 180495	£1.50	£1.80
75 - SPRING BDE-180496.A4 180496	£1.50	£1.80
76 - GUIDE BDE-180497.A0 180497	£1.50	£1.80
77 - SCREW BDE-9R196691.A2 9R196691	£1.50	£1.80
78 - PLATE BDE-9R196737.A2 9R196737	£1.50	£1.80
79 - PIN BDE-110071.A4 110071	£1.50	£1.80
80 - NUT BDE-180238.A3 180238	£1.50	£1.80
81 - MAGAZINE BDE-180221.A0 180221	£16.03	£19.24
82 - LATCH BDE-180501.A0 180501	£1.50	£1.80
83 - PIN BDE-180503.A1 180503	£1.50	£1.80
84 - SPRING BDE-180502.A6 180502	£1.50	£1.80
85 - SUPPORT BDE-180319.A1 180319	£1.50	£1.80
86 - COVER BDE-9R208926.A1 9R208926	£1.50	£1.80
88 - END CAP BDE-175665.A6 175665	£1.50	£1.80
89 - ADAPTOR BDE-159977.A21 159977	£1.50	£1.80
90 - HOOK BDE-182272.A4 182272	£3.80	£4.56

Attribute Name	Value
Brand	Dewalt
